Shift Lever Assembly: Disassembly

REMOVE SHIFT LEVER GUIDE HOUSING

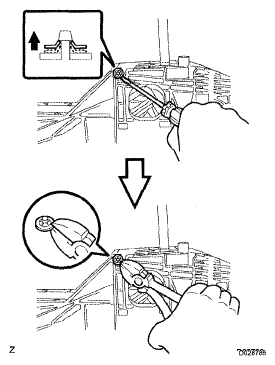

1. Using a screwdriver, pry up the No. 1 shift lever nut.
2. Using a screwdriver, pry up the floor shift lever lock pin.
3. Remove the shift liver guide housing.
REMOVE SHIFT LOCK CONTROL ECU SUB-ASSEMBLY

Fig 3: Identifying Shift Lock Control ECU Sub-Assembly Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the 2 screws and shift lock control ECU sub-assembly.
REMOVE SHIFTING LEVER LINK

Fig 4: Identifying Shift Lever Link & Torsion Spring
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the shift lever link and torsion spring from the shift lock control ECU sub-assembly.
REMOVE FLOOR SHIFT LEVER PIN

Fig 5: Identifying No. 2 Detent Rod & Spring
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the No. 2 detent rod and spring from control shift lever.

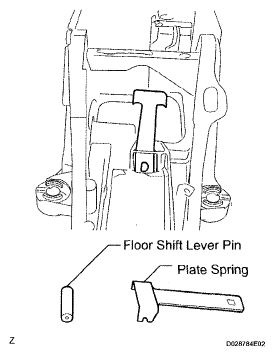

2. Remove the plate spring and floor shift lever pin from the shift lever plate sub-assembly.
REMOVE NO. 1 SHIFT LEVER INSERT

Fig 7: Identifying No. 1 Shift Liver Insert
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the No. 1 shift liver insert from the floor shift assembly.
