Shift Lever Assembly: Reassembly

  1. INSTALL NO. 1 SHIFT LEVER INSERT
    Fig 1: Identifying No. 1 Shift Liver Insert
    G05261353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the No. 1 shift lever insert to the floor shift assembly.
  2. INSTALL FLOOR SHIFT LEVER PIN
    1. Apply MP grease to the No. 2 detent rod and spring.
      2. Fig 2: Identifying No. 2 Detent Rod & Spring
      G05261357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the No. 2 detent rod and spring on the control shift lever.
    3. Apply MP grease to the floor shift lever pin.

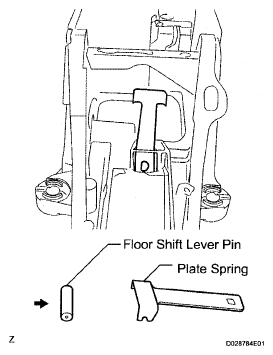

      4. Fig 3: Identifying Floor Shift Lever Pin & Plate Spring
      G05261358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the floor shift lever pin on the plate spring.
  3. INSTALL SHIFTING LEVER LINK
    1. Apply MP grease to the shift lever link and torsion spring.
      2. Fig 4: Identifying Shift Lever Link & Torsion Spring
      G05261359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the shift lever link and torsion spring on the shift lock control ECU sub-assembly.
  4. INSTALL SHIFT LOCK CONTROL ECU SUB-ASSEMBLY
    Fig 5: Identifying Sift Lock Control ECU Sub-Assembly & Screws
    G05261349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the sift lock control ECU sub-assembly with the 2 screws.
  5. INSTALL SHIFT LEVER GUIDE HOUSING
    Fig 6: Identifying Shift Lever Lock Pin
    G05261361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the shift lever guide housing with the shift lever lock pin and a new No. 1 shift lever nut.
