Speed Sensor: Inspection

  1. INSPECT SPEED SENSOR (NT SENSOR)
    Fig 1: Identifying Speed Sensor Connector Terminals (NT)
    G04963354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the speed sensor connector from the transmission.
    2. Measure the resistance according to the value (s) in the table below.

    Standard resistance

    TESTER CONNECTION SPECIFIED CONDITION TABLE

    Tester Connection Specified Condition 20°C (68°F)
    1 - 2 560 to 680 Ω
  2. INSPECT SPEED SENSOR (SP2 SENSOR)

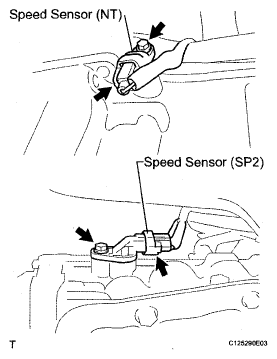

    Fig 2: Identifying Speed Sensor (SP2 & NT)
    G05261307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the speed sensor connector from the transmission.
    2. Measure the resistance according to the value (s) in the table below.

    Standard resistance

    TESTER CONNECTION SPECIFIED CONDITION TABLE

    Tester Connection Specified Condition 20°C (68°F)
    1 - 2 560 to 680 Ω
