Speed Sensor: Removal

  1. REMOVE SPEED SENSOR

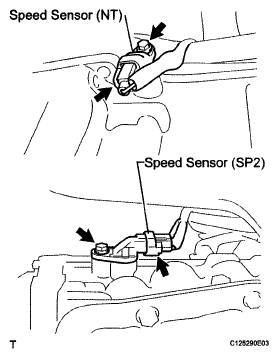

    Fig 1: Identifying Speed Sensor Bolt
    G04963353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the connector.
    2. Remove the bolt and speed sensor.
