Engine Unit: Components

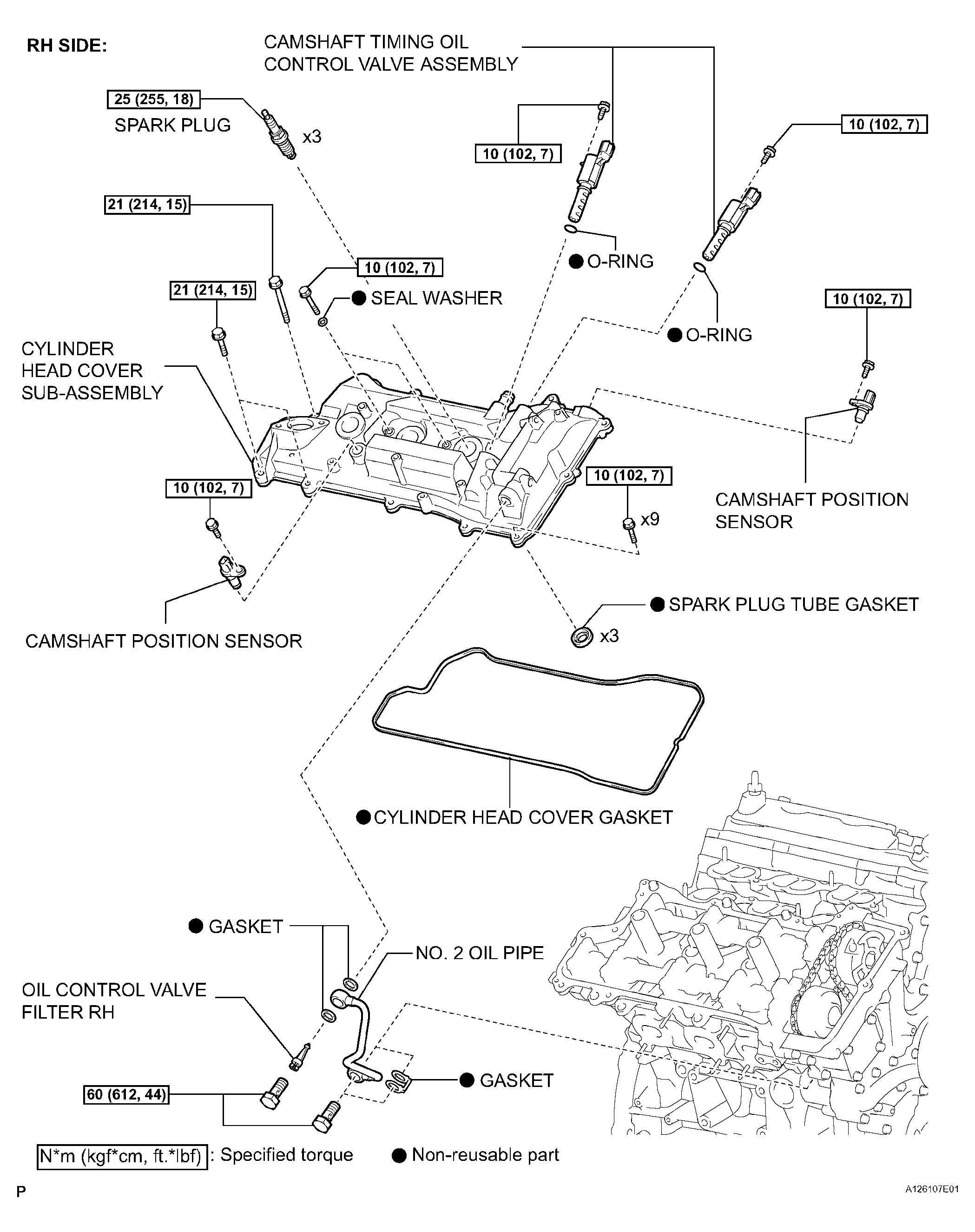

Fig 1: Engine Unit Components (1 Of 12) With Torque Specifications
G04044128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

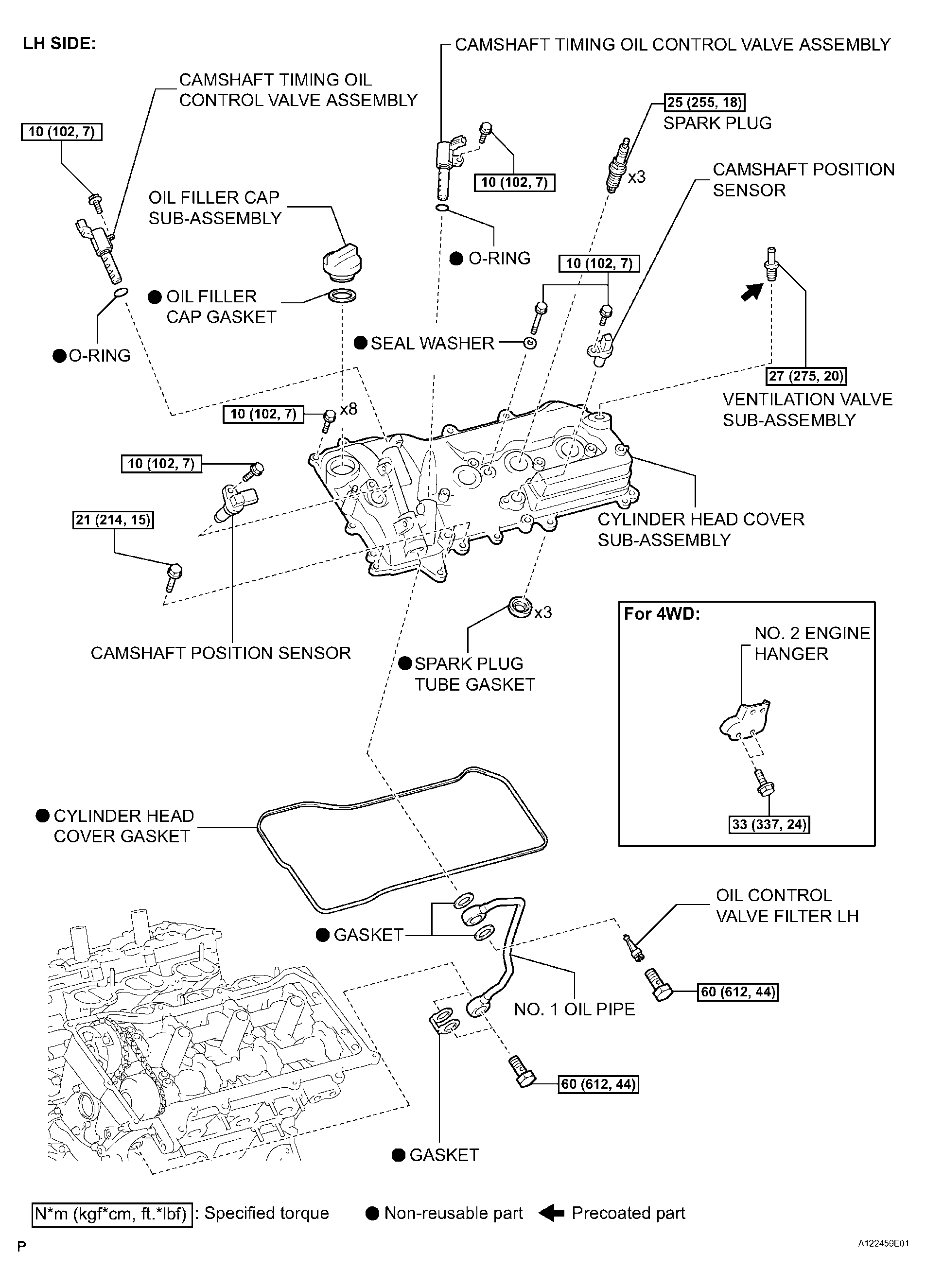

Fig 2: Engine Unit Components (2 Of 12) With Torque Specifications
G04044129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

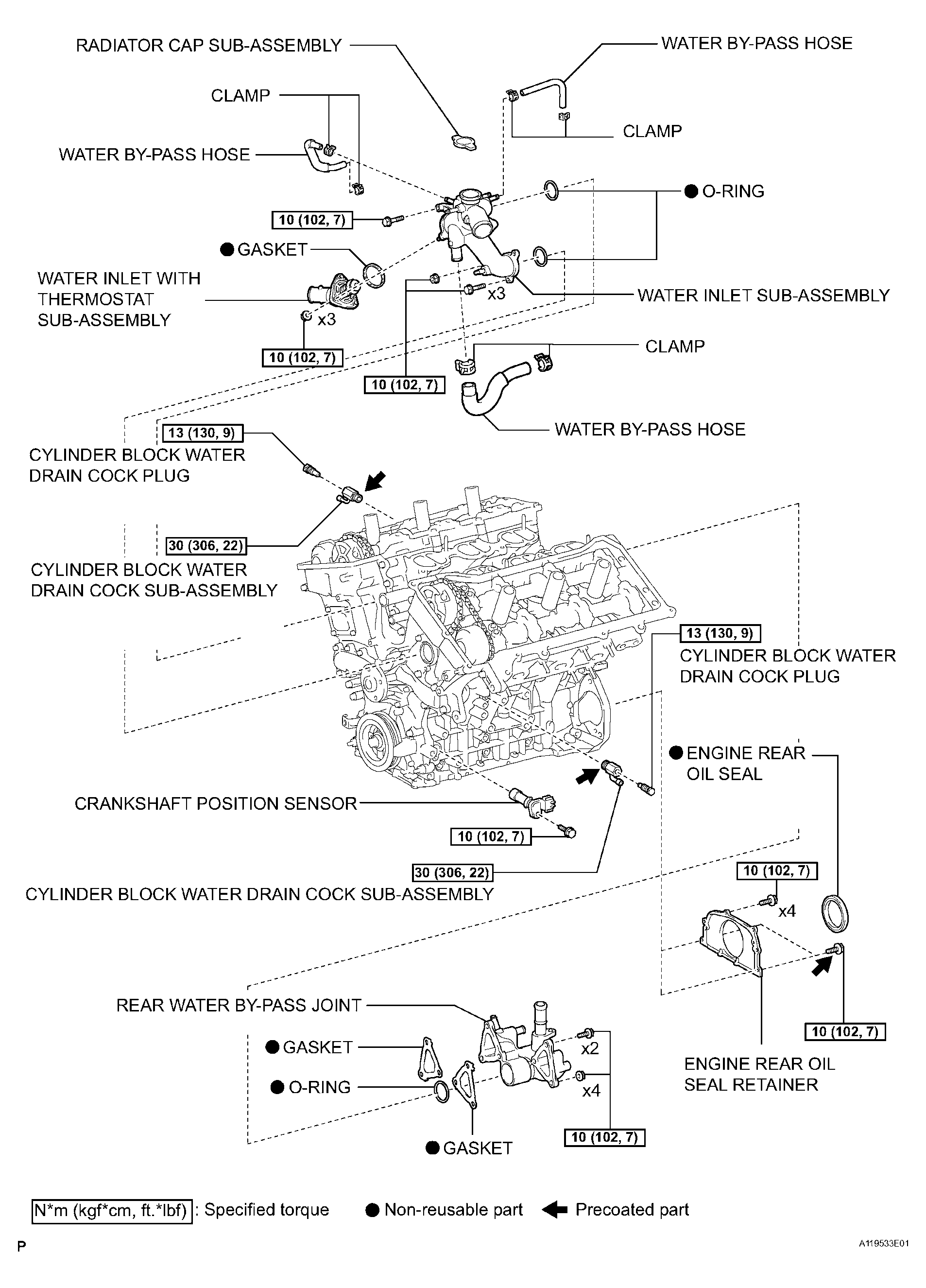

Fig 3: Engine Unit Components (3 Of 12) With Torque Specifications
G04044130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

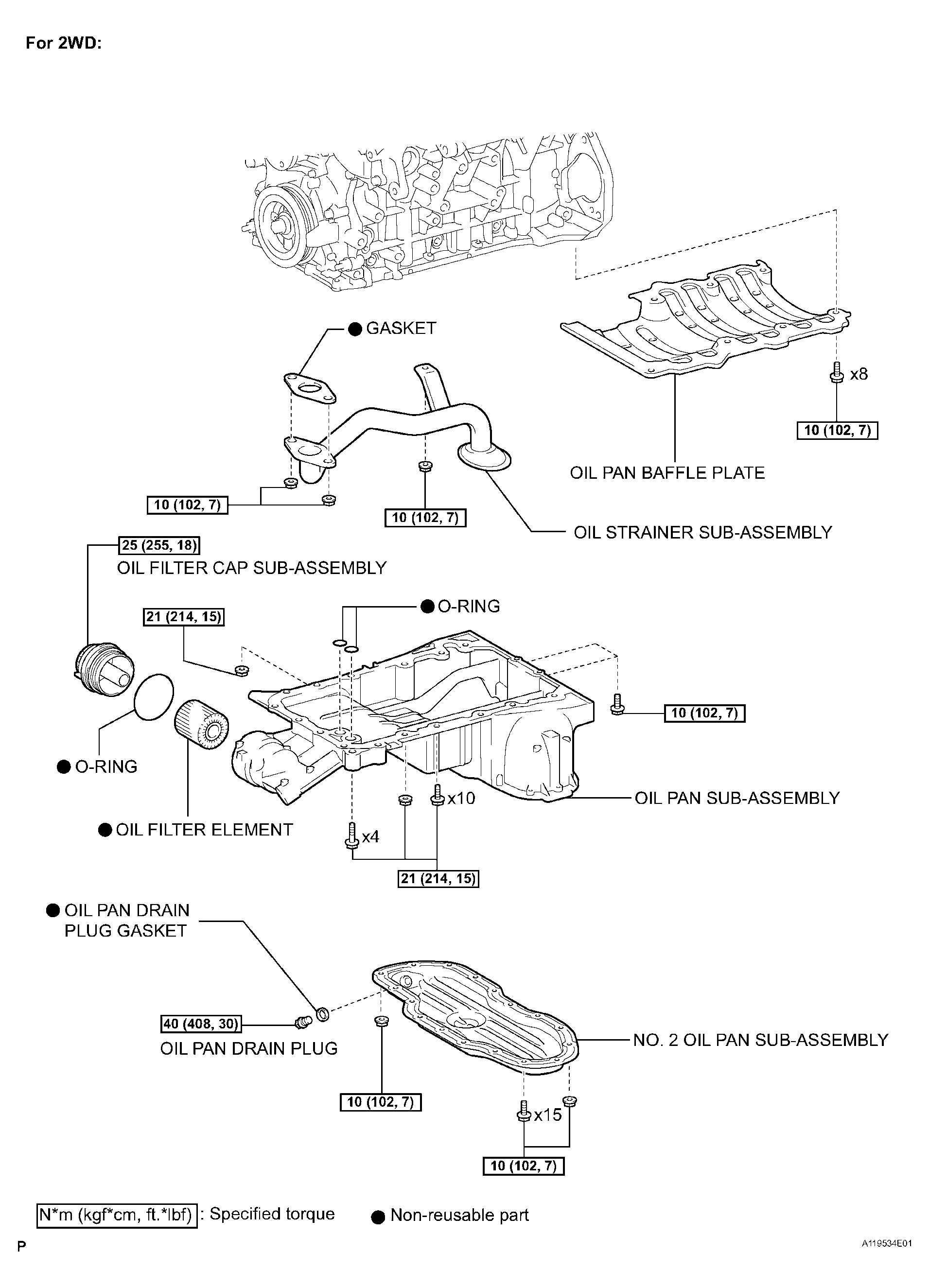

Fig 4: Engine Unit Components (4 Of 12) With Torque Specifications
G04044131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

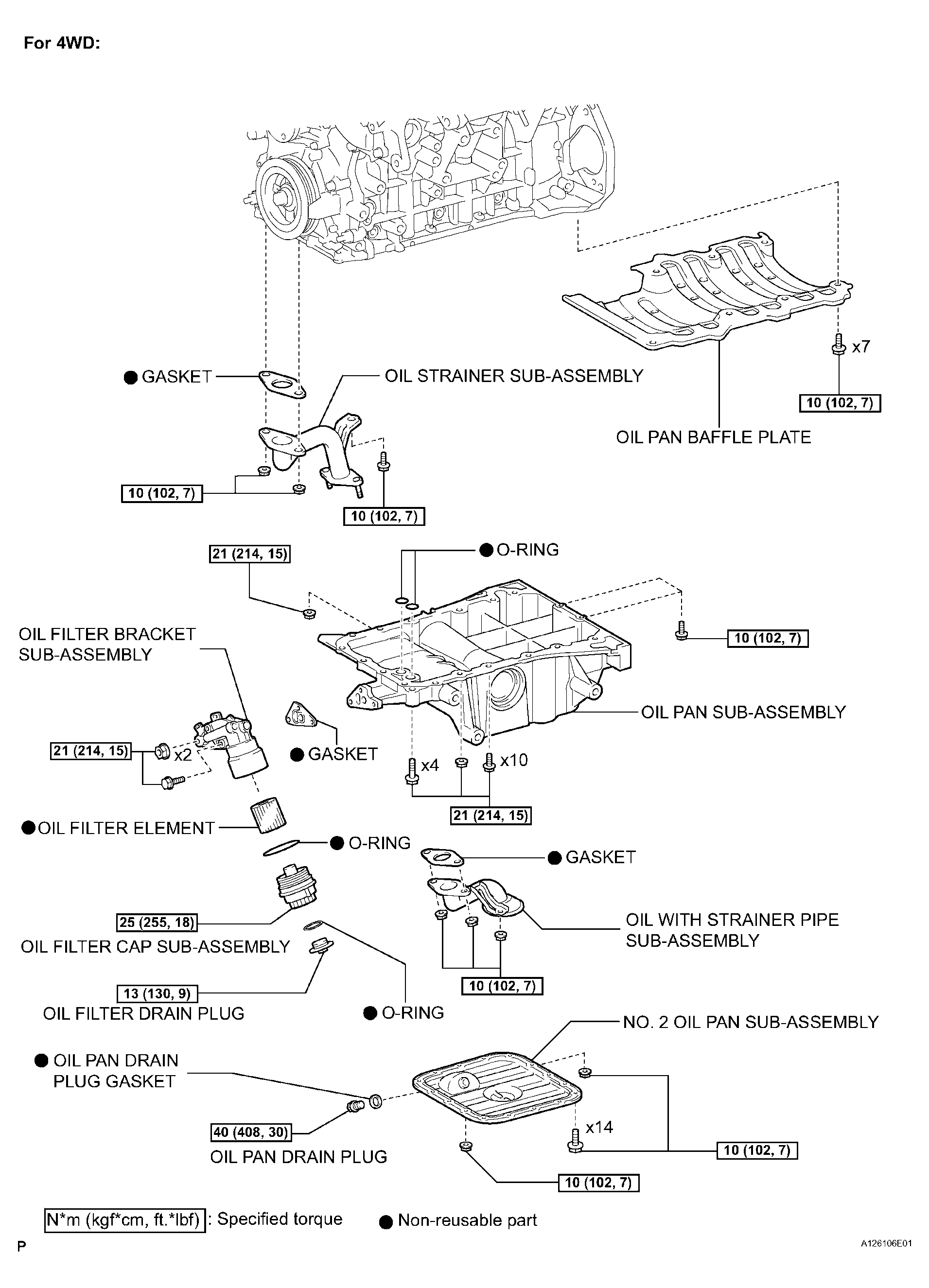

Fig 5: Engine Unit Components (5 Of 12) With Torque Specifications
G04044132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

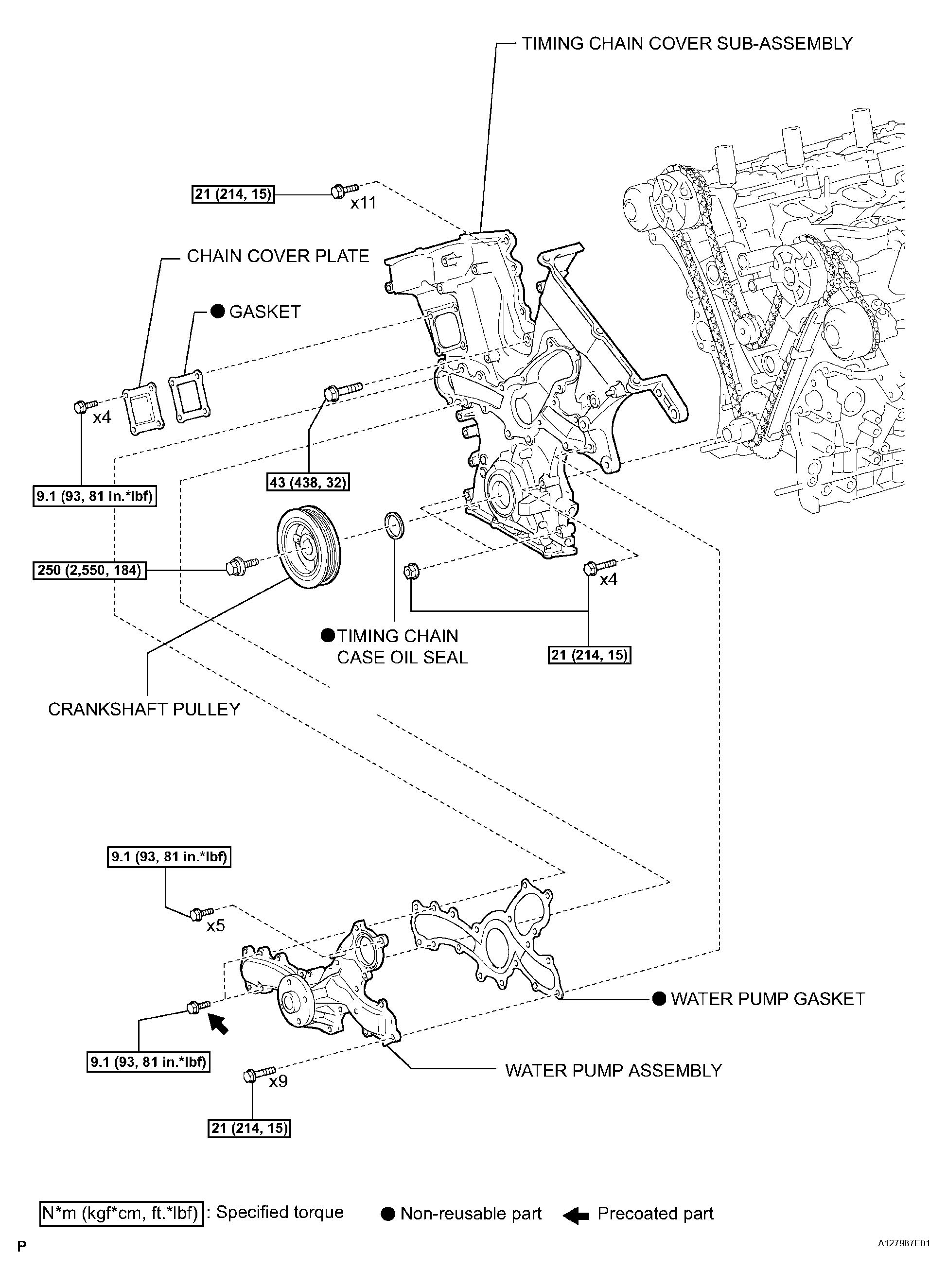

Fig 6: Engine Unit Components (6 Of 12) With Torque Specifications
G04044133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

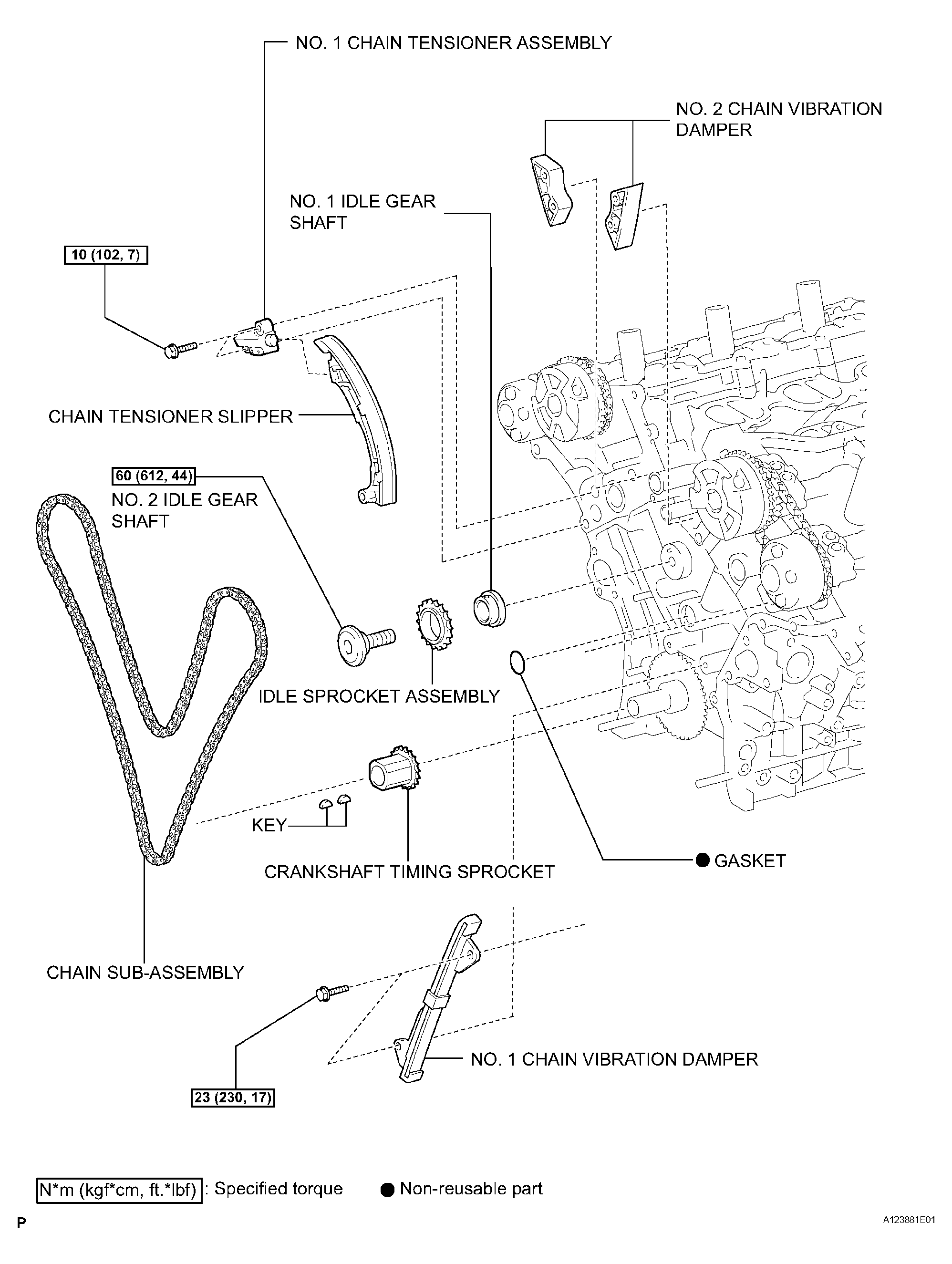

Fig 7: Engine Unit Components (7 Of 12) With Torque Specifications
G04044134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

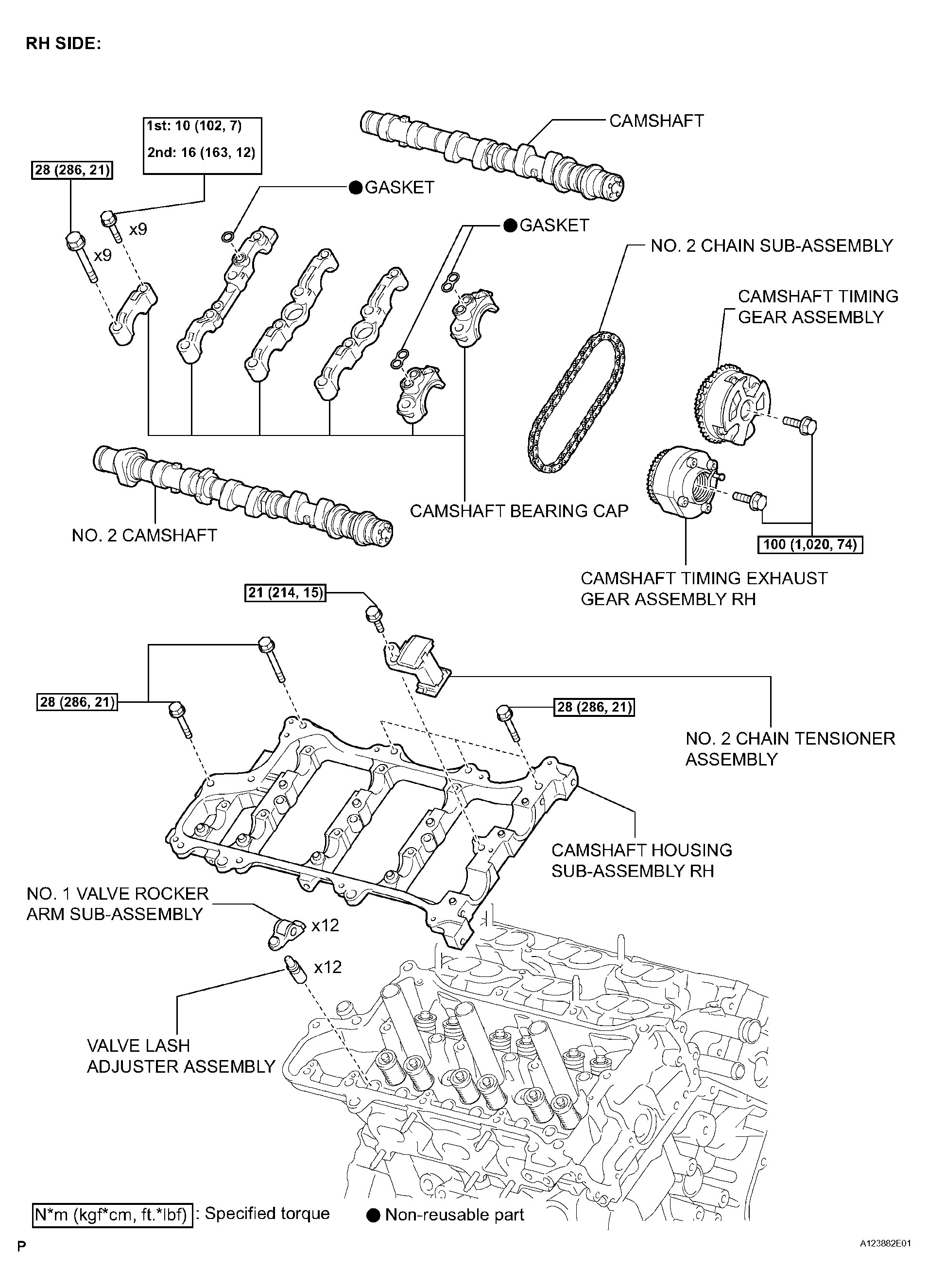

Fig 8: Engine Unit Components (8 Of 12) With Torque Specifications
G04044135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

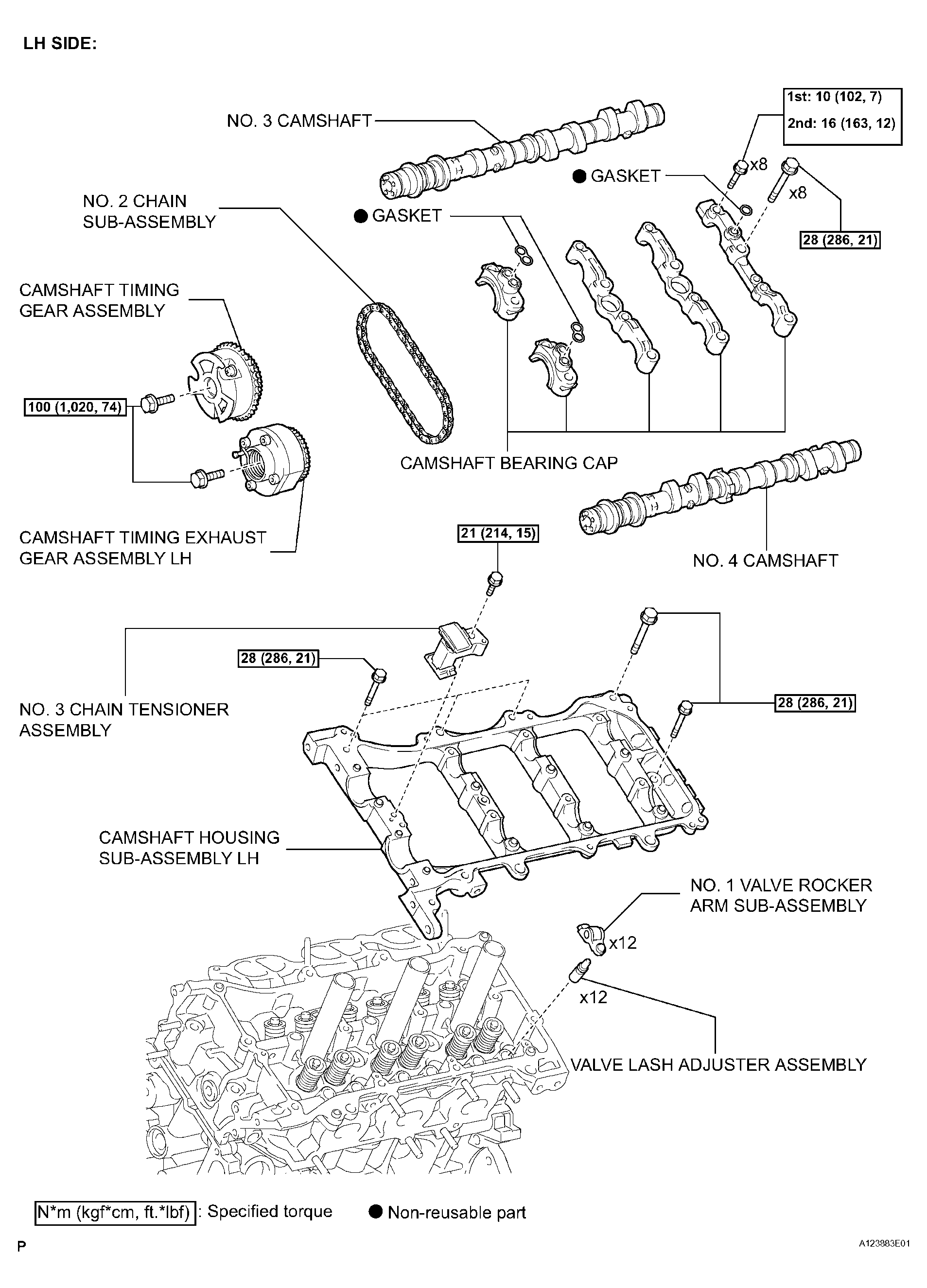

Fig 9: Engine Unit Components (9 Of 12) With Torque Specifications
G04044136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

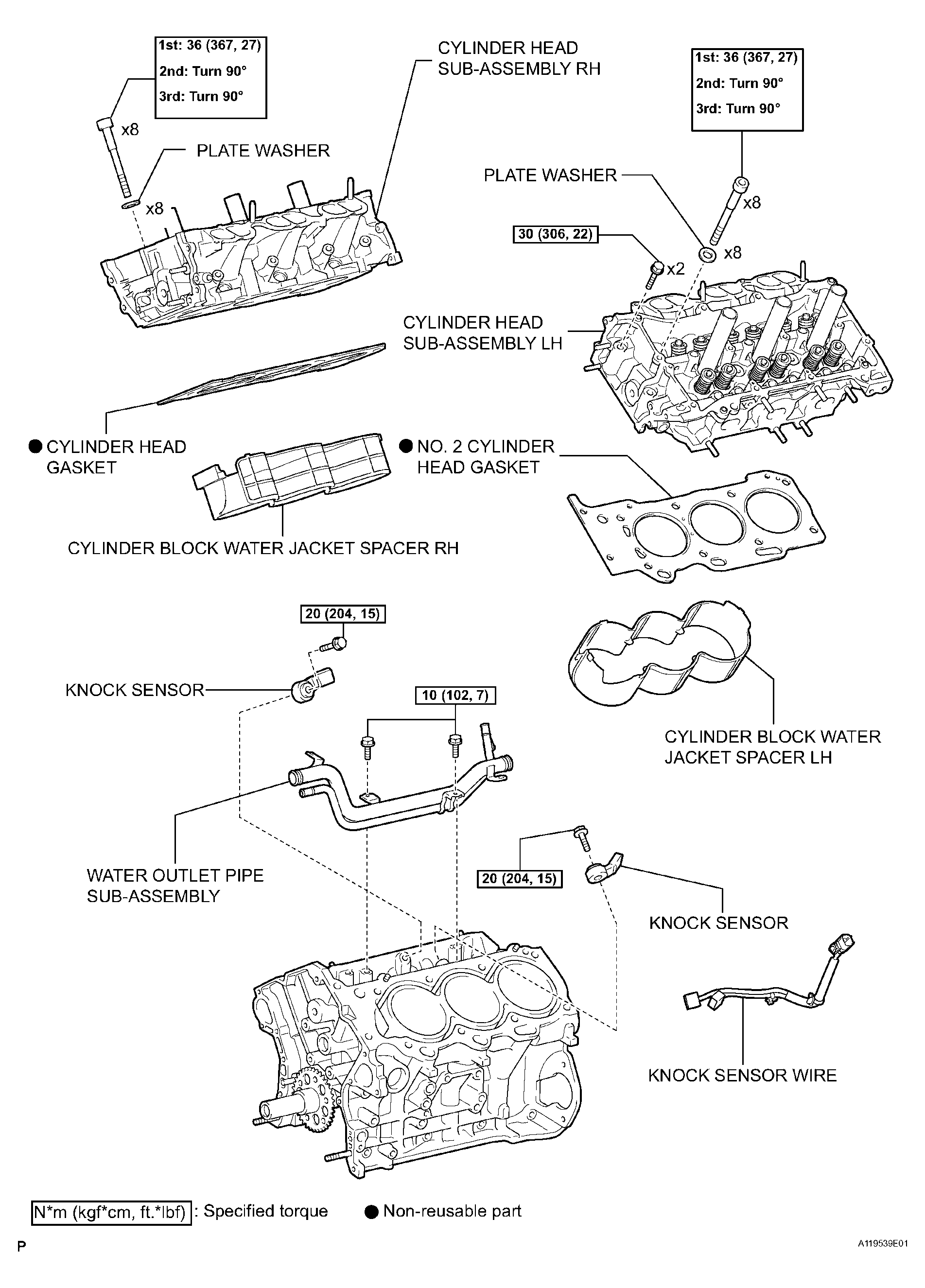

Fig 10: Engine Unit Components (10 Of 12) With Torque Specifications
G04044137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

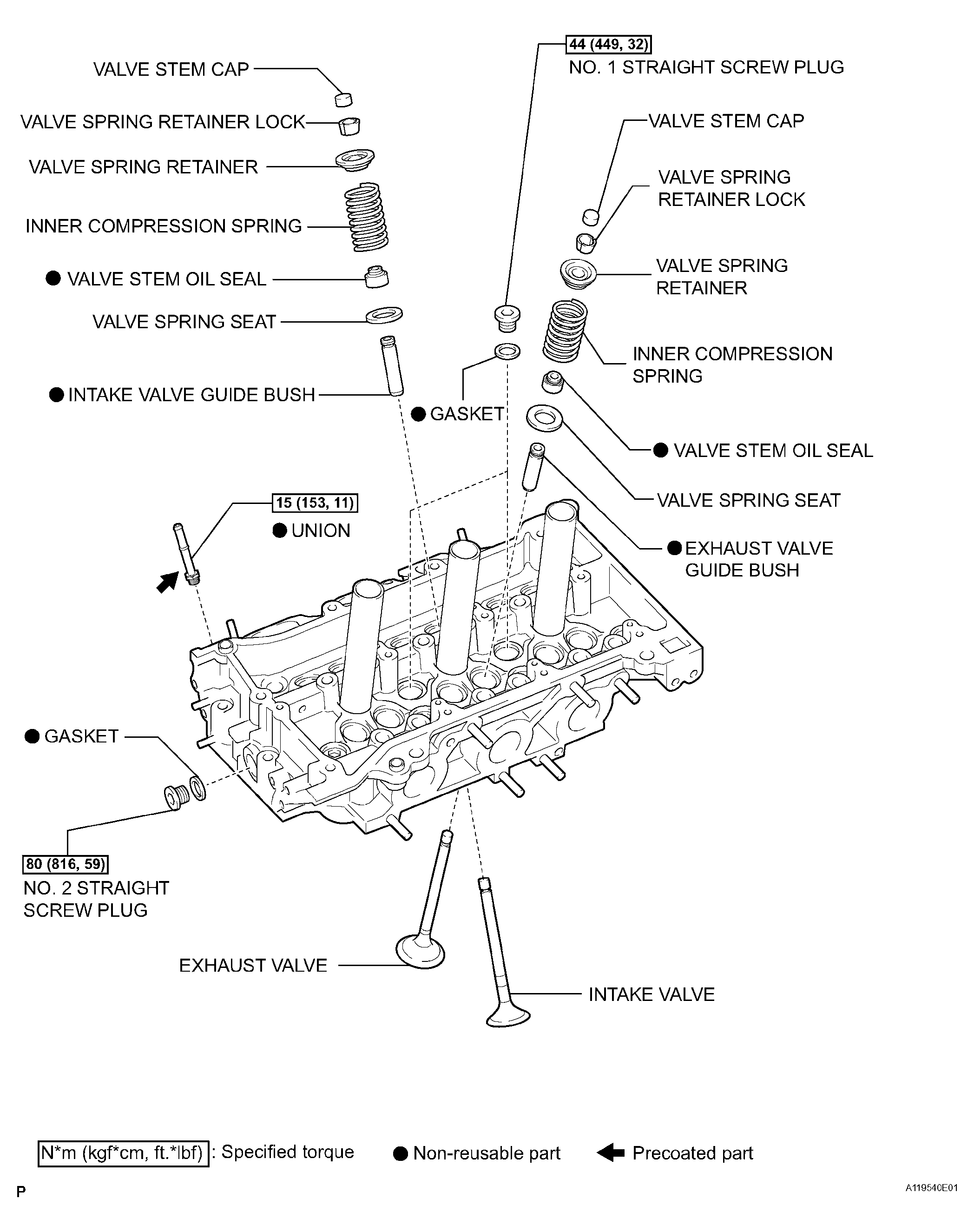

Fig 11: Engine Unit Components (11 Of 12) With Torque Specifications
G04044138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

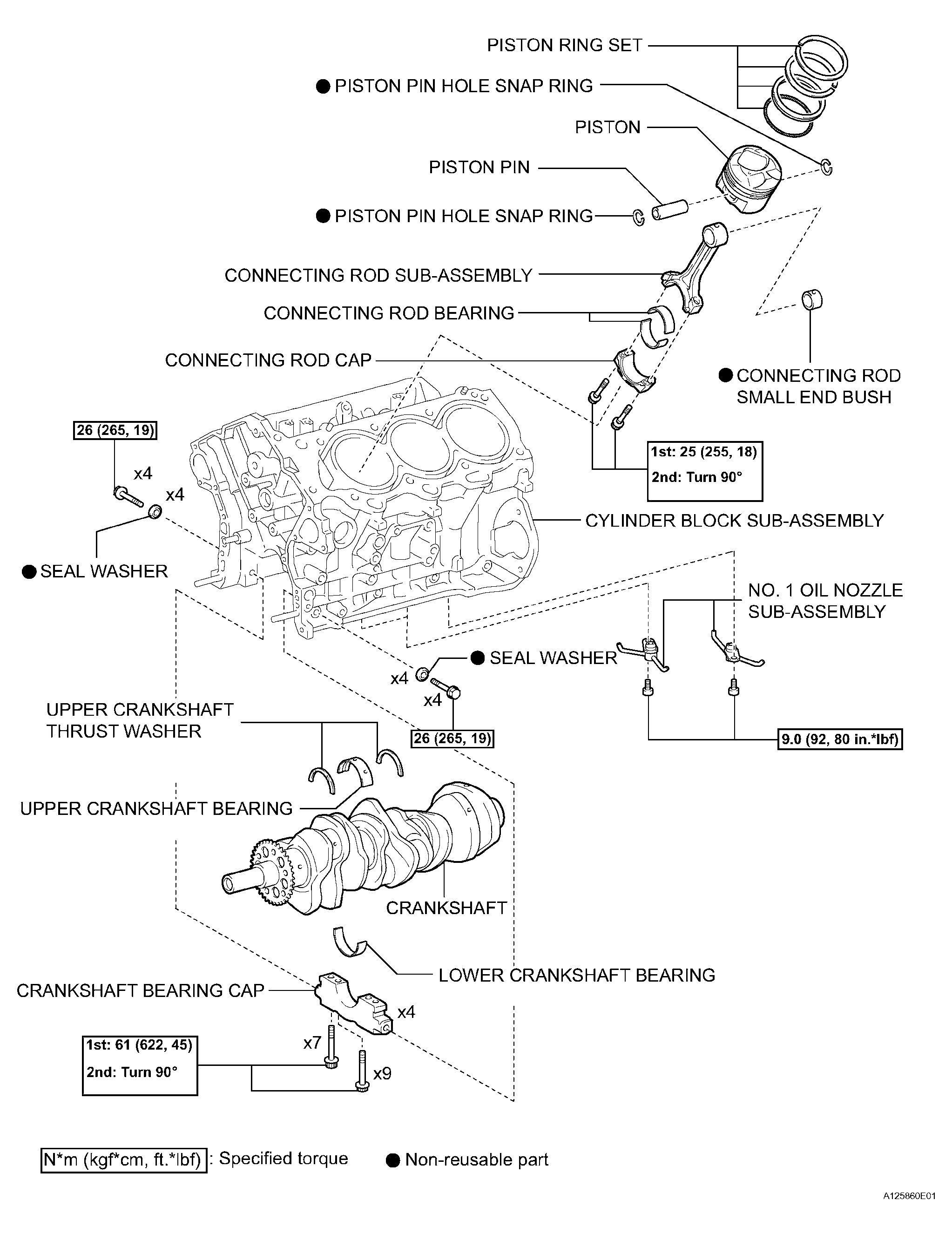

Fig 12: Engine Unit Components (12 Of 12) With Torque Specifications
G04044139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
