4GR-FSE Cooling: SST

SPECIAL SERVICE TOOLS DESCRIPTION (4GR-FSE COOLING)

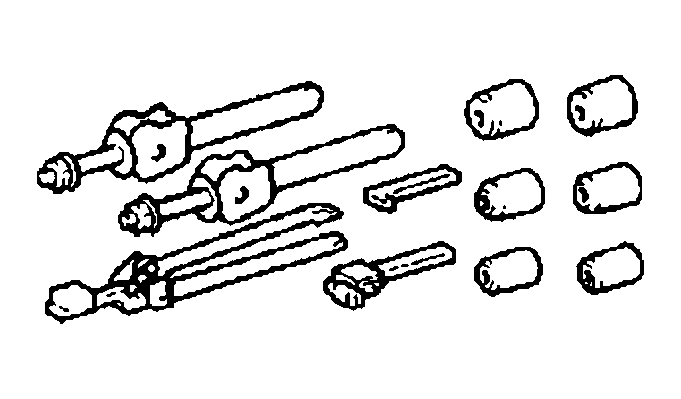

G04043002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09230-01010 Radiator Service Tool Set -

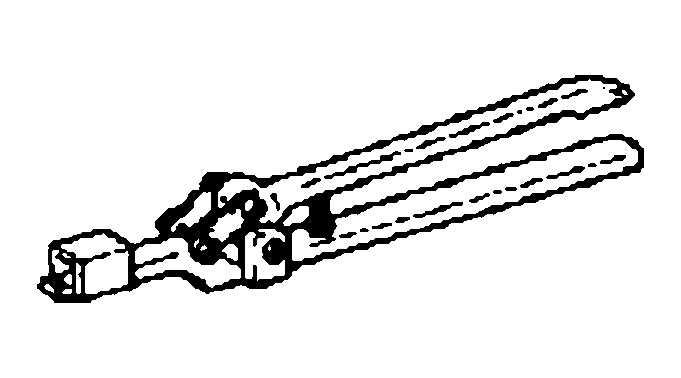

G04043003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09231-01010) Overhaul Handle -

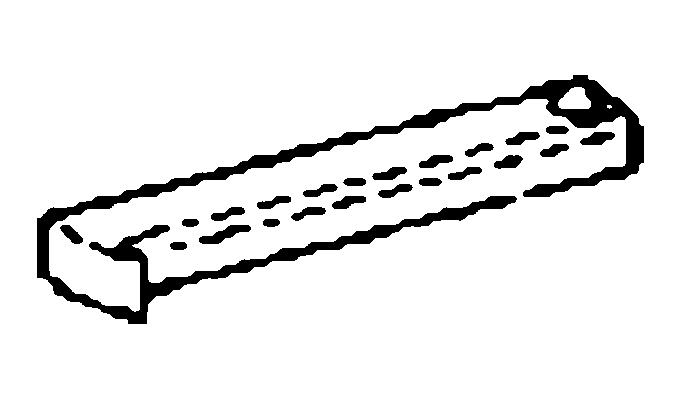

G04043004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09231-01030) Claw -

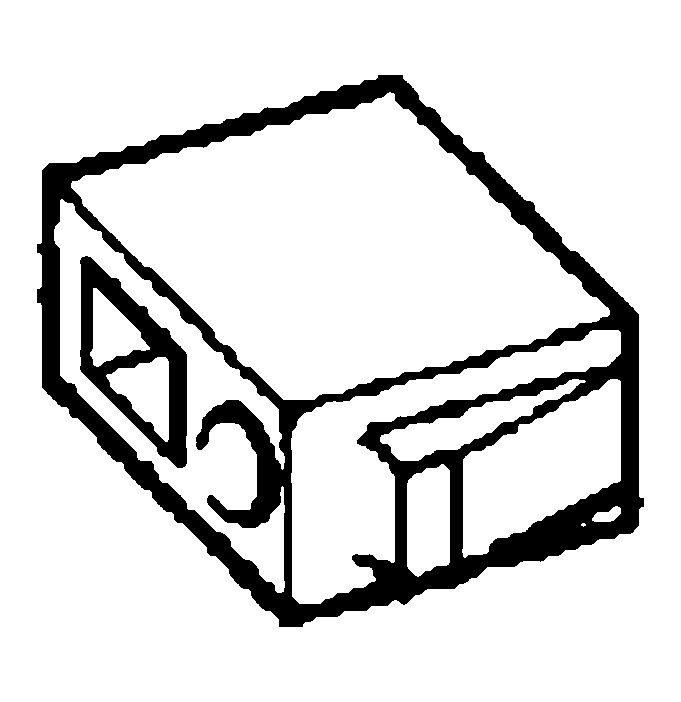

G04043005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09231-14010 Punch -

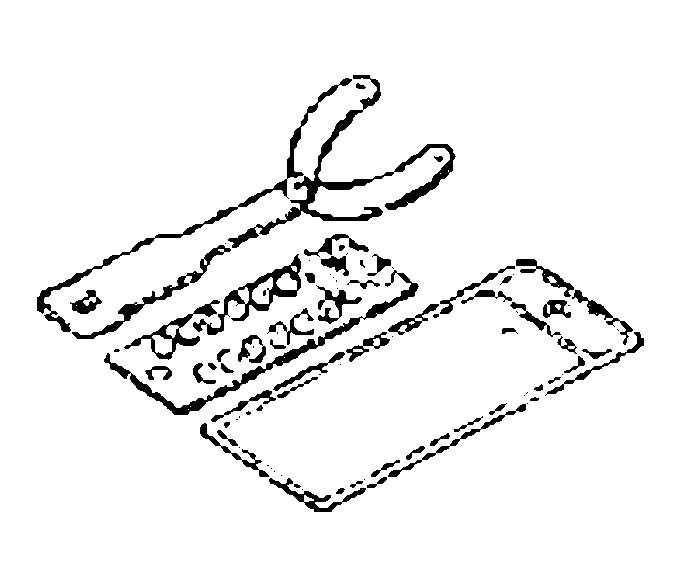

G04043006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09960-10010 Variable Pin Wrench Set -

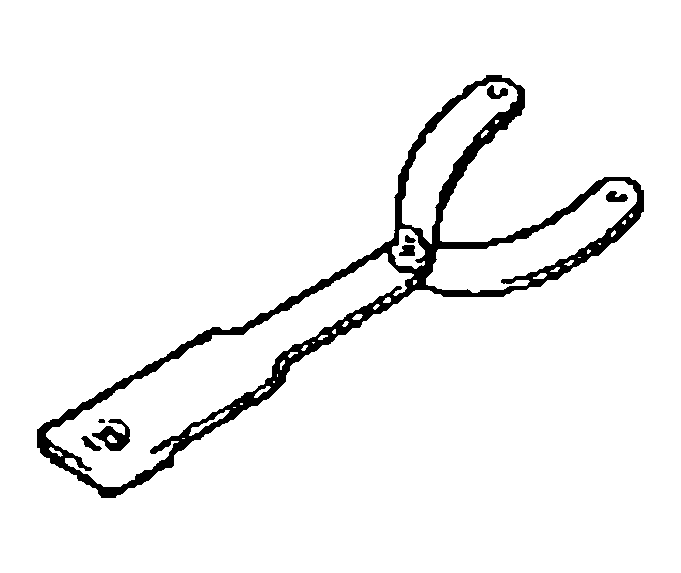

G04043007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09962-01000) Variable Pin Wrench Arm Assembly -

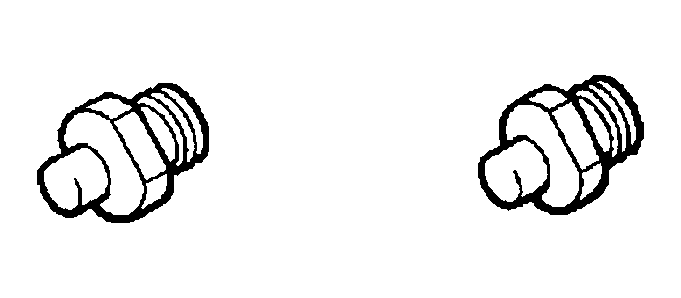

G04043008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09963-00700) Pin 7 -
