Supplemental Restraint System: SST

SPECIAL SERVICE TOOLS DESCRIPTION (SUPPLEMENTAL RESTRAINT SYSTEM)

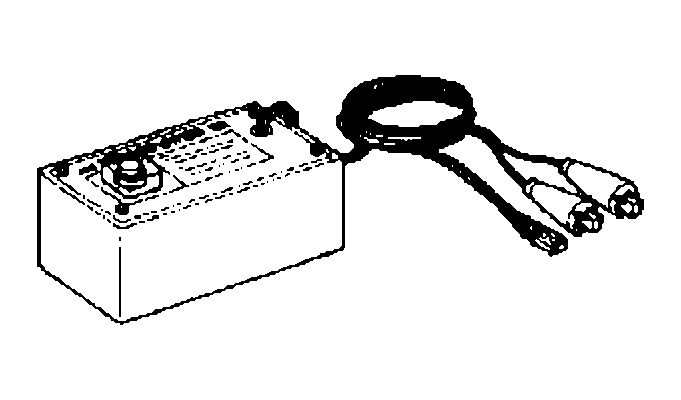

G04043371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09082-00700 SRS Airbag Deployment Tool -

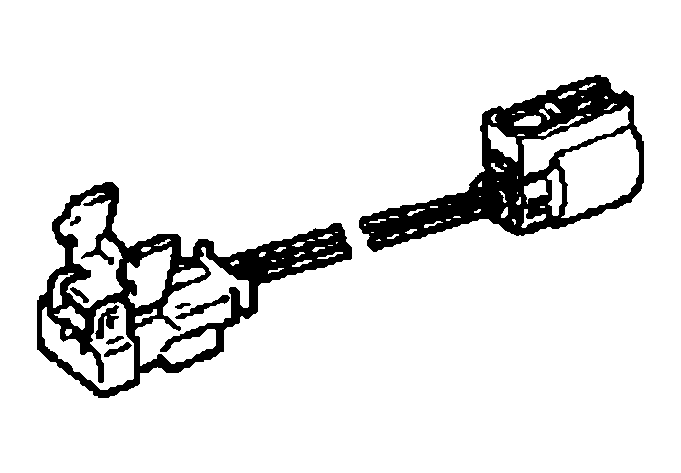

G04043372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09082-00750 Airbag Deployment Wire Sub-harness No.3 -

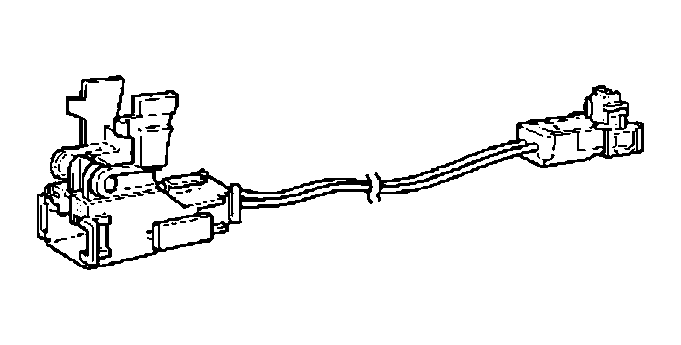

G04043373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09082-00770 Airbag Deployment Wire Sub-harness No.5 -
G04043374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09082-00780 Airbag Deployment Wire Sub-harness No.6 -

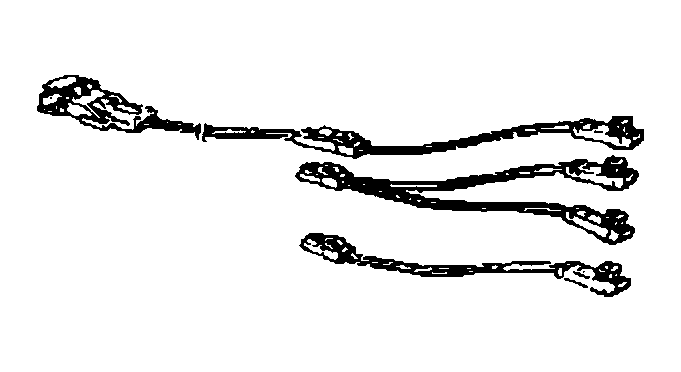

G04043375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09082-00802 Airbag Deployment Wire Sub-Harness No. 8 -

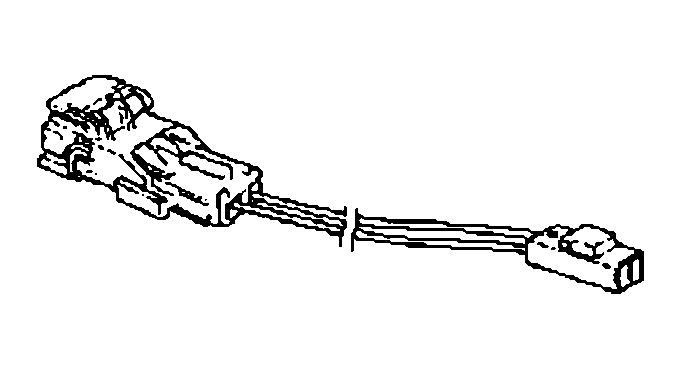

G04043376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09082-10801) Wire A -

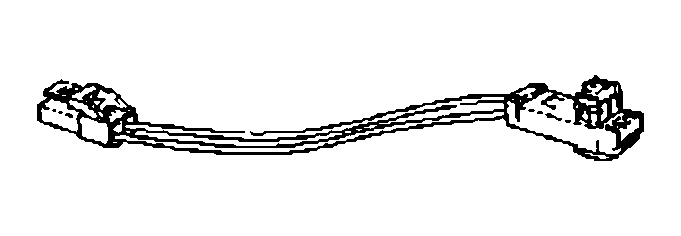

G04043377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09082-20801) Wire B -

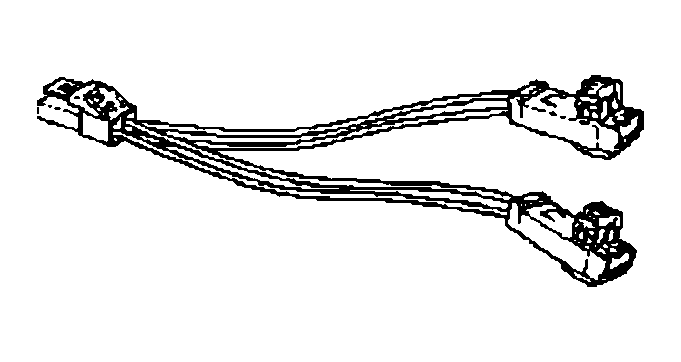

G04043378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09082-30801) Wire C -

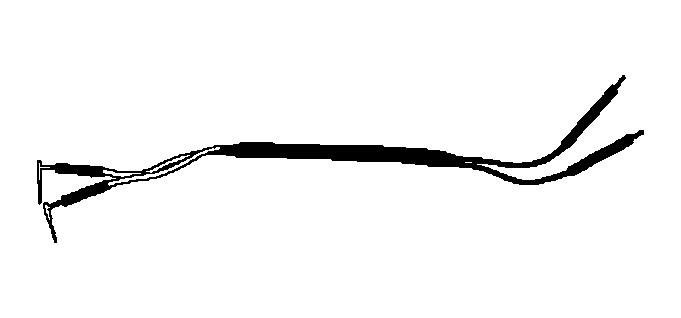

G04043379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09843-18060 SRS Check Wire -
