SPECIAL SERVICE TOOLS DESCRIPTION (SUSPENSION)
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

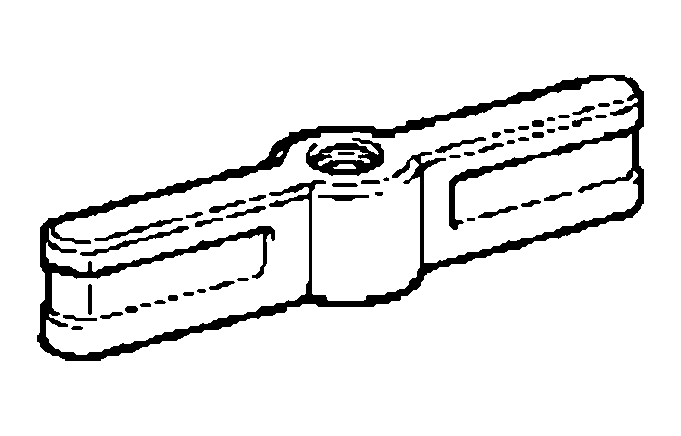

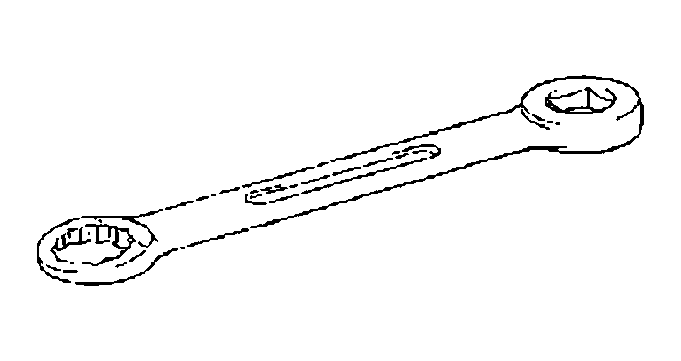

09022-12170 |
Ball Joint Lock Nut Wrench (17 mm). |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
09628-00011 |
Ball Joint Puller |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

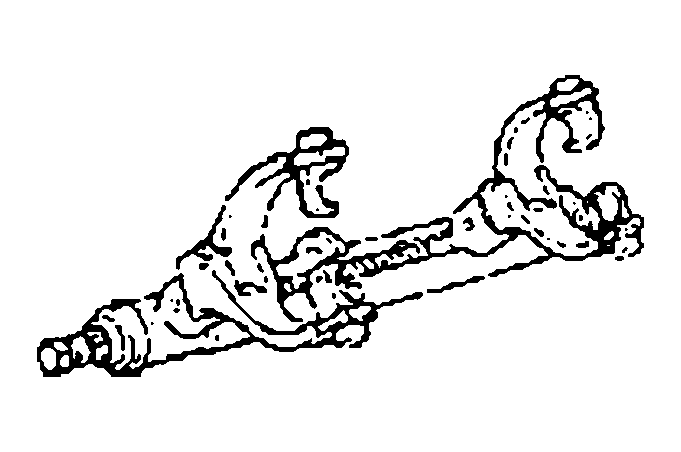

09727-30021 |
Coil Spring Compressor |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

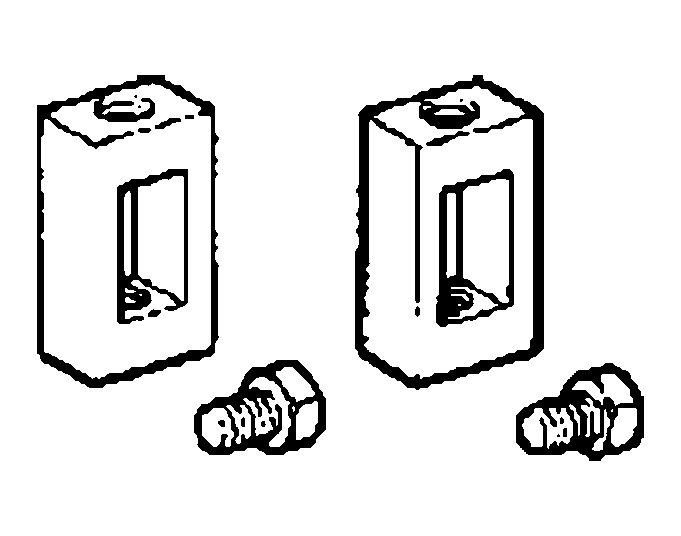

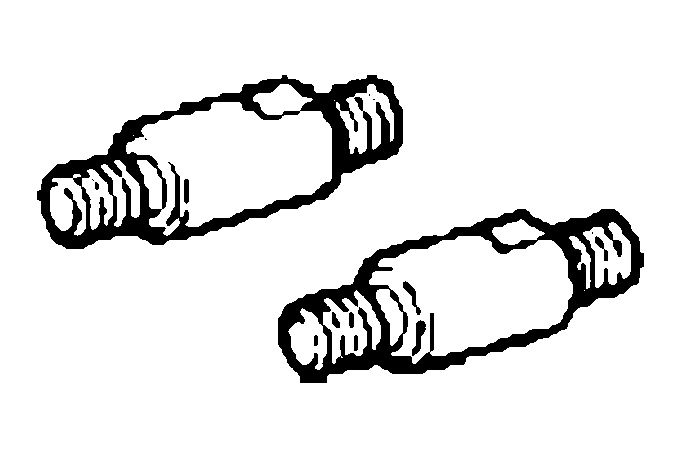

(09727-00010) |

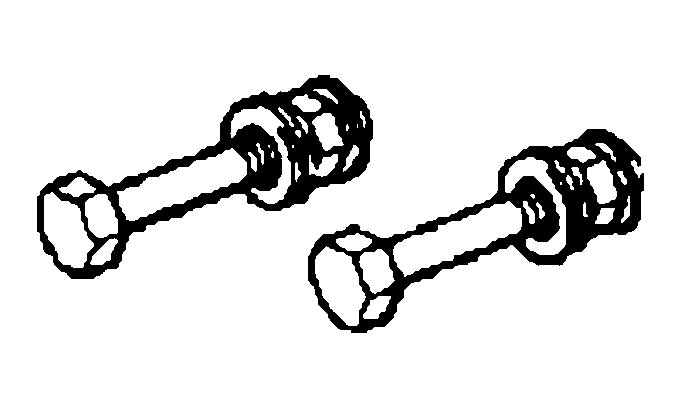

Bolt Set |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

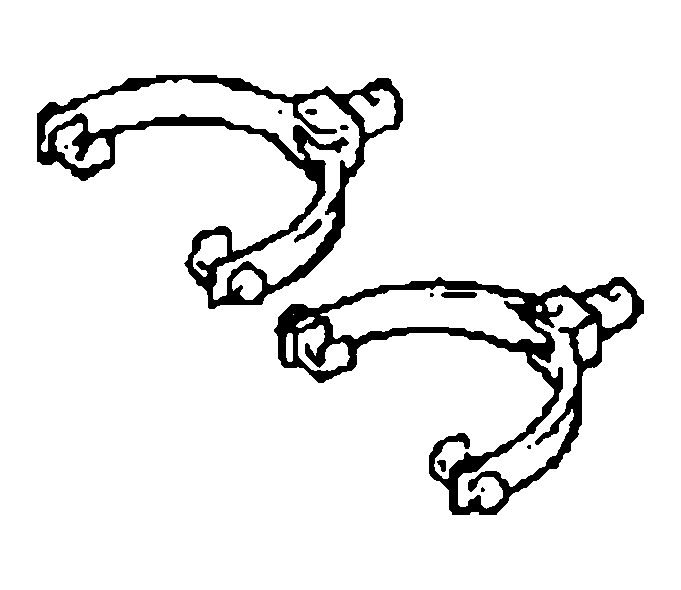

(09727-00021) |

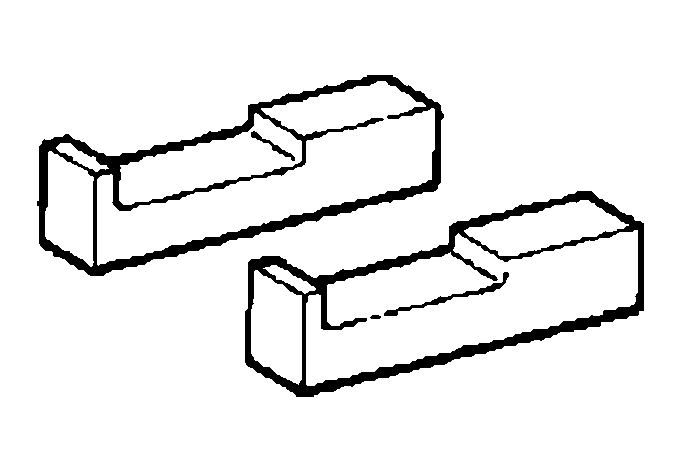

Arm Set |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

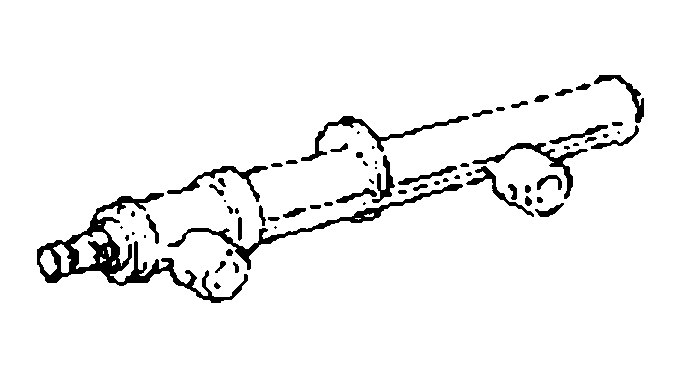

(09727-00031) |

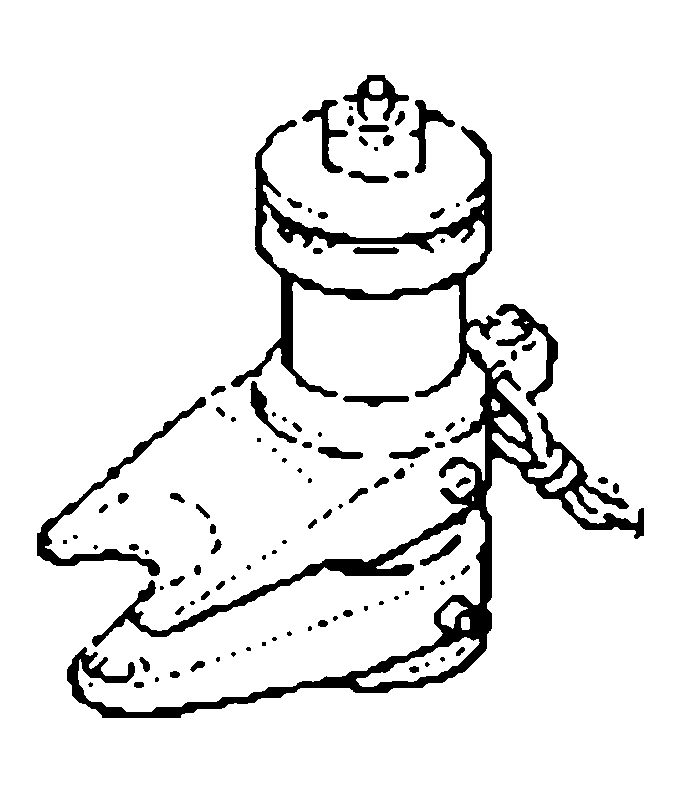

Compressor |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

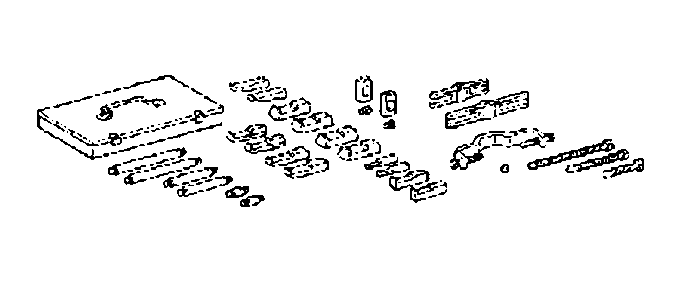

09950-40011 |

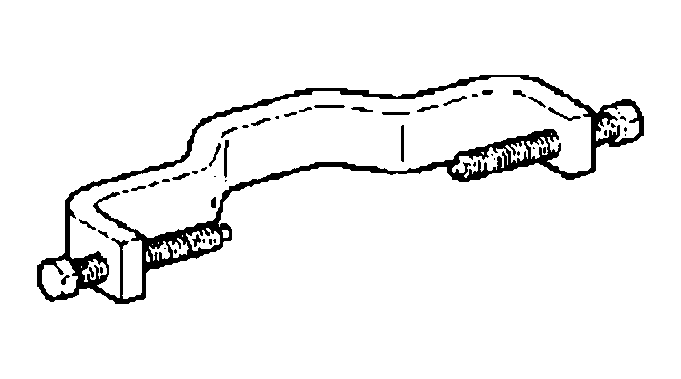

Puller B Set |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
(09951-04010) |
Hanger 150 |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
(09952-04010) |
Slide Arm |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
(09953-04020) |

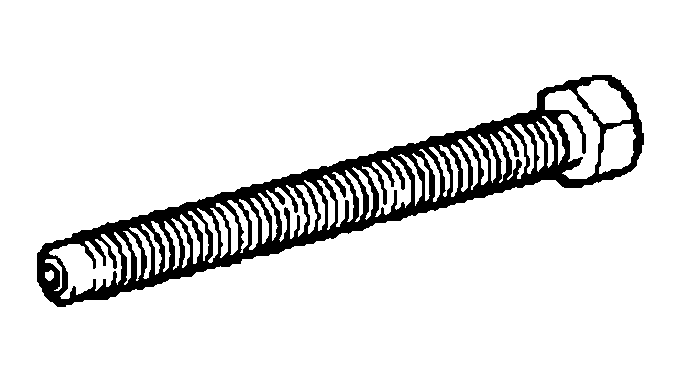

Center Bolt 150 |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
(09954-04010) |
Arm 25 |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
(09955-04051) |
Claw No.5 |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

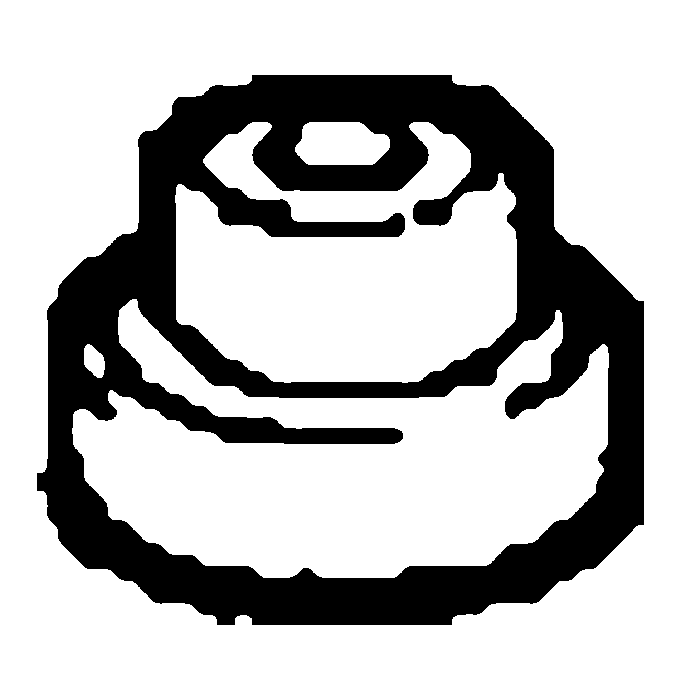

(09957-04010) |
Attachment |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
(09958-04011) |
Holder |
- |
