4GR-FSE Fuel: SST
SPECIAL SERVICE TOOLS DESCRIPTION (4GR-FSE FUEL)
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
09260-39015 |

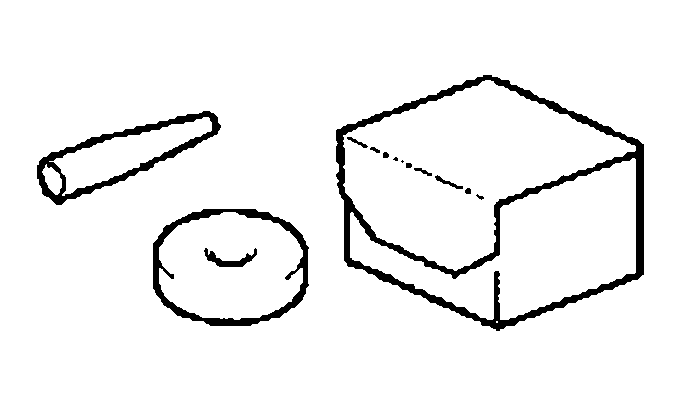

INJECTOR SEAL TOOL SET |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

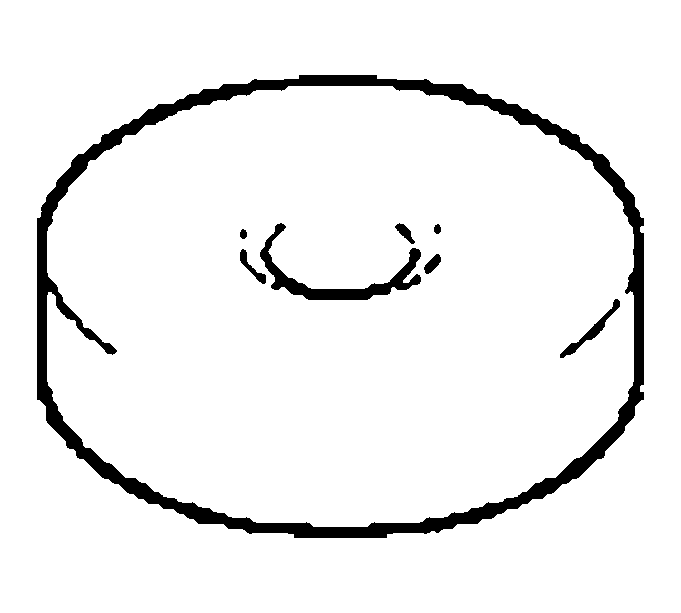

(09268-03010) |
INJECTOR SEAL HOLDER |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
(09268-03020) |
INJECTOR SEAL GUIDE |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

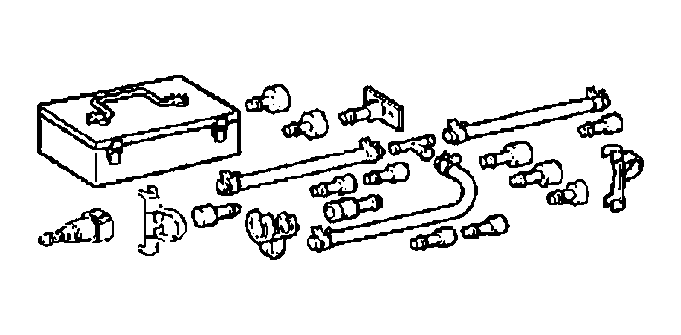

09268-31010 |
Injection Measuring Tool Set |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

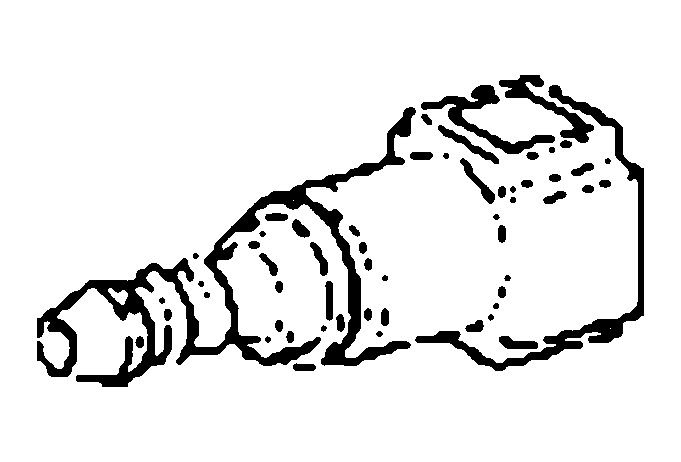

(09268-41500) |
Fuel Tube Connector |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
(90467-13001) |

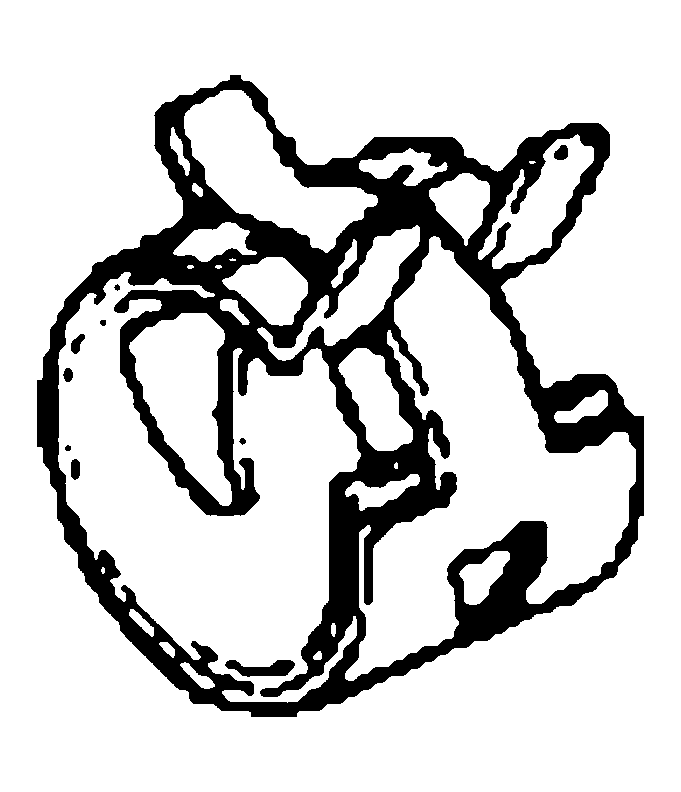

Clip |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

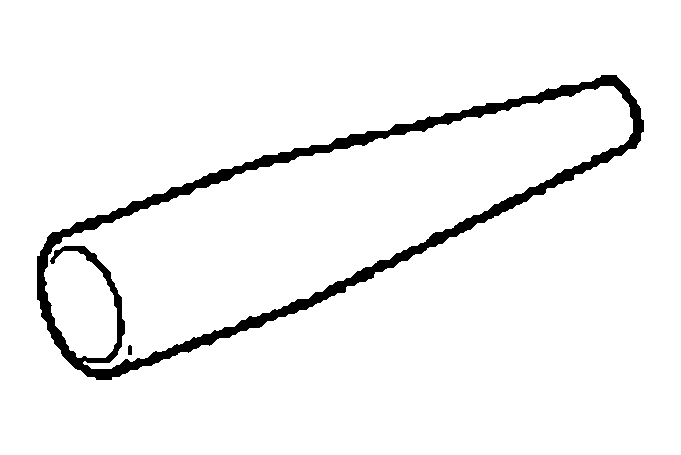

(95336-08070) |

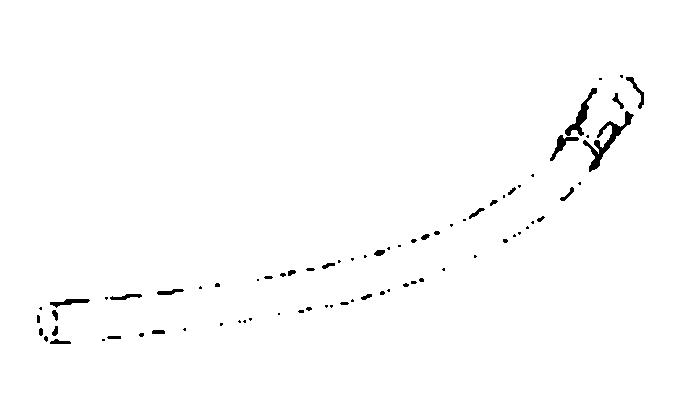

Hose |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

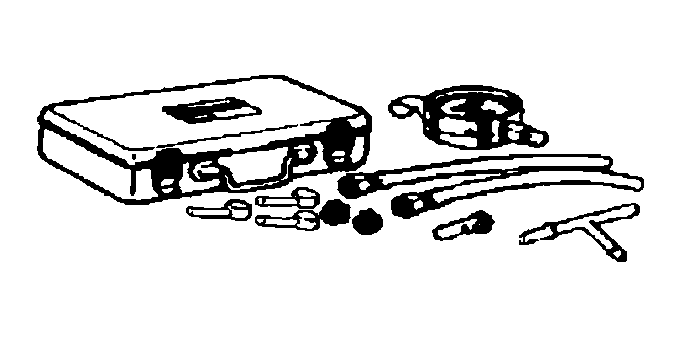

09268-45014 |
EFI Fuel Pressure Gauge |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
(09268-41200) |

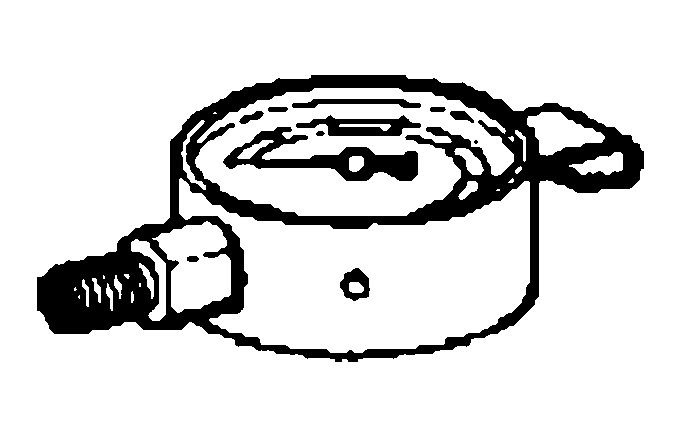

Gauge |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

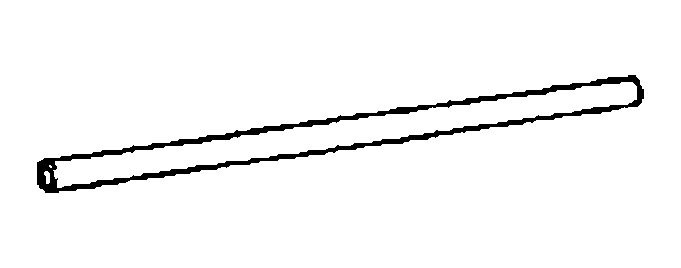

(09268-41220) |
Hose |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

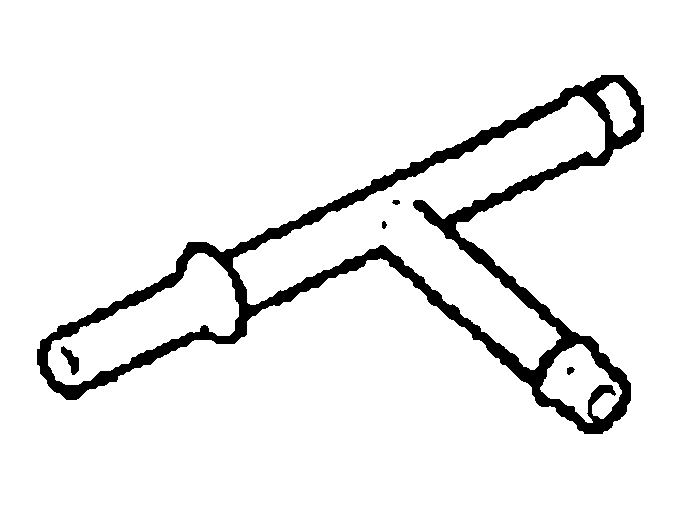

(09268-41250) |
T Joint |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
09612-24014 |

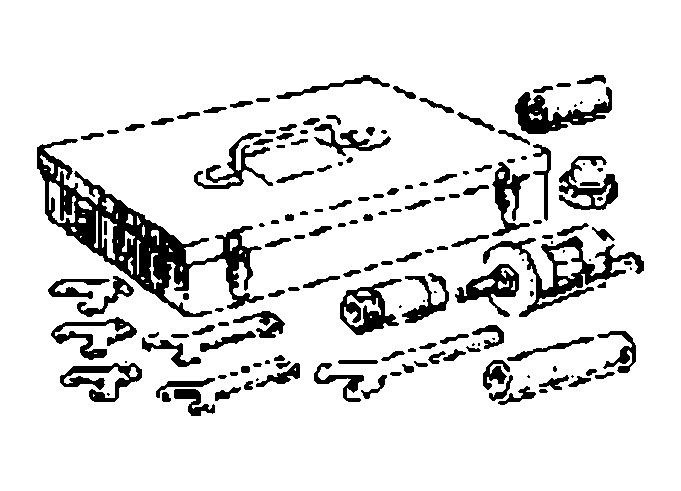

Steering Gear Housing Overhaul Tool Set |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
(09617-24011) |

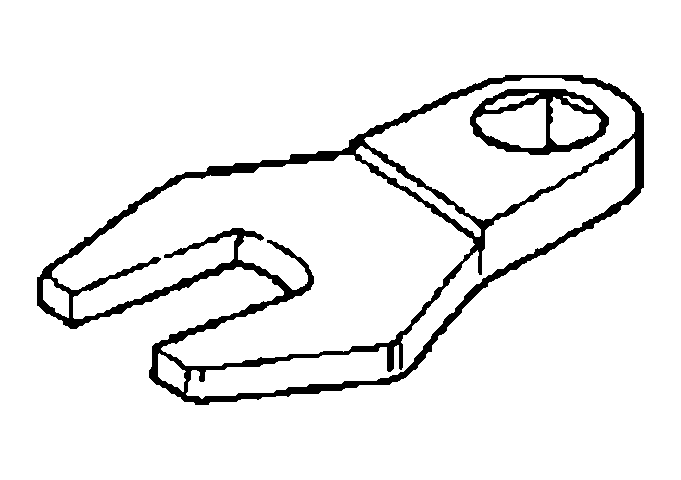

Steering Rack Wrench |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

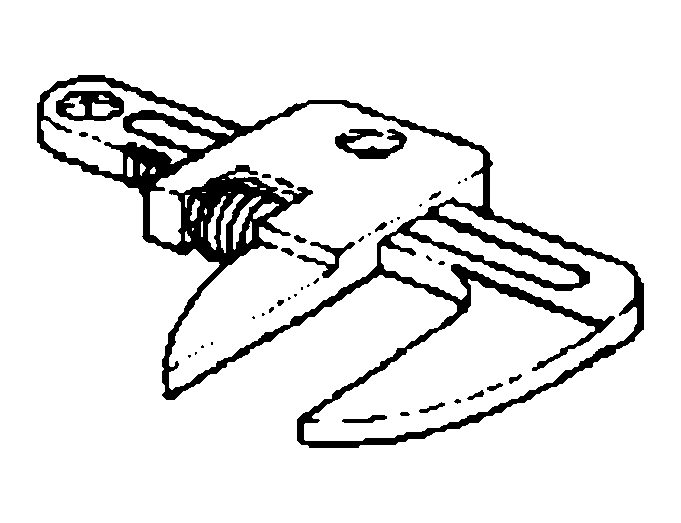

09922-10010 |
Variable Open Wrench |
- |
