Inspection Procedure

  1. CHECK WIRE HARNESS (MPX SWITCH - BATTERY AND BODY GROUND)
    1. Disconnect the L13 connector.
    2. Measure the voltage and resistance according to the value(s) in MPX SWITCH - BATTERY AND BODY GROUND (VOLTAGE)  and MPX SWITCH - BATTERY AND BODY GROUND (RESISTANCE)  .

    Voltage

    MPX SWITCH - BATTERY AND BODY GROUND (VOLTAGE)

    Tester Connection Condition Specified Condition
    L13-12 (BDR)-Body ground Always 10 to 14 V

    Resistance

    MPX SWITCH - BATTERY AND BODY GROUND (RESISTANCE)

    Tester Connection Condition Specified Condition
    L13-7 (GND) - Body ground Always Below 1 ohms

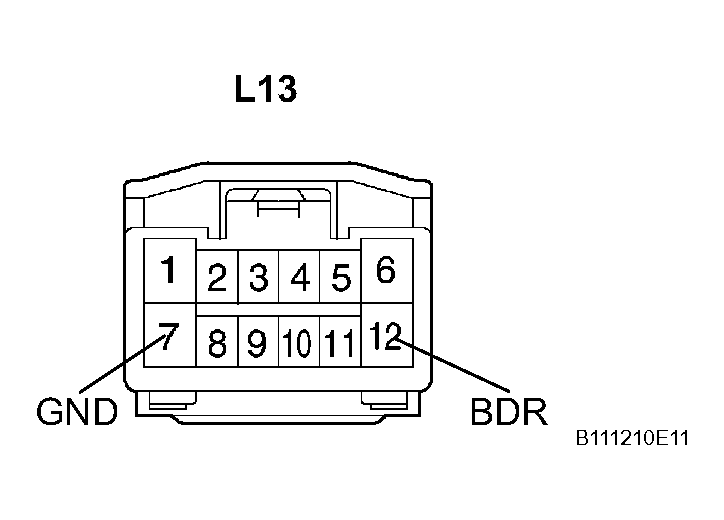

    Fig 1: Checking Wire Harness (MPX Switch - Battery And Body Ground)
    G04050716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
