Operation Check

  1. CHECK WINDOW LOCK SWITCH
    1. Check that the front passenger side power window and rear power windows operation are disabled when the window lock switch of the power window master switch is pressed.

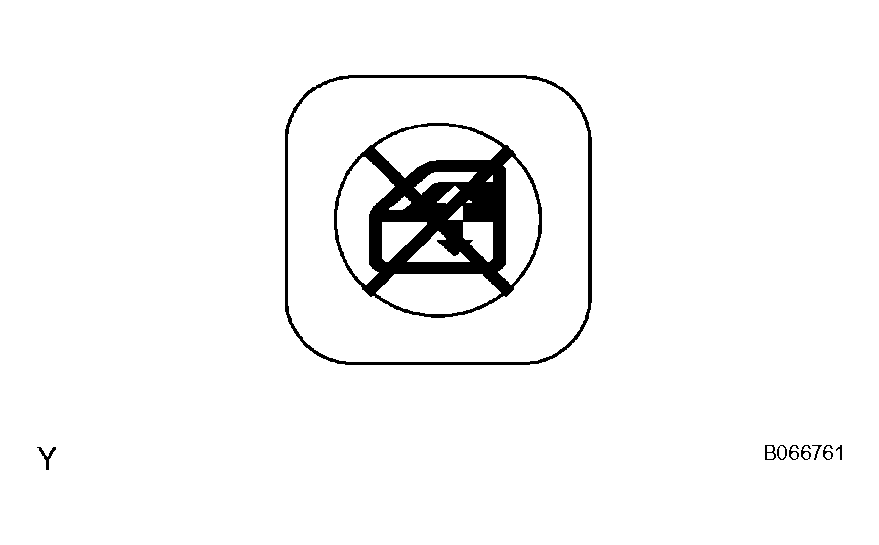

      Fig 1: Identifying Window Lock Switch
      G04050703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      standard:

      Front passenger side power window and rear power windows operation are disabled.

    2. Check that the front passenger side power window and rear power windows can be operated when the window lock switch is pressed again.

      standard:

      Front passenger side power window and rear power windows can be operated.

  2. CHECK MANUAL UP/DOWN FUNCTION
    1. Check that the driver side power window operates as follows:

      Standard

      MANUAL UP/DOWN FUNCTION (DRIVER SIDE POWER WINDOW OPERATES)

      Condition Master Switch Switch Operation Power Window
      Engine switch on (IG) Driver side Pulled halfway up UP (Closed)
      Pushed halfway down DOWN (Open)

      Standard

    2. Check that the power windows except the driver side power window operates as follows:
    MANUAL UP/DOWN FUNCTION (POWER WINDOWS EXCEPT DRIVER POWER WINDOW OPERATES)

    Condition Master Switch Switch Operation Power Window
    • Engine switch on (IG)
    • Window lock switch OFF
    		 Passenger side Pulled halfway up UP (Closed)
    Pushed halfway down DOWN (Open)
    Rear LH Pulled halfway up UP (Closed)
    Pushed halfway down DOWN (Open)
    Rear RH Pulled halfway up UP (Closed)
    Pushed halfway down DOWN (Open)
  3. CHECK AUTO UP/DOWN FUNCTION
    1. Check that the driver side power window operates as follows:

      Standard

      AUTO UP/DOWN FUNCTION (DRIVER SIDE POWER OPERATES)

      Condition Master Switch Switch Operation Power Window
      Engine switch on (IG) Driver side Pulled full up UP (Closed)
      Pushed full down DOWN (Open)
    2. Check that the power windows except the driver side power window operate as follows:

    Standard

    AUTO UP/DOWN FUNCTION (POWER WINDOW EXCEPT DRIVER SIDE POWER WINDOW OPERATE)

    Condition Master Switch Switch Operation Power Window
    • Engine switch on (IG)
    • Window lock switch OFF
    		 Passenger side Pulled full up UP (Closed)
    Pushed full down DOWN (Open)
    Rear LH Pulled full up UP (Closed)
    Pushed full down DOWN (Open)
    Rear RH Pulled full up UP (Closed)
    Pushed full down DOWN (Open)
  4. CHECK REMOTE MANUAL UP/DOWN FUNCTION
    1. Check that the power windows except the driver side power window operate as follows:

    Standard

    REMOTE MANUAL UP/DOWN FUNCTION

    Condition Master Switch Switch Operation Power Window
    • Engine switch on (IG)
    • Window lock switch OFF
    		 Passenger side Pulled halfway up UP (Closed)
    Pushed halfway down DOWN (Open)
    Rear LH Pulled halfway up UP (Closed)
    Pushed halfway down DOWN (Open)
    Rear RH Pulled halfway up UP (Closed)
    Pushed halfway down DOWN (Open)
  5. CHECK REMOTE AUTO UP/DOWN FUNCTION
    1. Check that the power windows except the driver side power window operate as follows:

    Standard

    REMOTE AUTO UP/DOWN FUNCTION

    Condition Master Switch Switch Operation Power Window
    • Engine switch on (IG)
    • Window lock switch OFF
    		 Passenger side Pulled full up UP (Closed)
    Pushed full down DOWN (Open)
    Rear LH Pulled full up UP (Closed)
    Pushed full down DOWN (Open)
    Rear RH Pulled full up UP (Closed)
    Pushed full down DOWN (Open)
  6. CHECK JAM PROTECTION FUNCTION

    HINT:

    The jam protection function prevents any part of your body from getting caught by accident between the door frame and the door glass during power window operation.

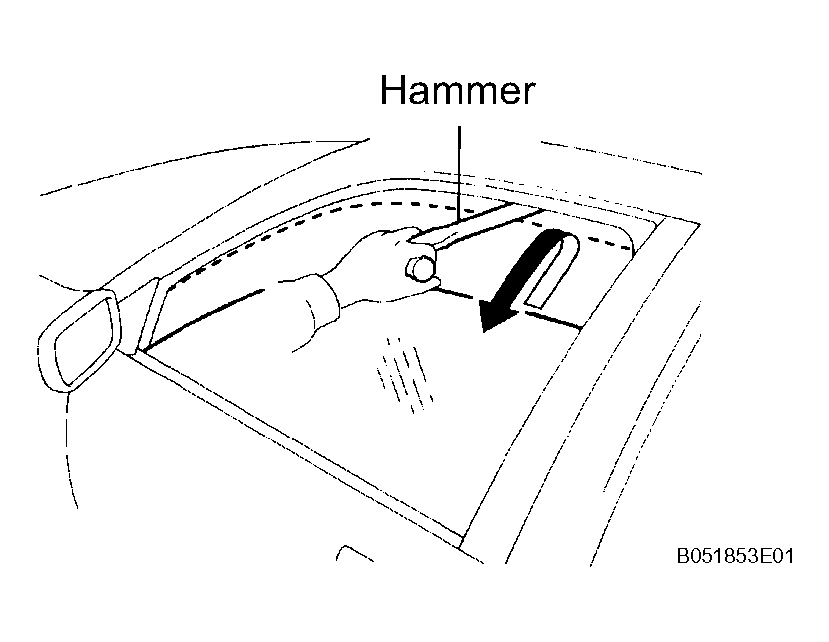

    Fig 2: Checking Jam Protection Function
    G04050704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE: If the power window motor has been reset, raise and lower the door glass several times using MANUAL function before performing the check.
    1. Check that the door glass goes down by approx. 50 mm (1.97 in.) right when something gets caught between the door frame and door glass during power window operation. However, when the opening between the door frame and the door glass is less than 200 mm (7.87 in.), the door glass continues to go down and does not stop until an opening of 200 mm (7.87 in.) is achieved. Operative conditions:
      • AUTO UP
      • AUTO UP function after the engine switch is turned off
      • MANUAL UP function after the engine switch turned off
