Power Window Regulator Motor: Components

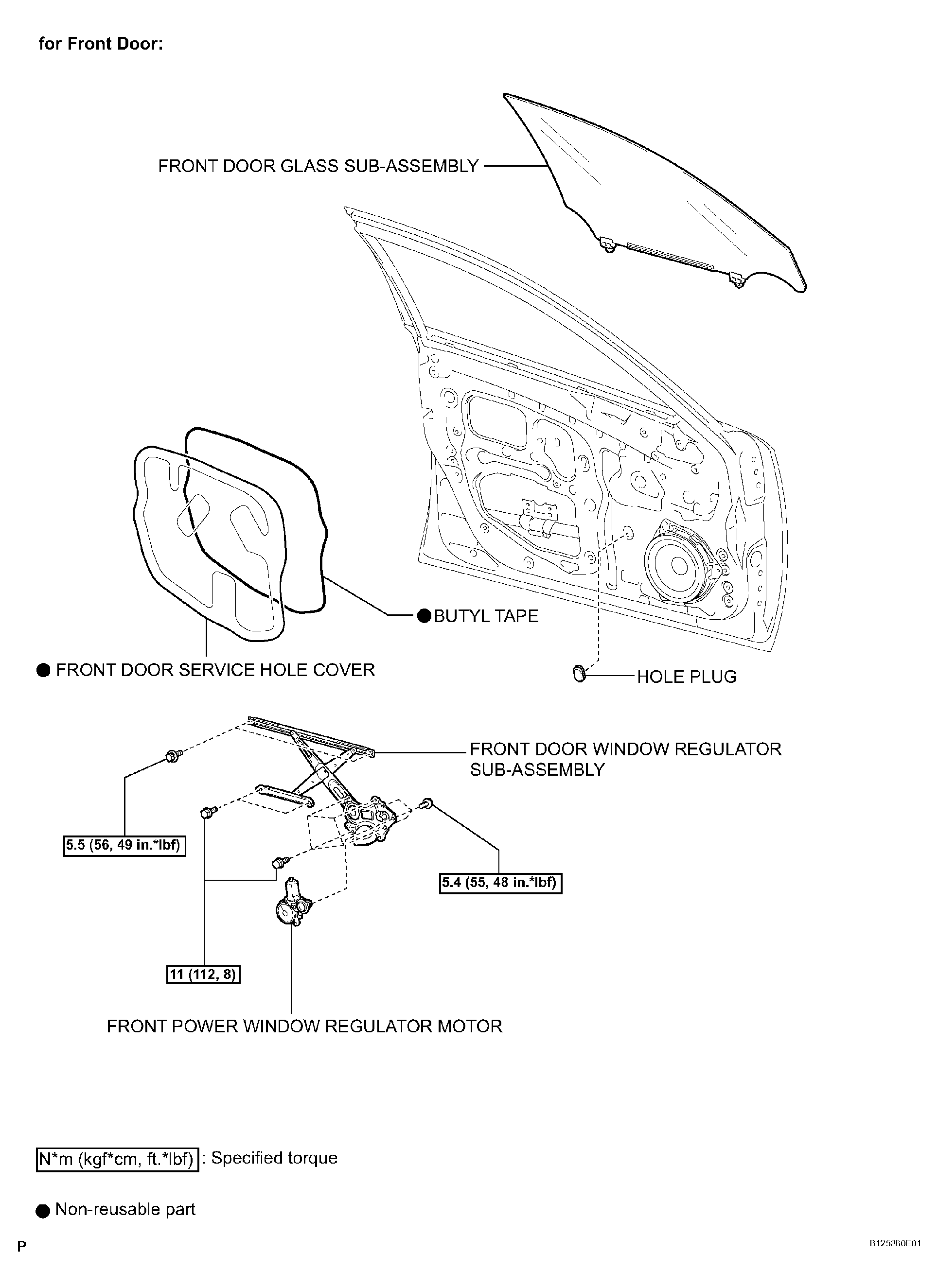

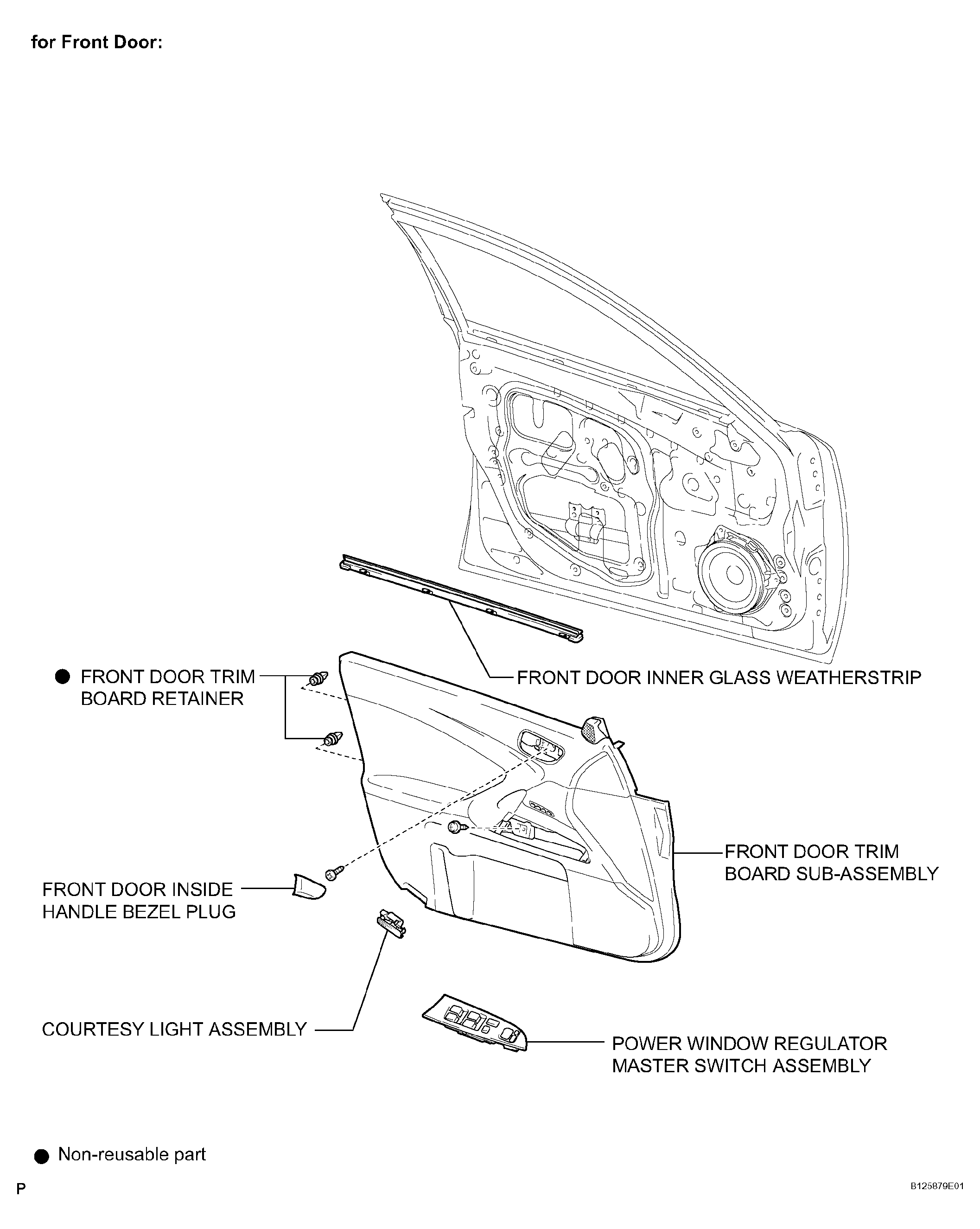

Fig 1: Power Window Regulator Motor Replacement Components With Torque Specifications (For Front Door) (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Power Window Regulator Motor Replacement Components With Torque Specifications (For Front Door) (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

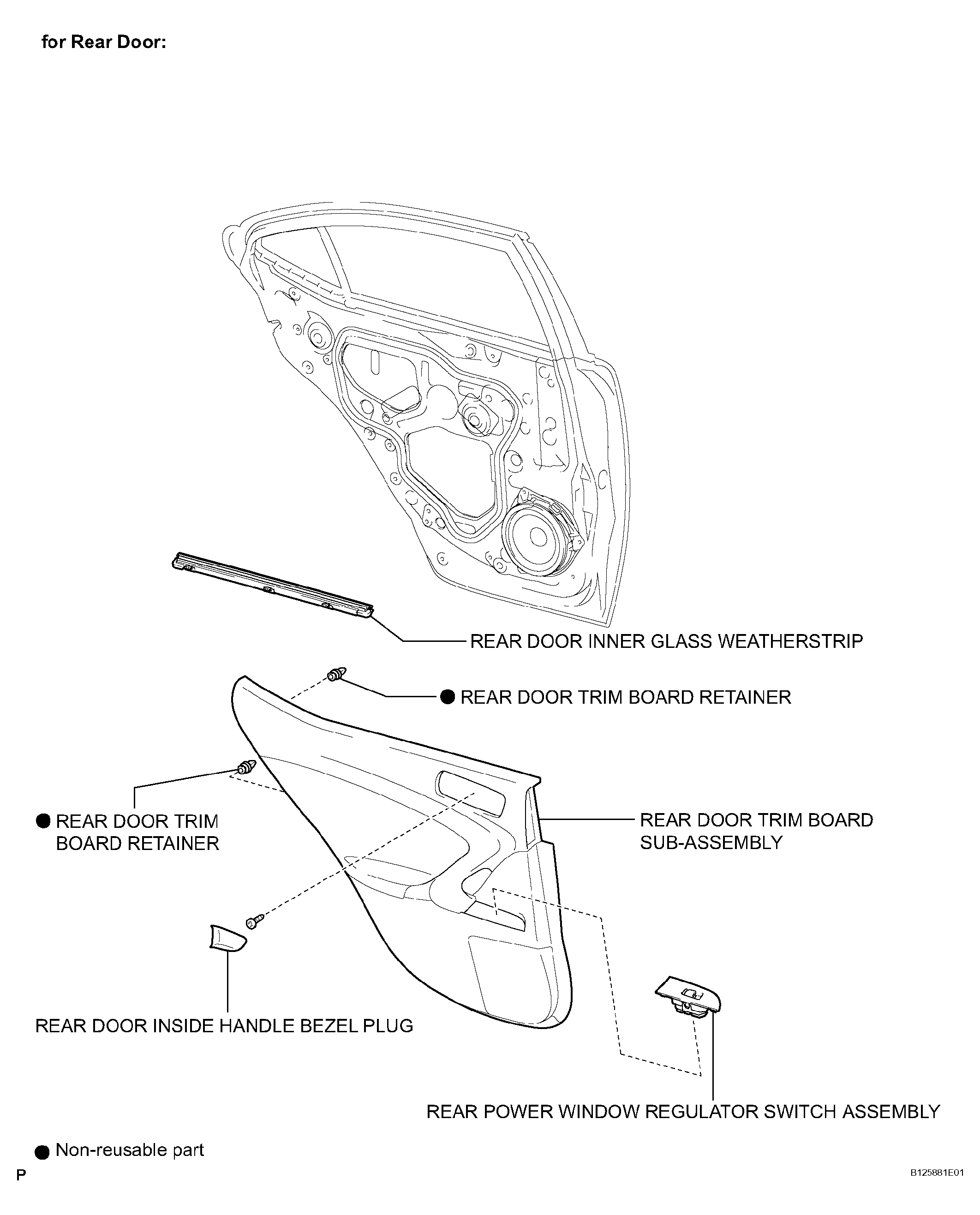

Fig 3: Power Window Regulator Motor Replacement Components With Torque Specifications (For Rear Door) (1 Of 2)

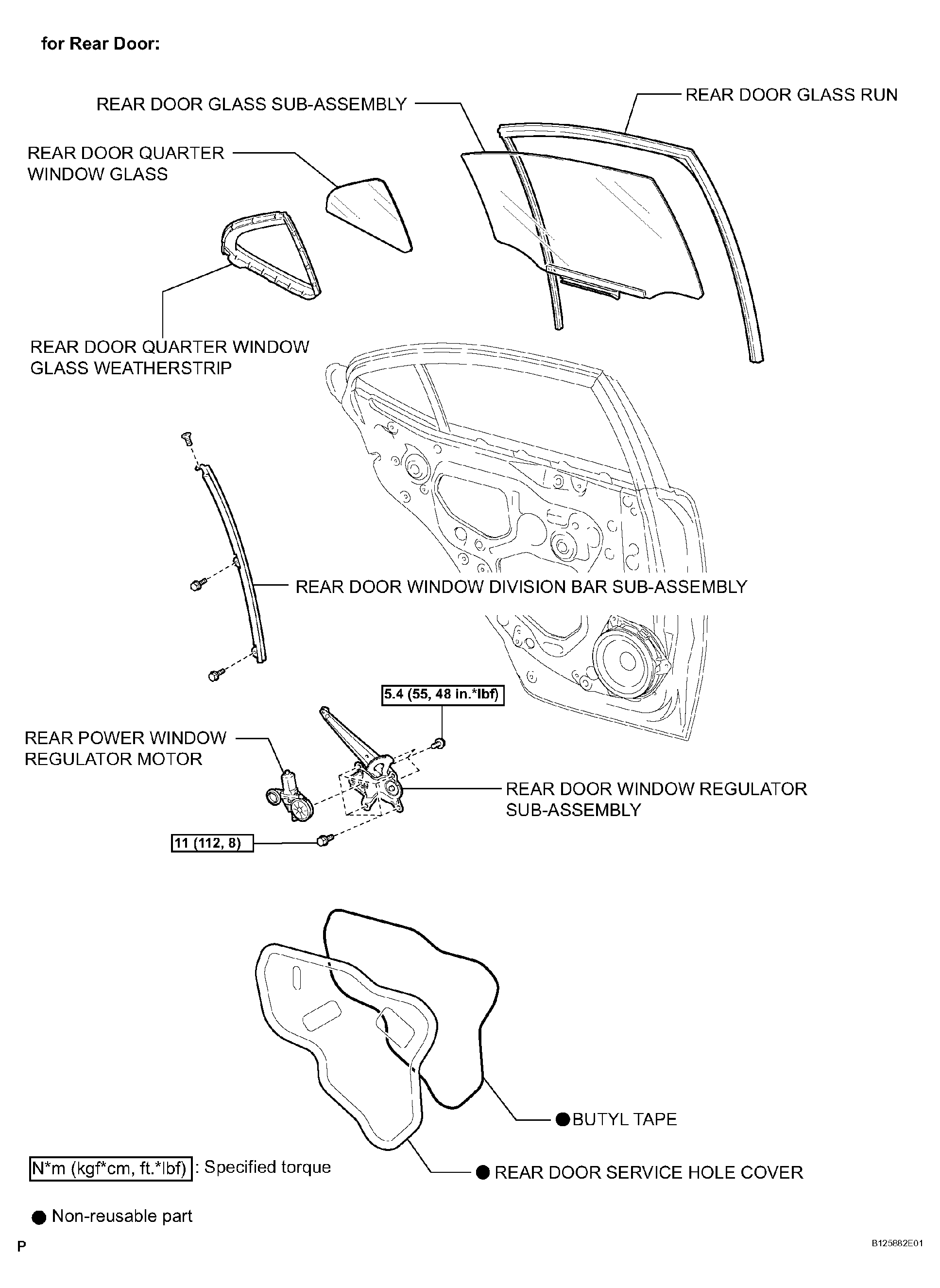

Fig 4: Power Window Regulator Motor Replacement Components With Torque Specifications (For Rear Door) (2 Of 2)
