Inspection Procedure

  1. CHECK COMMUNICATION SYSTEM
    1. Select the DTC check on the intelligent tester to check for communication errors.

    Result

    COMMUNICATION SYSTEM

    Not output DTC codes A
    Output DTC codes (Multiplex communication) B
    Output DTC codes (CAN communication) C

    B: GO TO  MULTIPLEX COMMUNICATION SYSTEM

    C: GO TO  CAN COMMUNICATION SYSTEM

    A: Go to next step

  2. PERFORM ACTIVE TEST BY INTELLIGENT TESTER
    1. Select the ACTIVE TEST, use the intelligent tester to issue a control command, and then check the window defogger operation.

    AIR CONDITIONER

    AIR CONDITIONER ACTIVE TEST TABLE

    Item Test Details
    DEFOGGER RLY Turns rear window defogger OFF/ON

    Result

    RESULT DESCRIPTION TABLE

    OK (with Navigation System) A
    OK (without Navigation System) B
    NG C

    B: Go to step   5

    C: Go to step   9

    A: Go to next step

  3. REPLACE MULTIMEDIA MODULE DISPLAY
    1. Replace the multimedia module display.
  4. CONFIRM REAR WINDOW DEFOGGER OPERATION
    1. Turn the engine switch on (IG), press the defogger switch, and check that window defogger operates.

    NG: REPLACE A/C AMPLIFIER ASSEMBLY

    OK: END

  5. REPLACE INTEGRATION CONTROL & PANEL
    1. Replace the integration control & panel.
  6. CONFIRM REAR WINDOW DEFOGGER OPERATION
    1. Turn the engine switch on (IG), press the defogger switch, and check that window defogger operates.

    OK: END

    NG: Go to next step

  7. REPLACE RADIO RECEIVER ASSEMBLY
    1. Replace the radio receiver assembly.
  8. REAR WINDOW DEFOGGER OPERATION
    1. Turn the engine switch on (IG), press the defogger switch, and check that window defogger operates.

    NG: REPLACE A/C AMPLIFIER ASSEMBLY

    OK: END

  9. PERFORM ACTIVE TEST BY INTELLIGENT TESTER
    1. Select the ACTIVE TEST, use the intelligent tester to issue a control command, and then check the DEFOG relay operation.
    2. Check that operation sound of the DEFOG relay is heard.

    Result

    RESULT DESCRIPTION TABLE

    Relay operating sound is heard OK
    Relay operating sound is not heard NG

    OK: Go to step   13

    NG: Go to next step

  10. INSPECT DEFOG RELAY

    See ON-VEHICLE INSPECTION

    NG: REPLACE DEFOG RELAY

    OK: Go to next step

  11. CHECK WIRE HARNESS (DEFOG RELAY - BATTERY POSITIVE)
    1. Disconnect the DEFOG relay.
    2. Measure the voltage according to the value(s) in DEFOG RELAY - BATTERY POSITIVE  .

      Voltage:

      Engine room No. 1 R/B, J/B

      DEFOG RELAY - BATTERY POSITIVE

      Tester Connection Condition Specified Condition
      1 - Body ground Engine switch on (IG) 10 to 14 V

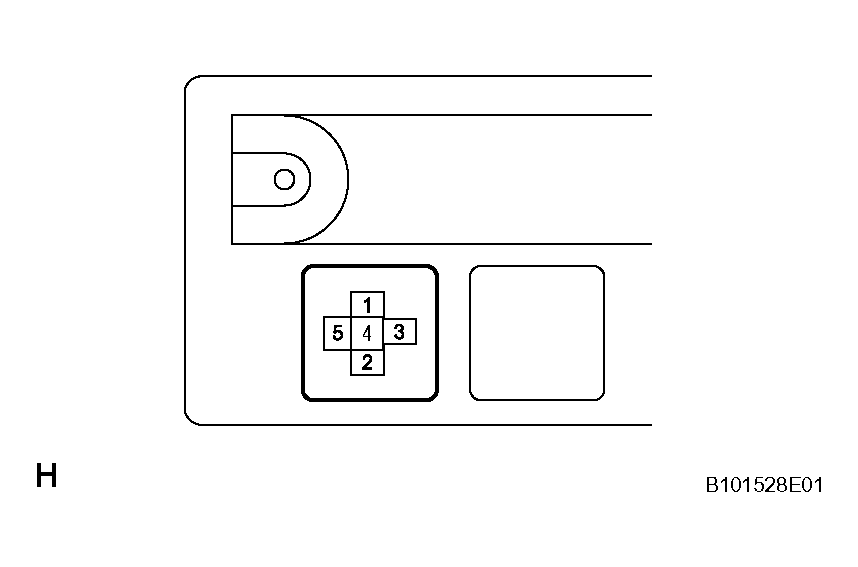

      Fig 1: Identifying Relay Connector Terminals
      G04050794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE LH-IG FUSE OR HARNESS AND CONNECTOR

    OK: Go to next step

  12. CHECK WIRE HARNESS (DEFOG RELAY - A/C AMPLIFIER ASSEMBLY)
    1. Disconnect the DEFOG relay and A/C amplifier assembly connector.
    2. Measure the resistance according to the value(s) in TESTER CONNECTION SPECIFIED CONDITION TABLE  .

      Resistance

      DEFOG RELAY - A/C AMPLIFIER ASSEMBLY

      Tester Connection Condition Specified Condition
      2 - J58-3 Always Below 1 ohms
      2 - Body ground Always 10 k ohms or higher

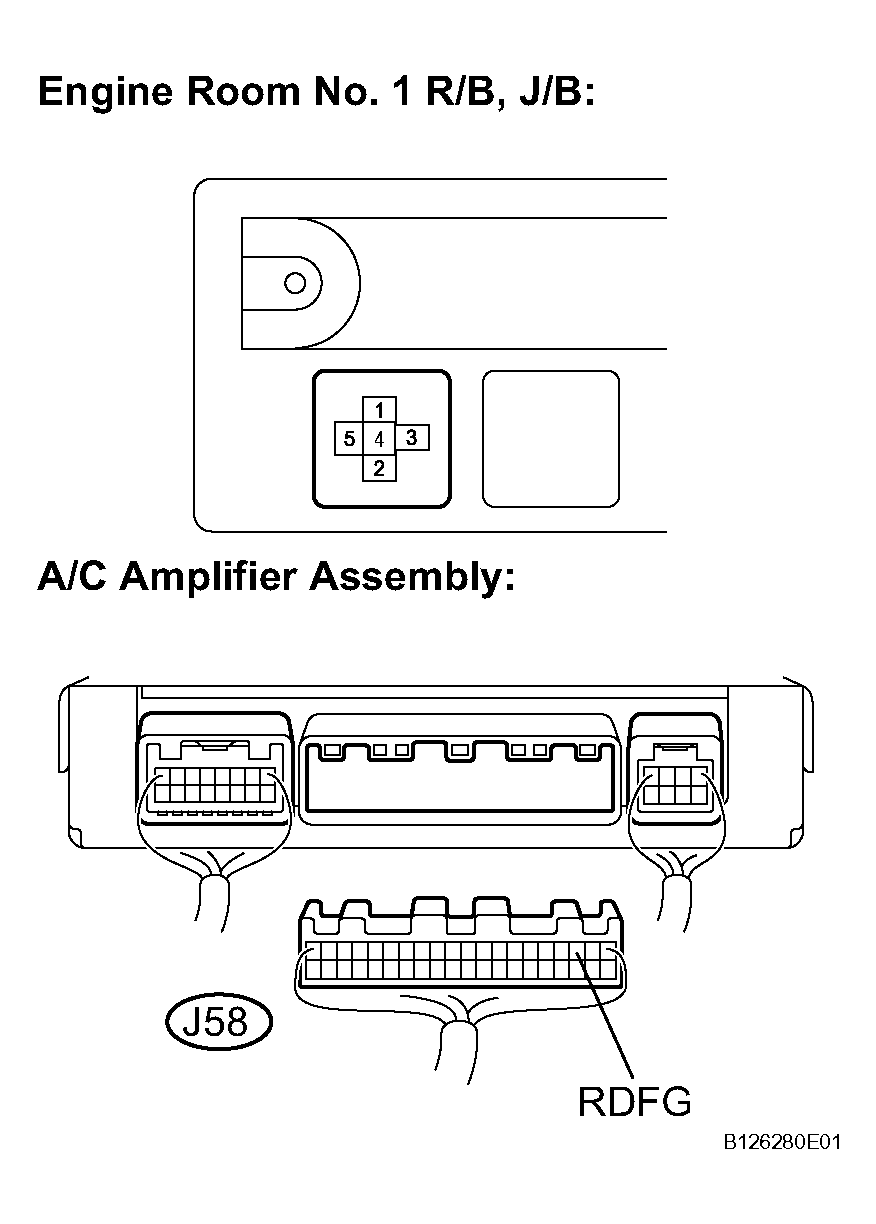

      Fig 2: Checking Wire Harness (Defog Relay - A/C Amplifier Assembly)
      G04050793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: REPLACE A/C AMPLIFIER ASSEMBLY

  13. INSPECT DEFOGGER RELAY

    See ON-VEHICLE INSPECTION

    NG: REPLACE DEFOG RELAY

    OK: Go to next step

  14. CHECK WIRE HARNESS (DEFOG RELAY - BATTERY POSITIVE AND BODY GROUND)
    1. Disconnect the DEFOG relay.
    2. Measure the voltage and resistance according to the value(s) in DEFOG RELAY - BATTERY POSITIVE AND BODY GROUND  .

      Resistance:

      Engine room No. 1 R/B, J/B

      DEFOG RELAY - BATTERY POSITIVE AND BODY GROUND (RESISTANCE)

      Tester Connection Condition Specified Condition
      4 - Body ground Always Below 1 ohms

      Voltage:

      Engine room No. 1 R/B, J/B

      Fig 3: Identifying Relay Connector Terminals
      G04050794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      DEFOG RELAY - BATTERY POSITIVE AND BODY GROUND (VOLTAGE)

      Tester Connection Condition Specified Condition
      5 - Body ground Engine switch on (IG) 10 to 14 V

    NG: REPAIR OR REPLACE DEFOG FUSE OR HARNESS AND CONNECTOR

    OK: Go to next step

  15. INSPECT NOISE FILTER
    1. Disconnect the noise filter connectors.
    2. Measure the resistance according to the value(s) in NOISE FILTER  .

      Resistance

      NOISE FILTER

      Tester Connection Condition Specified Condition
      A1 - B1 Always Below 1 ohms
      A1 - Body ground Always 10 k ohms or higher

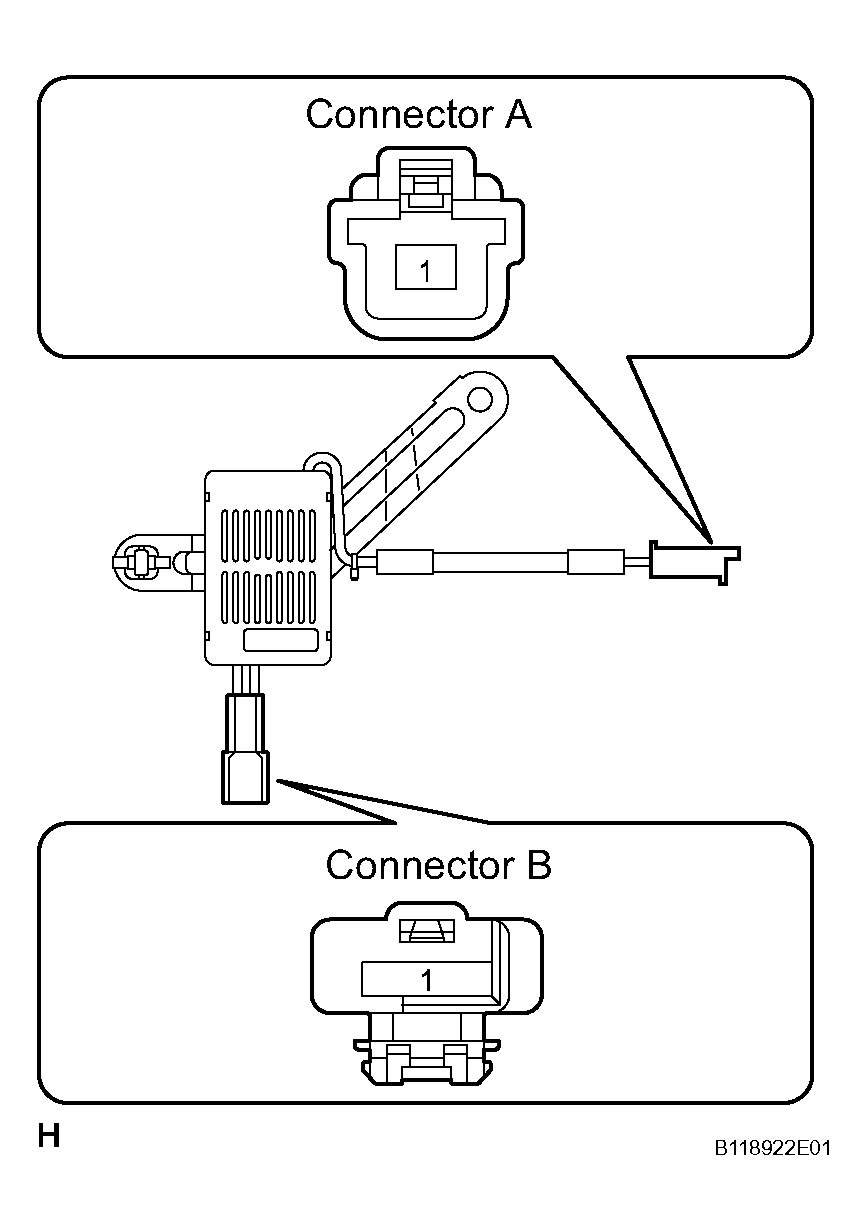

      Fig 4: Inspecting Noise Filter
      G04050795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE NOISE FILTER

    OK: Go to next step

  16. CHECK WIRE HARNESS (DEFOG RELAY - NOISE FILTER)
    1. Disconnect the DEFOG relay and defogger wire connectors.
    2. Measure the resistance according to the value(s) in DEFOG RELAY - NOISE FILTER  .

      Resistance

      DEFOG RELAY - NOISE FILTER

      Tester Connection Condition Specified Condition
      3 - Q21-1 Always Below 1 ohms

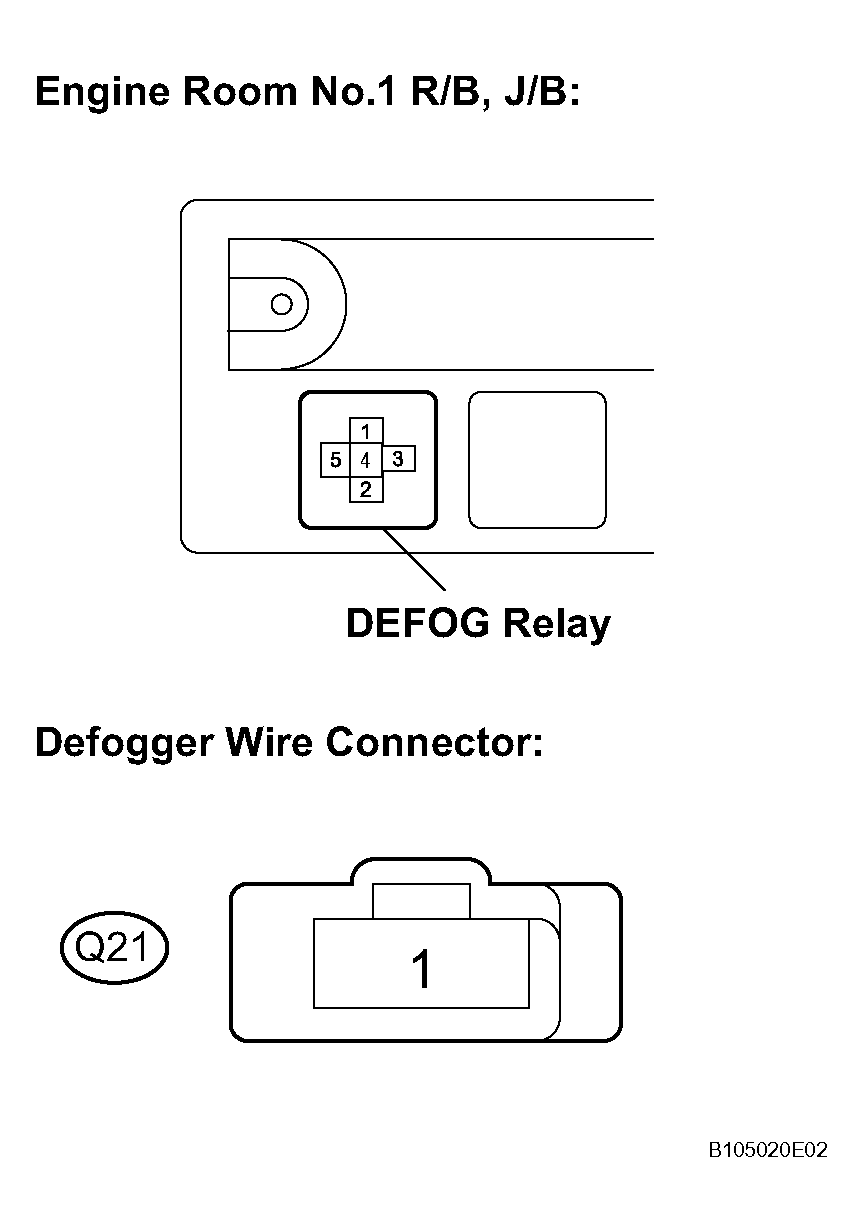

      Fig 5: Checking Wire Harness (Defog Relay - Noise Filter)
      G04050796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  17. CHECK WIRE HARNESS (DEFOGGER WIRE CONNECTOR - BODY GROUND)
    1. Measure the resistance according to the value(s) in TESTER CONNECTION SPECIFIED CONDITION TABLE  .

      Resistance

      DEFOGGER WIRE CONNECTOR - BODY GROUND

      Tester Connection Condition Specified Condition
      P19-1 - Body ground Always Below 1 ohms

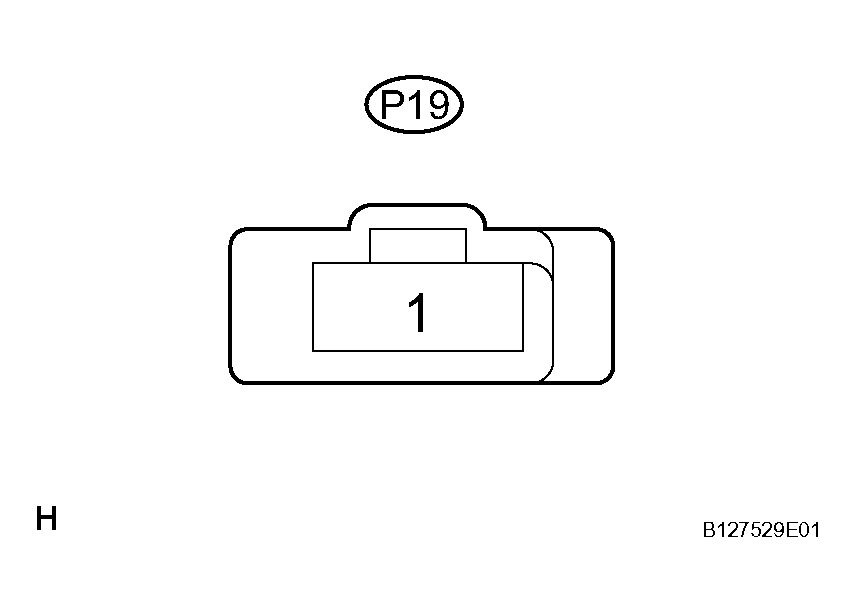

      Fig 6: Checking Wire Harness (Defogger Wire Connector - Body Ground)
      G04050797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: REPAIR OR REPLACE REAR WINDOW DEFOGGER WIRE
