Windshield Glass: Components

Fig 1: Windshield Glass Replacement Components With Torque Specifications (1 Of 3)
G04050745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Windshield Glass Replacement Components With Torque Specifications (2 Of 3)
G04050746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

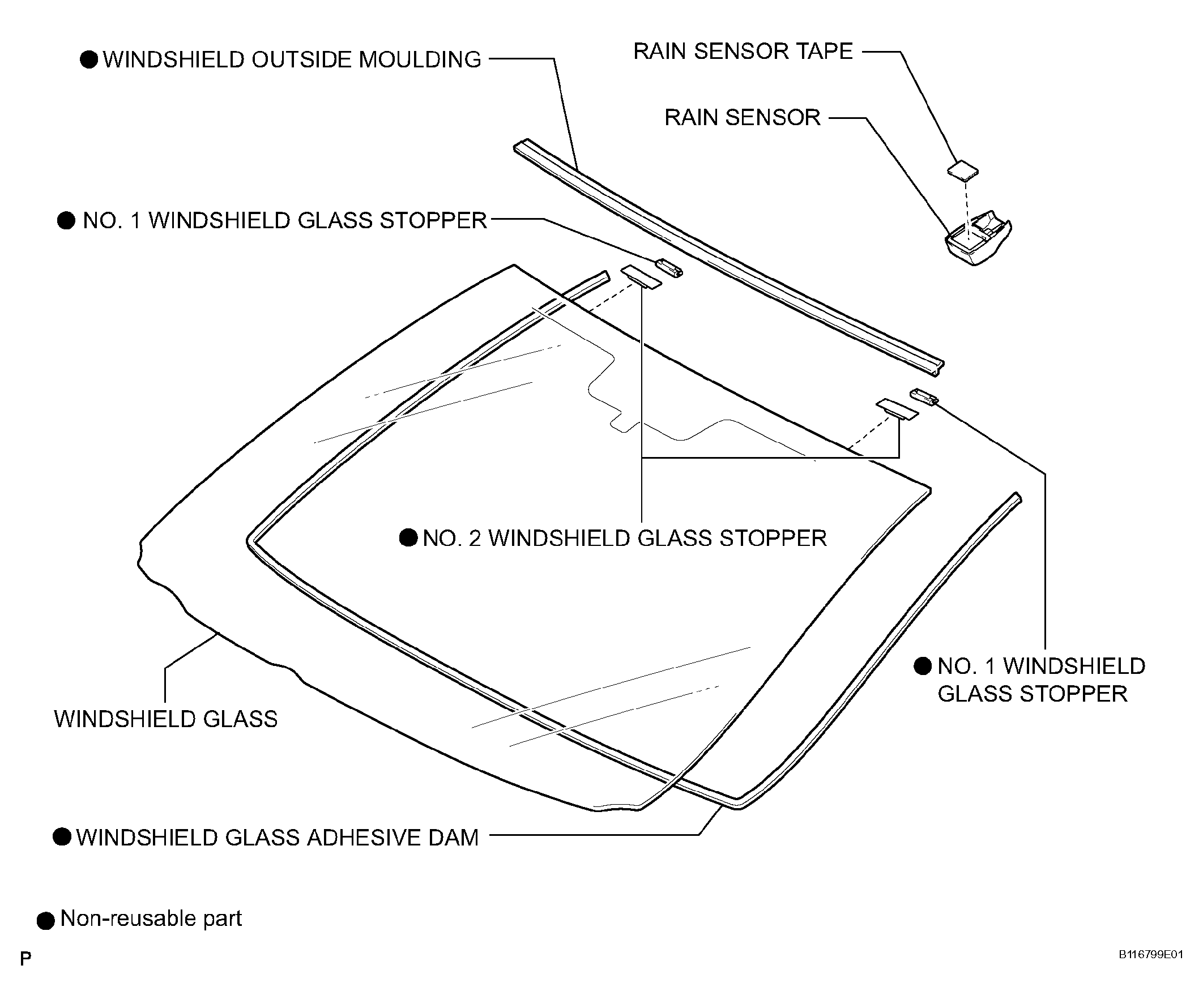

Fig 3: Identifying Windshield Glass Components (3 Of 3)
G04050747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
