Yaw Rate And Acceleration Sensor: Components

Fig 1: Yaw Rate And Acceleration Sensor Replacement Components With Torque Specifications (1 Of 2)
G05319587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

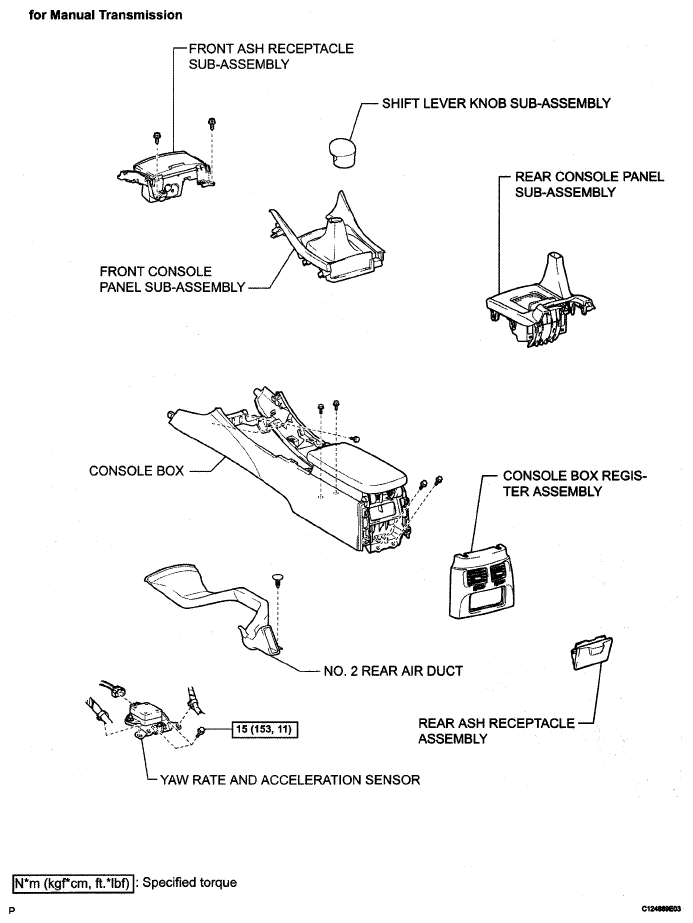

Fig 2: Yaw Rate And Acceleration Sensor Replacement Components With Torque Specifications (2 Of 2)
G05319588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
