Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine Compartment

G00420626

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Dash

G00420627

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Vehicle Overview

G00420628

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

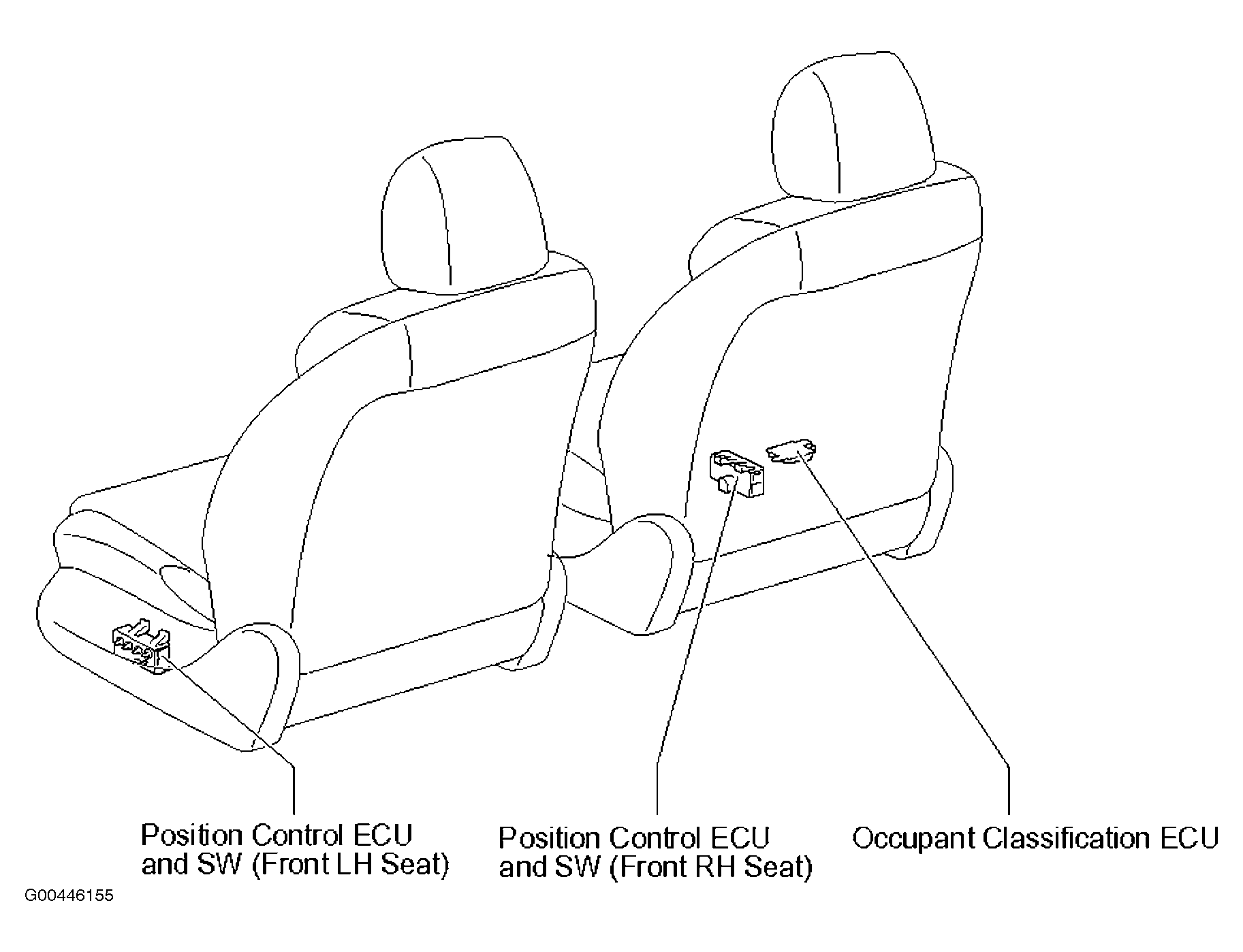

Fig 4: Front Seats

G00446155

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

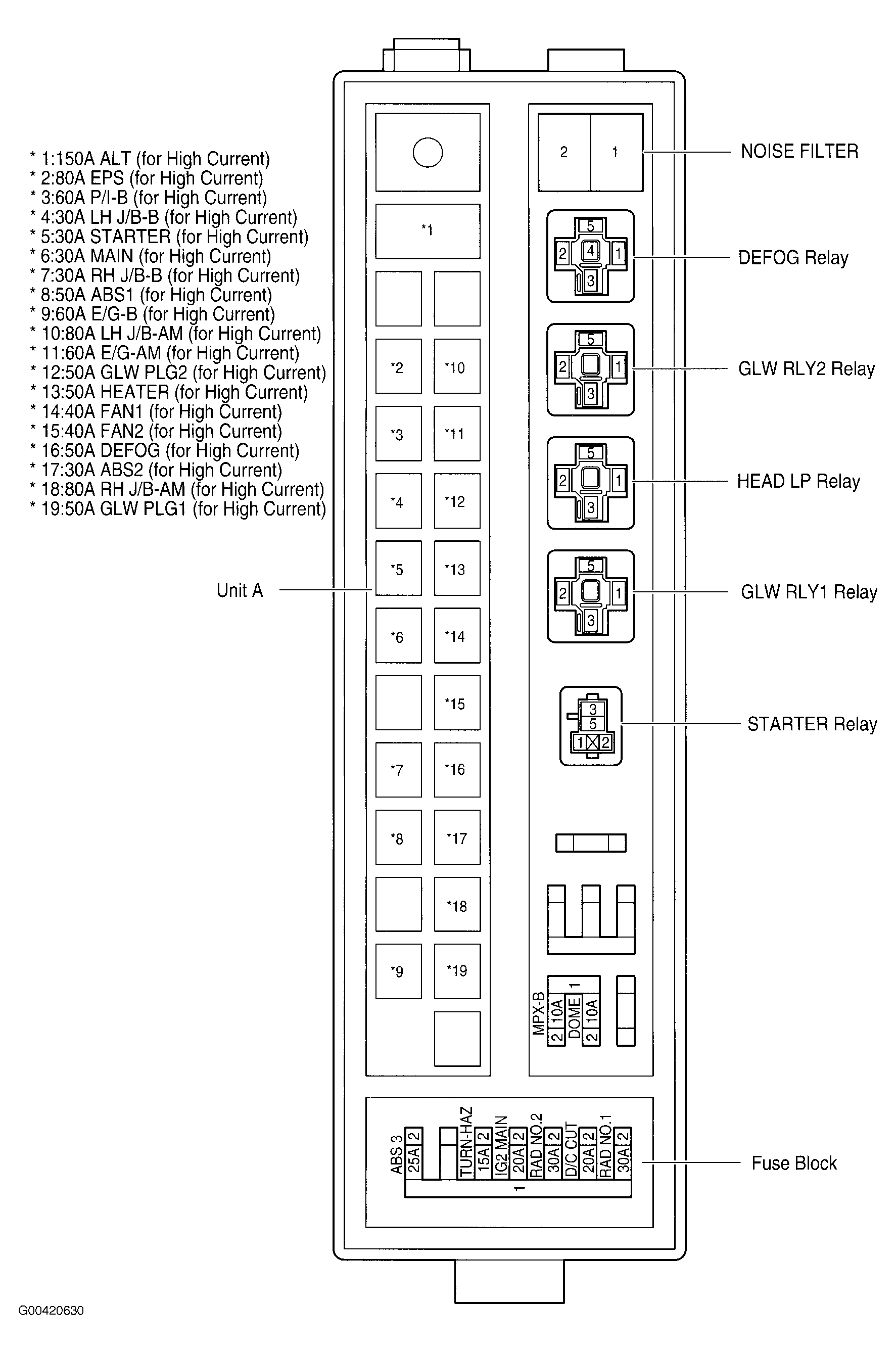

Fig 5: Engine Room R/B No. 1

G00420630

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

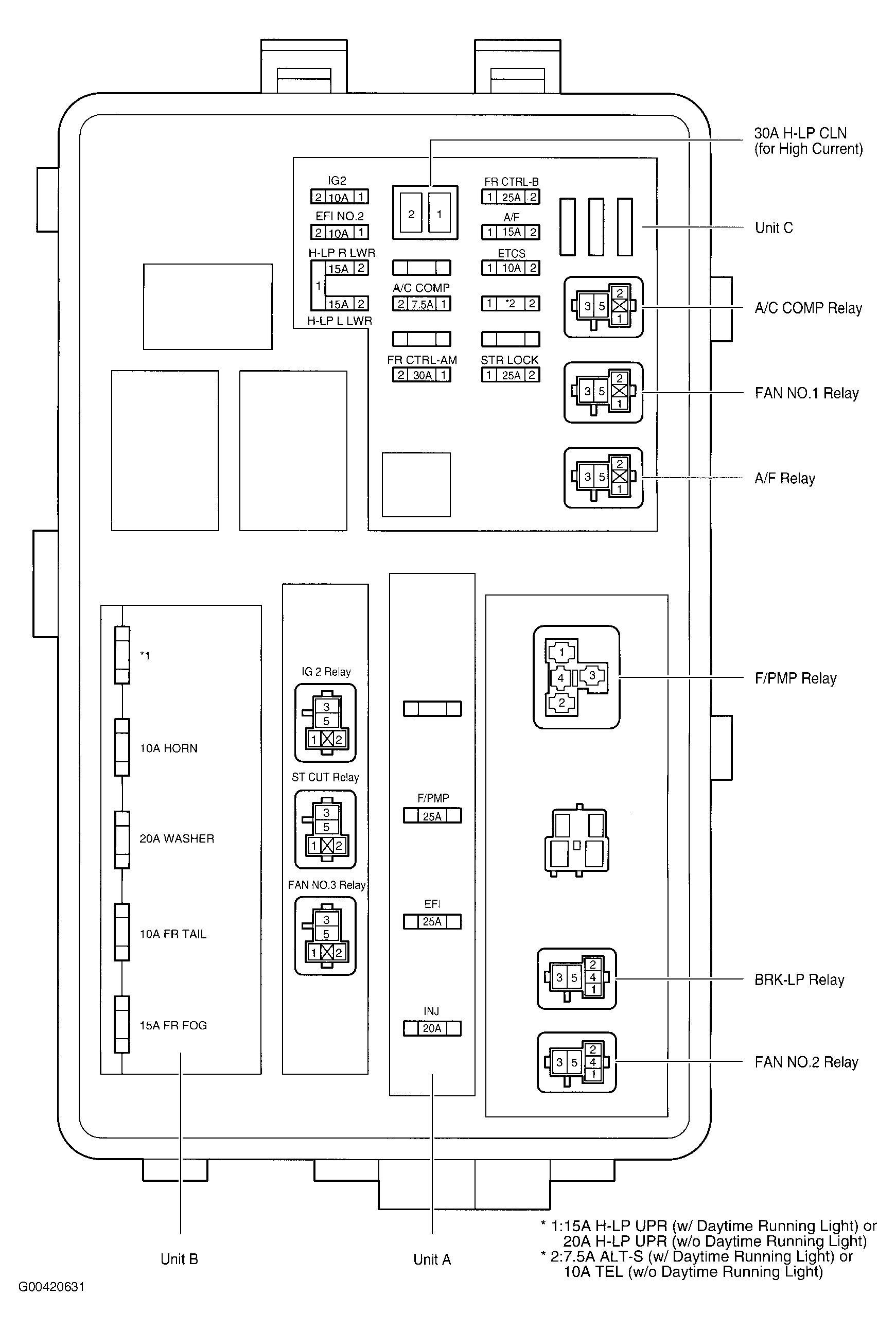

Fig 6: Engine Room R/B No. 2

G00420631

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

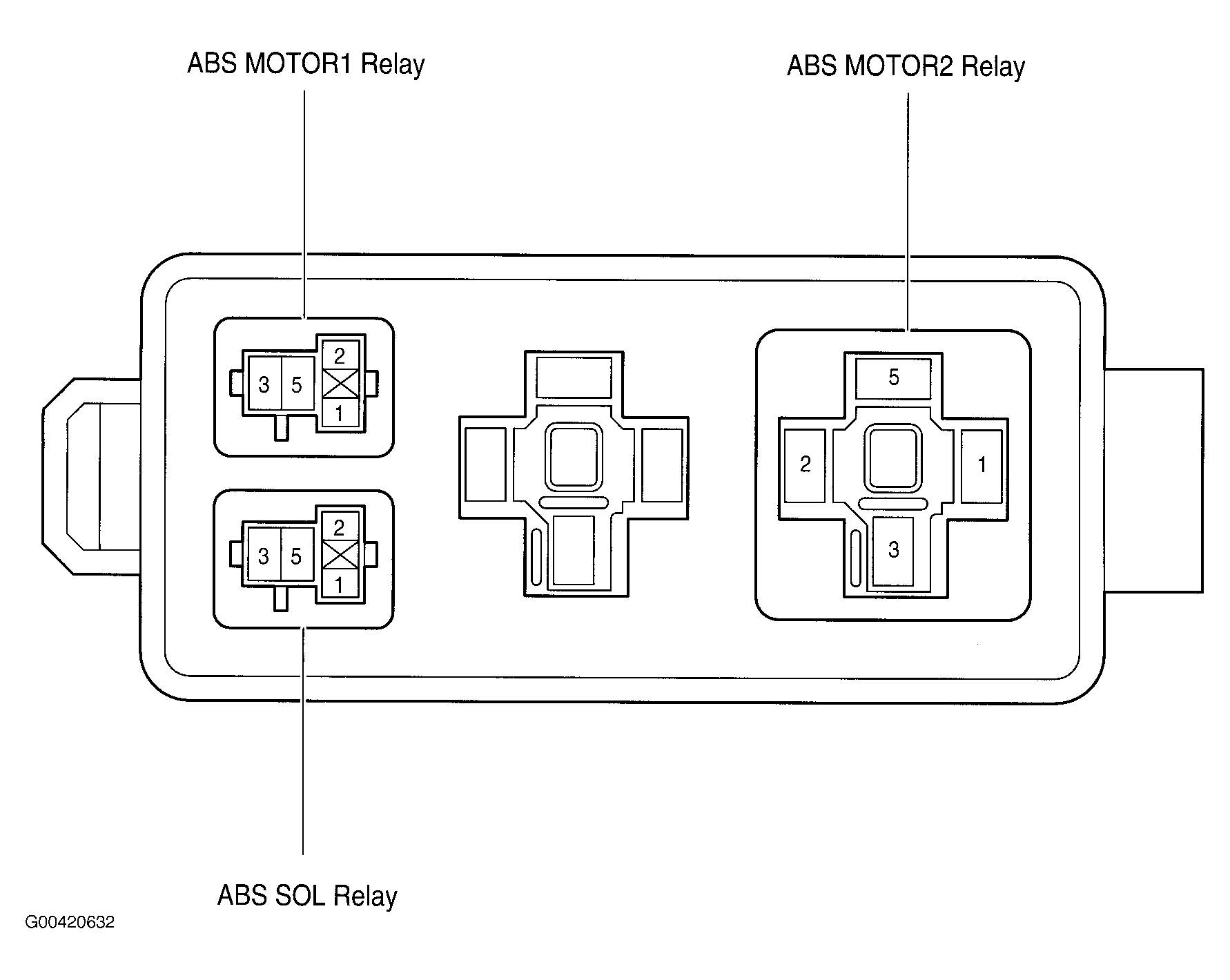

Fig 7: Engine Room R/B No. 3

G00420632

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

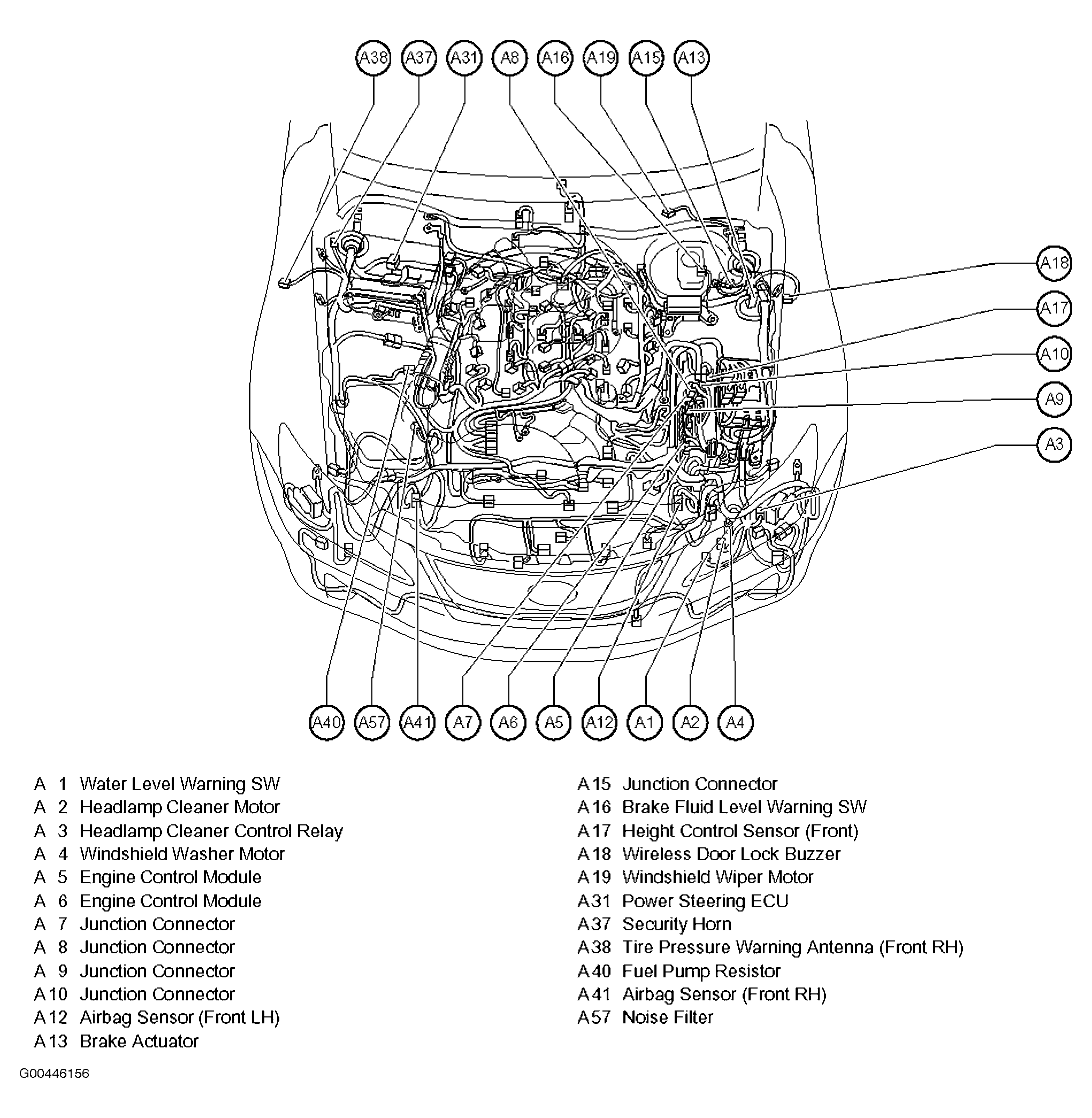

Fig 8: Engine Compartment (3.5L)

G00446156

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

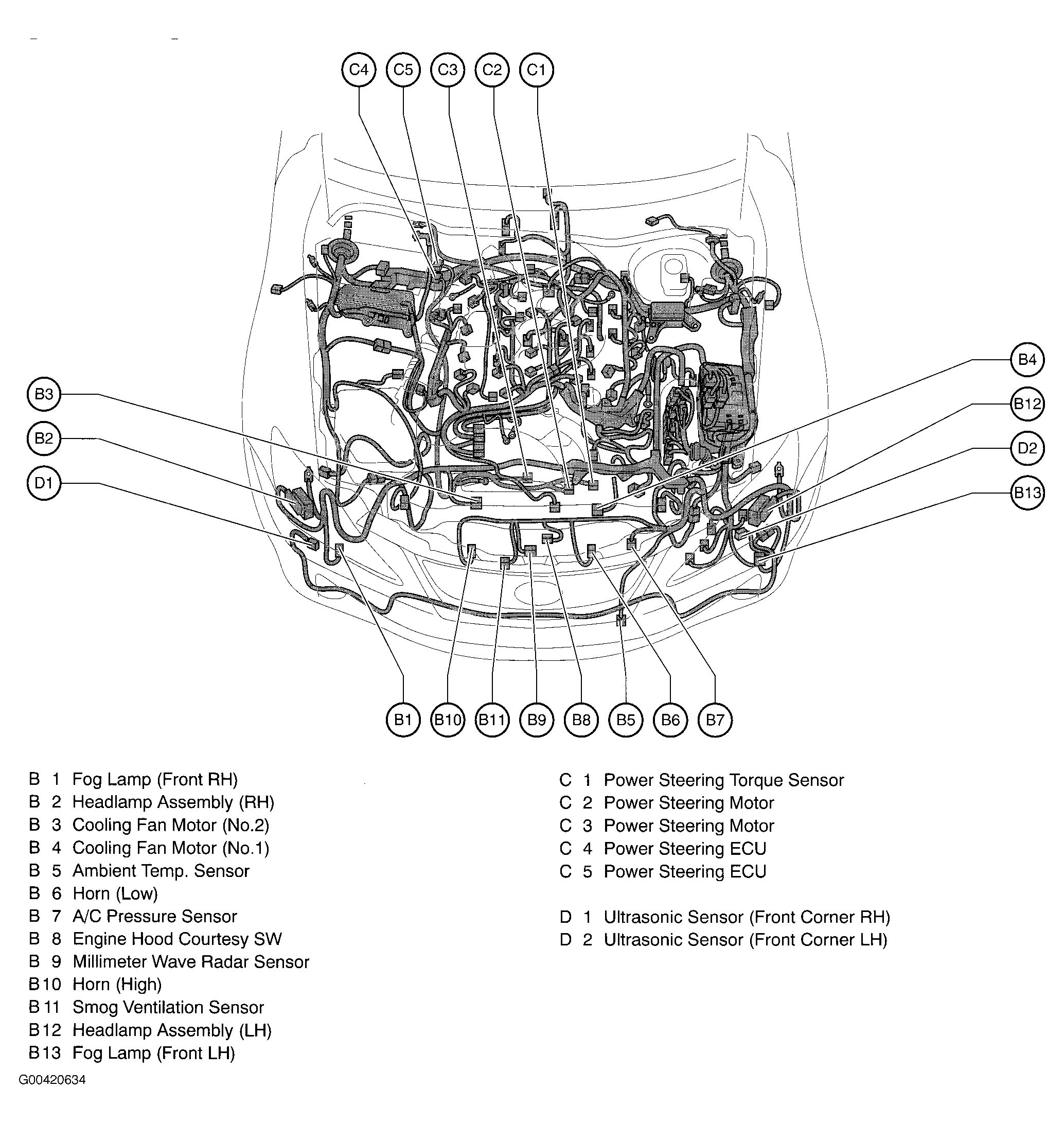

Fig 9: Engine Compartment (3.5L)

G00420634

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

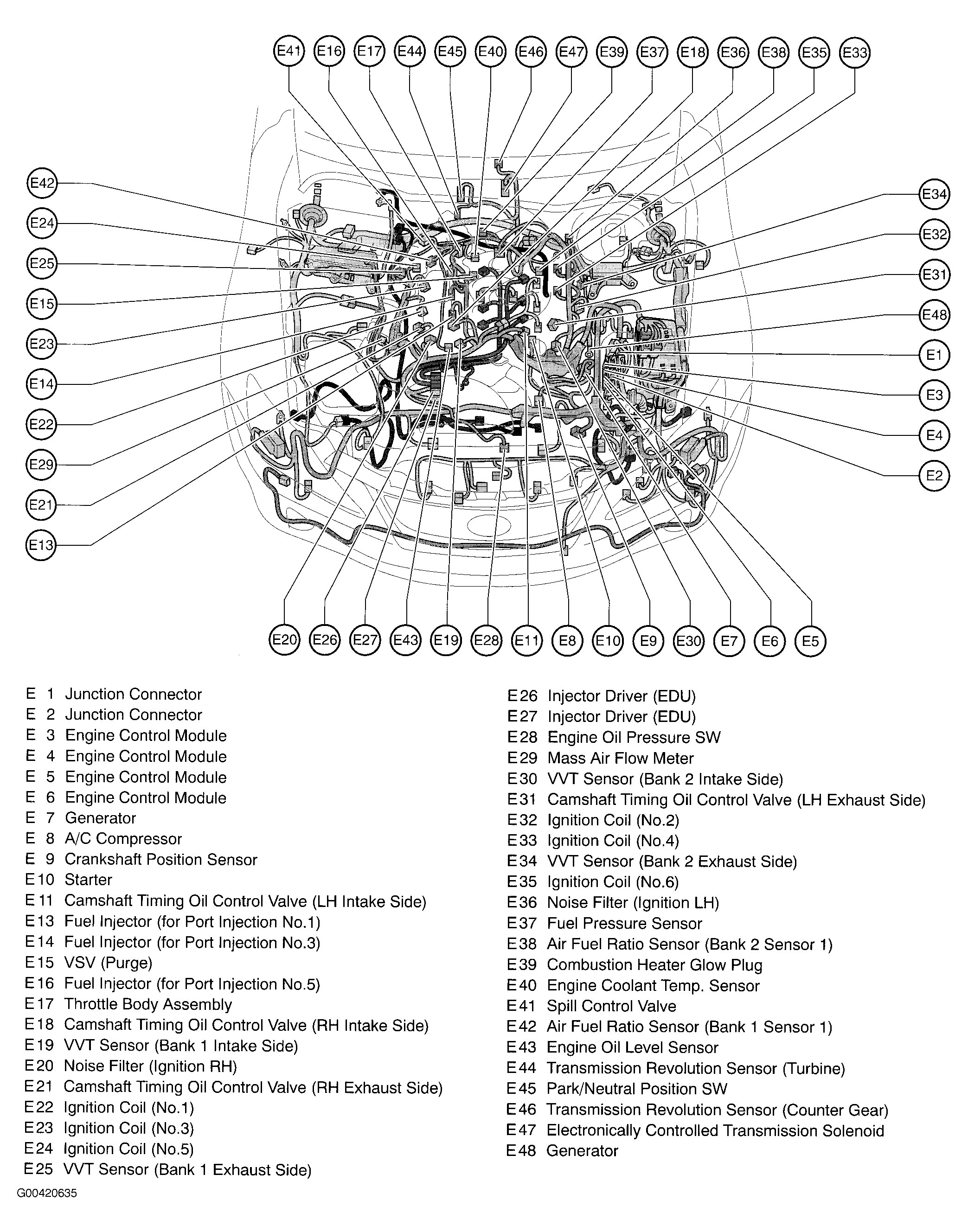

Fig 10: Engine Compartment (3.5L)

G00420635

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

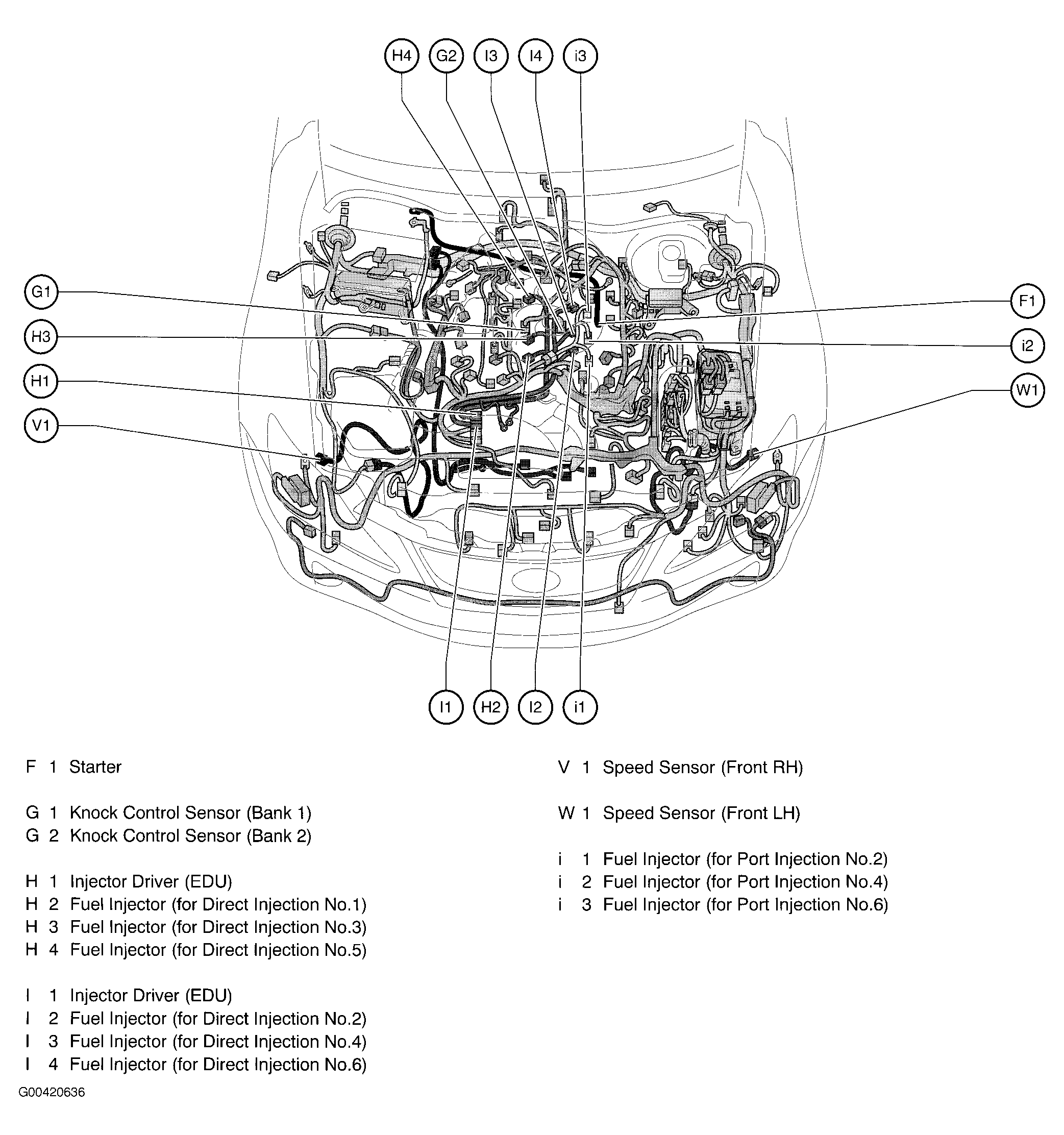

Fig 11: Engine Compartment (3.5L)

G00420636

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

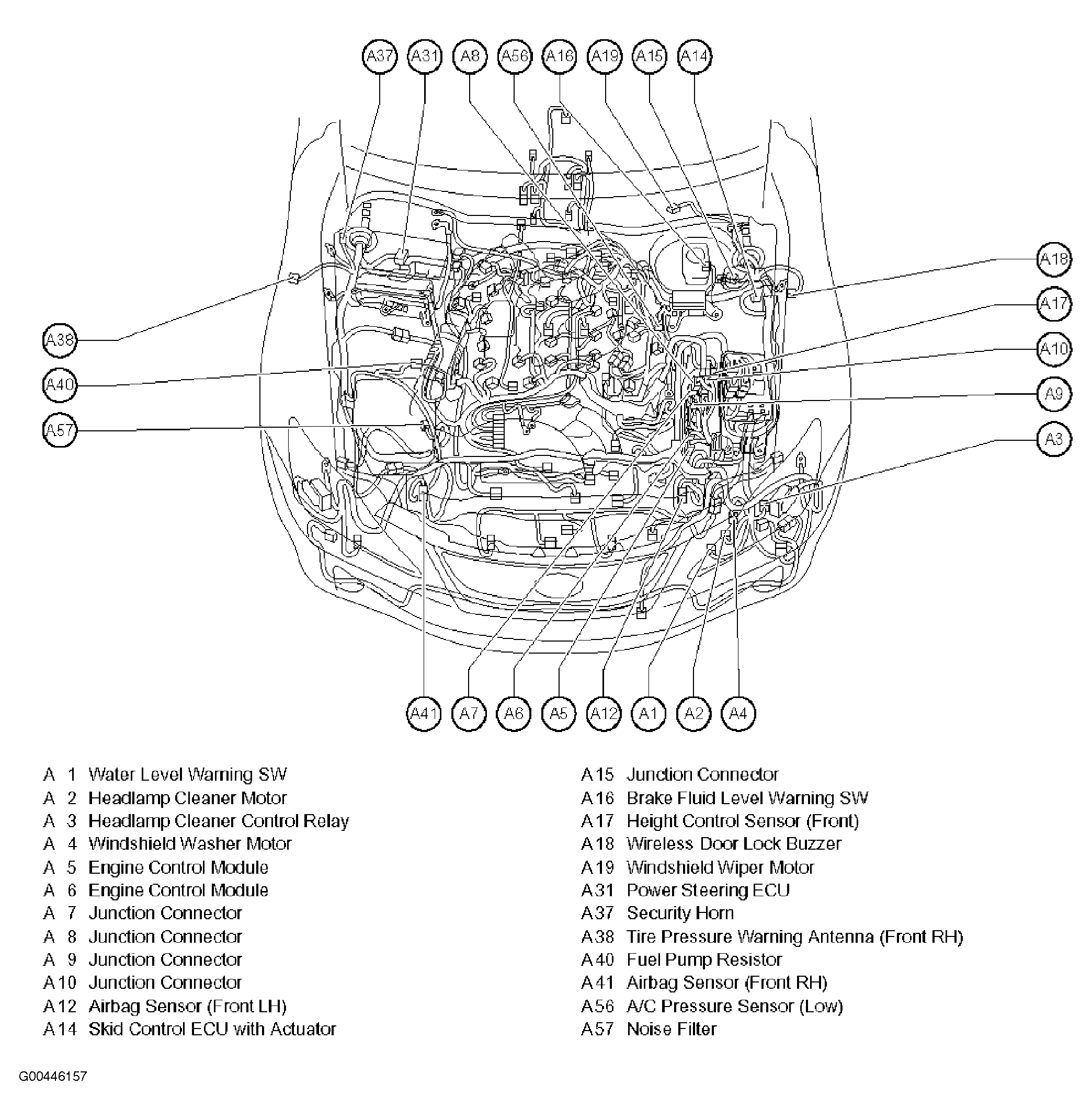

Fig 12: Engine Compartment (2.5L)

G00446157

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

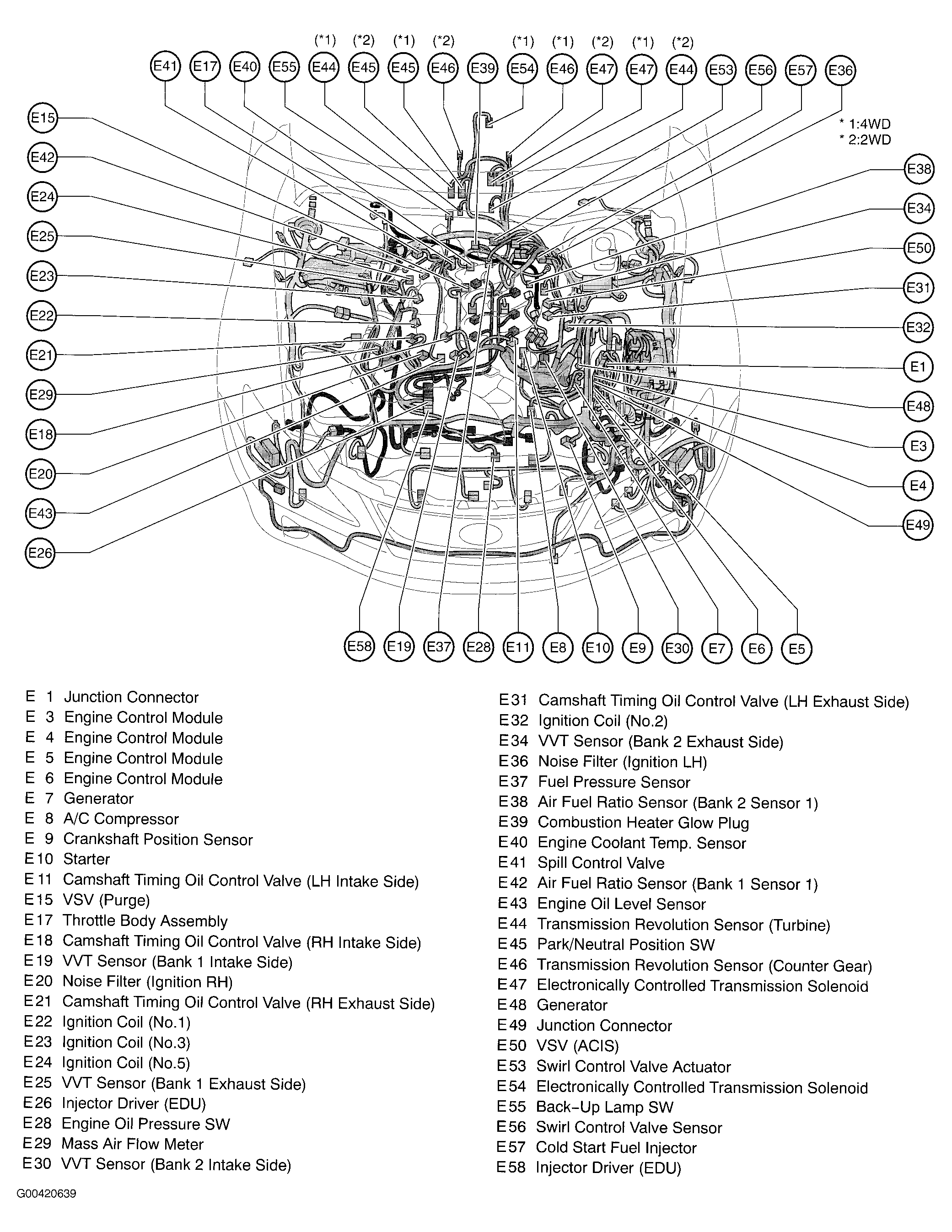

Fig 13: Engine Compartment (2.5L)

G00420639

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

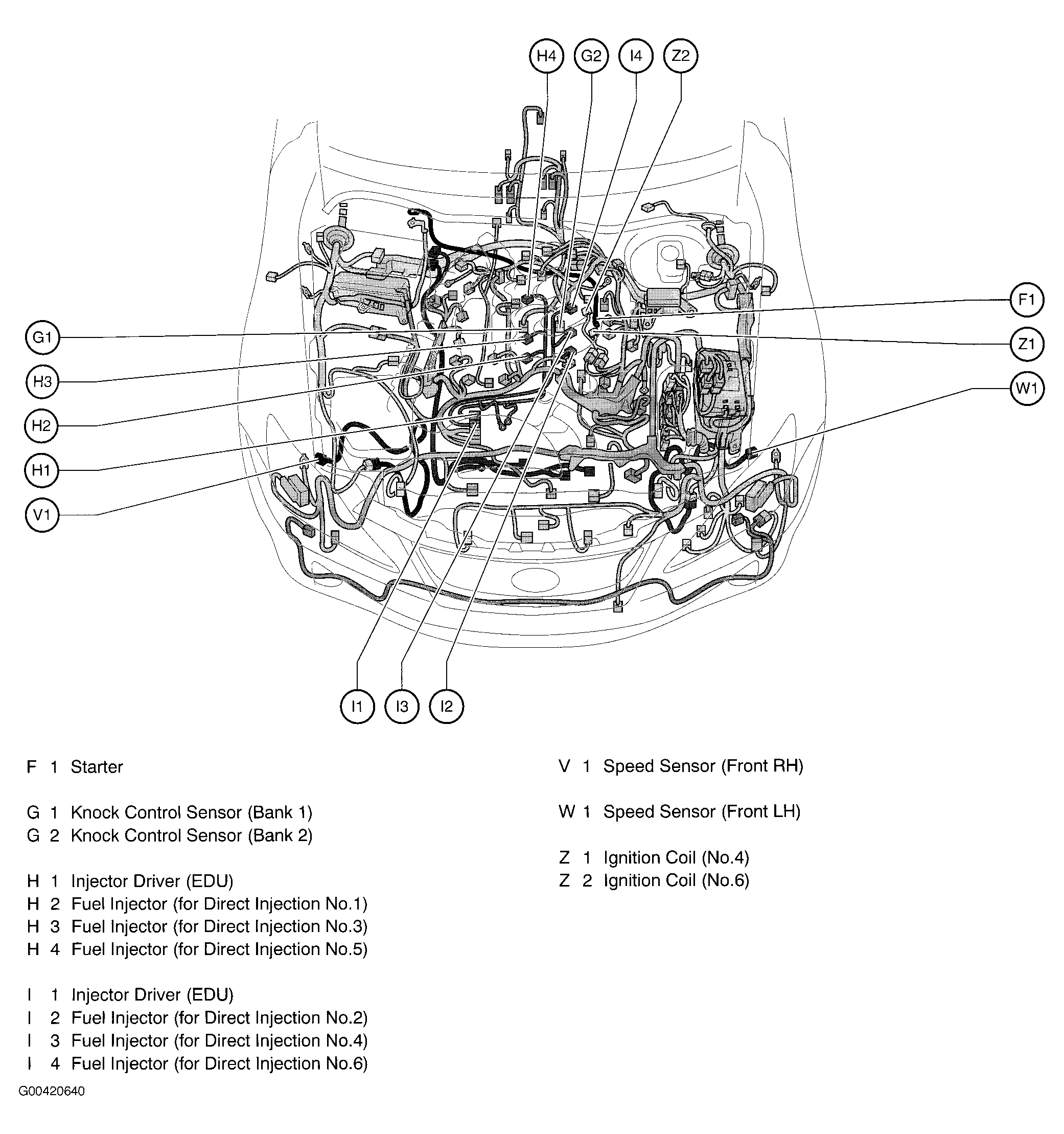

Fig 14: Engine Compartment (2.5L)

G00420640

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

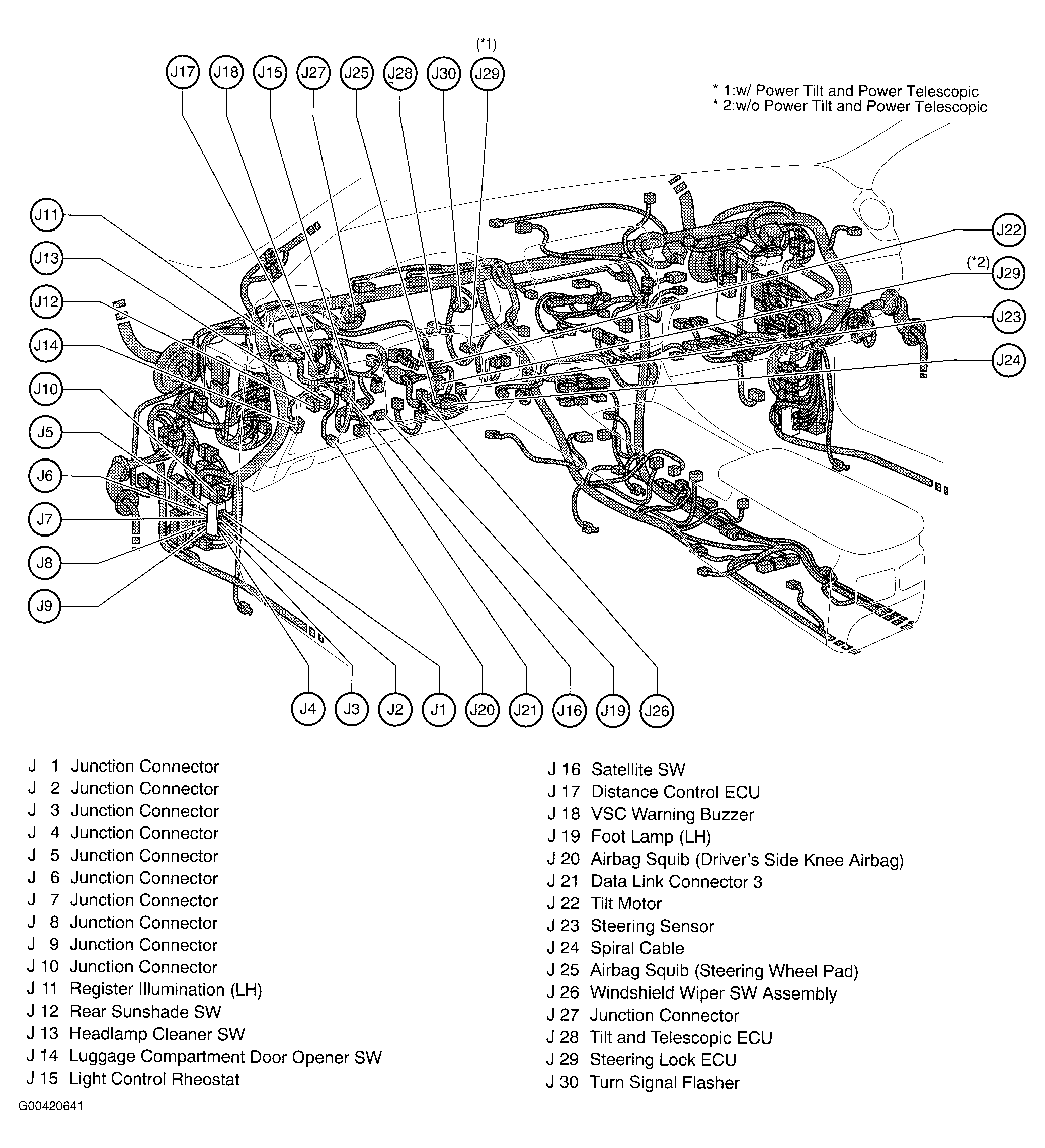

Fig 15: Instrument Panel

G00420641

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

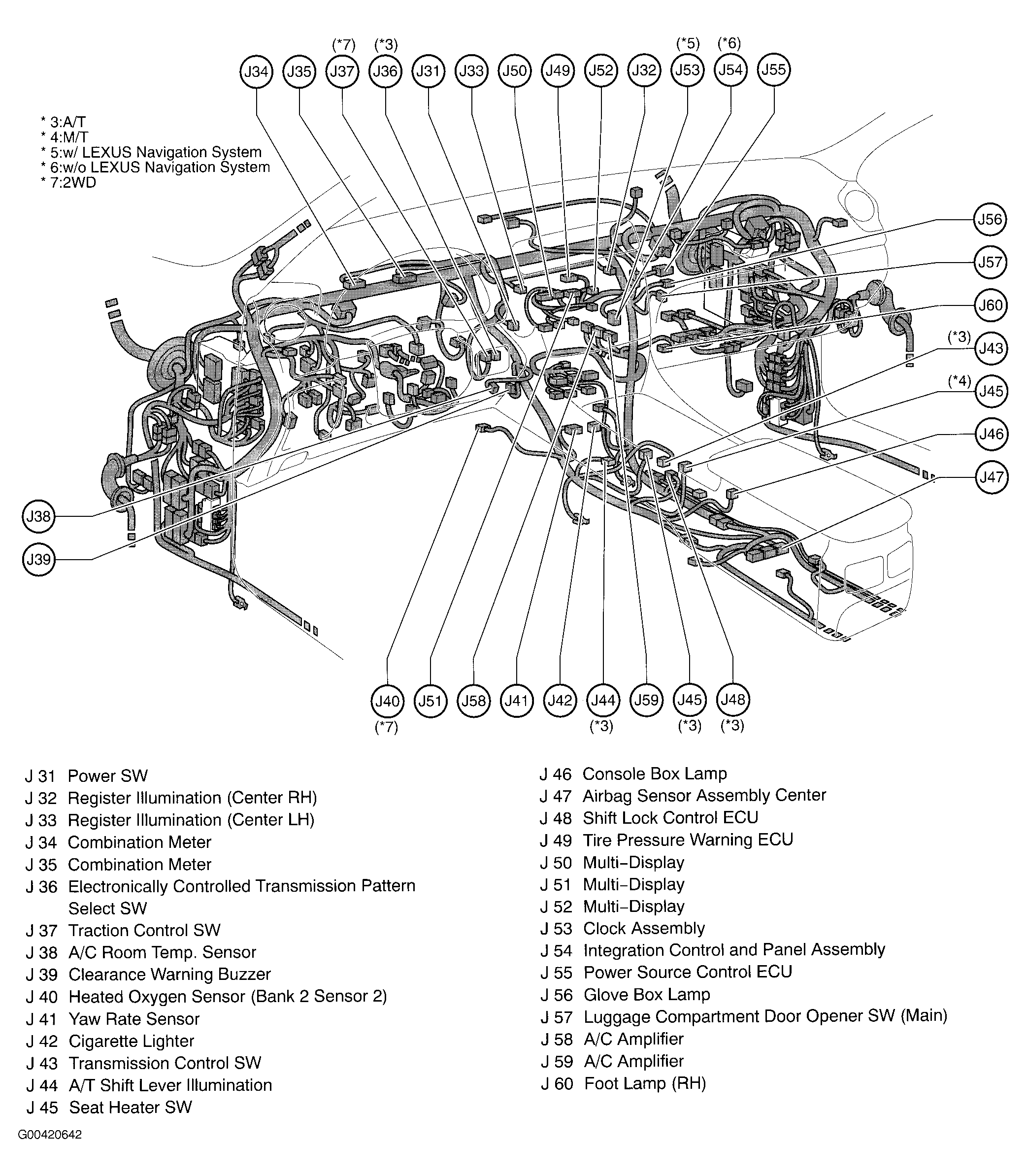

Fig 16: Instrument Panel

G00420642

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

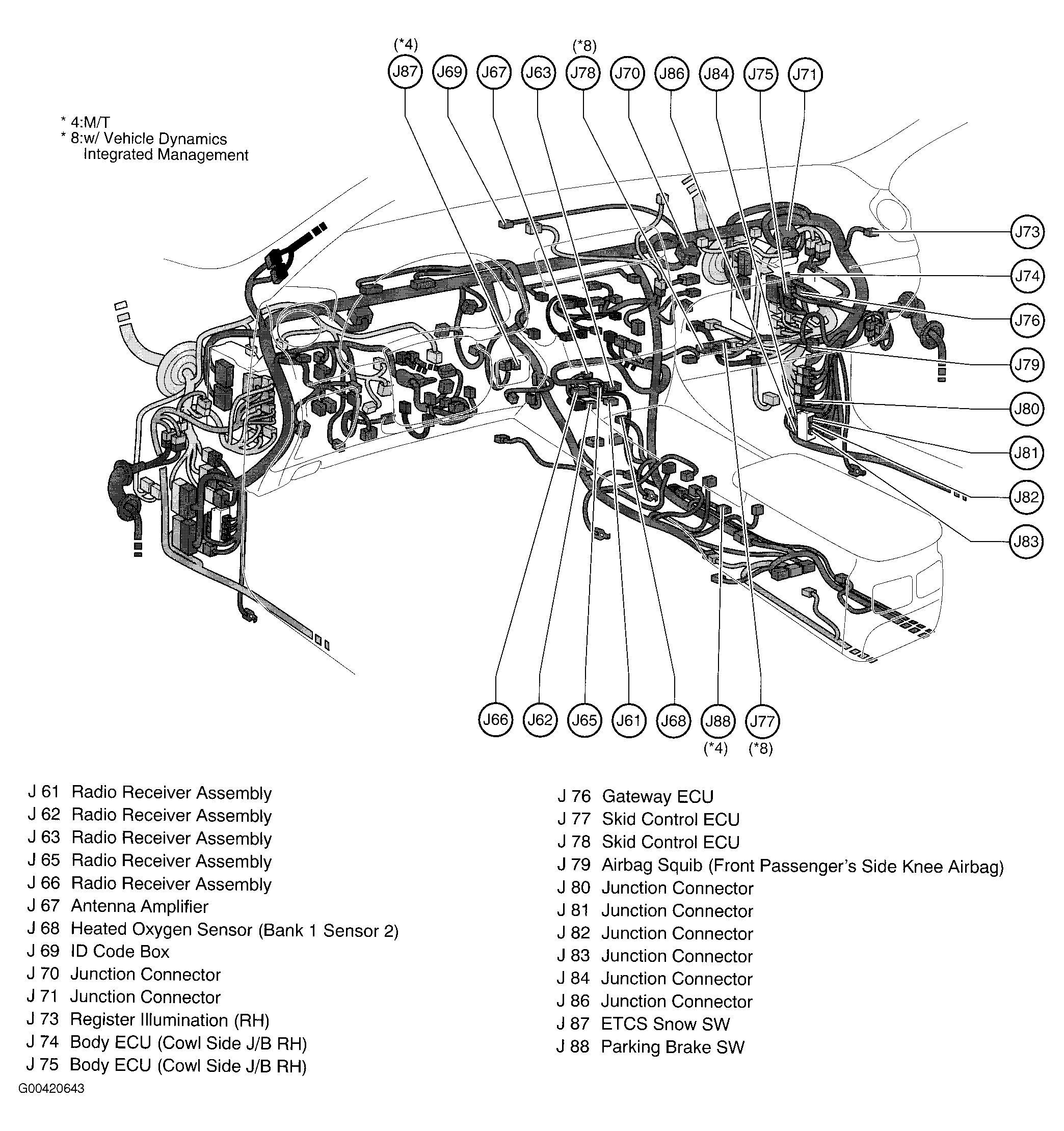

Fig 17: Instrument Panel

G00420643

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

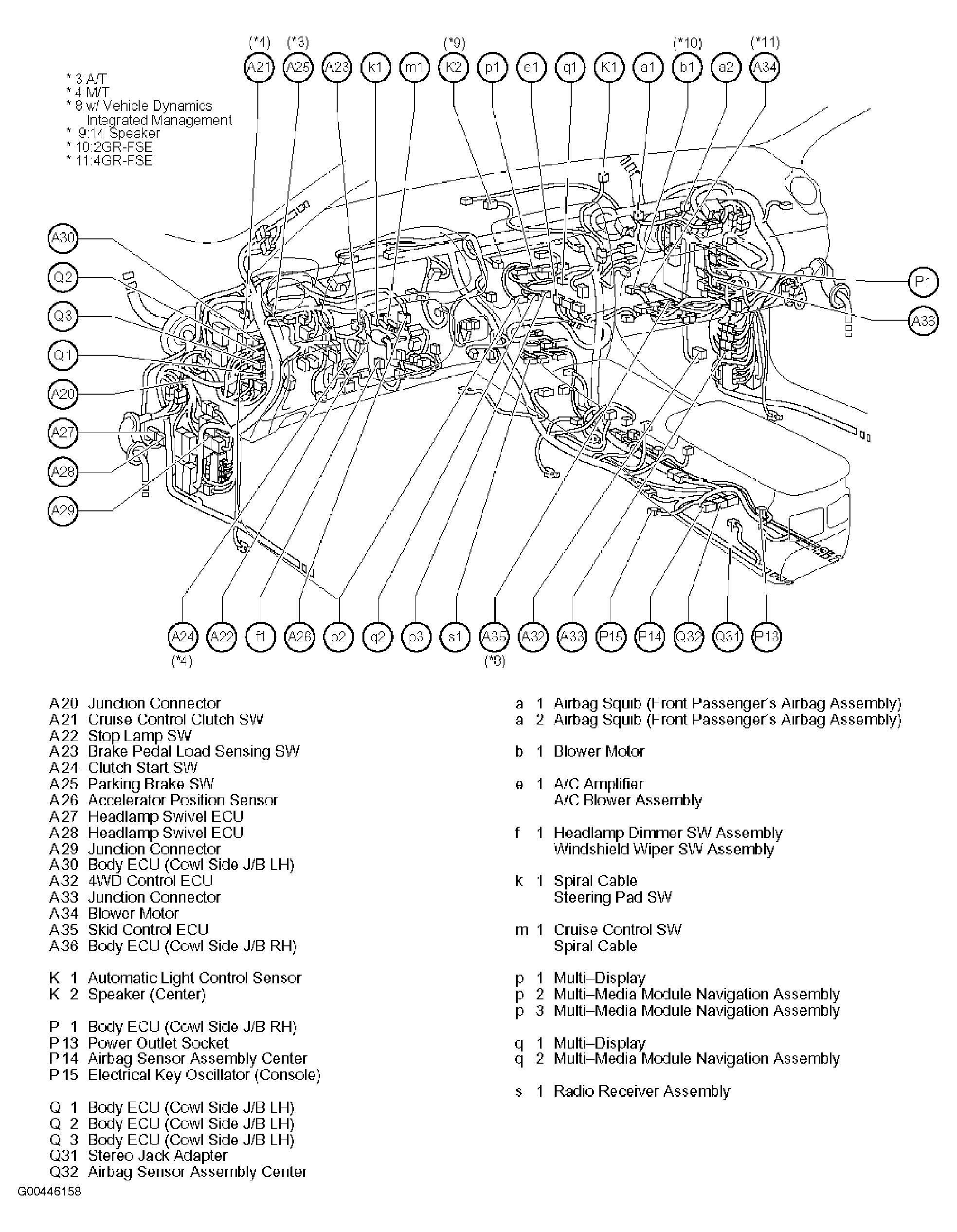

Fig 18: Instrument Panel

G00446158

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

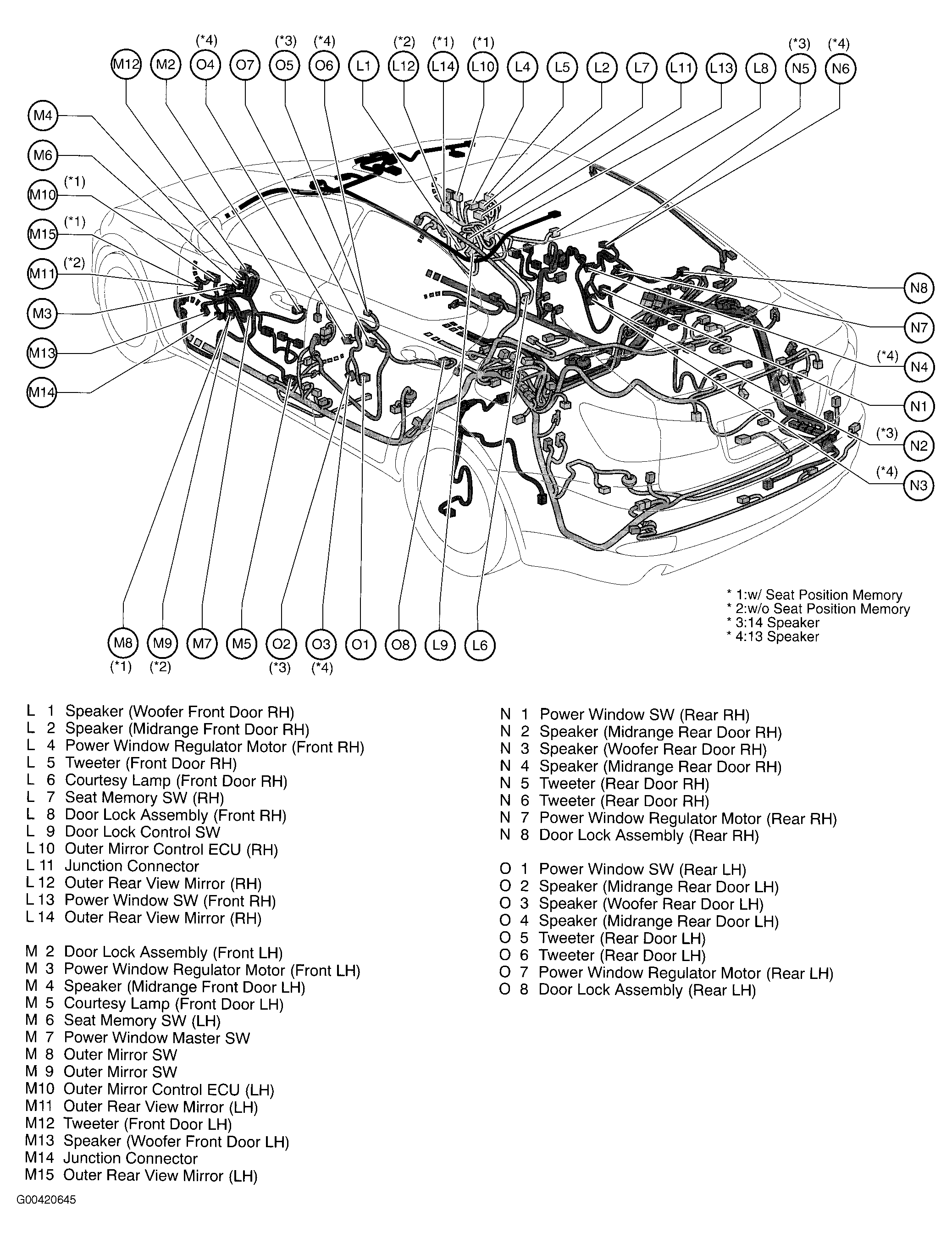

Fig 19: Vehicle Overview

G00420645

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

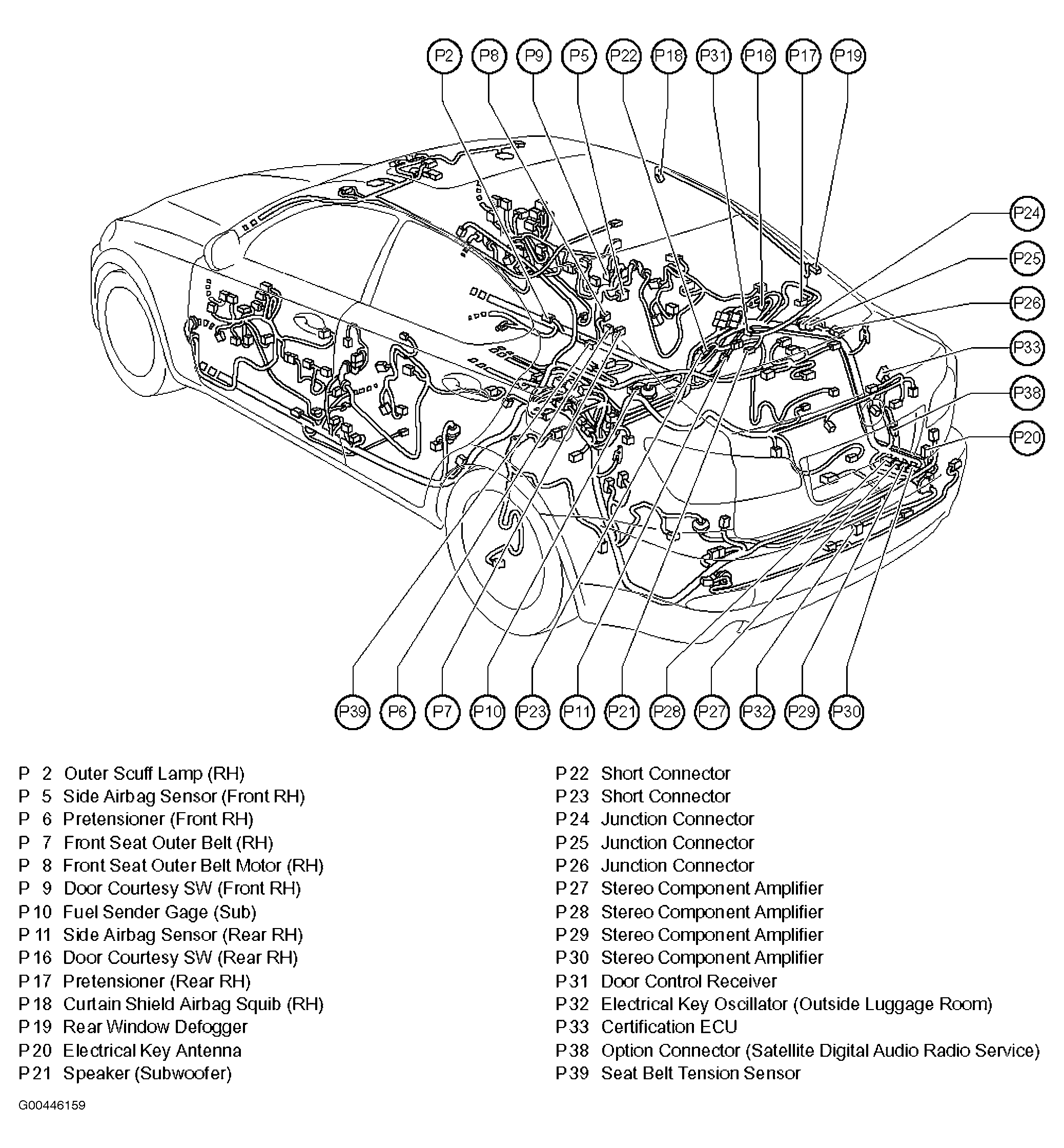

Fig 20: Vehicle Overview

G00446159

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

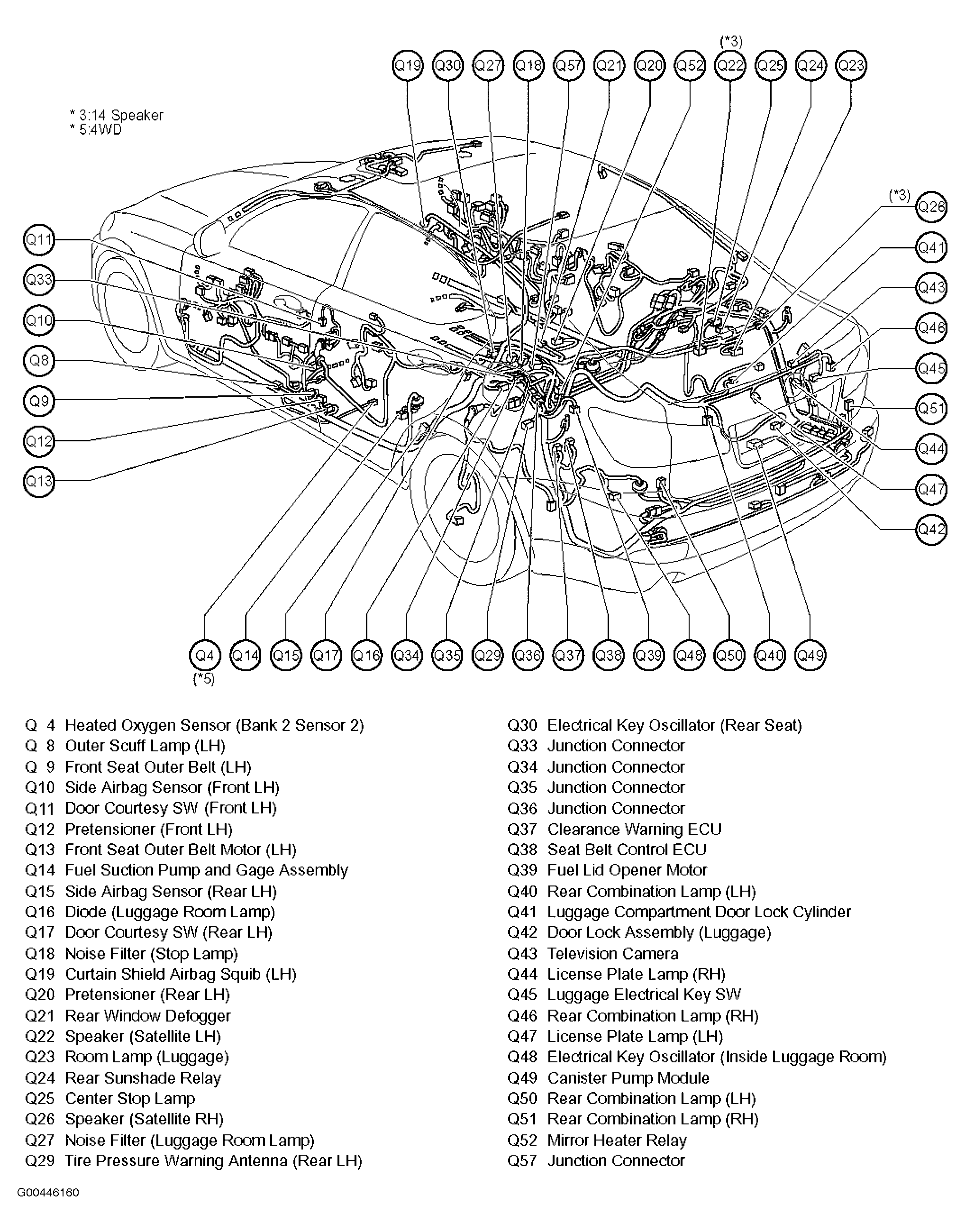

Fig 21: Vehicle Overview

G00446160

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

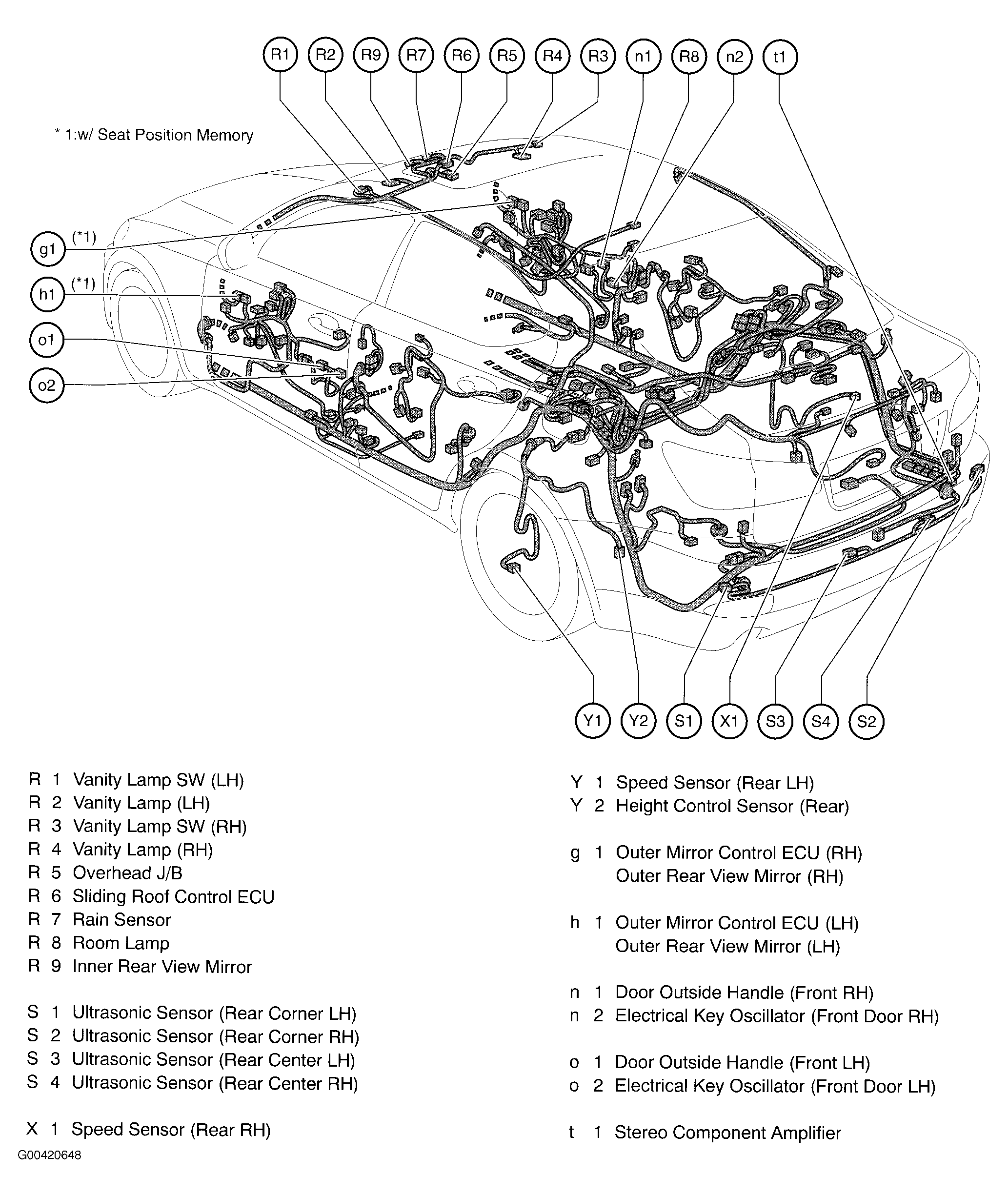

Fig 22: Vehicle Overview

G00420648

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

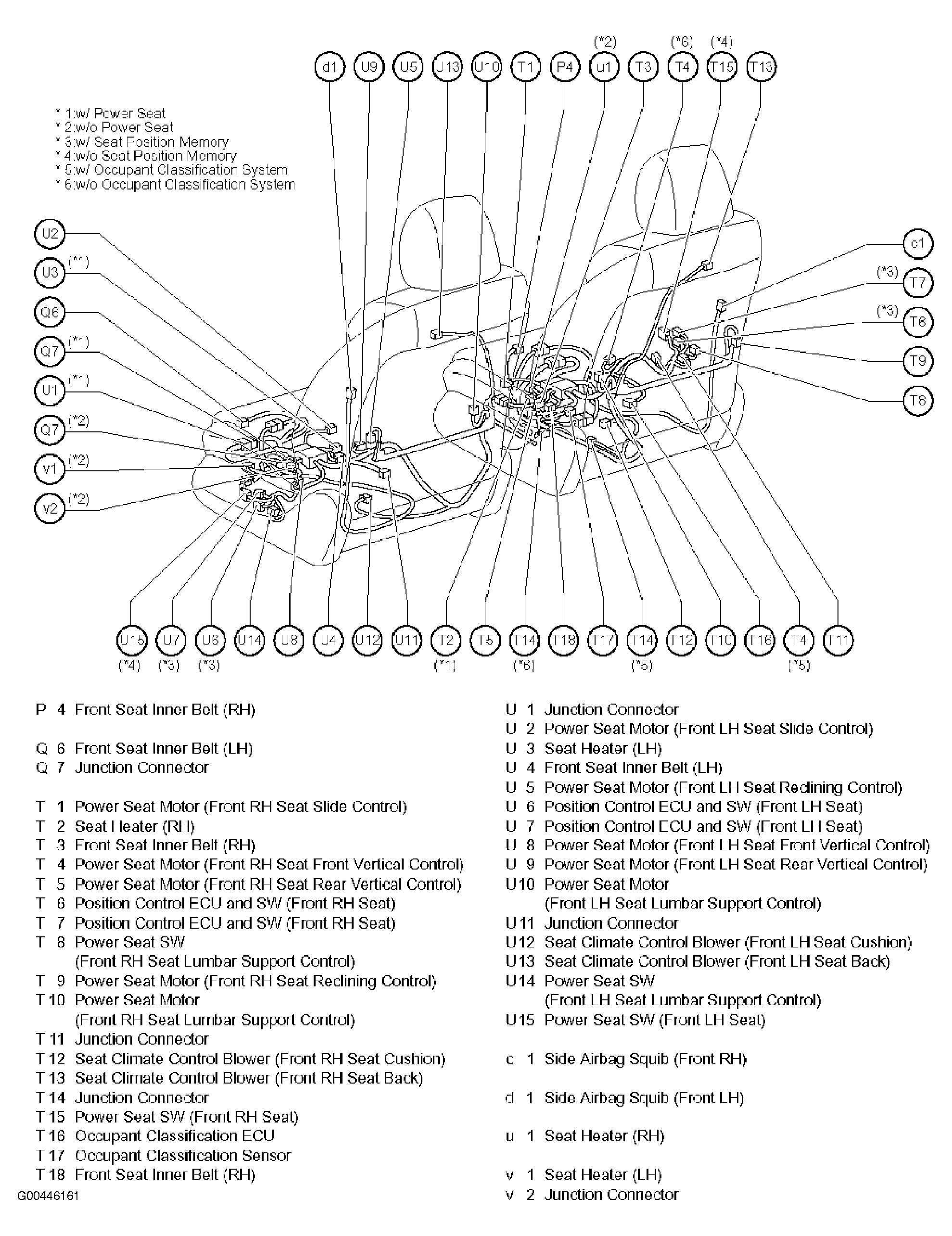

Fig 23: Front Seats

G00446161

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

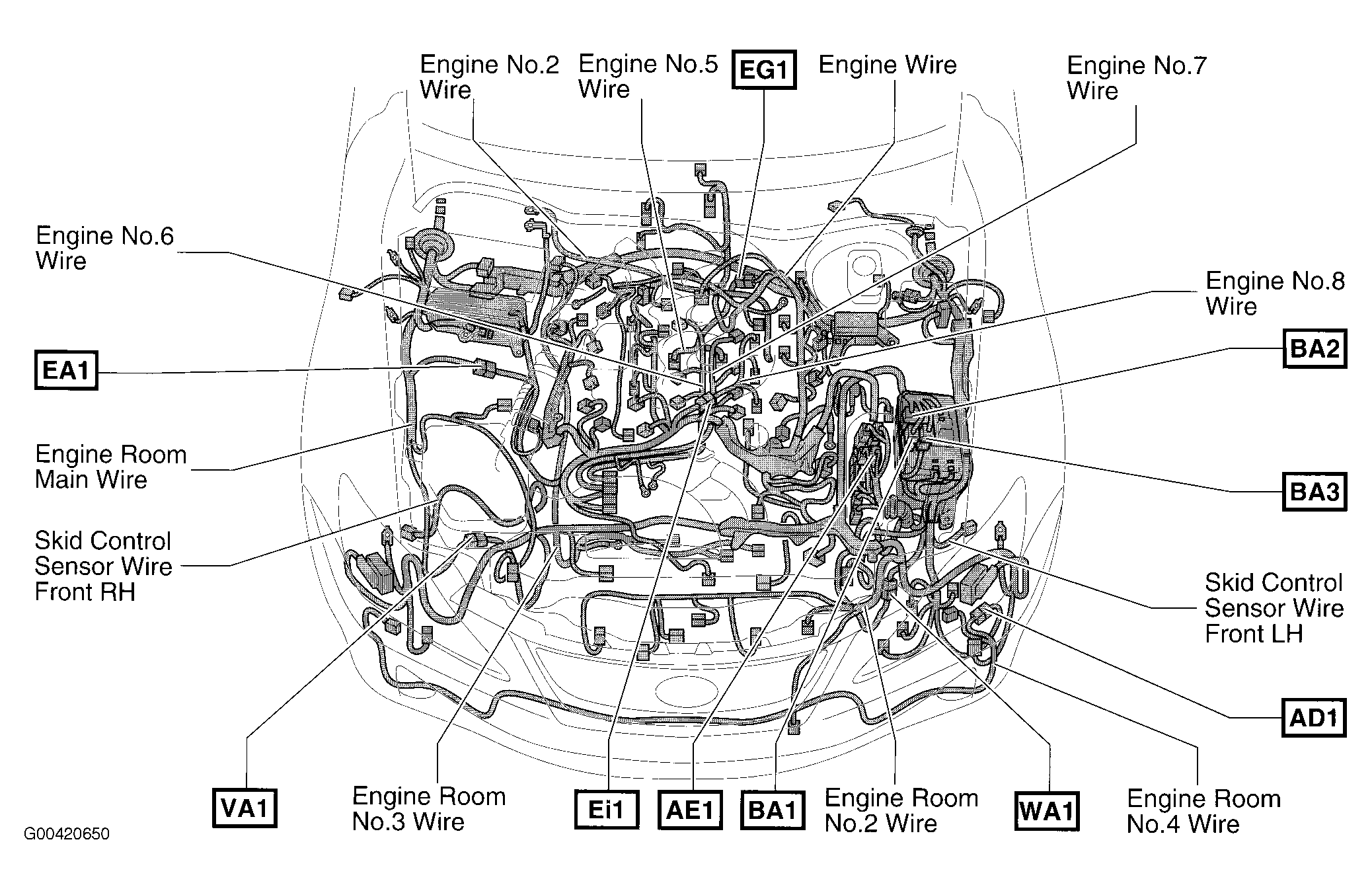

Fig 24: Engine Compartment (3.5L)

G00420650

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

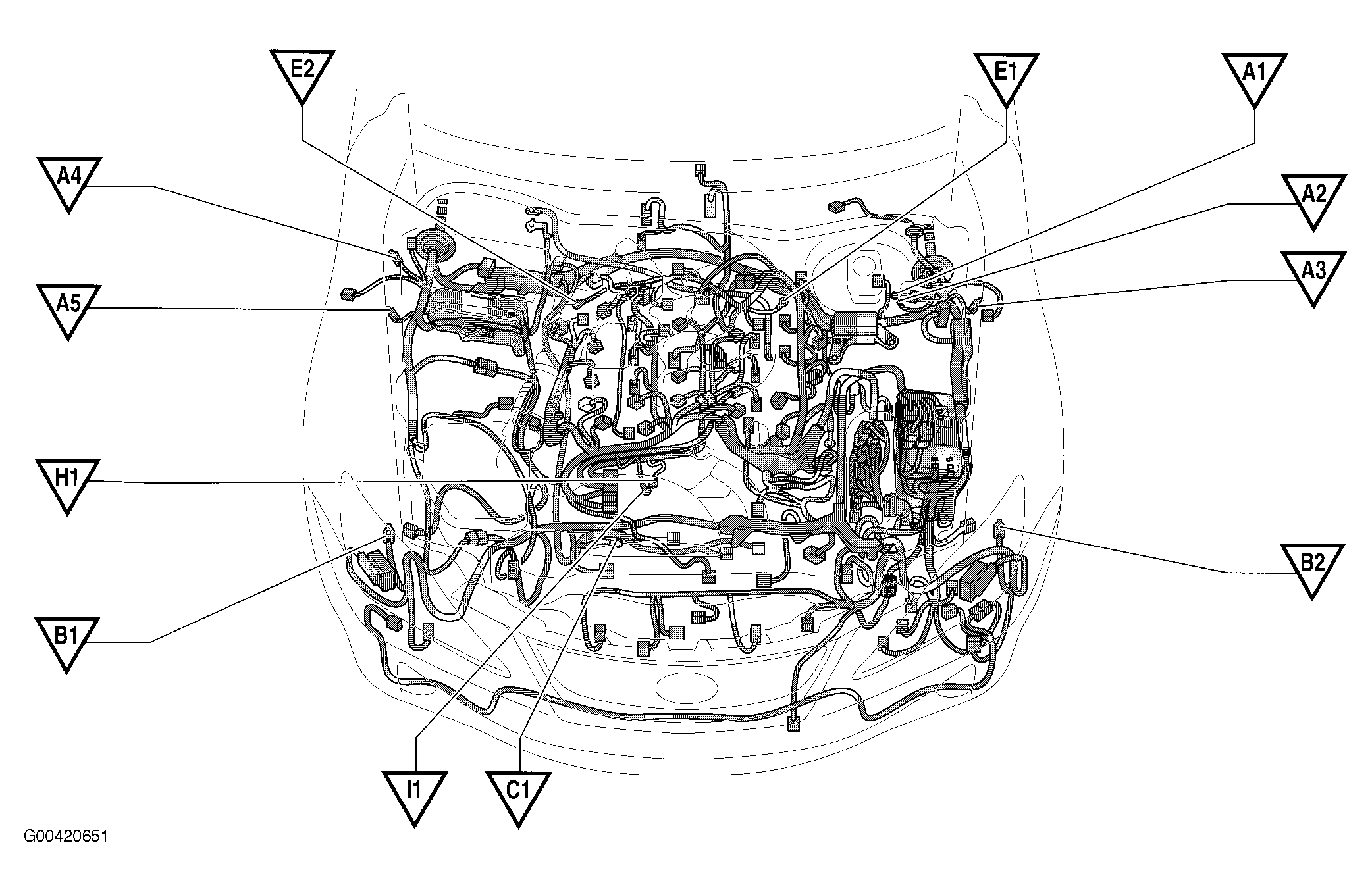

Fig 25: Engine Compartment (3.5L)

G00420651

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

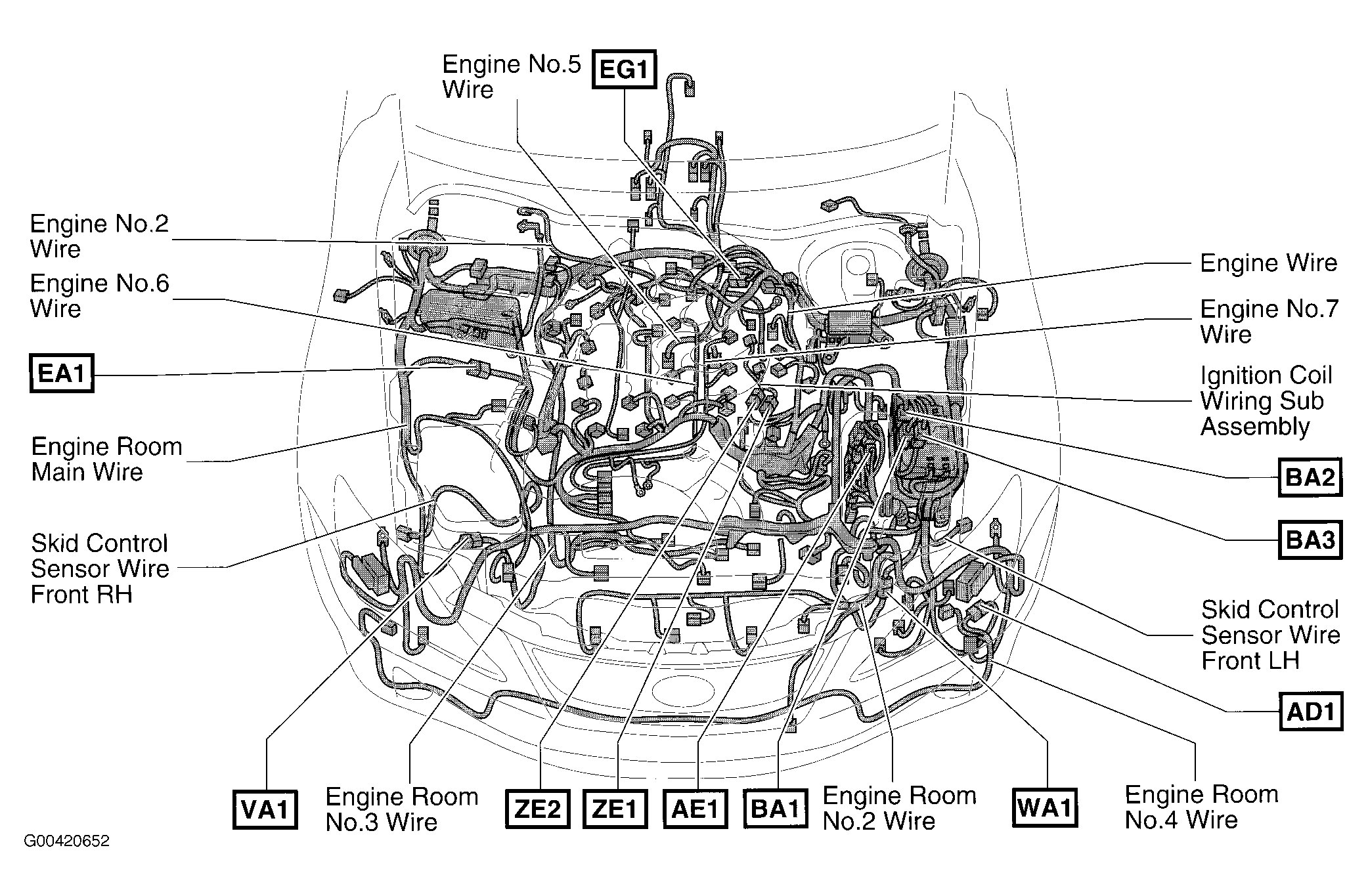

Fig 26: Engine Compartment (2.5L)

G00420652

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

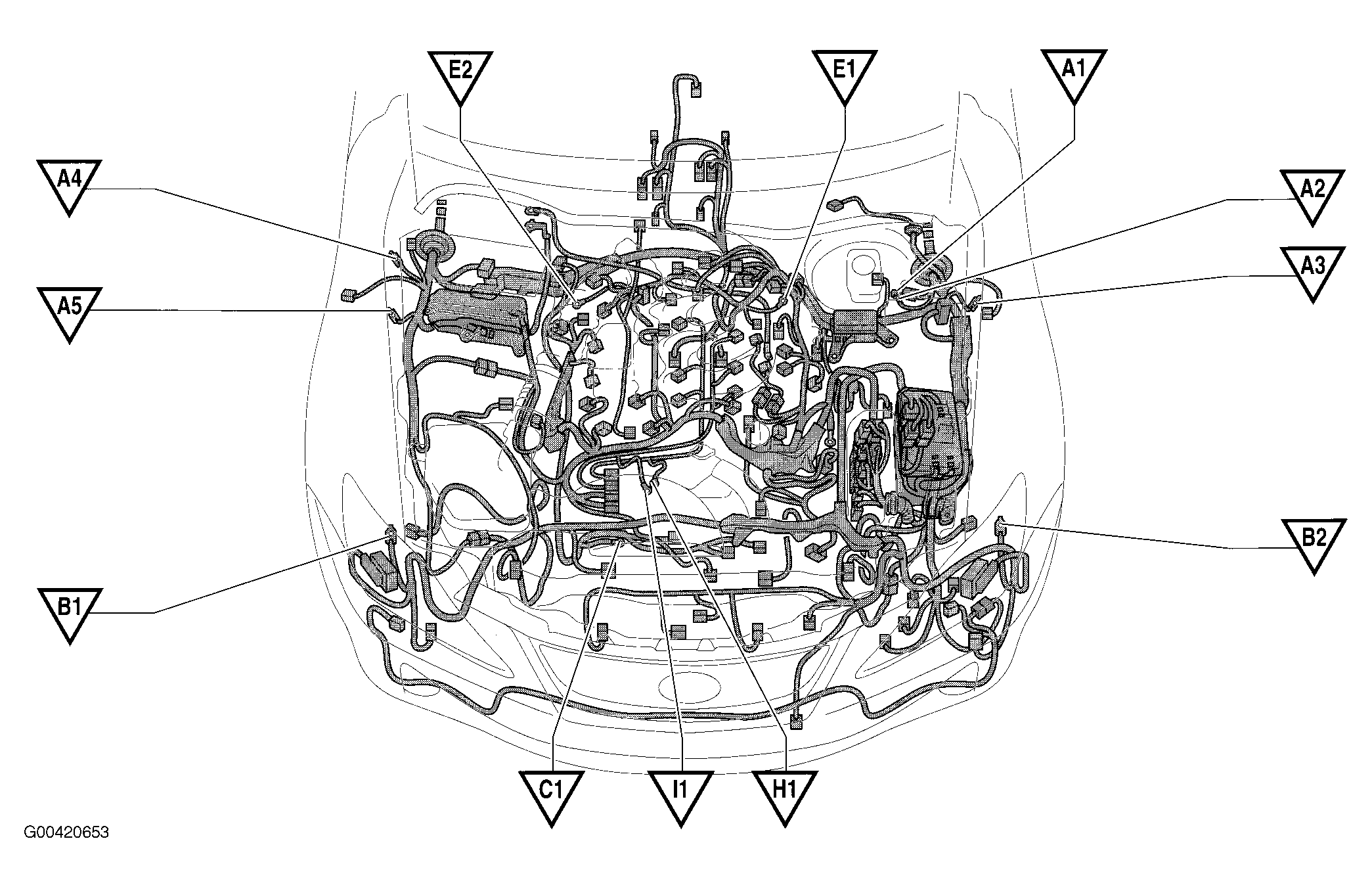

Fig 27: Engine Compartment (2.5L)

G00420653

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

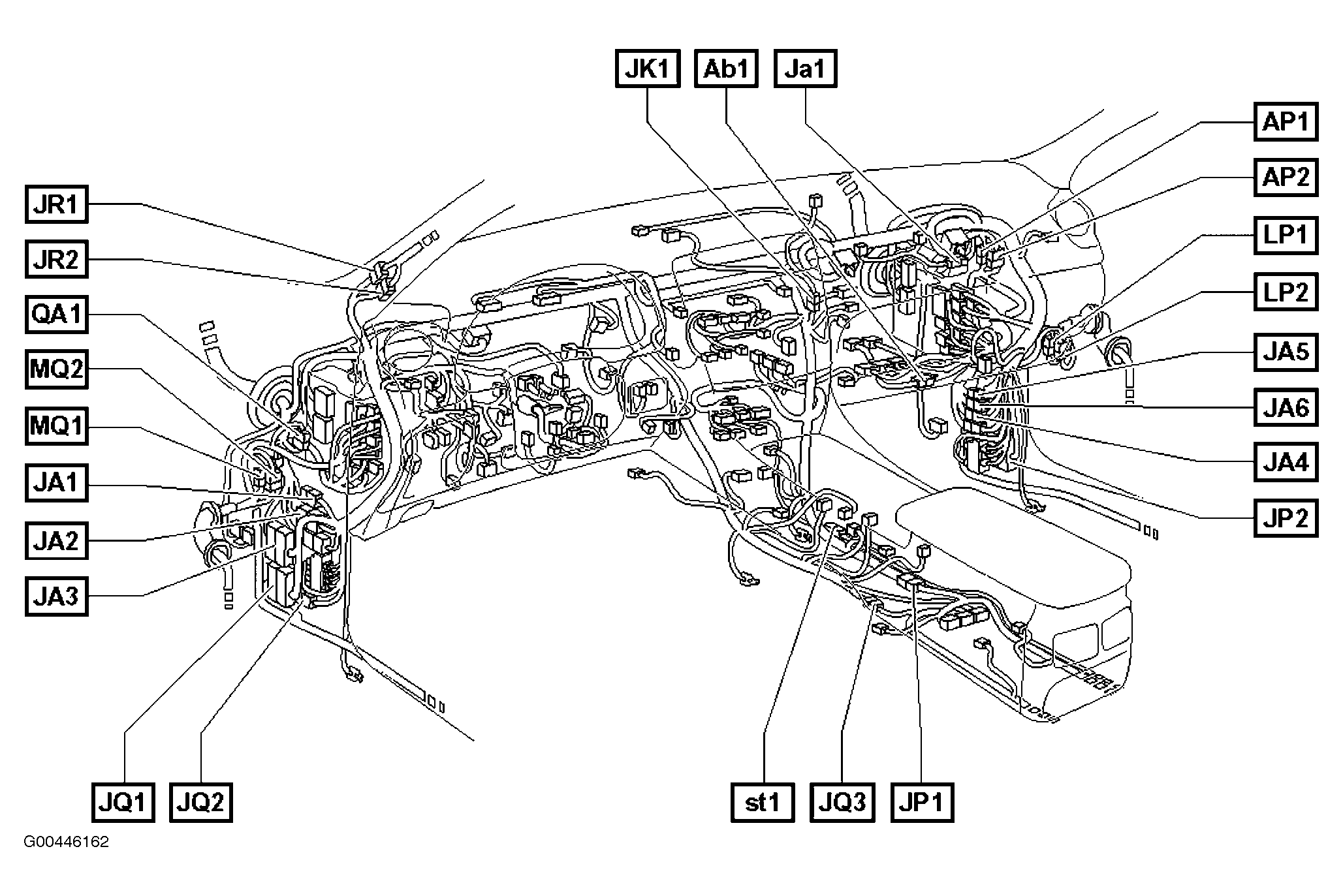

Fig 28: Dash & Floor Console

G00446162

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

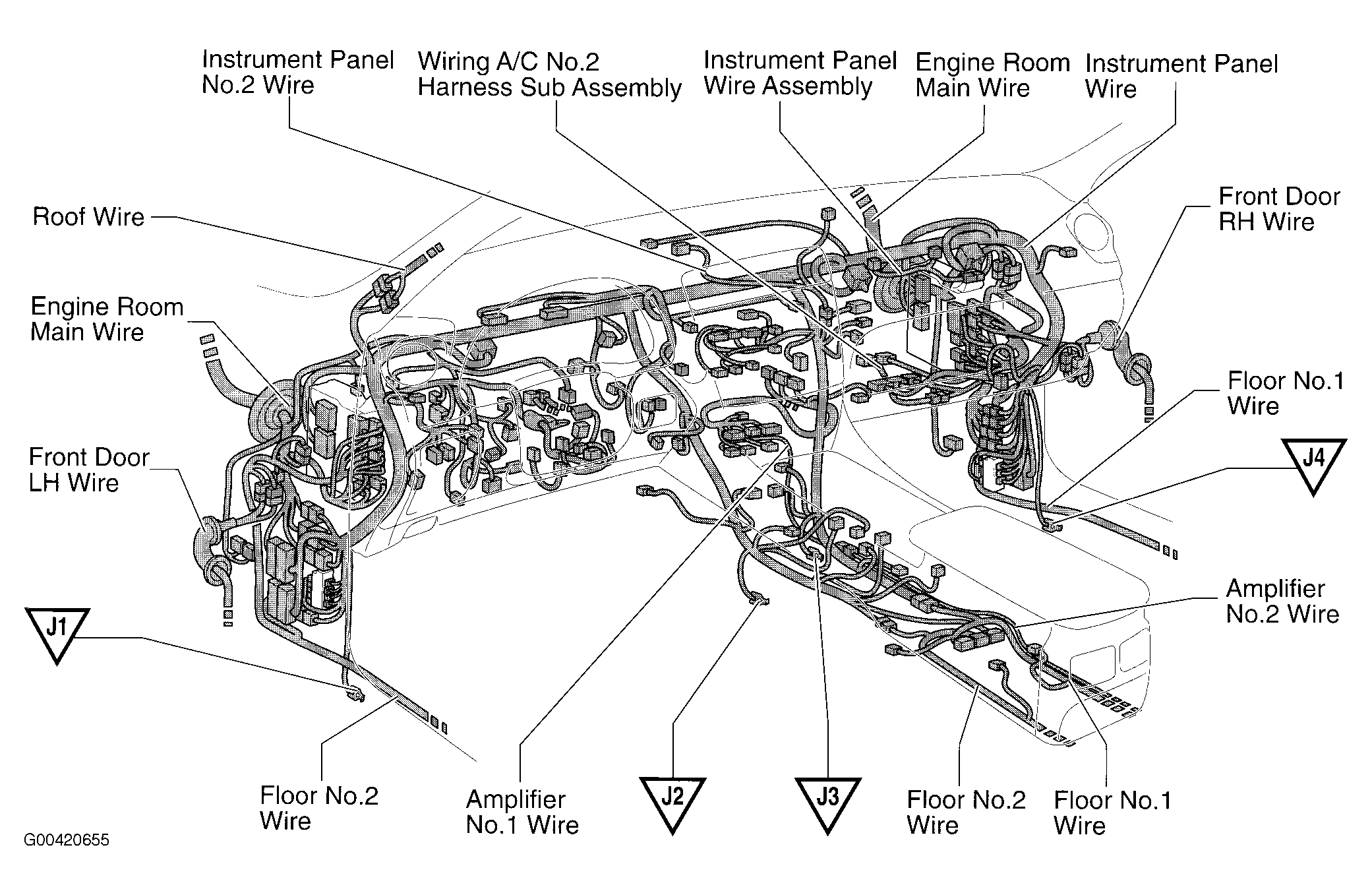

Fig 29: Dash & Floor Console

G00420655

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

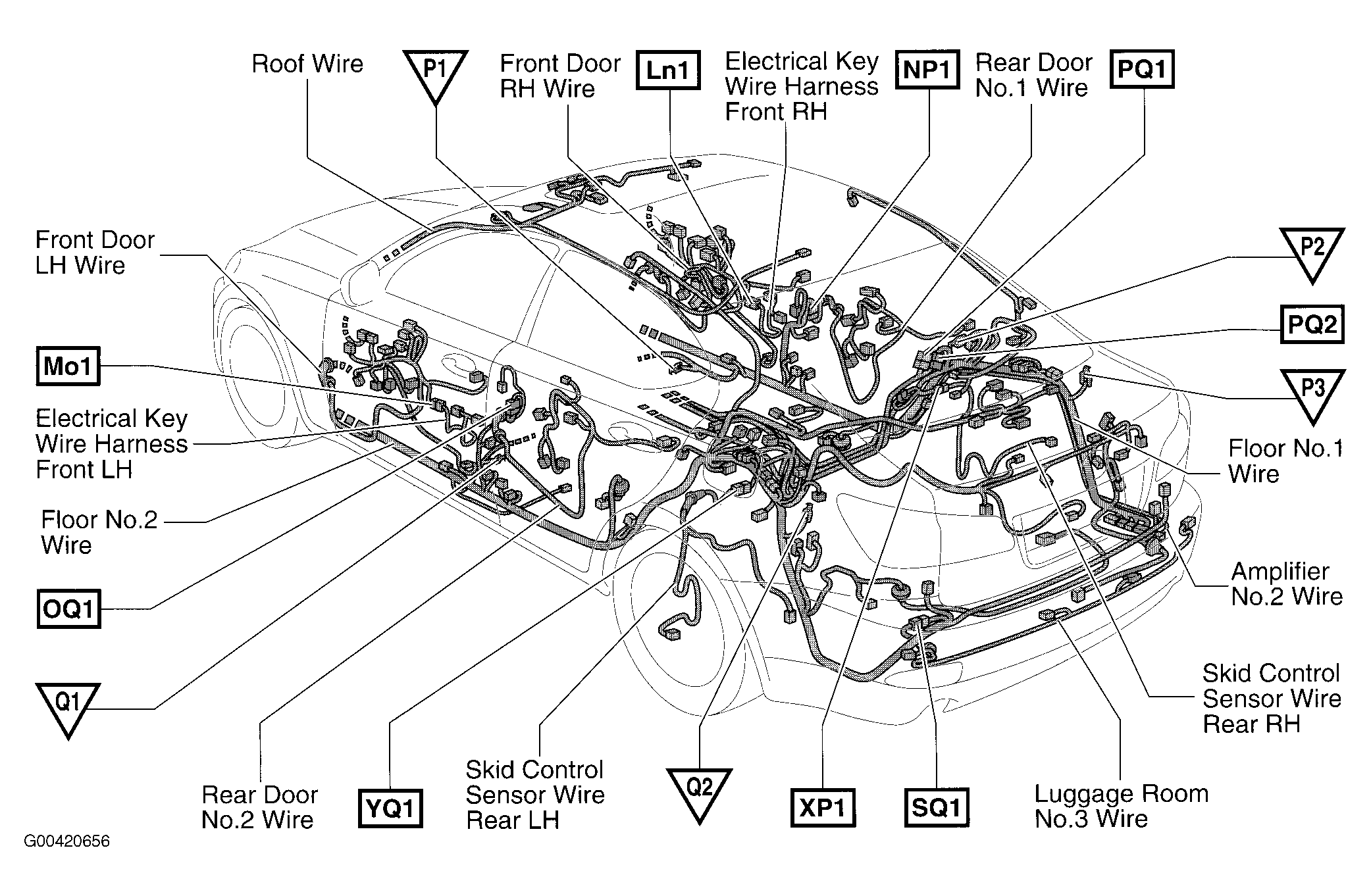

Fig 30: Vehicle Overview

G00420656

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

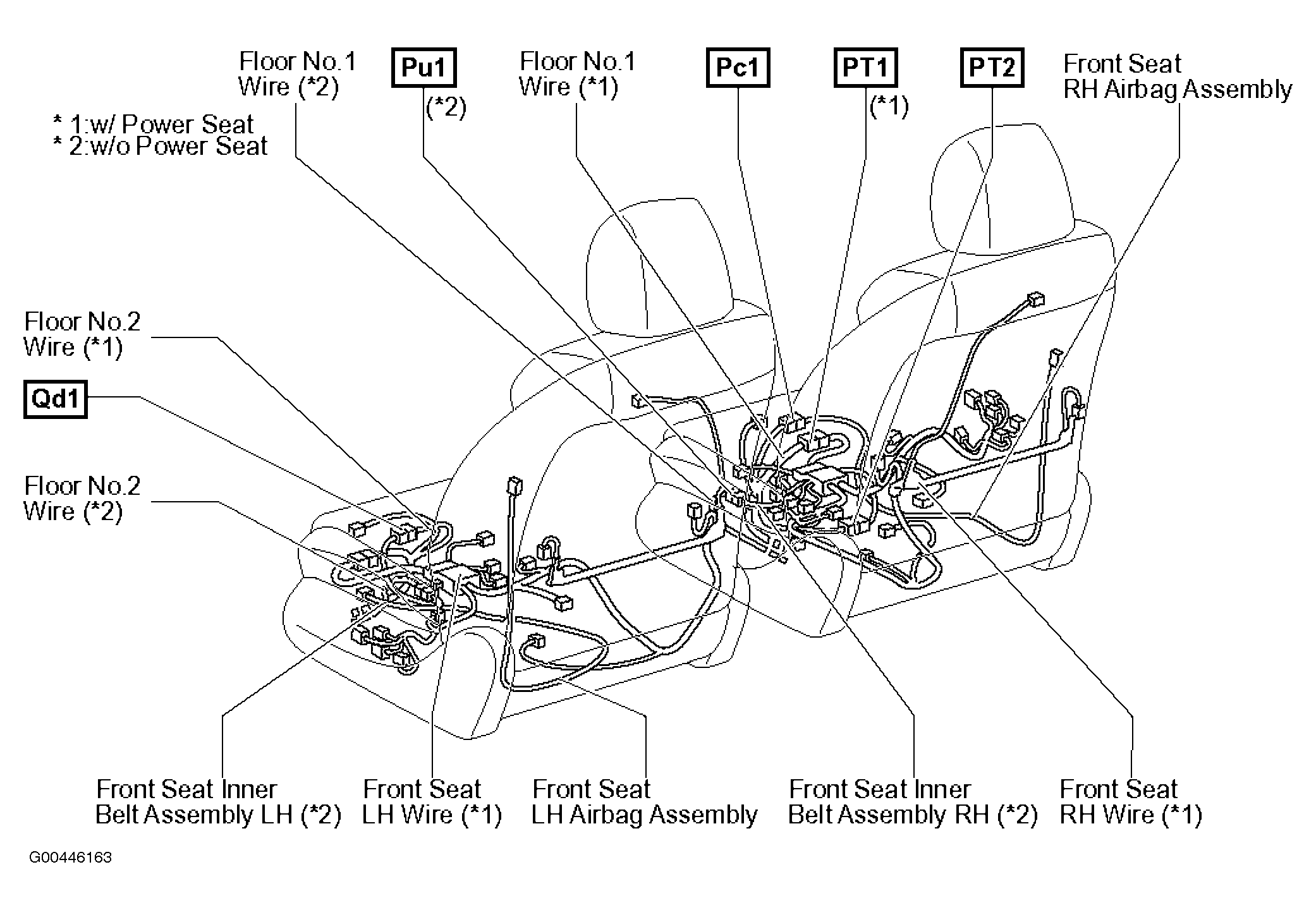

Fig 31: Front Seats

G00446163

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
