Supplemental Restraint System: SST

SUPPLEMENTAL RESTRAINT SYSTEM - SST

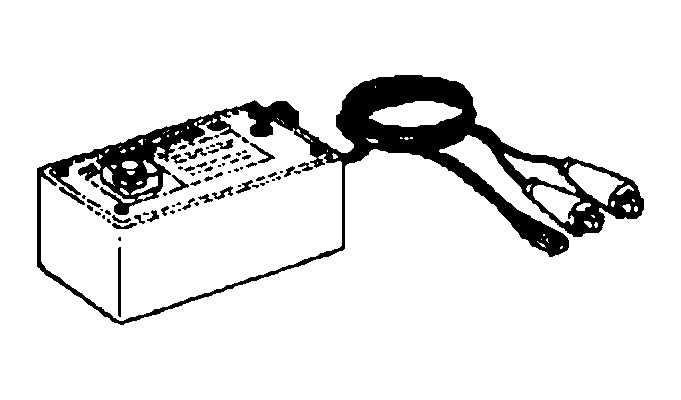

G04054421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09082-00700 SRS Airbag Deployment Tool

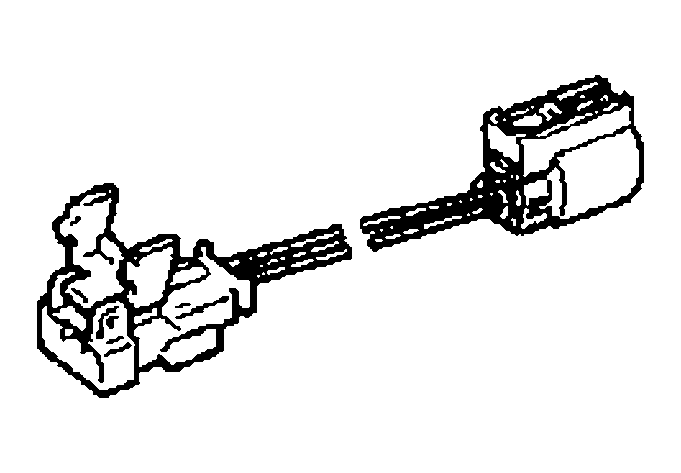

G04054422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09082-00750 Airbag Deployment Wire Sub-harness No.3

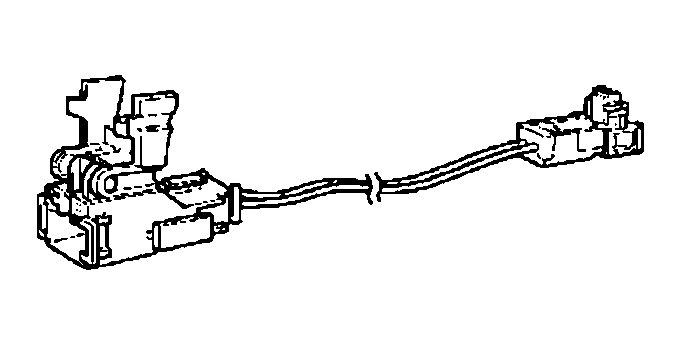

G04054423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09082-00770 Airbag Deployment Wire Sub-harness No.5
G04054424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09082-00780 Airbag Deployment Wire Sub-harness No.6

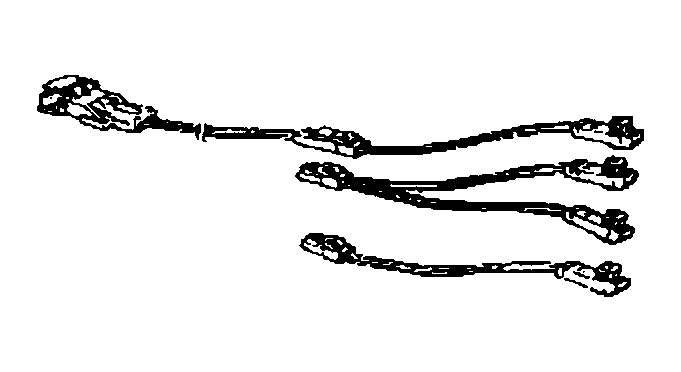

G04054425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09082-00802 Airbag Deployment Wire Sub-Harness No. 8

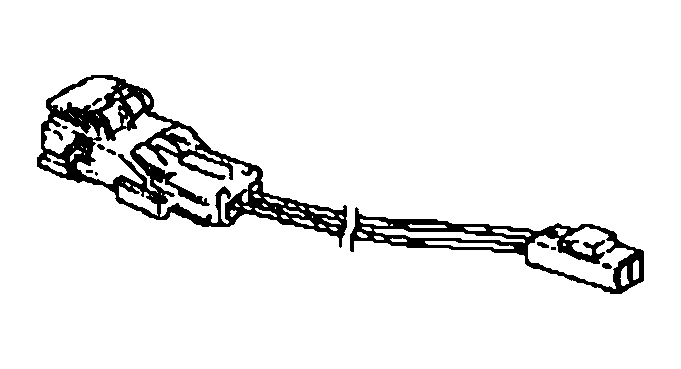

G04054426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09082-10801) Wire A

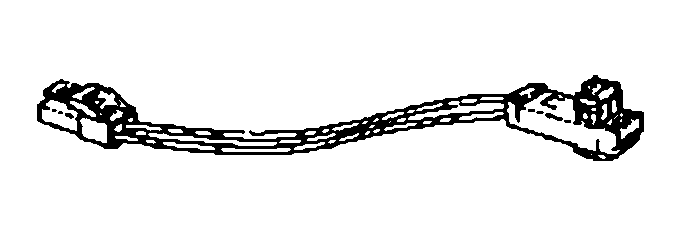

G04054427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09082-20801) Wire B

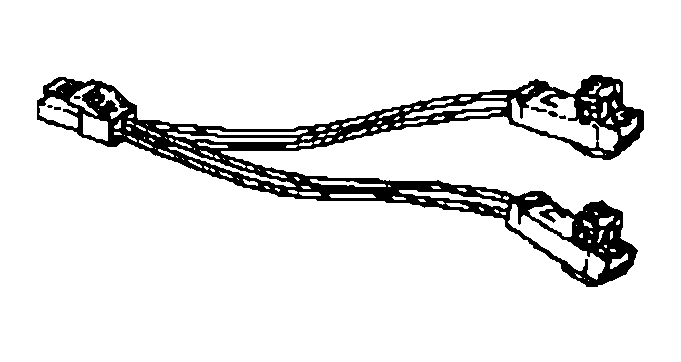

G04054428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09082-30801) Wire C

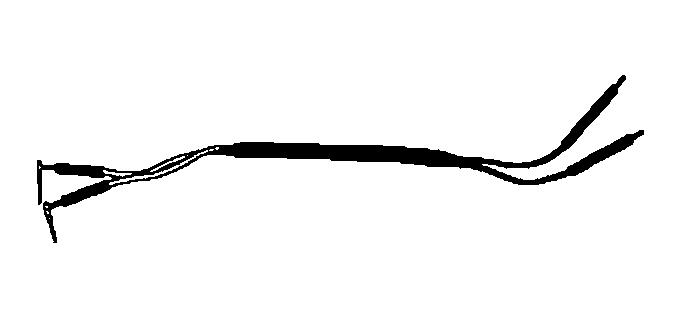

G04054429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09843-18060 SRS Check Wire
