Automatic Transmission Assembly: Components

Fig 1: Automatic Transmission Assembly Replacement Components With Torque Specifications (1 Of 3)
G05317045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Automatic Transmission Assembly Replacement Components With Torque Specifications (2 Of 3)
G05317046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

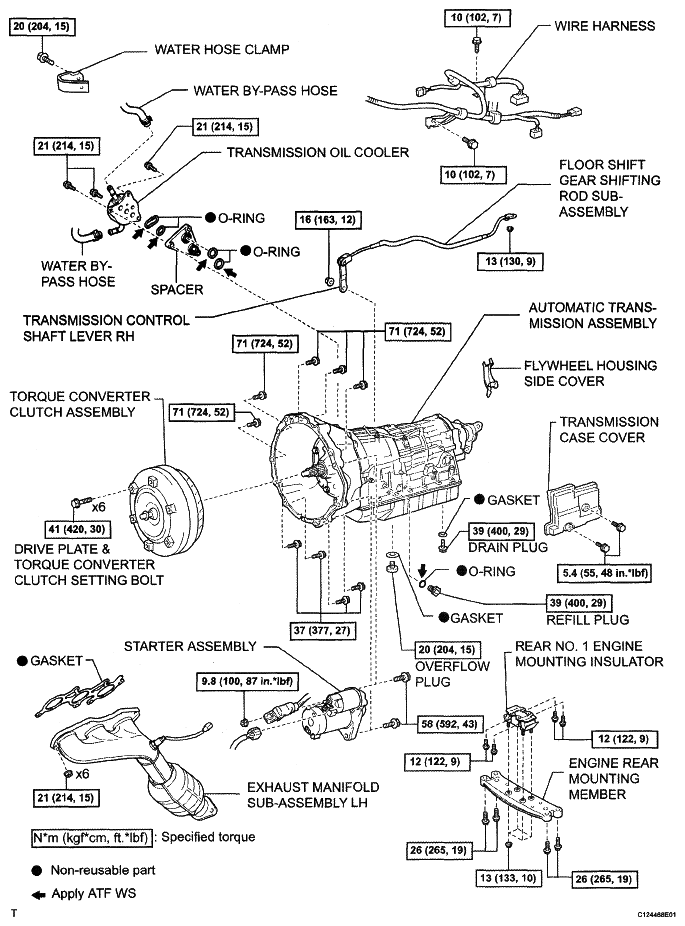

Fig 3: Automatic Transmission Assembly Replacement Components With Torque Specifications (3 Of 3)
G05317047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
