Shift Paddle Switch: Components

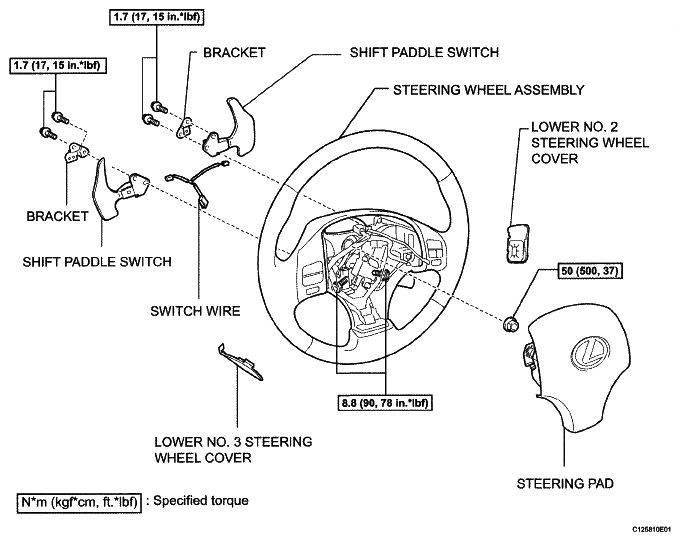

Fig 1: Shift Paddle Switch Replacement Components With Torque Specifications
G05317009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
