Inspection Procedure

CHECK LIN COMMUNICATION SYSTEM

Check for LIN communication system DTCs related to the power window control system.

Result:

LIN COMMUNICATION SYSTEM

Result	Proceed to
DTC is output	A
DTC is not output	B

A: GO TO LIN COMMUNICATION SYSTEM (See HOW TO PROCEED WITH TROUBLESHOOTING )

B: GO TO NEXT STEP

CHECK FOR DTC (B2312)

Check if DTC B2312 is output.

Result:

FOR DTC (B2312)

Result	Proceed to
DTC is output	A
DTC is not output	B

A: GO TO DTC B2312

B: GO TO NEXT STEP

READ VALUE OF INTELLIGENT TESTER OR TECHSTREAM (DRIVER SIDE MOTOR)

Use the Data List to check if the power window regulator motor is functioning properly.

Intelligent tester

D DOOR MOTOR:

INTELLIGENT TESTER D DOOR MOTOR

Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
D P/W UP SW	Driver side power window MANUAL UP switch signal/ON or OFF	ON: Driver side power window manual UP switch on master switch operated OFF: Driver side power window switch on master switch not operated	-
D P/W DOWN SW	Driver side power window MANUAL DOWN switch signal/ ON or OFF	ON: Driver side power window manual DOWN switch on master switch operated OFF: Driver side power window switch on master switch not operated	-

Techstream

D-Door Motor:

TECHSTREAM D DOOR MOTOR

Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
D Door P/W Up SW	Driver side power window MANUAL UP switch signal/ON or OFF	ON: Driver side power window manual UP switch on master switch operated OFF: Driver side power window switch on master switch not operated	-
D Door P/W Down SW	Driver side power window MANUAL DOWN switch signal/ ON or OFF	ON: Driver side power window manual DOWN switch on master switch operated OFF: Driver side power window switch on master switch not operated	-

OK: Tester display changes normally when master switch is operated.

OK: Go to step 7

NG: GO TO NEXT STEP

CHECK HARNESS AND CONNECTOR (MASTER SWITCH - DRIVER SIDE DOOR ECU)

Disconnect the P10 ECU connector.
Disconnect the N13 switch connector.

Measure the resistance according to the value(s) in the table below.

Standard resistance

MASTER SWITCH - DRIVER SIDE DOOR ECU

Tester Connection	Condition	Specified Condition
P10-27 (SGND) - N13-12 (GND)	Always	Below 1 Ω
P10-26 (CPBJ) - N13-11 (B)	Always	Below 1 Ω
P10-27 (SGND) or N13-12 (GND) - Body ground	Always	10 kΩ or higher
P10-26(CPBJ) or N13-11 (B) - Body ground	Always	10 kΩ or higher

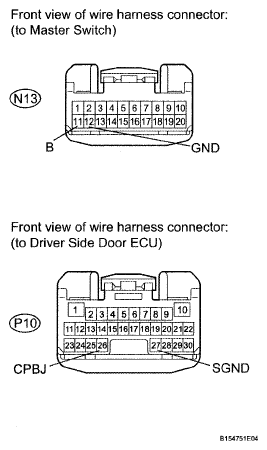

Fig 1: Checking Harness And Connector (Master Switch - Driver Side Door ECU)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: GO TO NEXT STEP

CHECK HARNESS AND CONNECTOR (DRIVER SIDE DOOR ECU - DRIVER SIDE MOTOR)

Disconnect the N10 ECU connector.
Disconnect the N11 motor connector.

Measure the resistance according to the value(s) in the table below.

Standard resistance

DRIVER SIDE DOOR ECU - DRIVER SIDE MOTOR

Tester Connection	Condition	Specified Condition
N10-5 (BDRJ) - N11-2 (B)	Always	Below 1 Ω
N10-2(PWE) - N11-1(E)	Always	Below 1 Ω
N10-5(BDRJ) or N11-2 (B) - Body ground	Always	10 kΩ or higher
N10-2(PWE) or N11-1 (E) - Body ground	Always	10 kΩ or higher

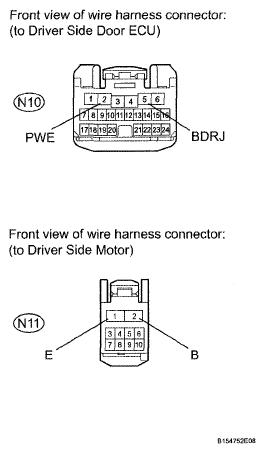

Fig 2: Checking Harness And Connector (Driver Side Door ECU - Driver Side Motor)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: GO TO NEXT STEP

CHECK HARNESS AND CONNECTOR (DRIVER SIDE MOTOR - MASTER SWITCH)

Disconnect the N13 switch connector.
Disconnect the N11 motor connector.

Measure the resistance according to the value(s) in the table below.

Standard resistance

DRIVER SIDE MOTOR - MASTER SWITCH

Tester Connection	Condition	Specified Condition
N13-20 (UP) - N11-10 (UP1)	Always	Below 1 Ω
N13-15 (DOWN) - N11-7 (DWN1)	Always	Below 1 Ω
N13-20 (UP) or N11-10 (UP1) - Body ground	Always	10 kΩ or higher
N13-15 (DOWN) or N11-7 (DWN1)-Body ground	Always	10 kΩ or higher

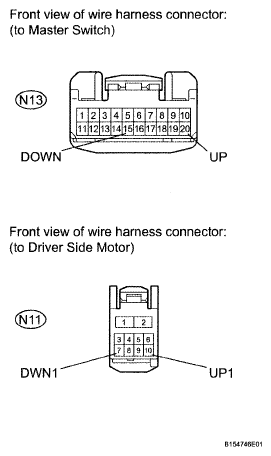

Fig 3: Checking Harness And Connector (Driver Side Motor - Master Switch)

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: GO TO NEXT STEP

INSPECT FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY

Remove the motor.
Apply positive (+) battery voltage to the connector terminal 2.
NOTE:
- Do not apply positive (+) battery voltage to any terminals, except terminal 2, to avoid damaging the pulse sensor inside the motor.
- Reset the power window regulator motor (initialize the pulse sensor) after installing the power window regulator motor and regulator assembly onto the door.
Apply negative (-) battery voltage to the connector terminals 1 and 7/10.

Check that the motor gear rotates smoothly as follows.

Fig 4: Inspecting Front Power Window Regulator Motor Assembly

MEASUREMENT CONDITION CHART

Measurement Condition	Specified Condition
Battery positive (+) → 2 Battery negative (-): 1 (3 seconds or more) → 1 and 10 (within 1 second) → 1 (within 1 second) → 1 and 10	Motor gear rotates clockwise (UP)
Battery positive (+) → 2 Battery negative (-): 1 (3 seconds or more) → 1 and 7 (within 1 second) → 1 (within 1 second) → 1 and 7	Motor gear rotates counterclockwise (DOWN)

NG: REPLACE FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH (for Driver Side) (See REMOVAL )

OK: REPLACE MASTER SWITCH ASSEMBLY (See REMOVAL )
