Vehicle Dynamic Integrated Management: Notes

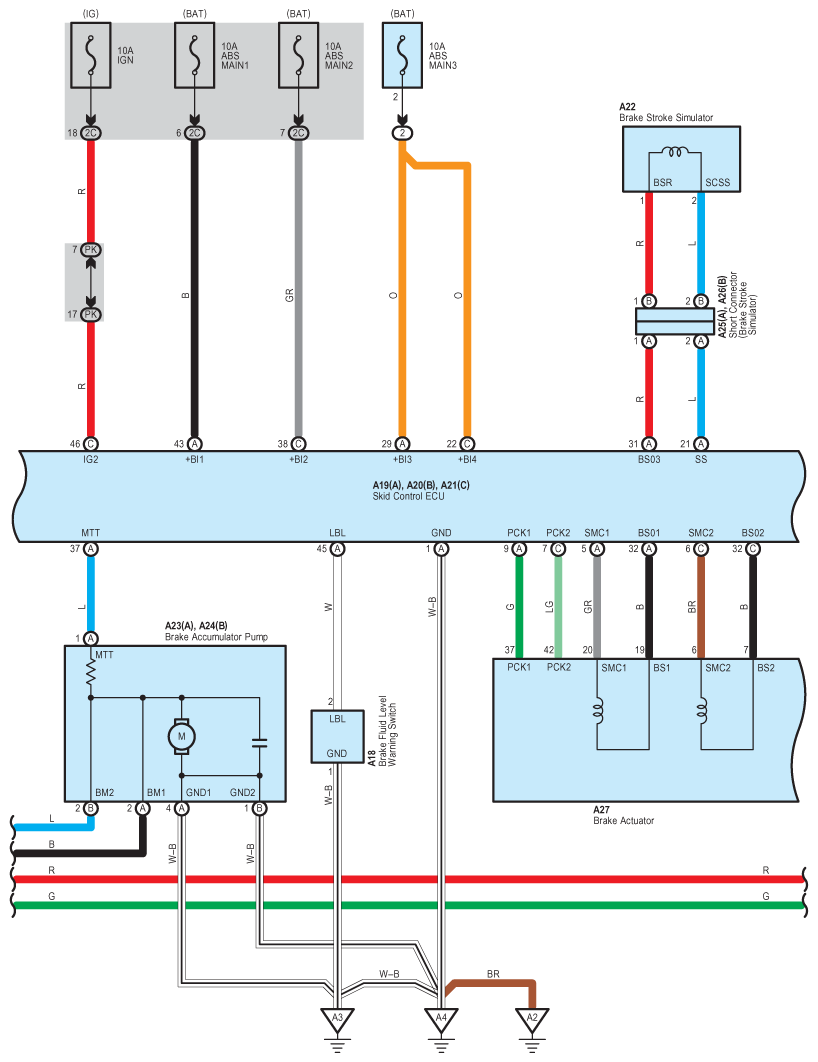

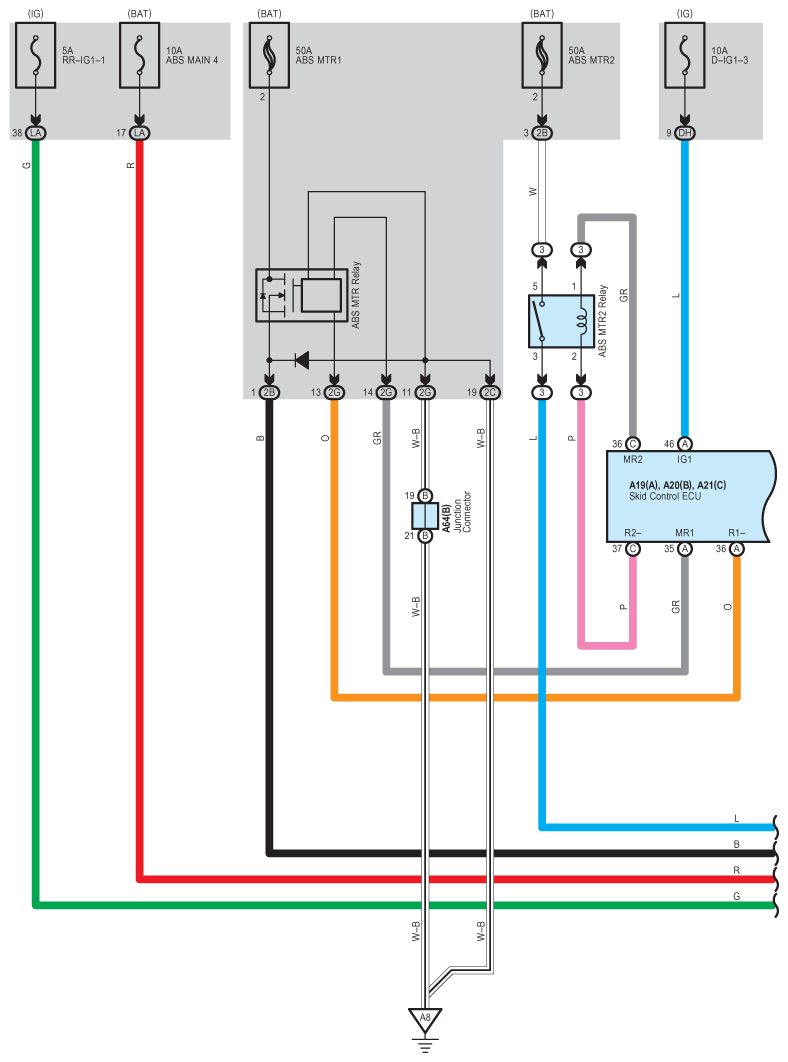

Fig 1: Vehicle Dynamic Integrated Management System Wiring Diagram (1 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

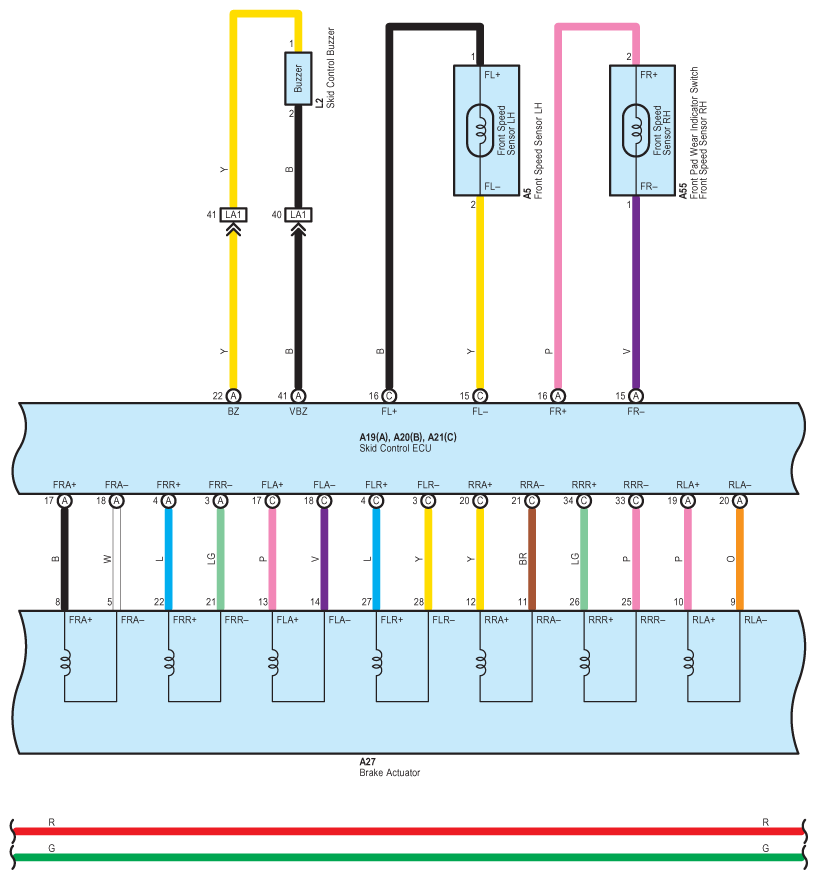

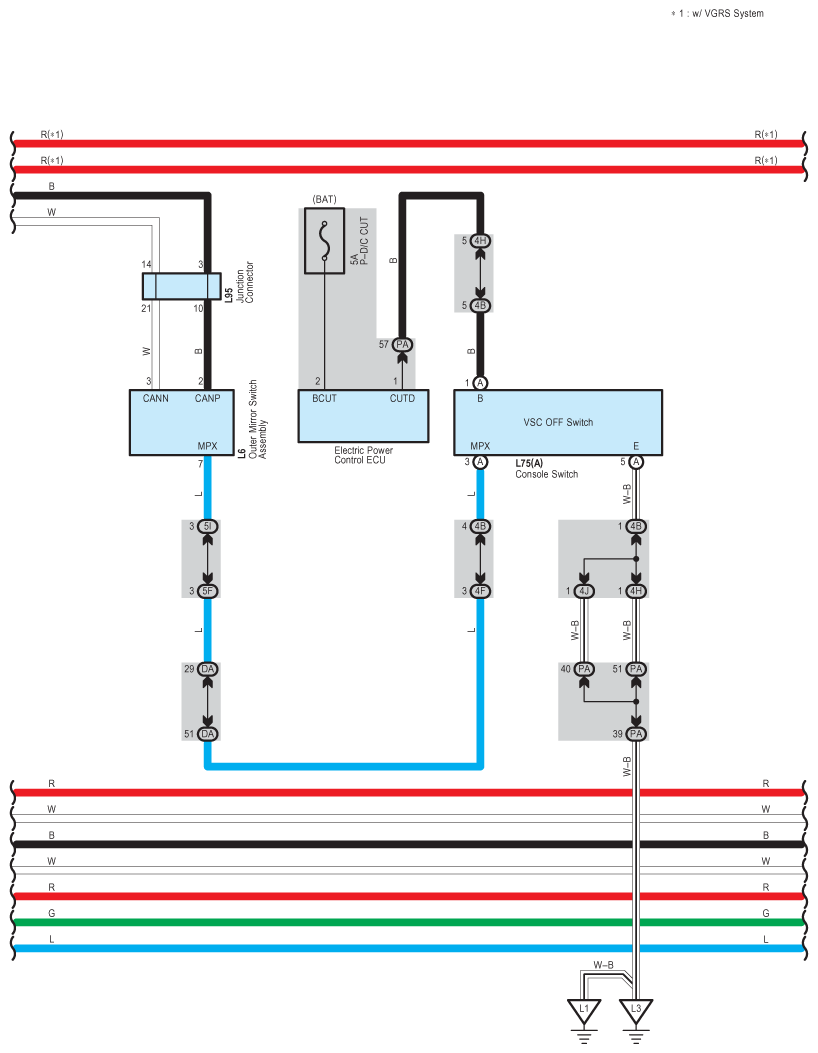

Fig 2: Vehicle Dynamic Integrated Management System Wiring Diagram (2 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

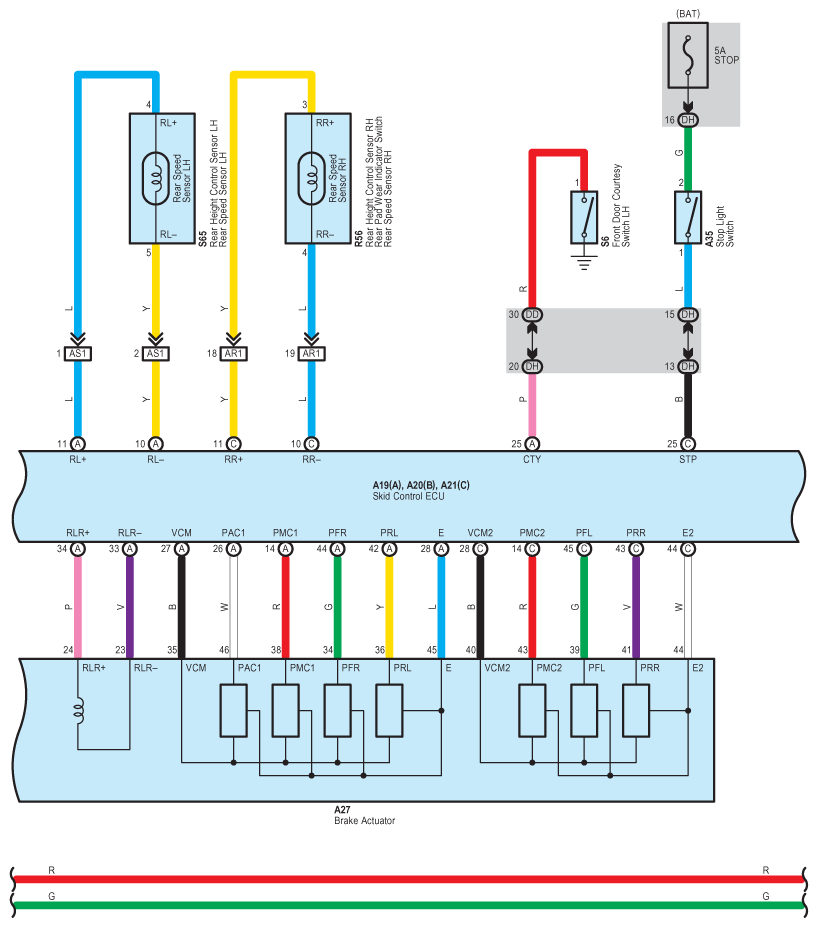

Fig 3: Vehicle Dynamic Integrated Management System Wiring Diagram (3 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

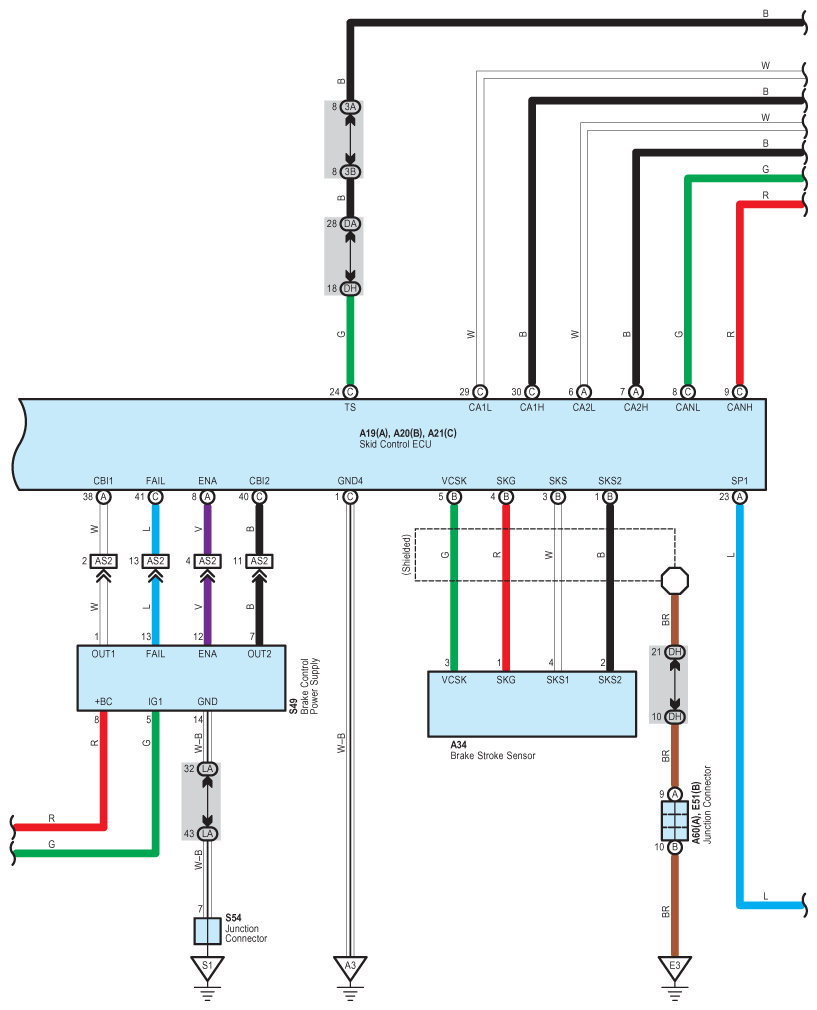

Fig 4: Vehicle Dynamic Integrated Management System Wiring Diagram (4 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

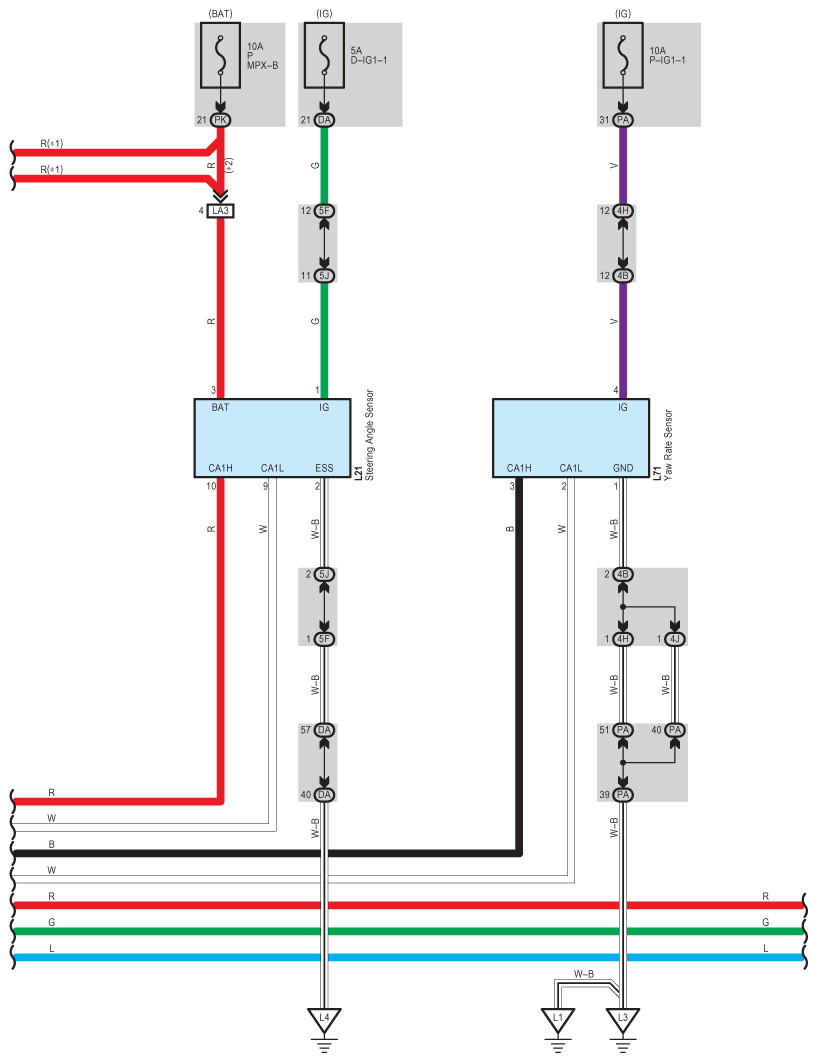

Fig 5: Vehicle Dynamic Integrated Management System Wiring Diagram (5 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

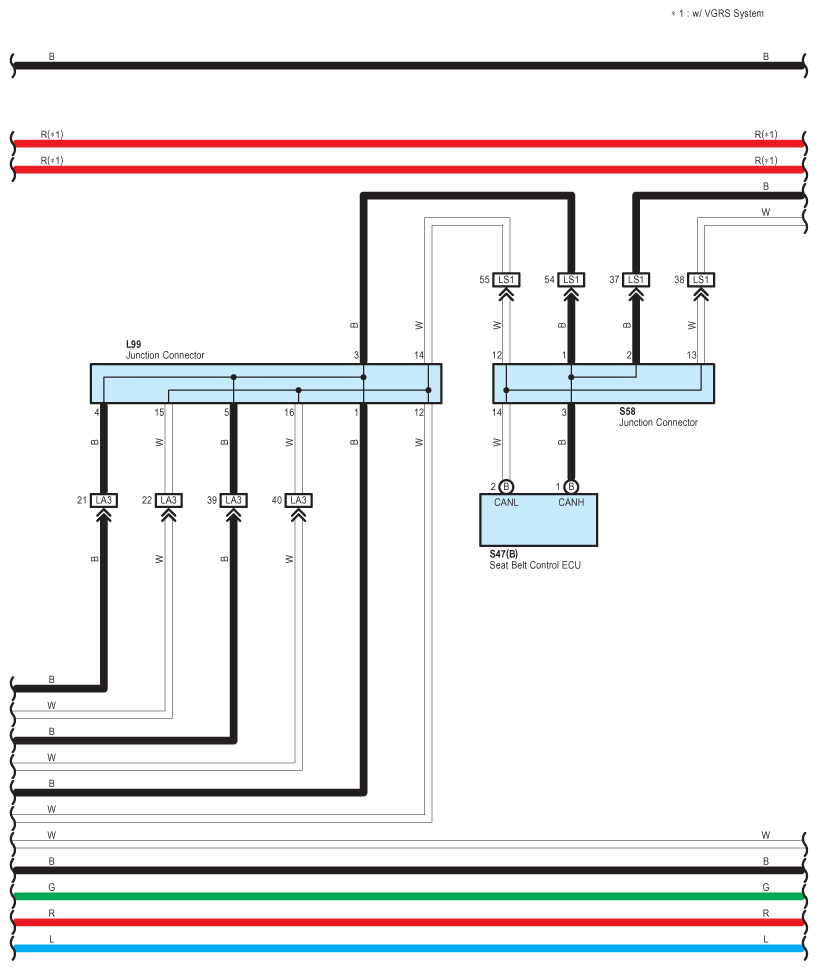

Fig 6: Vehicle Dynamic Integrated Management System Wiring Diagram (6 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

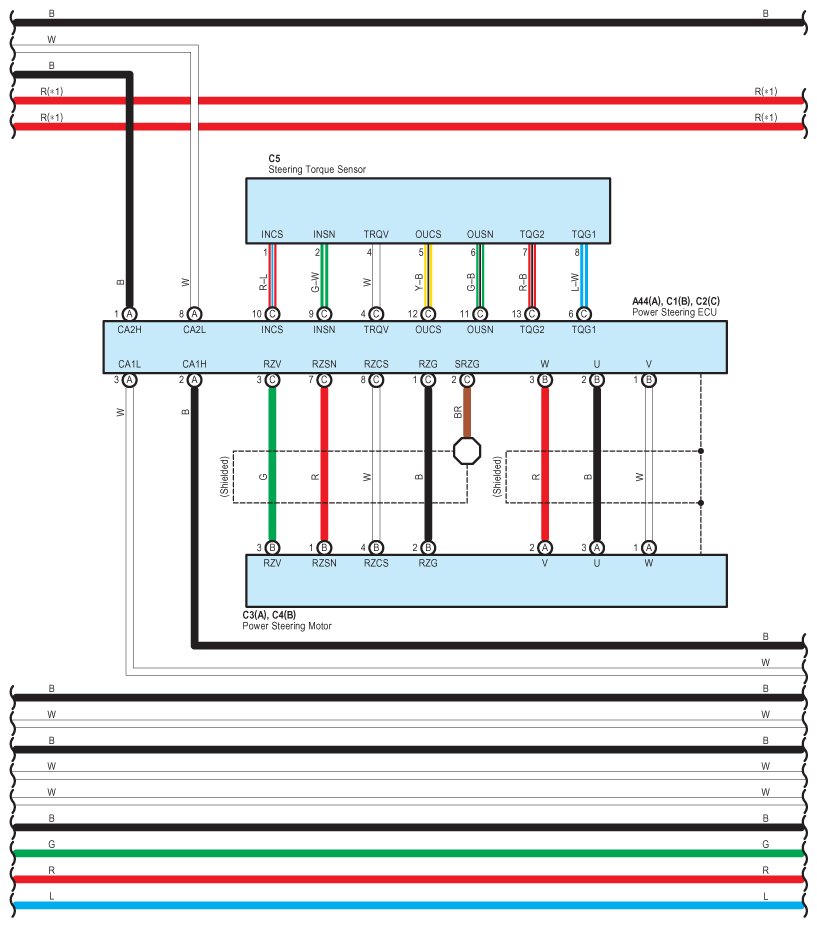

Fig 7: Vehicle Dynamic Integrated Management System Wiring Diagram (7 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

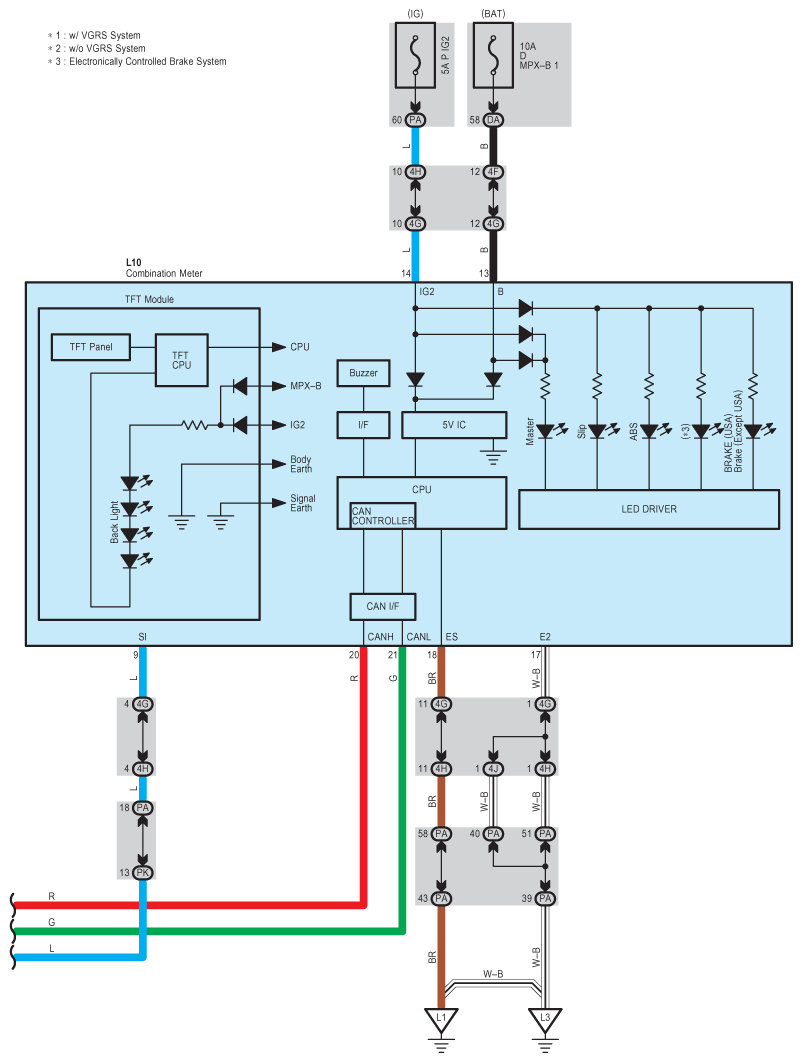

Fig 8: Vehicle Dynamic Integrated Management System Wiring Diagram (8 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

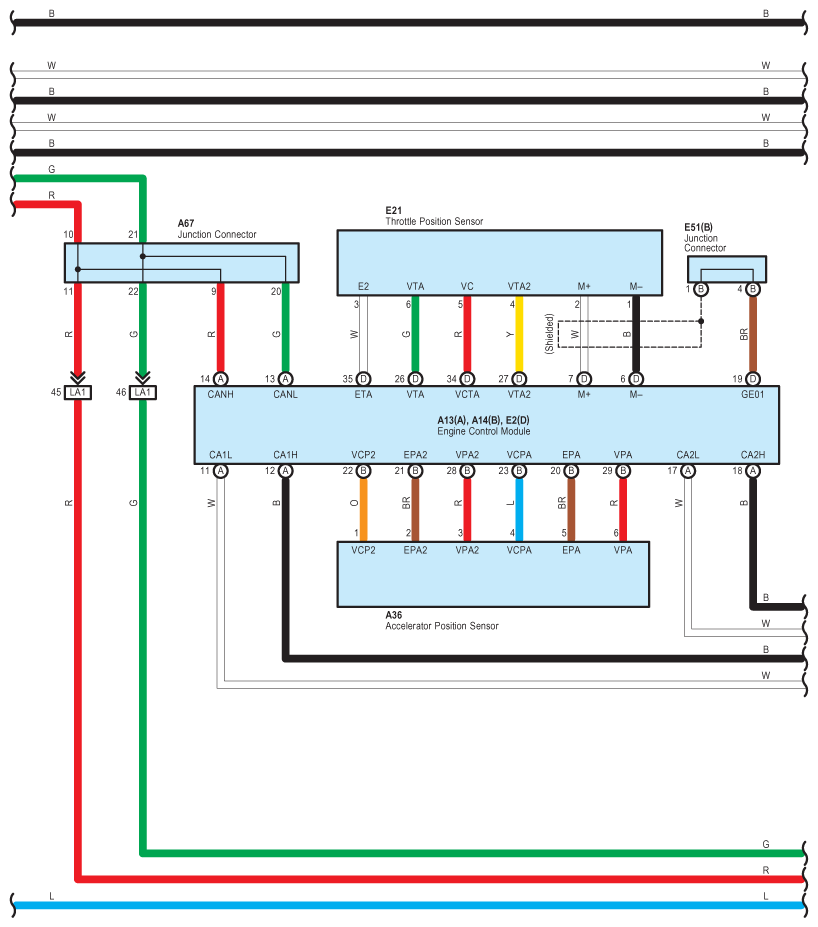

Fig 9: Vehicle Dynamic Integrated Management System Wiring Diagram (9 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

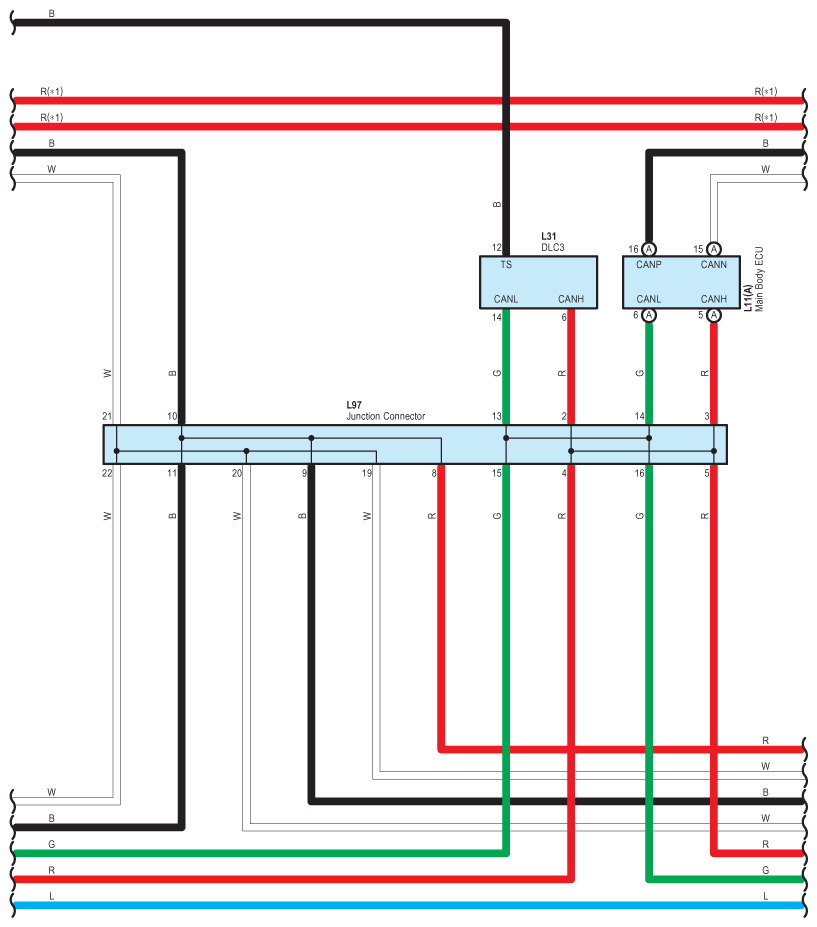

Fig 10: Vehicle Dynamic Integrated Management System Wiring Diagram (10 Of 14)

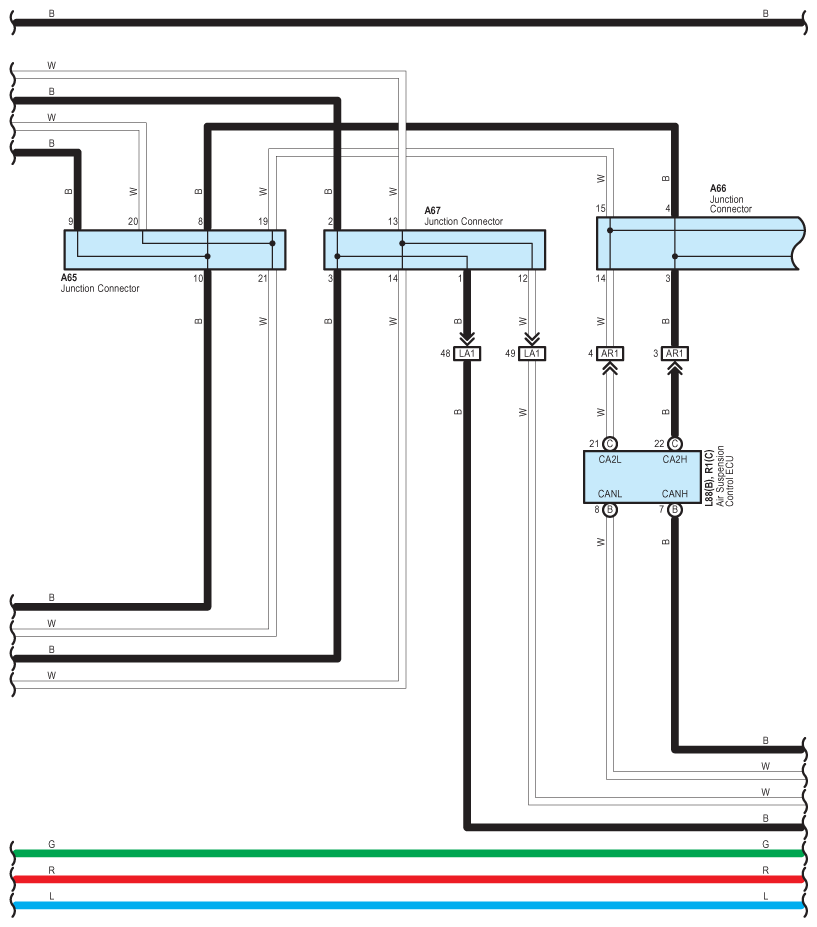

Fig 11: Vehicle Dynamic Integrated Management System Wiring Diagram (11 Of 14)

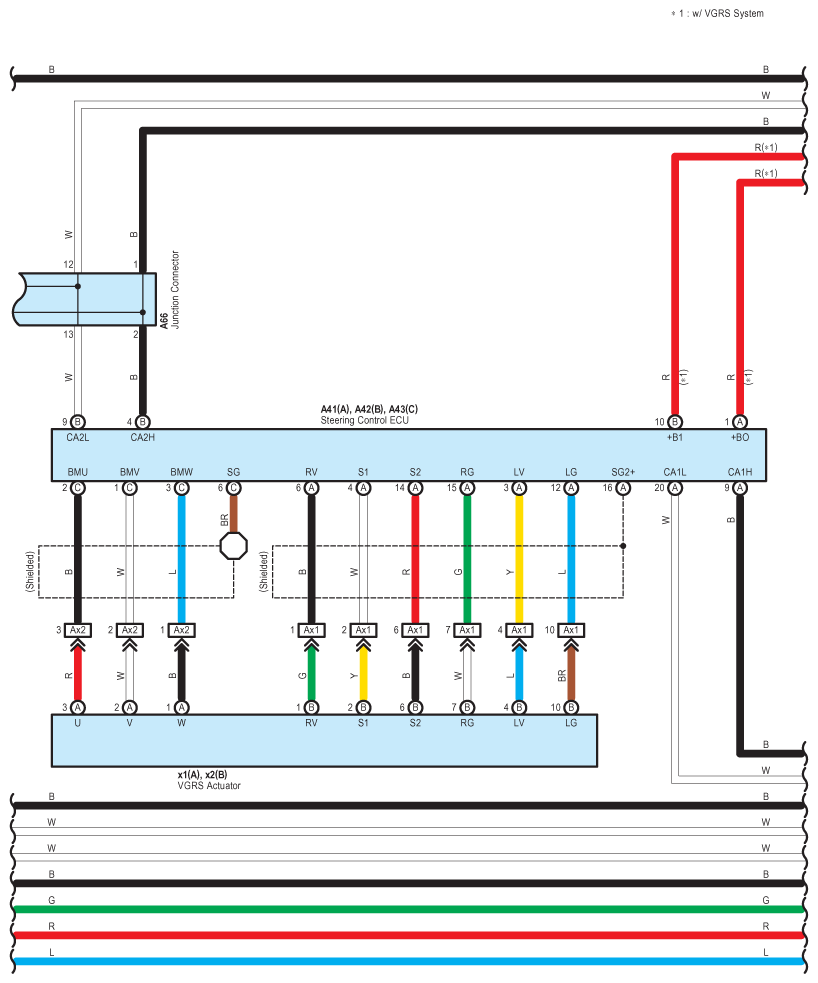

Fig 12: Vehicle Dynamic Integrated Management System Wiring Diagram (12 Of 14)

Fig 13: Vehicle Dynamic Integrated Management System Wiring Diagram (13 Of 14)

Fig 14: Vehicle Dynamic Integrated Management System Wiring Diagram (14 Of 14)
