Windshield Glass: Installation
HINT:
A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE FOR STANDARD BOLTS ).
- INSTALL NO. 1 WINDSHIELD GLASS STOPPER
- Install 2 new stoppers to the vehicle body as shown in the illustration.
- INSTALL NO. 2 WINDSHIELD GLASS STOPPER
- Apply Primer G to the glass where the stopper will be installed.NOTE:
- Allow the primer to dry for 3 minutes or more.
- Throw away any leftover primer.
- Do not apply too much primer.

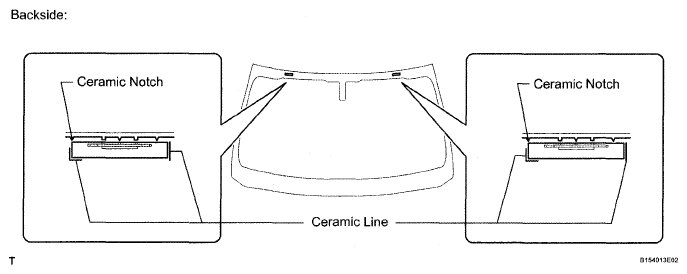

- Install 2 new stoppers onto the glass as shown in the illustration.
- Apply Primer G to the glass where the stopper will be installed.
- INSTALL UPPER WINDSHIELD OUTSIDE MOULDING
- Using a brush or sponge, coat the contact surface of the glass and moulding with Primer G.NOTE:
- Allow the primer coating to dry for 3 minutes or more.
- Do not coat the adhesive with Primer G.
- Throw away any leftover primer.
- Apply adhesive to the moulding as shown in the illustration.
Adhesive:
Toyota Genuine Windshield Glass Adhesive or equivalent
HINT:
Use all adhesive within the time written in the table below.
Usage timeframe
TIMEFRAME CHARTTemperature Usage Timeframe 35°C (95°F) 15 minutes 20°C (68°F) 1 hour 40 minutes 5°C (41 °F) 8 hours - Install the windshield outside moulding, as shown in the illustration.
- Remove any unnecessary adhesive before it hardens.NOTE: Make sure that no adhesive remains on the moulding and glass.
- Using a brush or sponge, coat the contact surface of the glass and moulding with Primer G.
- INSTALL WINDSHIELD GLASS RETAINER
- Apply Primer G to the glass where the retainer will be installed.NOTE:
- Allow the primer to dry for 3 minutes or more.
- Throw away any leftover primer.
- Do not apply too much primer.
- Install 2 new retainers onto the glass as shown in the illustration.
Specification

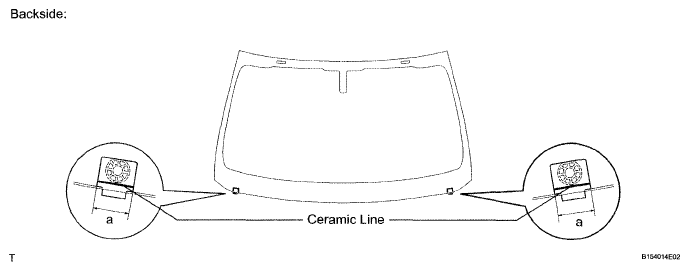

WINDSHIELD GLASS RETAINER AREA MEASUREMENT CHARTArea Measurement a 30 mm (1.18 in.)
- Apply Primer G to the glass where the retainer will be installed.
- INSTALL WINDSHIELD GLASS ADHESIVE DAM
- Apply Primer G to the glass where the glass adhesive dams will be installed.NOTE:
- Allow the primer to dry for 3 minutes or more.
- Throw away any leftover primer.
- Do not apply too much primer.

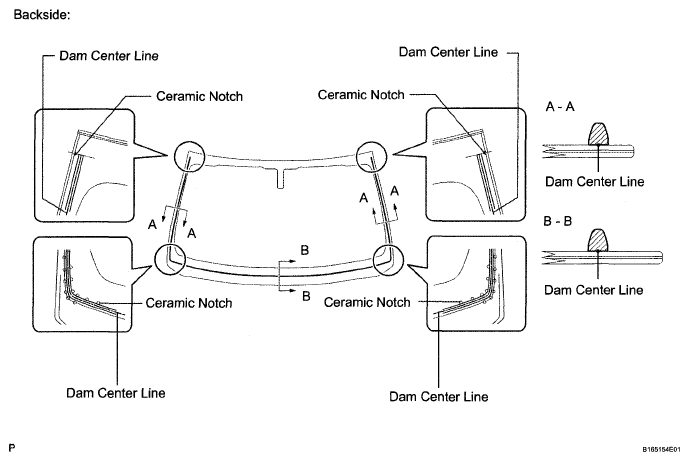

- Remove the peeling paper from the adhesive part of the dam. Install the dam (adhesive side) to the glass (Primer G area), but exclude the area above the notches on the upper part of the glass.
- Apply Primer G to the glass where the glass adhesive dams will be installed.
- INSTALL WINDSHIELD GLASS SEAL
- Apply Primer G to the glass where the windshield glass seal will be installed.NOTE:
- Allow the primer to dry for 3 minutes or more.
- Throw away any leftover primer.
- Do not apply too much primer.
- Remove the peeling paper from the windshield glass seal. Install the seal to the glass.
Specification

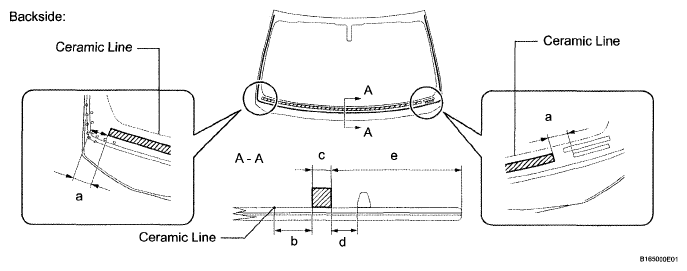

WINDSHIELD GLASS SEAL AREA MEASUREMENT CHARTArea Measurement a 30.0 mm (1.18 in.) b 20.0 mm (0.787 in.) c 10.0 mm (0.394 in.) d 13.0 mm (0.512 in.) e 88.7 mm (3.49 in.)
- Apply Primer G to the glass where the windshield glass seal will be installed.
- INSTALL WINDSHIELD GLASS
- Position the glass.
- Using suction cups, place the glass in the correct position.
- Check that the entire contact surface of the glass rim is perfectly even.
- Place matchmarks on the glass and vehicle body on the locations indicated in the illustration.
HINT:
- Placing matchmarks is only necessary when installing new glass. If it is the reused glass, matchmarks should already be present.
- When reusing the glass, check and correct the matchmark positions.
NOTE: Check that the stoppers are attached to the vehicle body correctly. - Using suction cups, remove the glass.

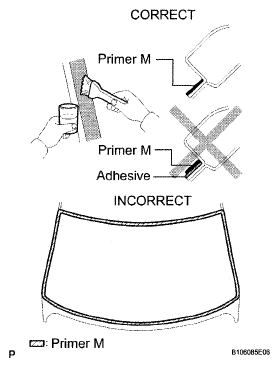

- Using a brush, apply Primer M to the exposed part of the vehicle body.NOTE:
- Allow the primer to dry for 3 minutes or more.
- Do not apply primer to the adhesive.
- Throw away any leftover primer.
- Do not apply too much primer.
- Using a brush or sponge, apply Primer G to the contact surface of the glass.
Specification

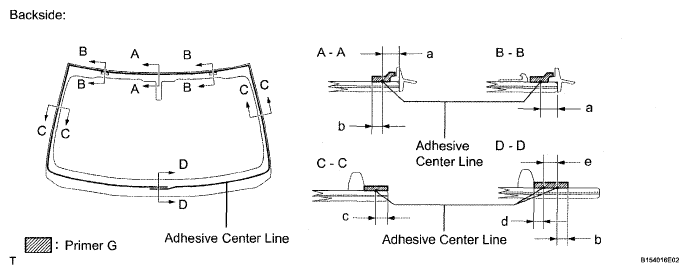

AREA MEASUREMENT CHARTArea Measurement a 6.5 mm (0.258 in.) b 7.0 mm (0.276 in.) c 3.0 mm (0.118 in.) d 4.0 mm (0.157 in.) e 8.0 mm (0.315 in.) HINT:
If the primer is applied to an area that is not specified, apply non-residue solvent to a clean cloth and wipe off the excess primer before it dries.
NOTE:- Allow the primer to dry for 3 minutes or more.
- Throw away any leftover primer.
- Do not apply too much primer.
- Apply adhesive to the glass.
Adhesive:
Toyota Genuine Windshield Glass Adhesive or equivalent
- Cut off the tip of the cartridge nozzle as shown in Fig 12.
HINT:
After cutting off the tip, use all adhesive within the time written in the table below.
Usage timeframe
TIMEFRAME CHARTTemperature Usage Timeframe 35°C (95°F) 15 minutes 20°C (68°F) 1 hour 40 minutes 5°C(41°F) 8 hours - Load the sealer gun with the cartridge.
- Apply adhesive to the glass as shown in the illustration.
Specification

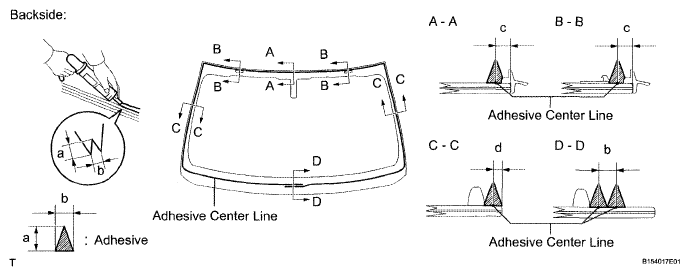

AREA MEASUREMENT CHARTArea Measurement a 12.0 mm (0.472 in.) b 8.0 mm (0.315 in.) c 6.5 mm (0.258 in.) d 3.0 mm (0.118 in.) IIII 1- D
- Cut off the tip of the cartridge nozzle as shown in Fig 12.
- Install the glass to the vehicle body.
- Using suction cups, position the glass so that the matchmarks are aligned. Press it in gently along the rim.
- Lightly press the outer surface of the glass to ensure that it is securely fit to the vehicle body.NOTE:
- Check that the stoppers are attached to the vehicle body correctly.
- Check that the vehicle body and glass have a small gap between them.
- Hold the glass in place securely with protective tape or equivalent until the adhesive hardens.NOTE: Do not drive the vehicle for the amount of time written in the table below.
Minimum time
MINIMUM TIME TEMPERATURETemperature Minimum time prior to driving vehicle 35°C (95°F) 1 hour 30 minutes 20°C (68°F) 5 hours 5°C (41°F) 24 hours
- w/ Windshield Deicer System: Connect the windshield deicer connector.
- Position the glass.
- CHECK FOR WATER LEAKS
- Conduct a leak test after the adhesive has completely hardened.
- Seal any leaks with auto glass sealer.
- INSTALL ROOF HEADLINING ASSEMBLY
- Return the roof headlining to its original position.
For Standard Body, refer to the following procedures (see INSTALLATION ).
For Long Body, refer to the following procedures (see INSTALLATION ).
- Return the roof headlining to its original position.
- INSTALL RAIN SENSOR TAPE (w/ Rain Sensor) (See INSTALLATION )
- INSTALL RAIN SENSOR (w/ Rain Sensor) (See INSTALLATION )
- INSTALL OBJECT RECOGNITION CAMERA (w/ Driver Monitor Camera) (See INSTALLATION )
- INSTALL INNER REAR VIEW MIRROR ASSEMBLY (See INSTALLATION )
- INSTALL INNER REAR VIEW MIRROR COVER (w/o Rain Sensor) (See INSTALLATION )
- INSTALL RAIN SENSOR COVER (w/ Rain Sensor) (See INSTALLATION )
- REMOVE RAIN SENSOR COVER (w/ Driver Monitor Camera) (See INSTALLATION )
- INSTALL MAP LIGHT ASSEMBLY (See INSTALLATION )
- INSTALL ASSIST GRIP SUB-ASSEMBLY (See INSTALLATION )
- INSTALL VISOR HOLDER (See INSTALLATION )
- INSTALL VISOR ASSEMBLY LH (See INSTALLATION )
- INSTALL VISOR ASSEMBLY RH (See INSTALLATION )
- INSTALL VISOR BRACKET COVER (See INSTALLATION )
- INSTALL FRONT PILLAR GARNISH LH (See INSTALLATION )
- INSTALL FRONT PILLAR GARNISH RH (See INSTALLATION )
- INSTALL NO. 1 ROOF DRIP SIDE FINISH MOULDING CLIP (See INSTALLATION )
- INSTALL NO. 3 WINDSHIELD OUTSIDE MOULDING CLIP (See INSTALLATION )
- INSTALL NO. 2 ROOF DRIP SIDE FINISH MOULDING CLIP (See INSTALLATION )
- INSTALL NO. 2 WINDSHIELD OUTSIDE MOULDING CLIP (See INSTALLATION )
- INSTALL NO. 1 WINDSHIELD OUTSIDE MOULDING CLIP
HINT:
Use the same procedures described for the No. 2 windshield outside moulding clip.
- INSTALL CENTER ROOF DRIP SIDE FINISH MOULDING LH (See INSTALLATION )
- INSTALL CENTER ROOF DRIP SIDE FINISH MOULDING RH
HINT:
Use the same procedures described for the LH side.
- INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY (See INSTALLATION )
- INSTALL COWL TOP VENTILATOR LOUVER PROTECTOR LH (See INSTALLATION )
- INSTALL HOOD TO COWL TOP SEAL (See INSTALLATION )
- INSTALL FRONT FENDER TO COWL SIDE SEAL LH (See INSTALLATION )
- INSTALL FRONT FENDER TO COWL SIDE SEAL RH (See INSTALLATION )
- INSTALL FRONT WIPER ARM LH (See INSTALLATION )
- INSTALL FRONT WIPER ARM RH (See INSTALLATION )
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected (see INITIALIZATION ).
- INSTALL COWL TOP VENTILATOR LOUVER RH (See INSTALLATION )
- ADJUST OBJECT RECOGNITION CAMERA (See ADJUSTMENT )
