Brake Actuator: Components

Fig 1: Identifying Brake Actuator Components (1 Of 5)
G04949852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Brake Actuator Replacement Components With Torque Specifications (2 Of 5)
G04949853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

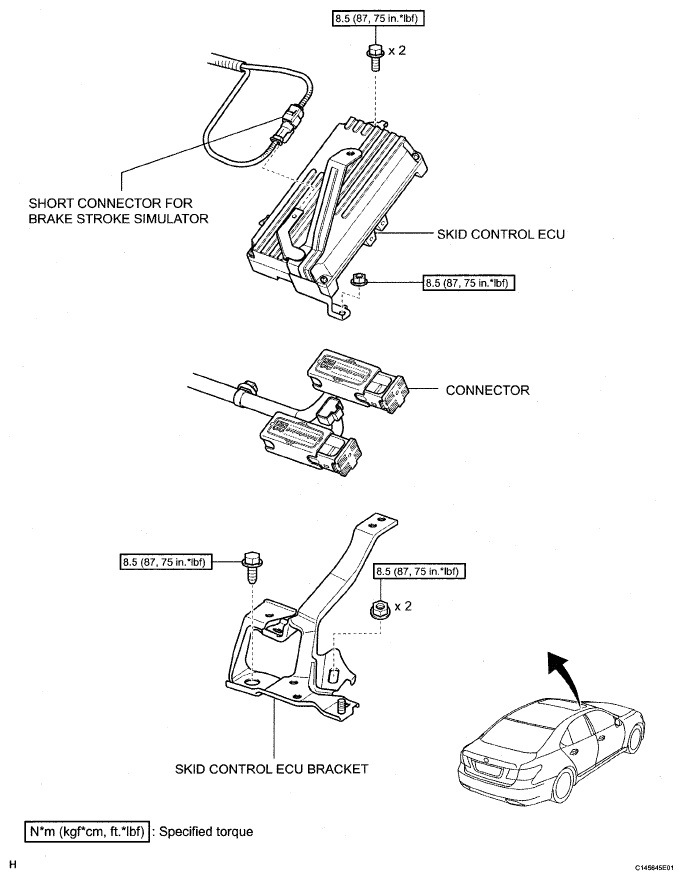

Fig 3: Skid Control ECU Replacement Components With Torque Specifications (2 Of 2)
G04949855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

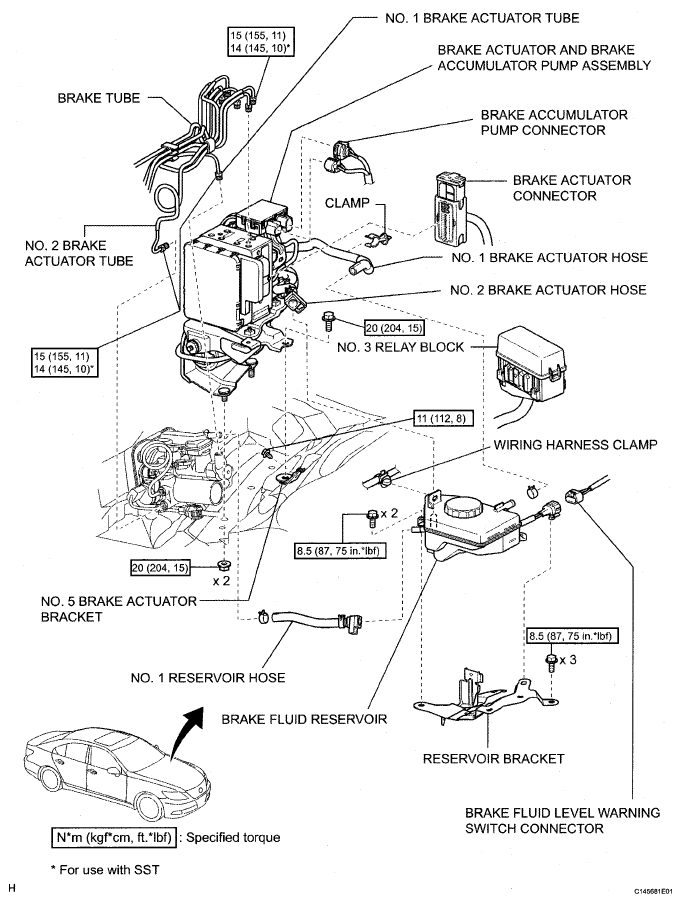

Fig 4: Brake Actuator Replacement Components With Torque Specifications (4 Of 5)
G04949696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

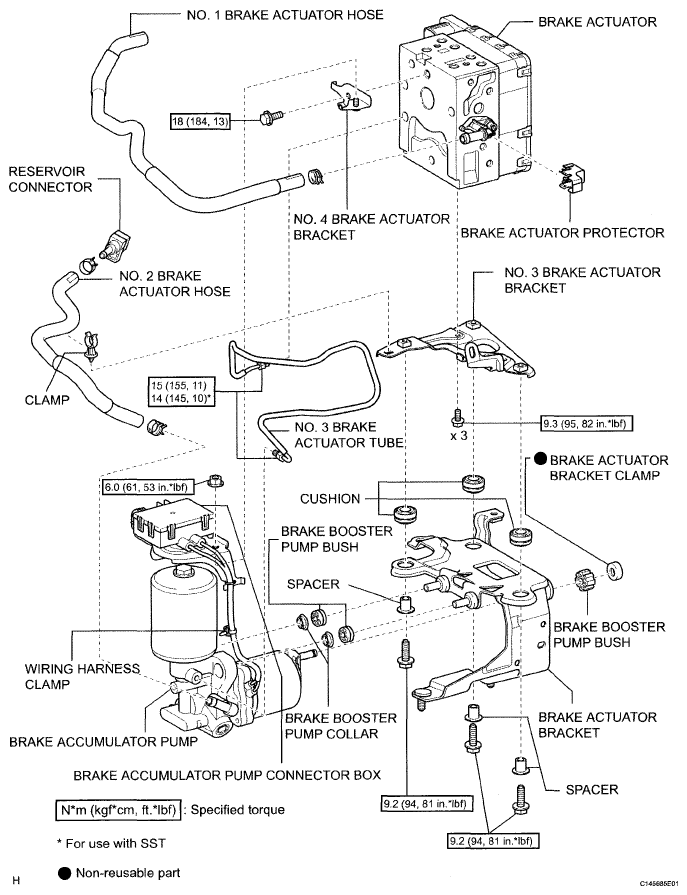

Fig 5: Brake Actuator Replacement Components With Torque Specifications (5 Of 5)
G04949697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
