Cooling Fan: Notes

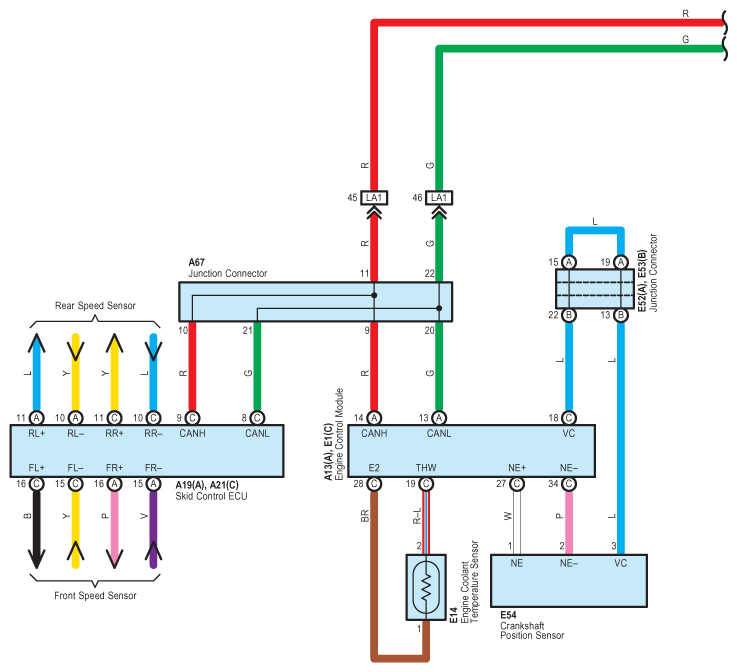

Fig 1: Cooling Fan System Wiring Diagram (1 Of 3)
G08920951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

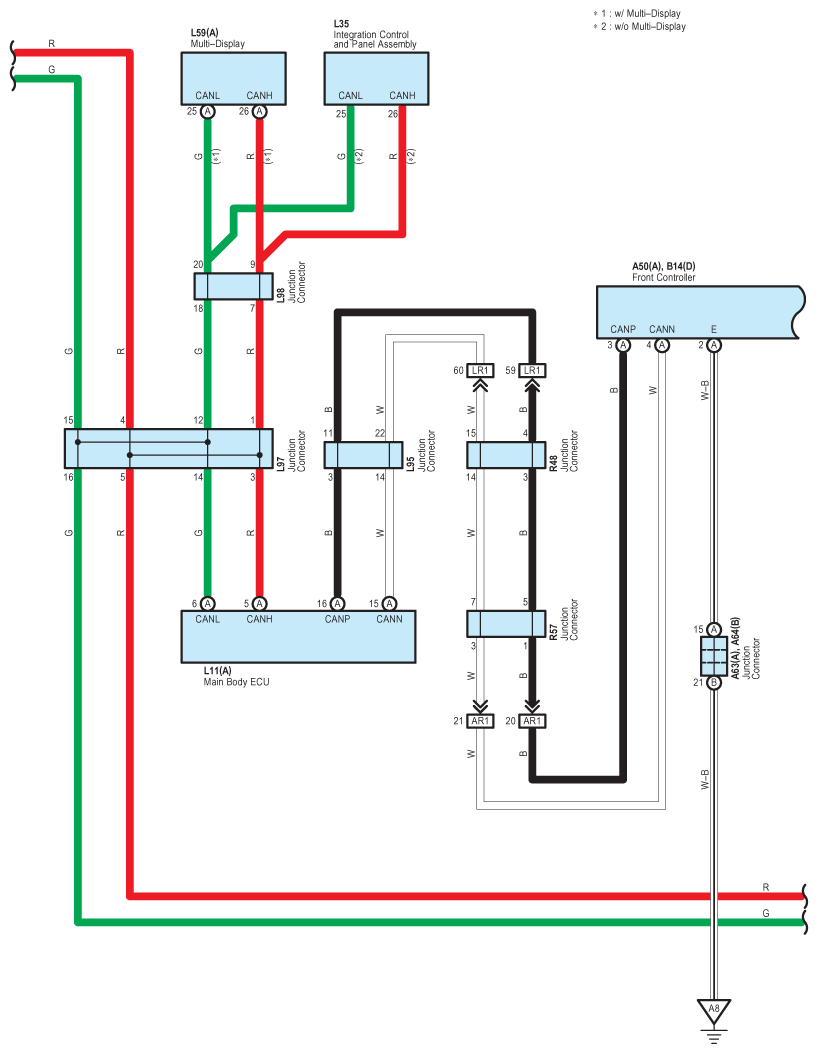

Fig 2: Cooling Fan System Wiring Diagram (2 Of 3)
G08920952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

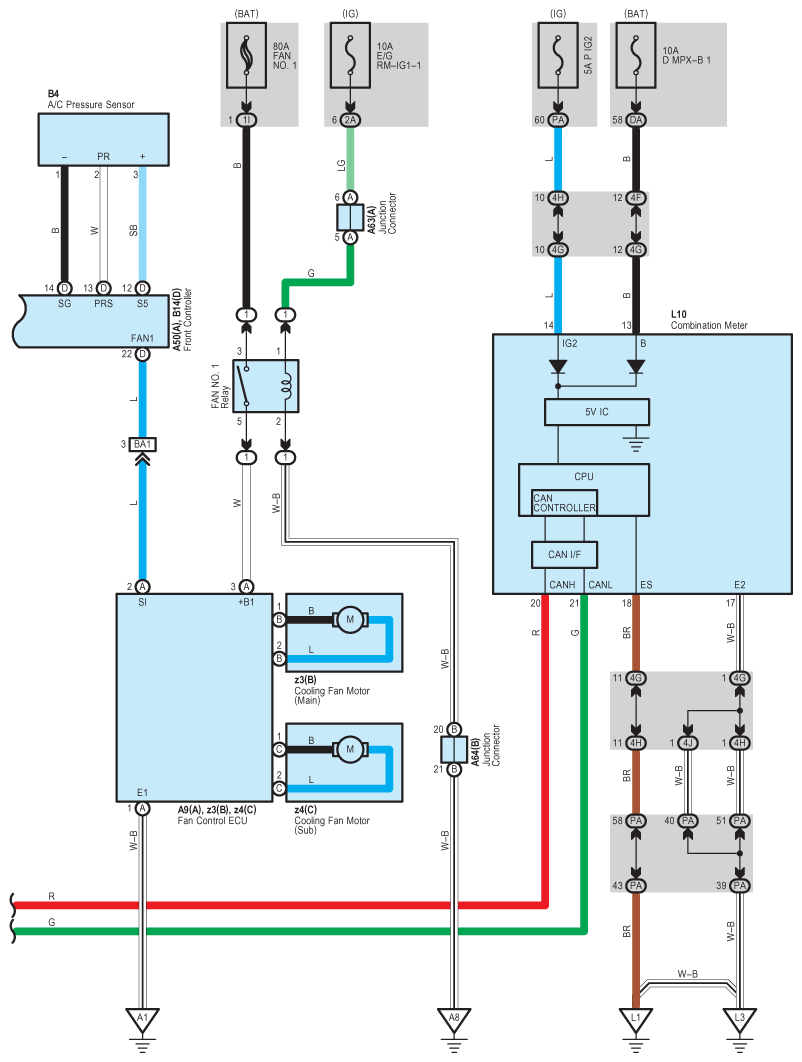

Fig 3: Cooling Fan System Wiring Diagram (3 Of 3)
G08920953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
