Engine Control: Notes

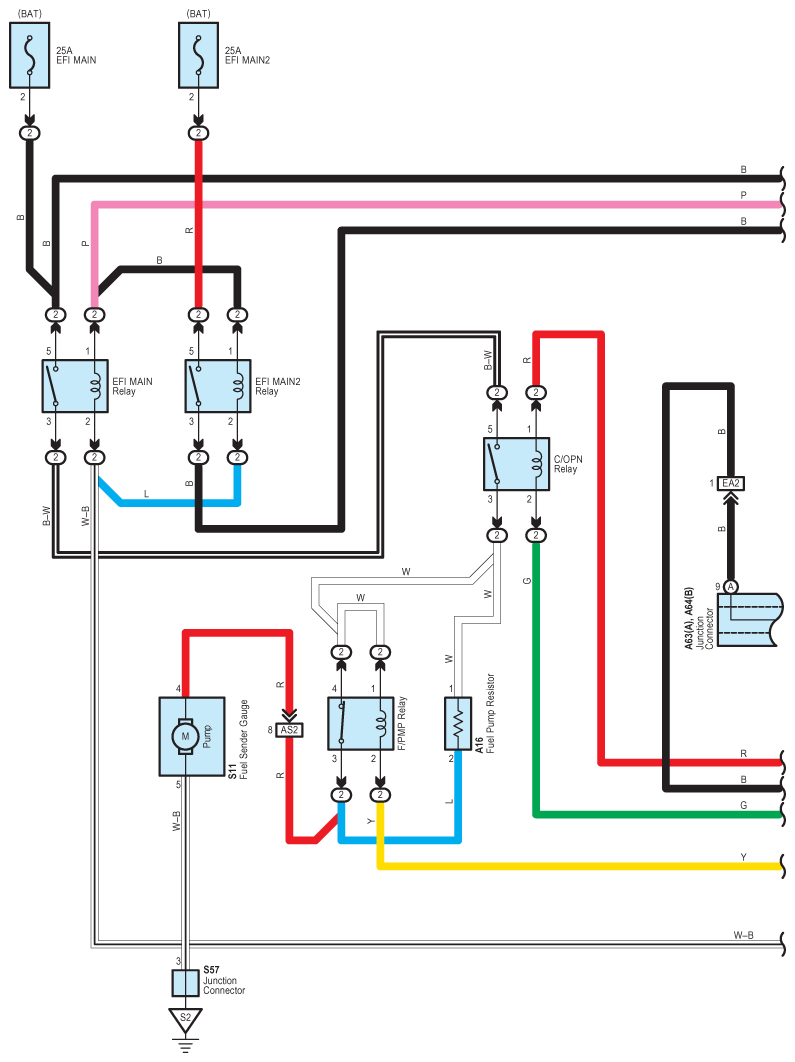

Fig 1: Engine Control System Wiring Diagram (1 Of 25)

G08920534

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

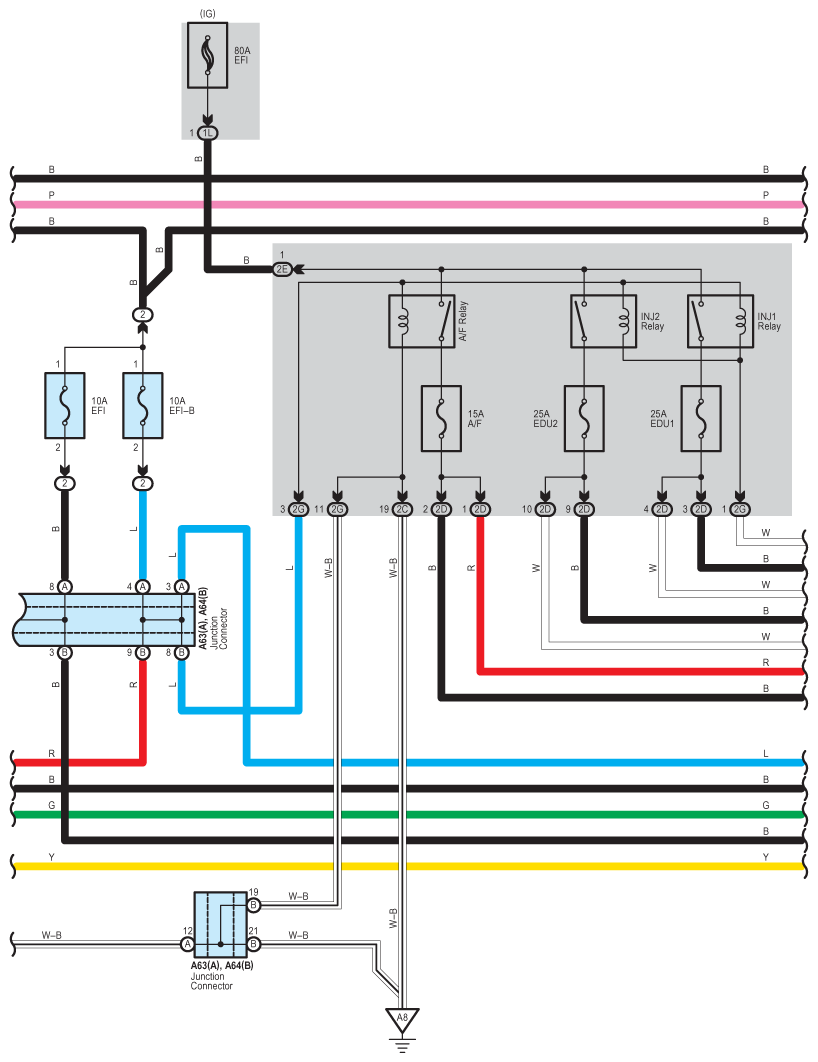

Fig 2: Engine Control System Wiring Diagram (2 Of 25)

G08920535

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

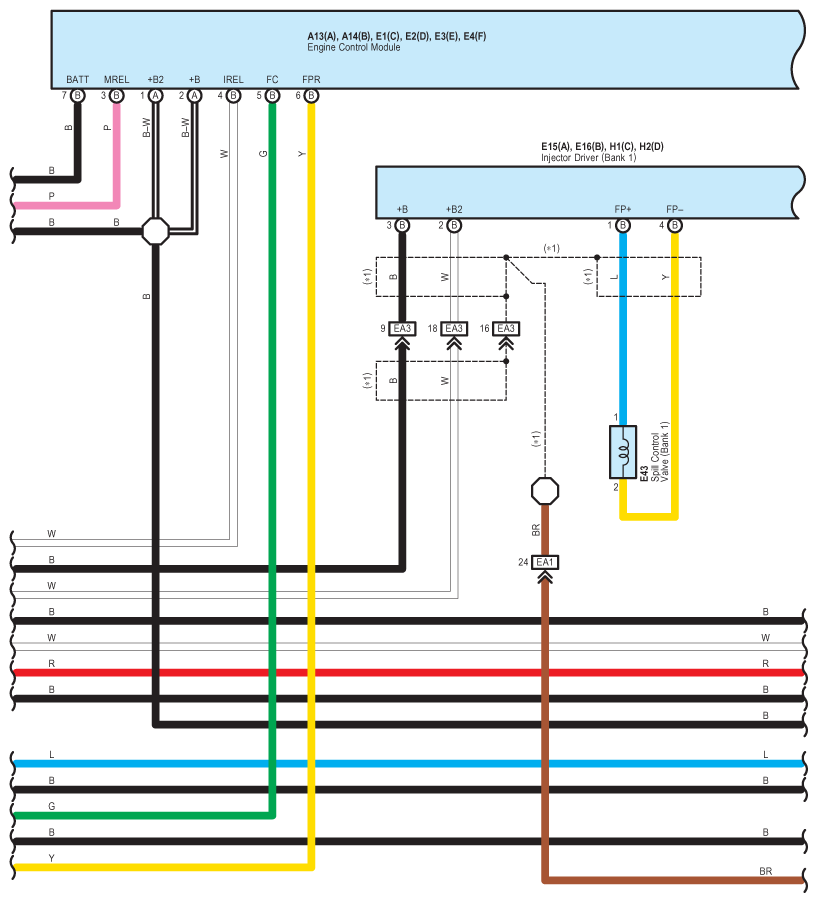

Fig 3: Engine Control System Wiring Diagram (3 Of 25)

G08920536

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

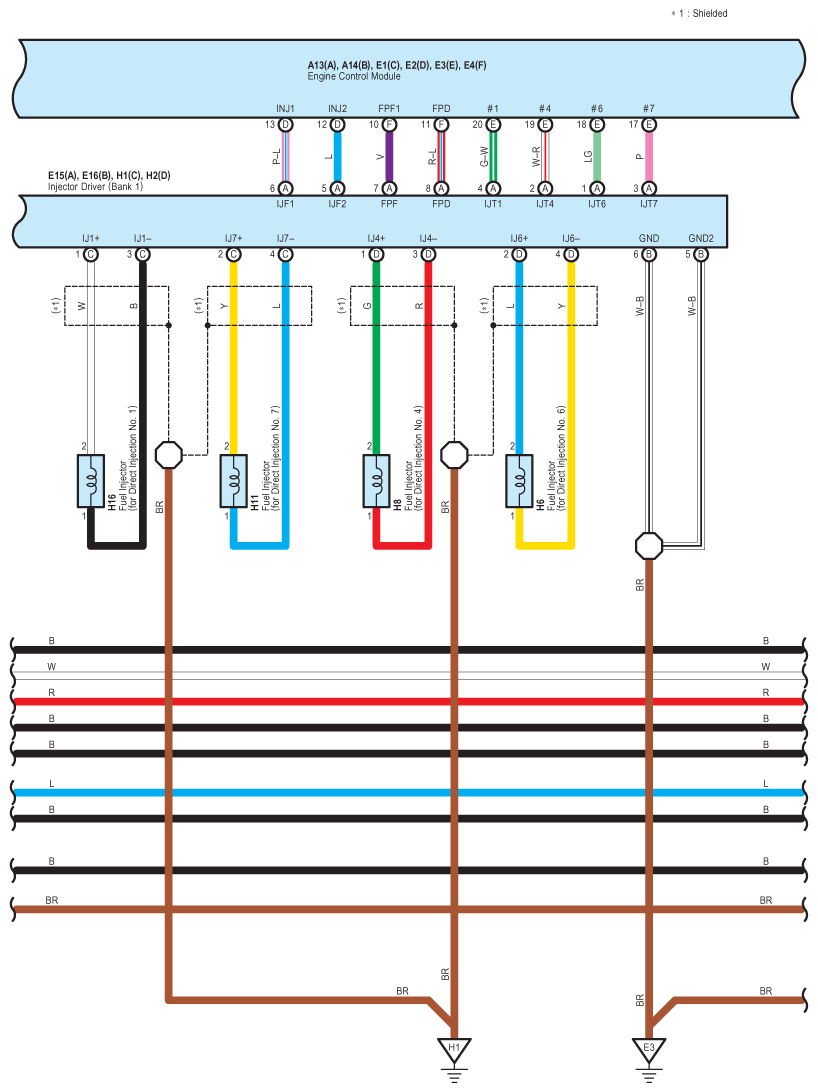

Fig 4: Engine Control System Wiring Diagram (4 Of 25)

G08920537

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

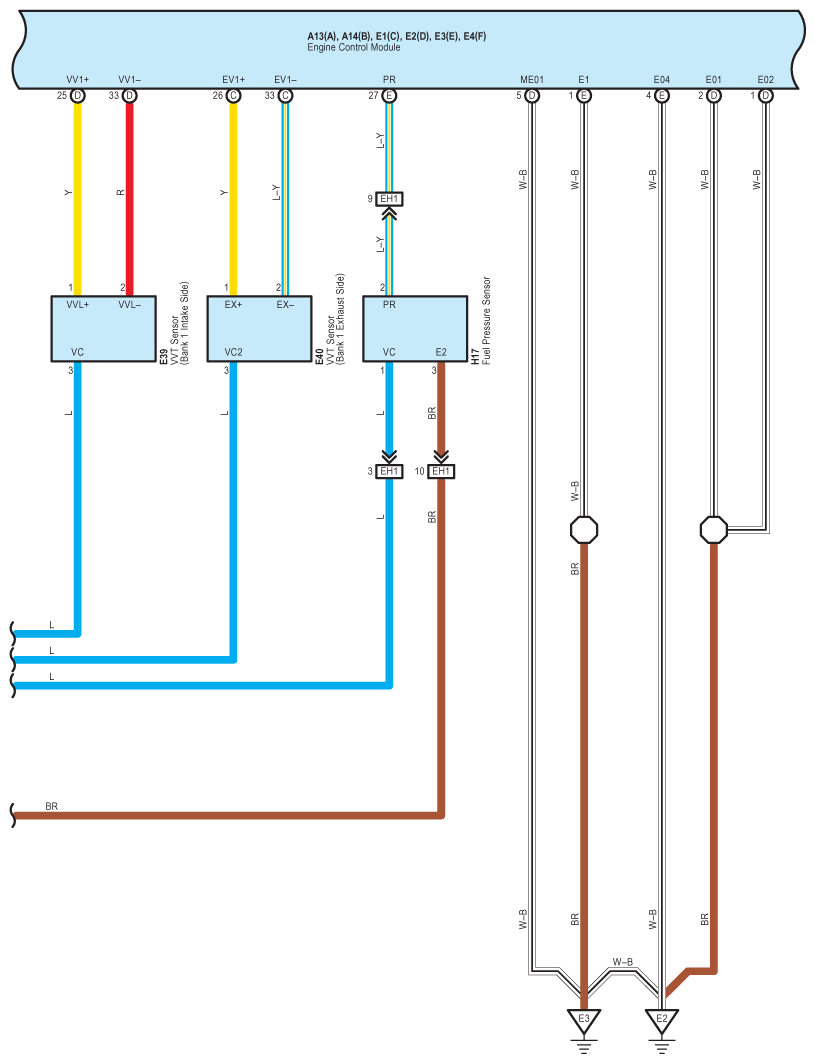

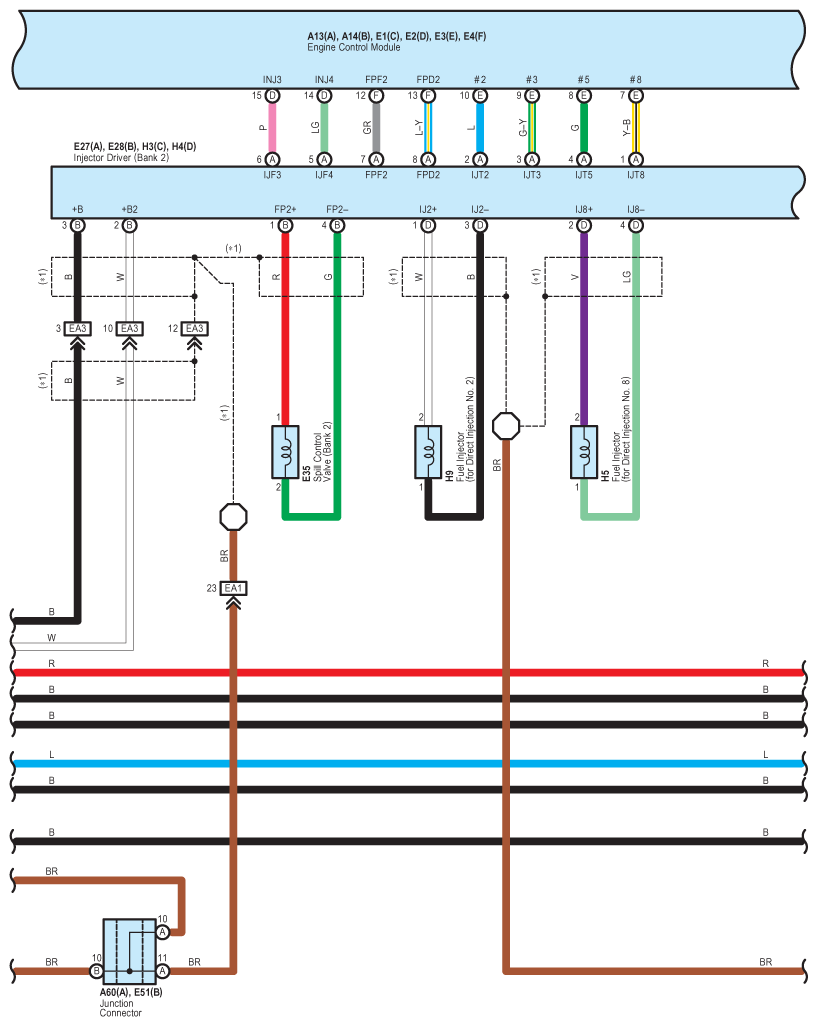

Fig 5: Engine Control System Wiring Diagram (5 Of 25)

G08920538

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

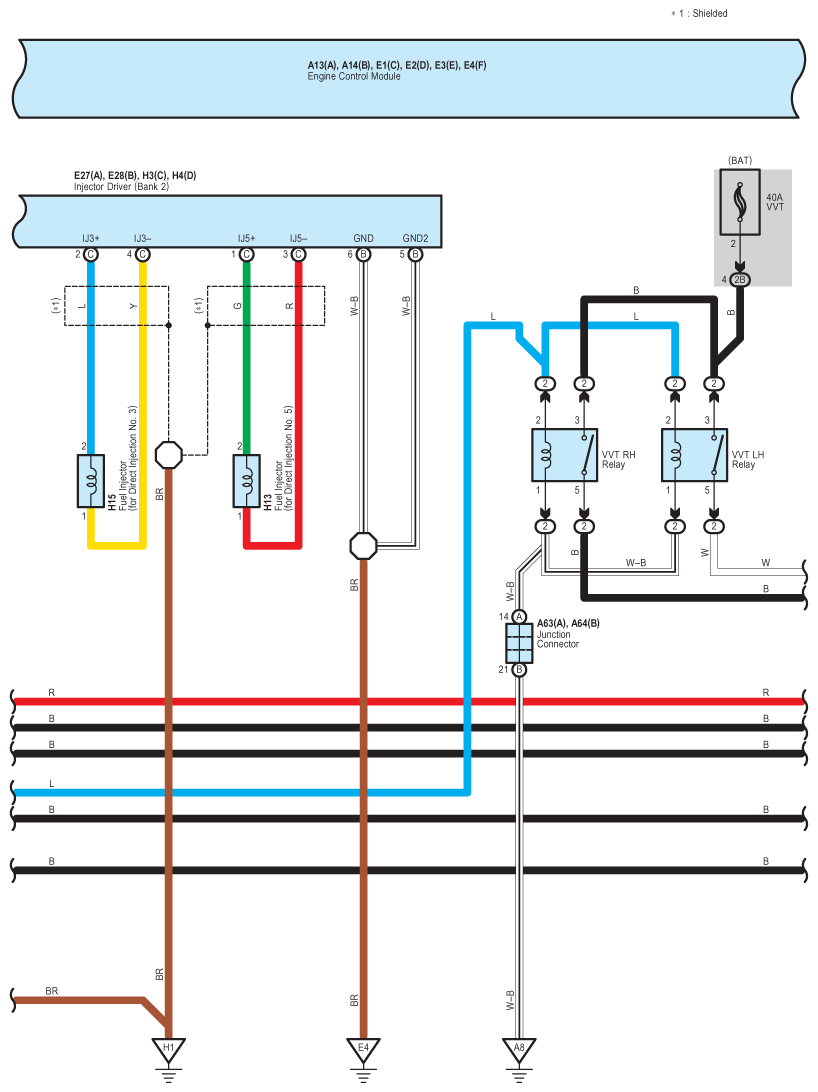

Fig 6: Engine Control System Wiring Diagram (6 Of 25)

G08920539

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

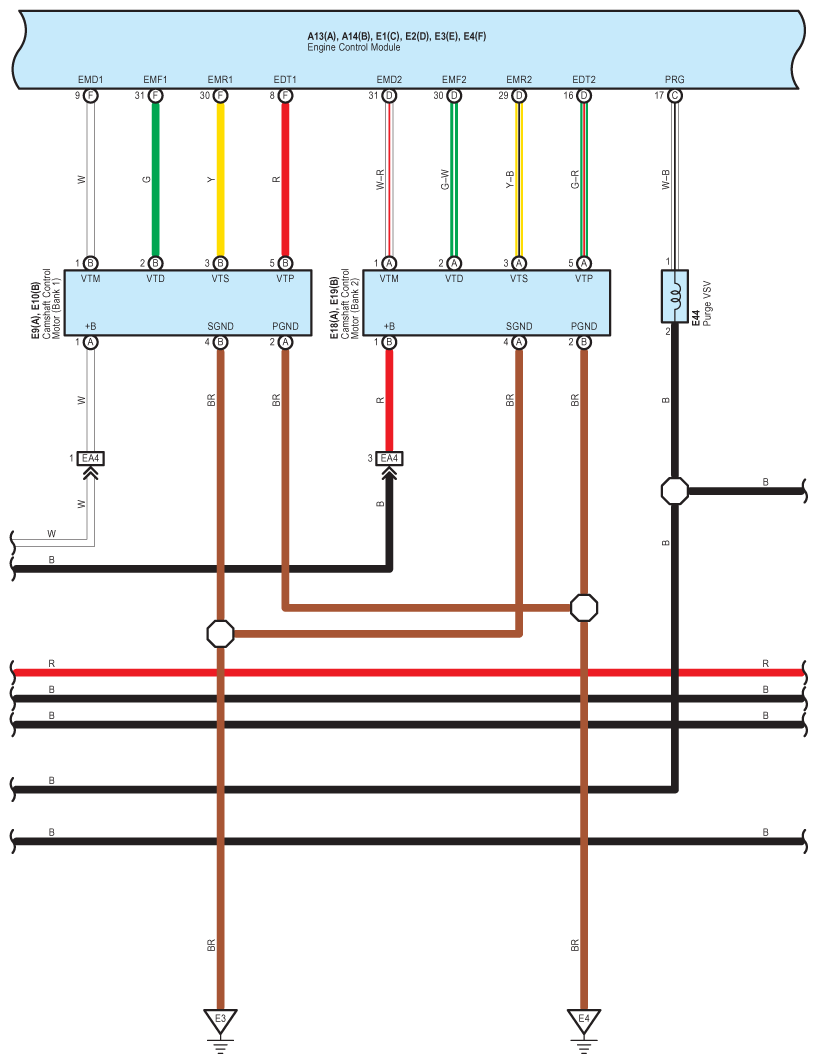

Fig 7: Engine Control System Wiring Diagram (7 Of 25)

G08920540

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

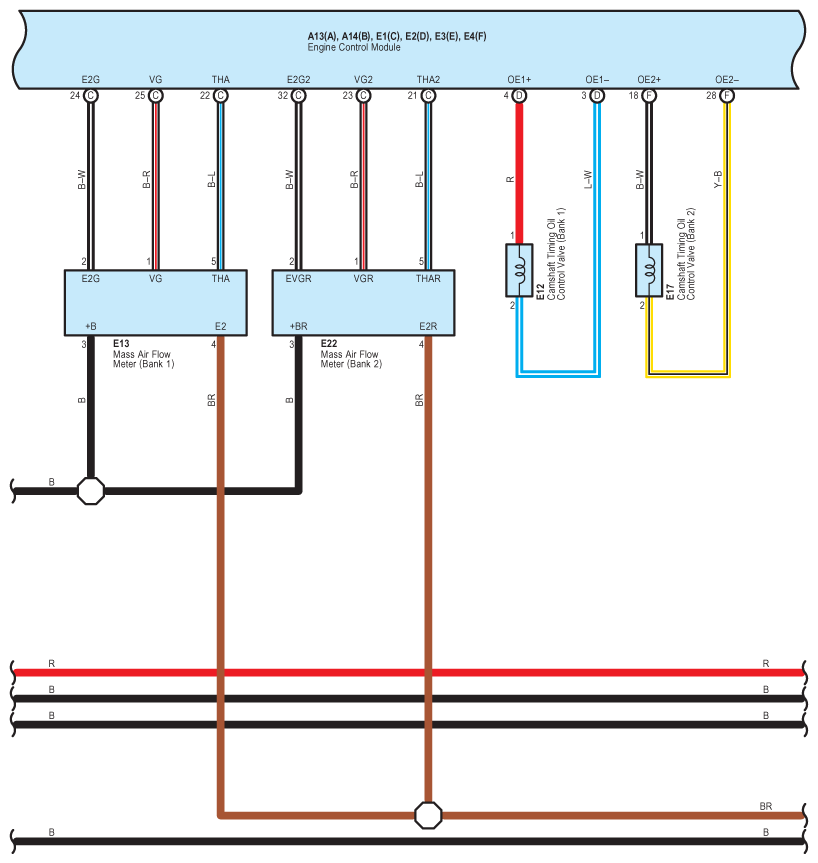

Fig 8: Engine Control System Wiring Diagram (8 Of 25)

G08920541

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

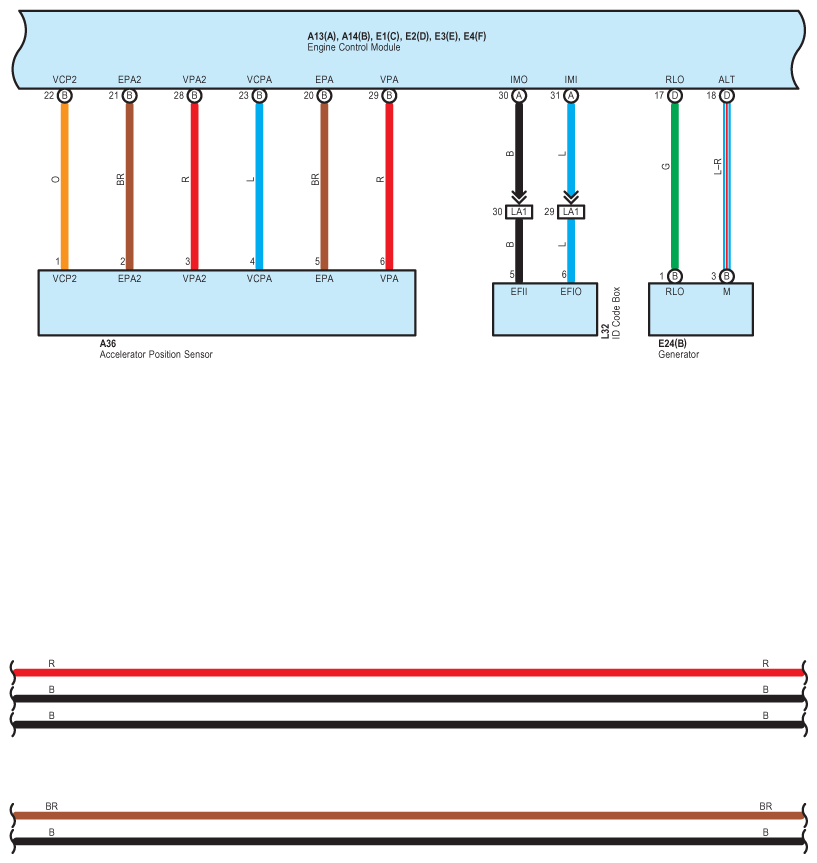

Fig 9: Engine Control System Wiring Diagram (9 Of 25)

G08920542

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

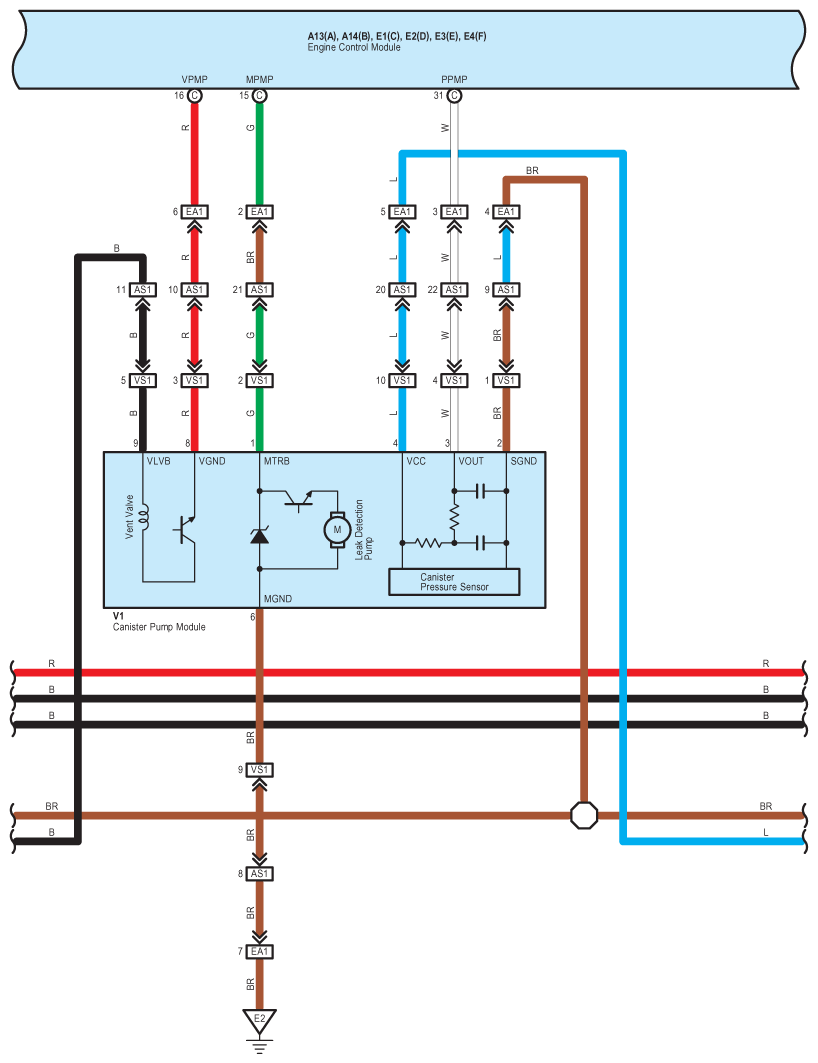

Fig 10: Engine Control System Wiring Diagram (10 Of 25)

G08920543

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

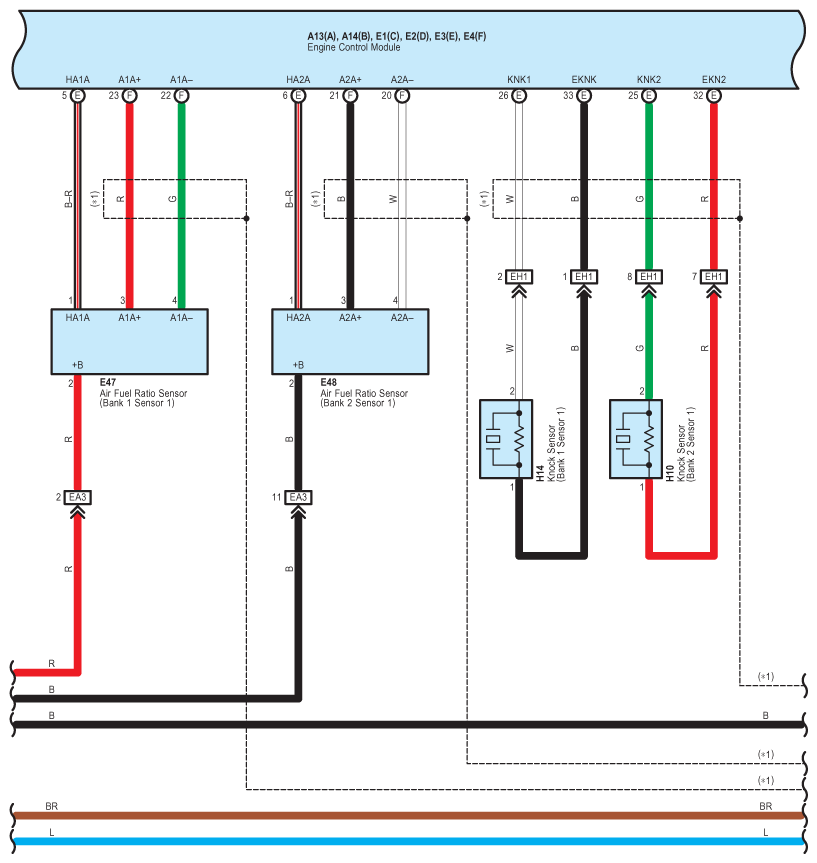

Fig 11: Engine Control System Wiring Diagram (11 Of 25)

G08920544

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

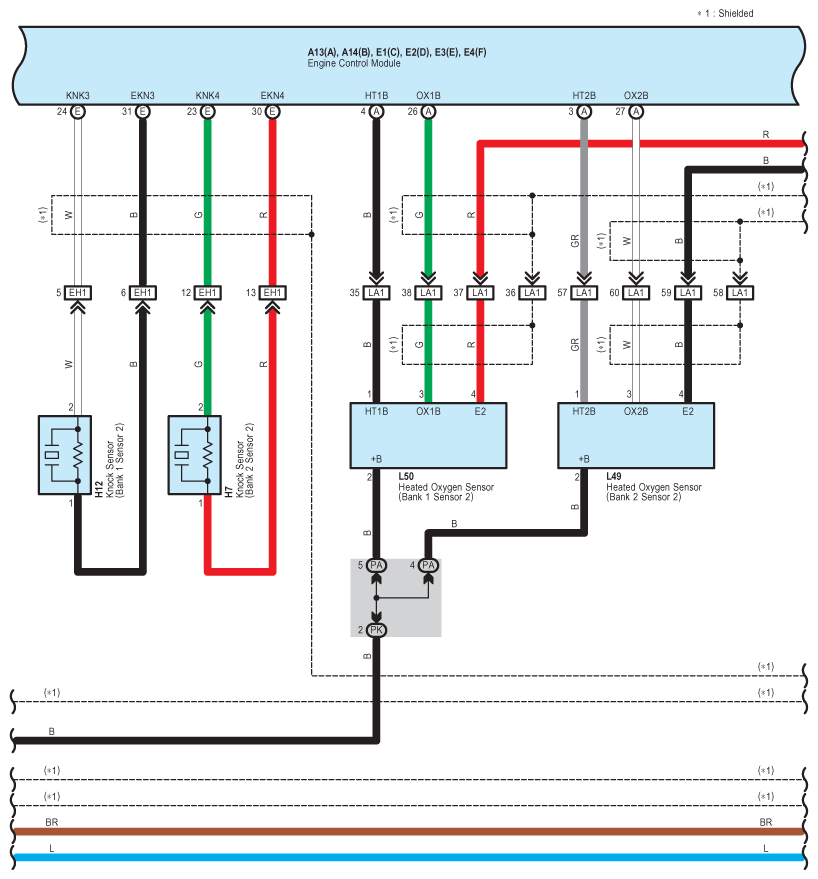

Fig 12: Engine Control System Wiring Diagram (12 Of 25)

G08920545

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

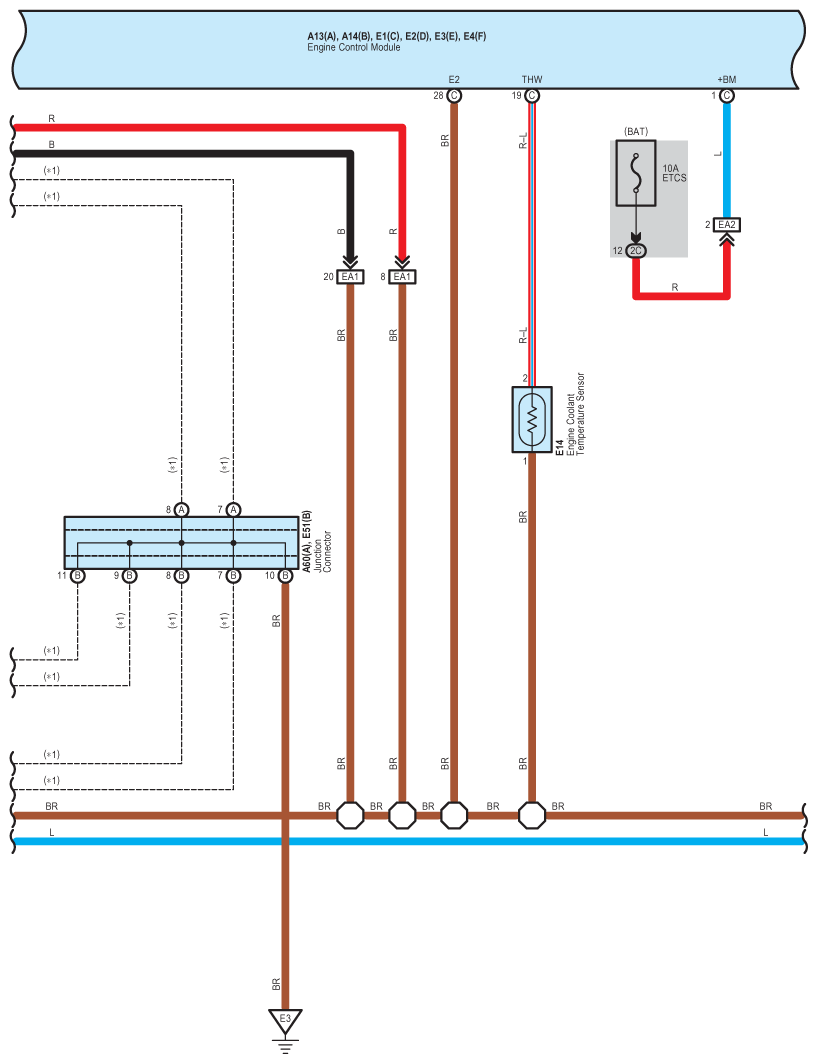

Fig 13: Engine Control System Wiring Diagram (13 Of 25)

G08920546

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

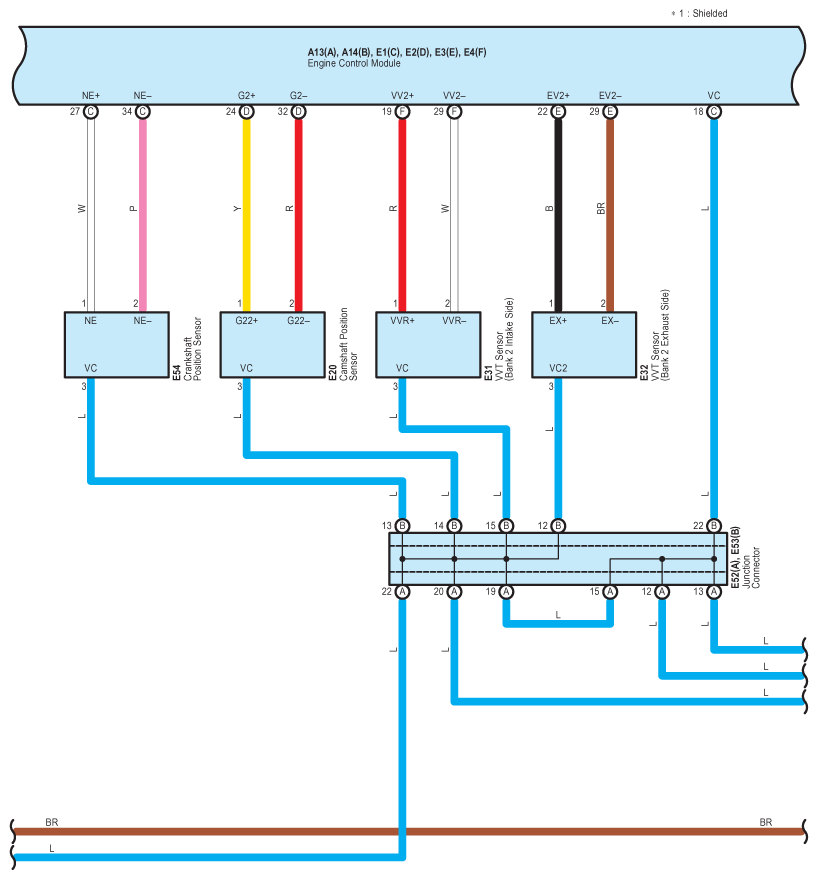

Fig 14: Engine Control System Wiring Diagram (14 Of 25)

G08920547

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Engine Control System Wiring Diagram (15 Of 25)

G08920548

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

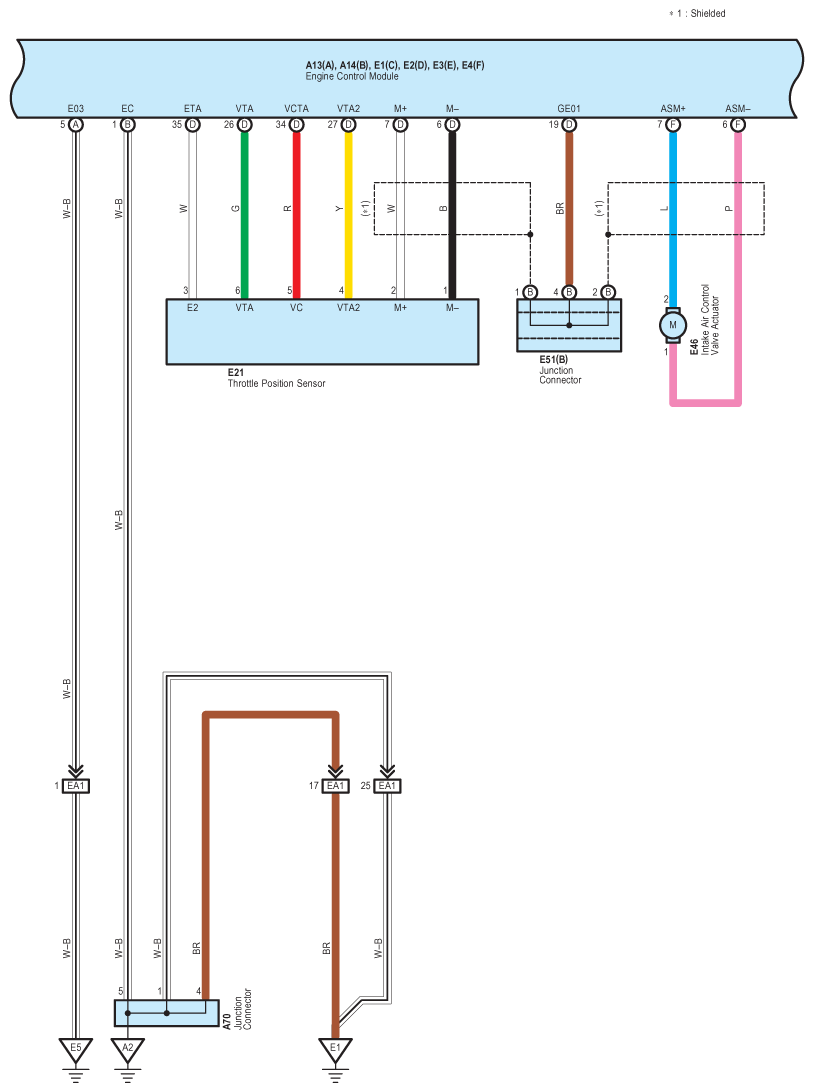

Fig 16: Engine Control System Wiring Diagram (16 Of 25)

G08920549

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

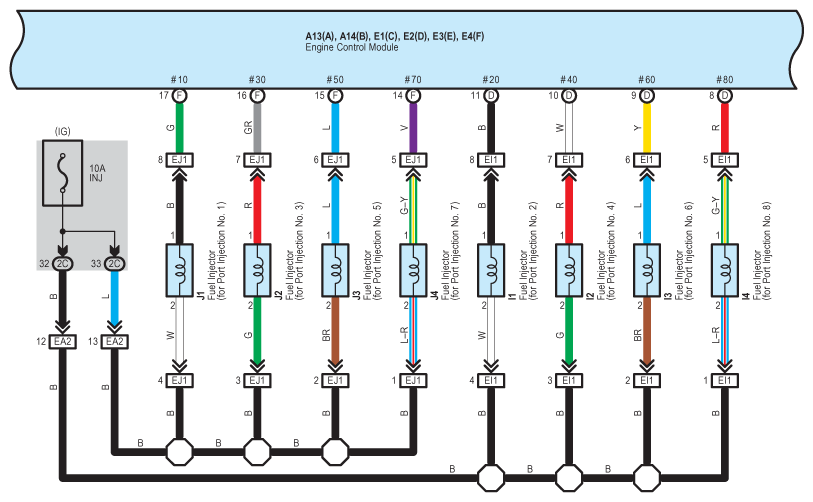

Fig 17: Engine Control System Wiring Diagram (17 Of 25)

G08920550

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

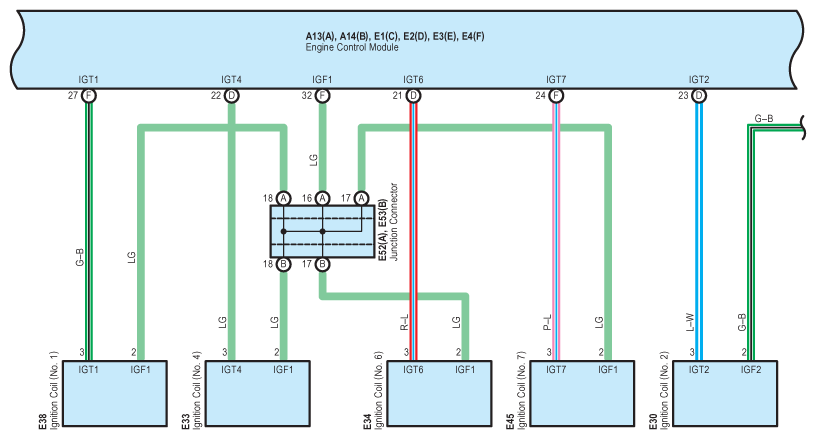

Fig 18: Engine Control System Wiring Diagram (18 Of 25)

G08920551

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

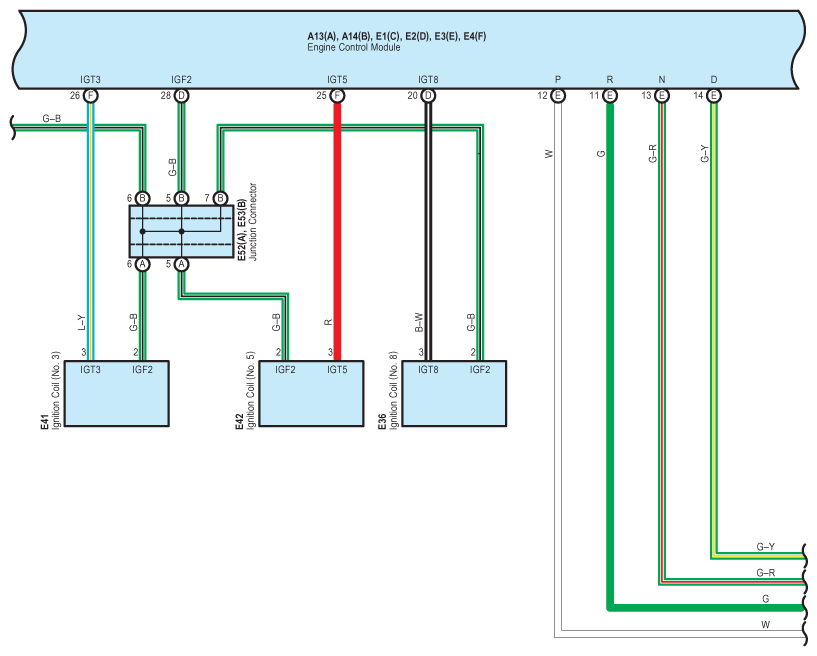

Fig 19: Engine Control System Wiring Diagram (19 Of 25)

G08920552

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

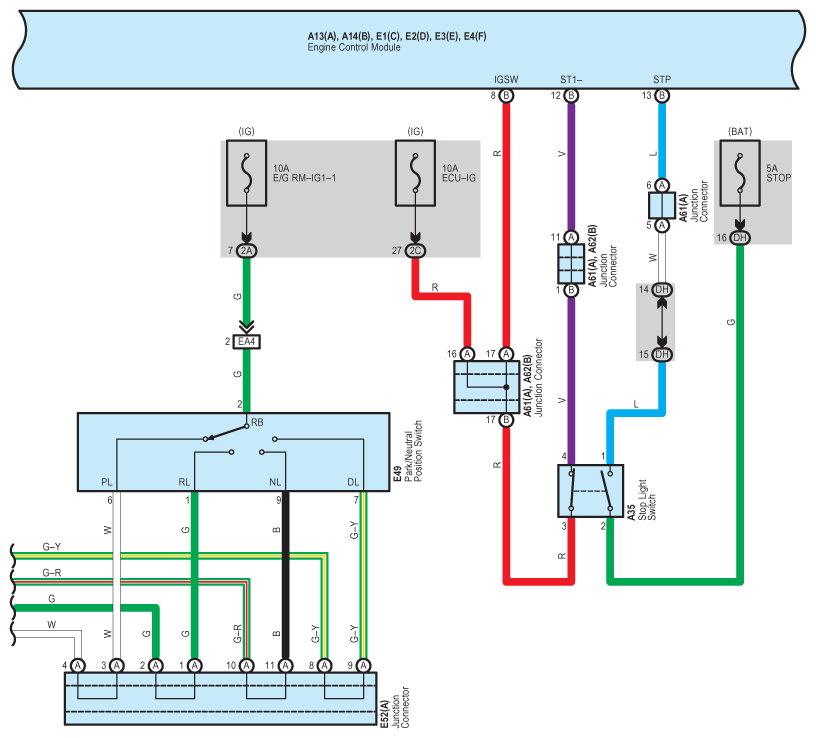

Fig 20: Engine Control System Wiring Diagram (20 Of 25)

G08920553

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

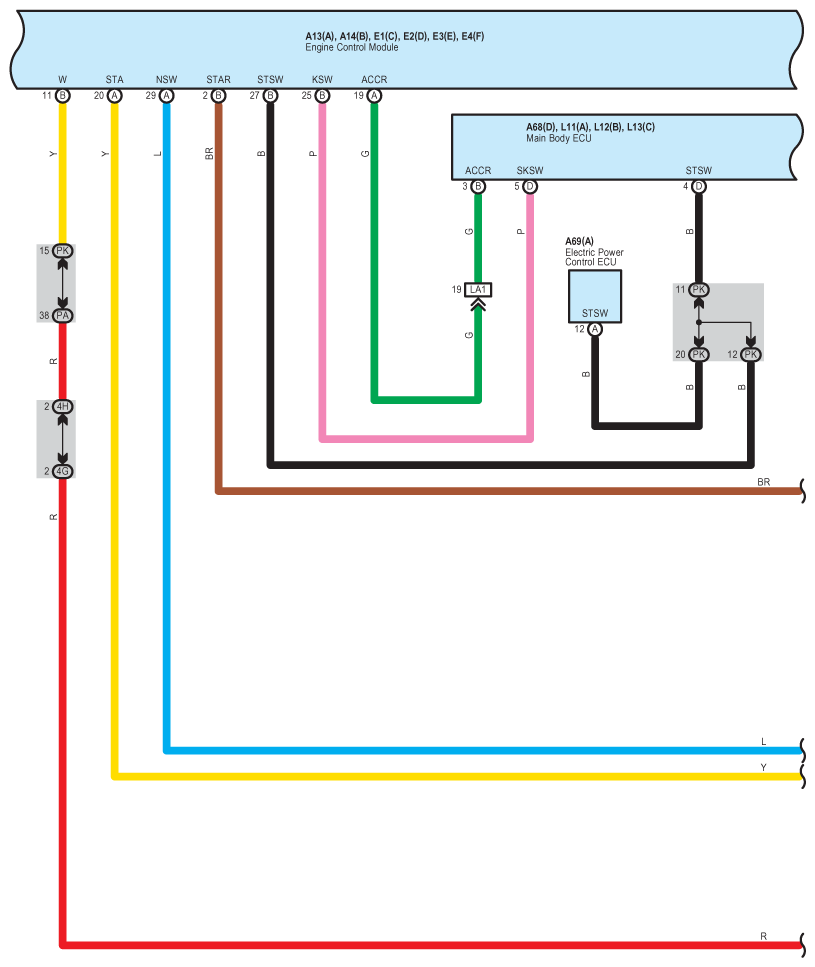

Fig 21: Engine Control System Wiring Diagram (21 Of 25)

G08920554

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 22: Engine Control System Wiring Diagram (22 Of 25)

G08920555

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

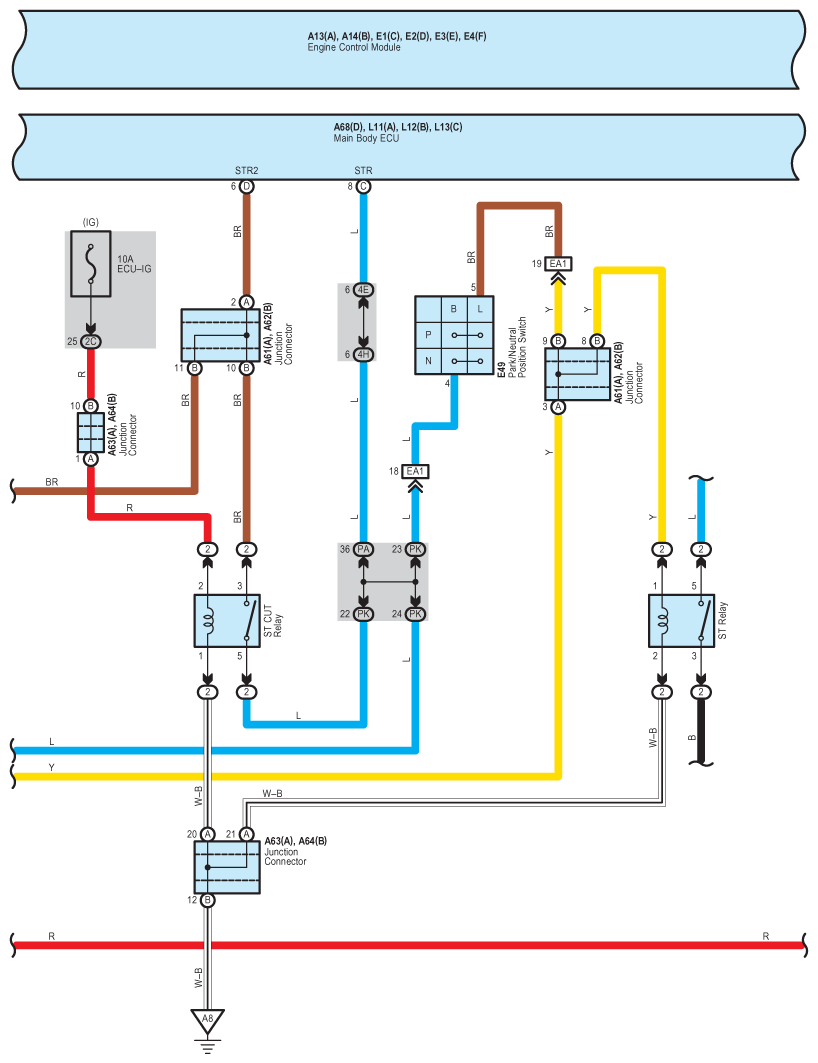

Fig 23: Engine Control System Wiring Diagram (23 Of 25)

G08920556

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

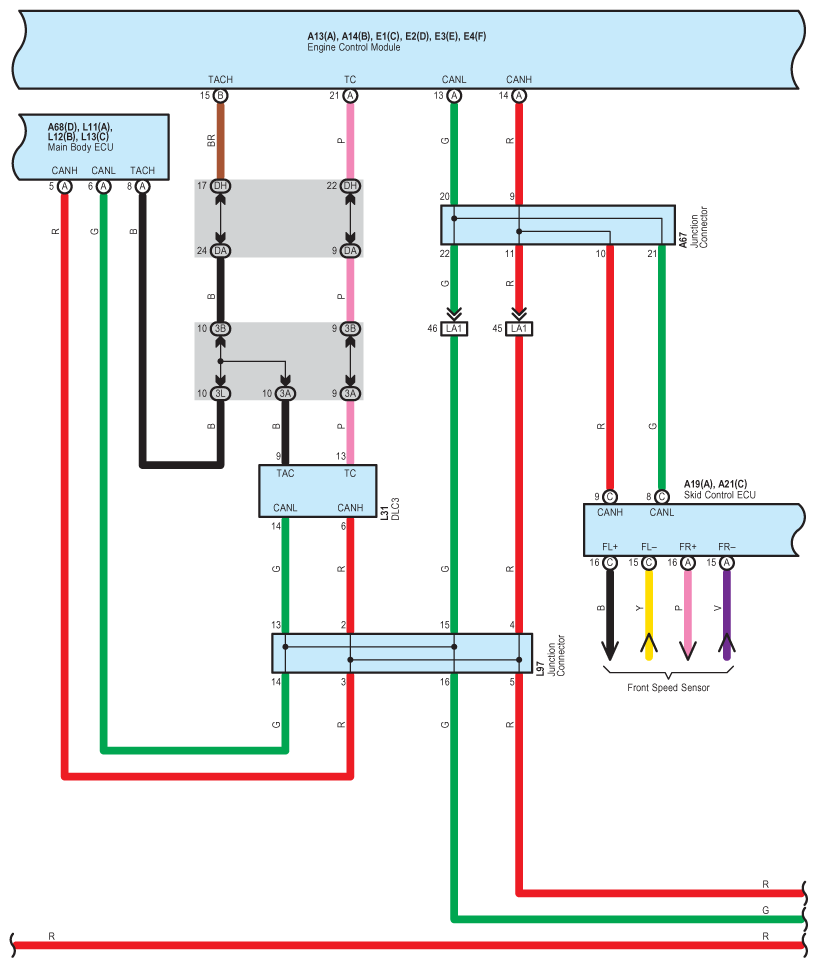

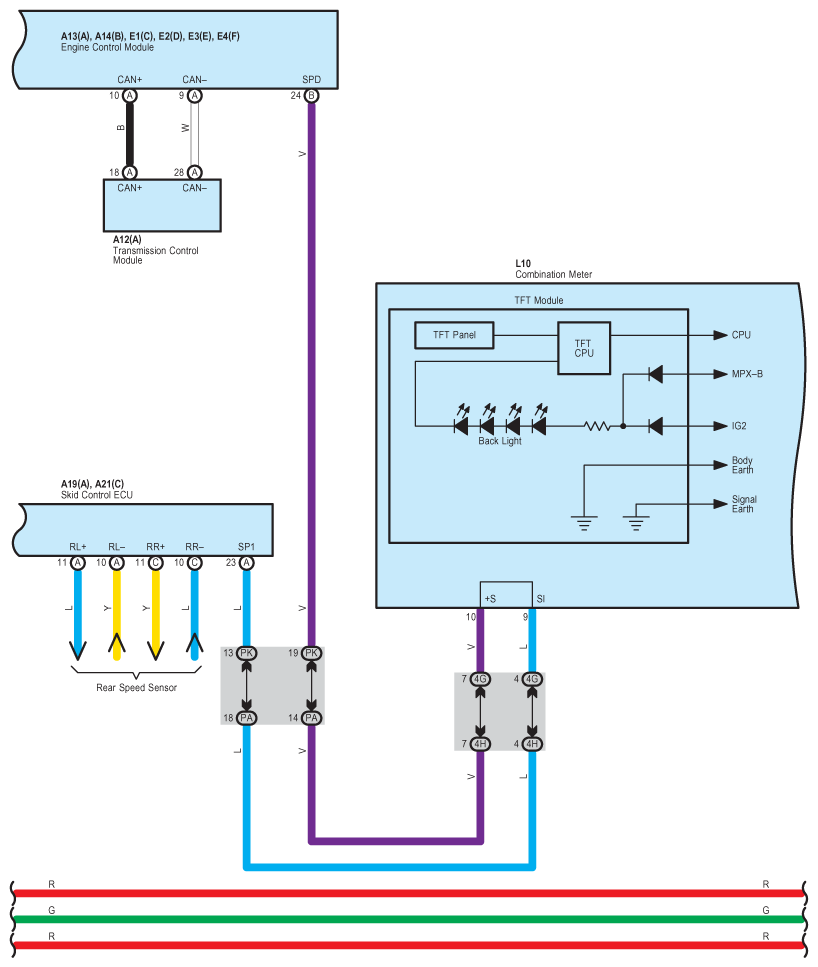

Fig 24: Engine Control System Wiring Diagram (24 Of 25)

G08920557

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

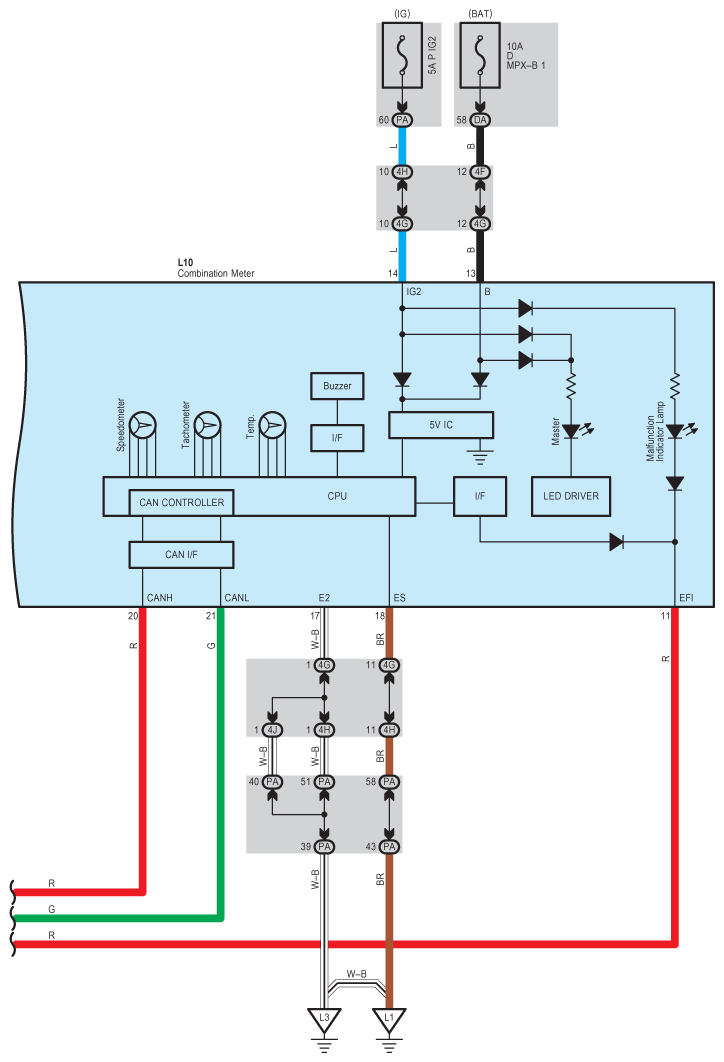

Fig 25: Engine Control System Wiring Diagram (25 Of 25)

G08920558

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
