Heated Steering Wheel System: Notes

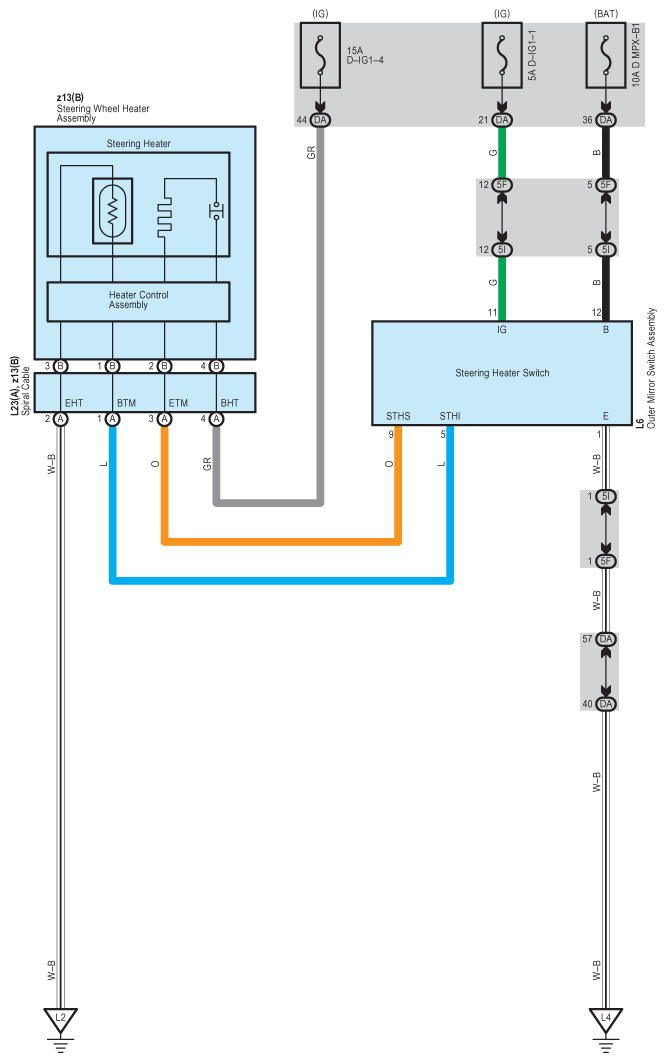

Fig 1: Heated Steering Wheel System Wiring Diagram
G08920846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
