LEXUS Link System (Mayday System): Notes

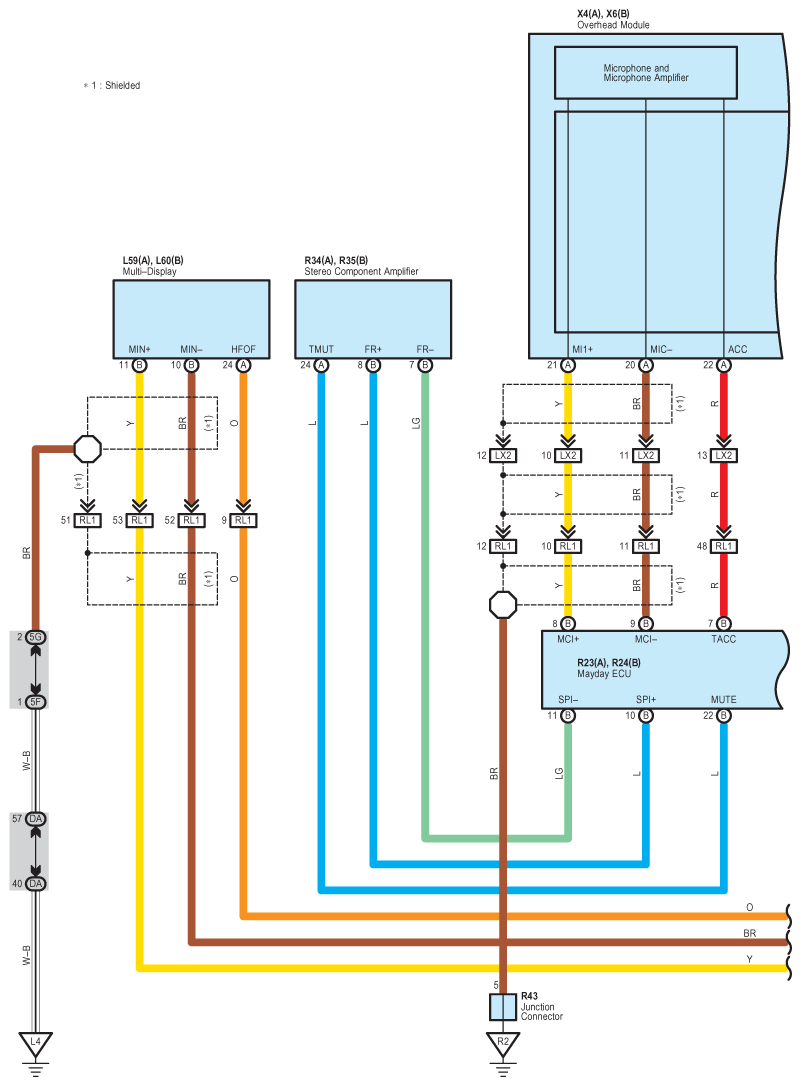

Fig 1: LEXUS Link System (Mayday System) Wiring Diagram (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

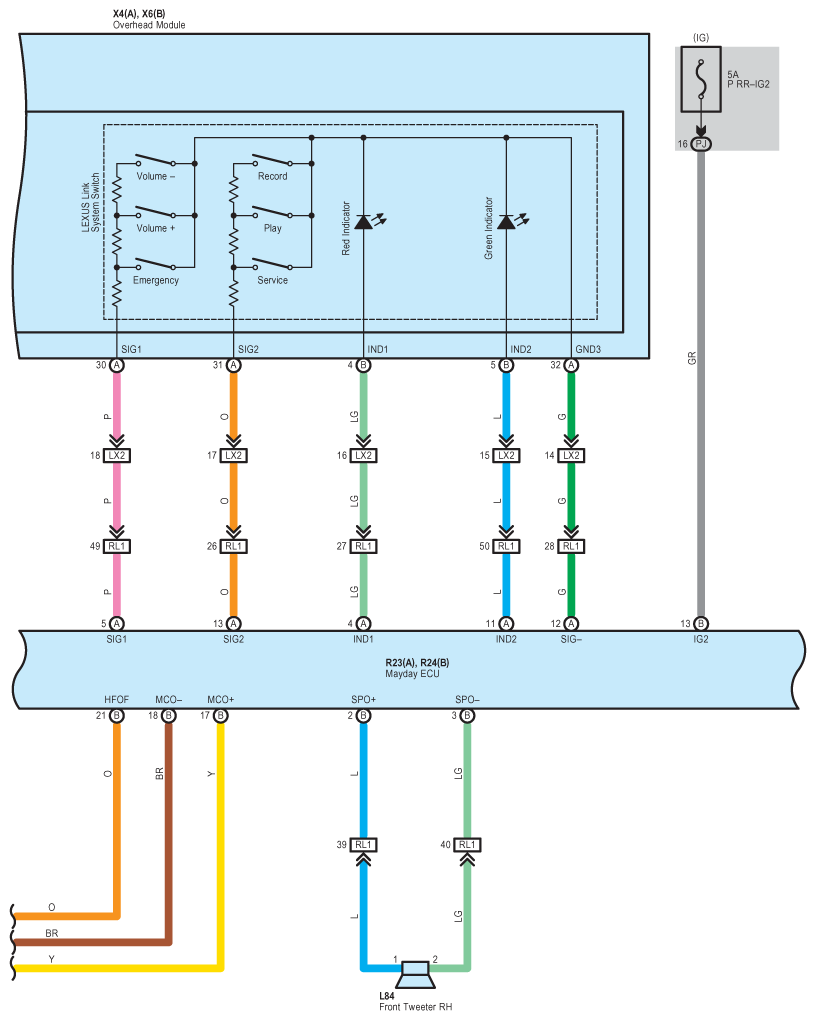

Fig 2: LEXUS Link System (Mayday System) Wiring Diagram (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

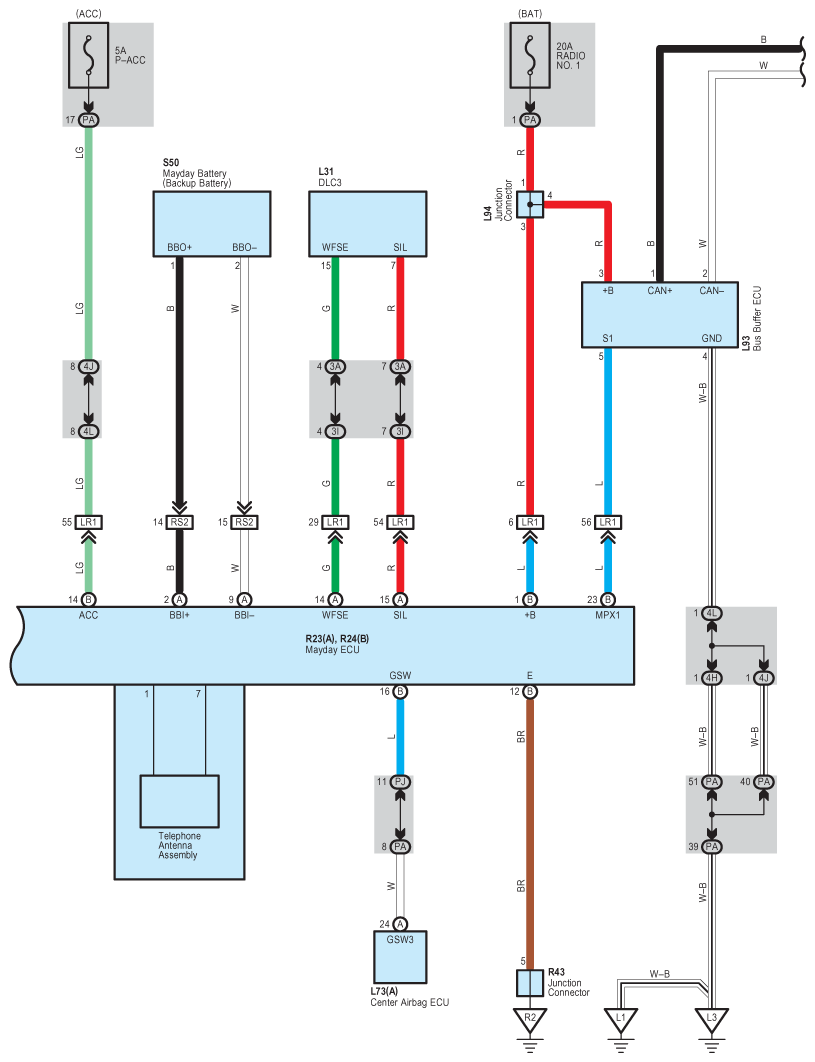

Fig 3: LEXUS Link System (Mayday System) Wiring Diagram (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: LEXUS Link System (Mayday System) Wiring Diagram (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

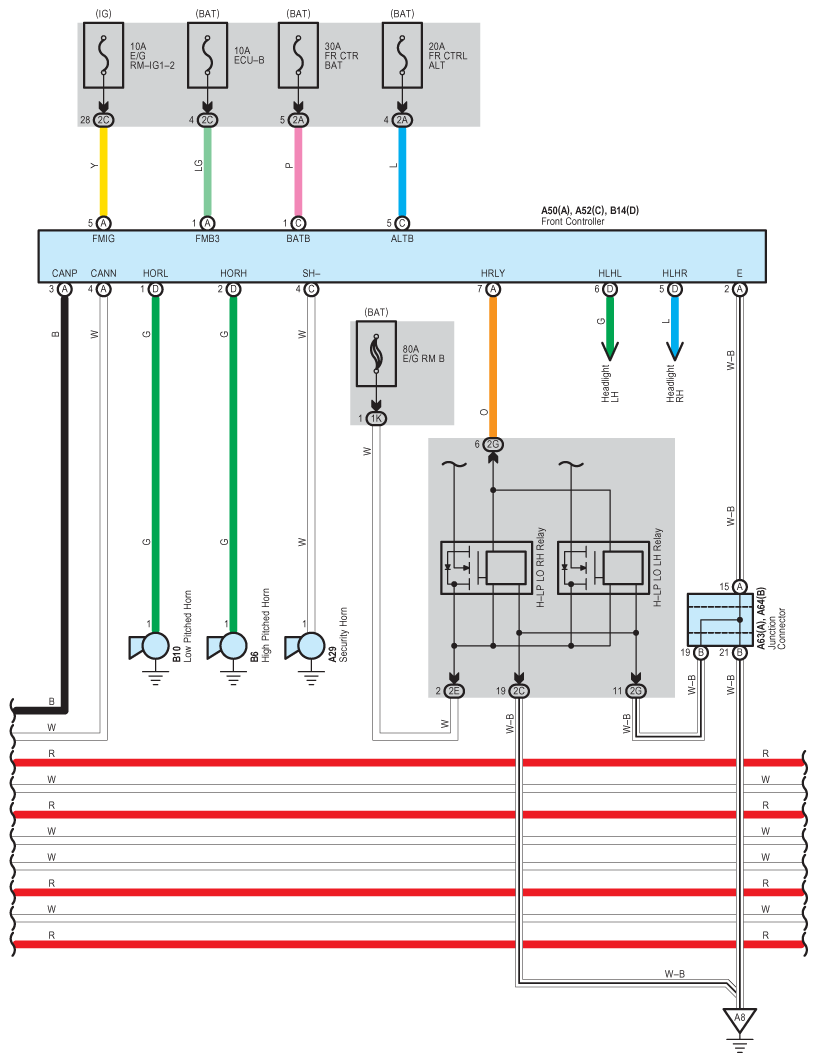

Fig 5: LEXUS Link System (Mayday System) Wiring Diagram (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

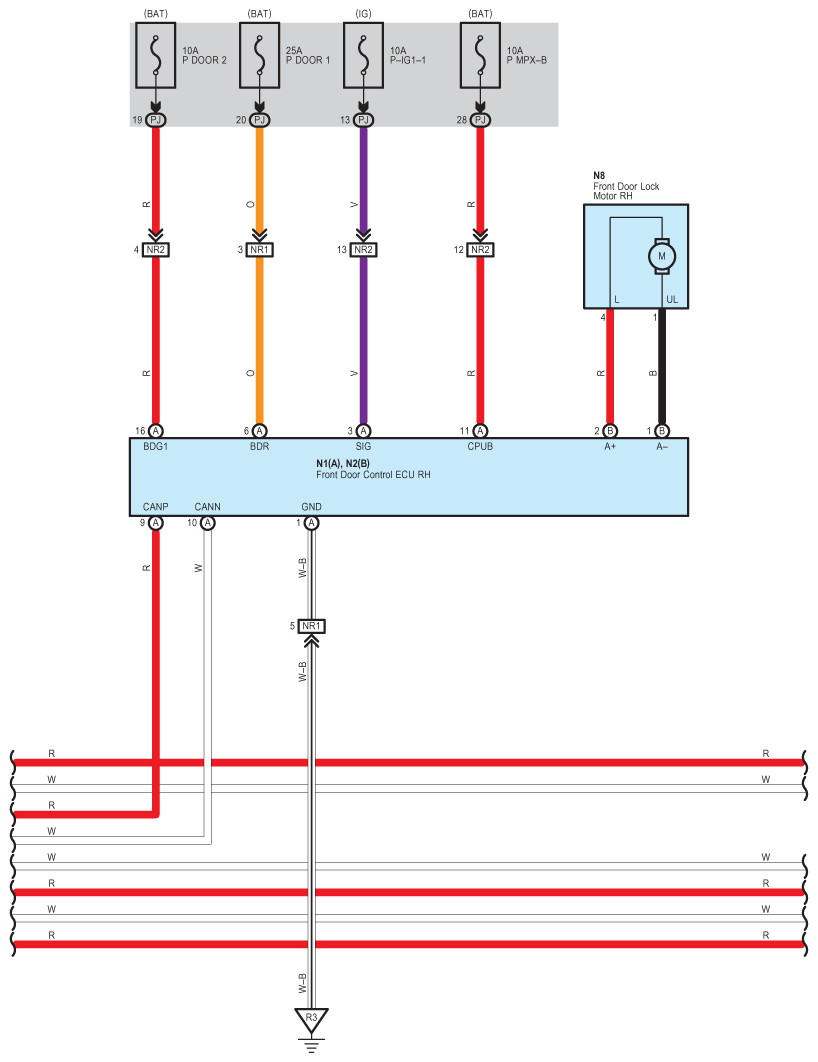

Fig 6: LEXUS Link System (Mayday System) Wiring Diagram (6 Of 8)

Fig 7: LEXUS Link System (Mayday System) Wiring Diagram (7 Of 8)

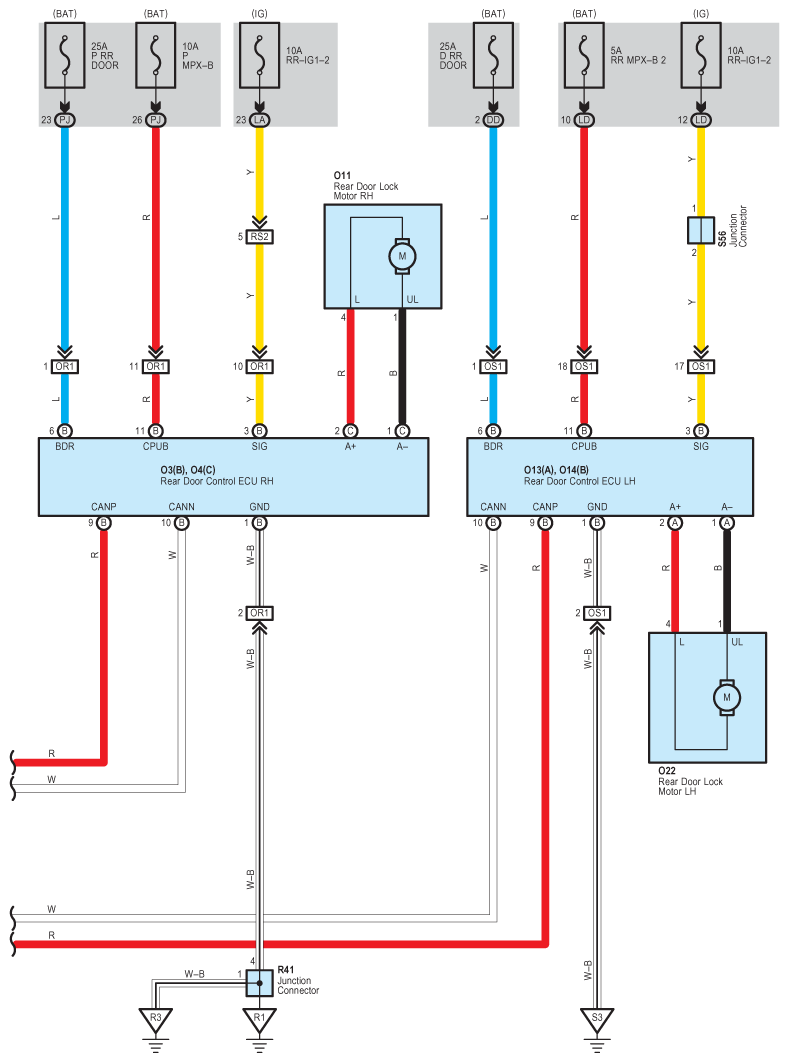

Fig 8: LEXUS Link System (Mayday System) Wiring Diagram (8 Of 8)
