Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
Charging
>>
Charging System
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram

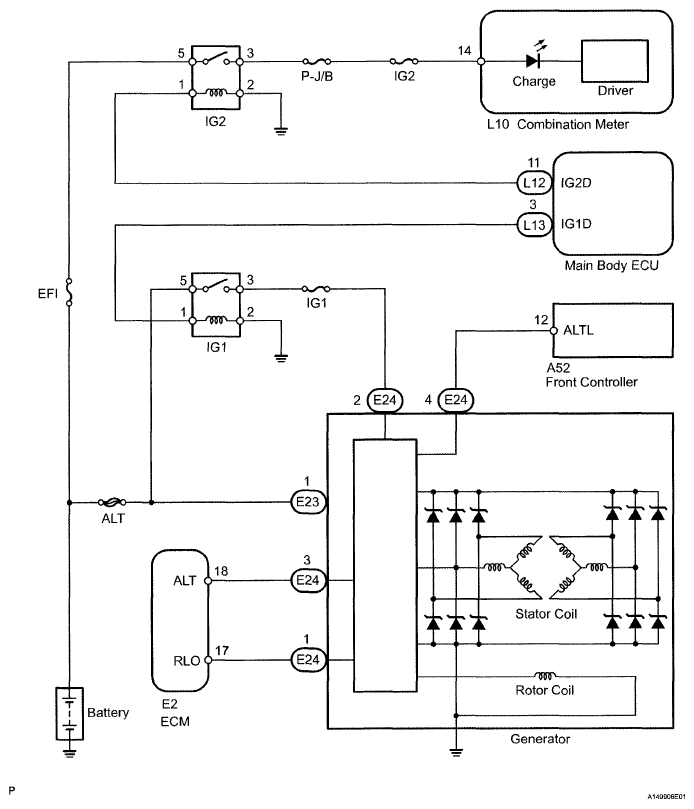

Fig 1: Charging System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
