Charging Systems: Charging: Generator: Components

Fig 1: Generator Removal Replacement Components With Torque Specifications (1 Of 3)
G04943096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

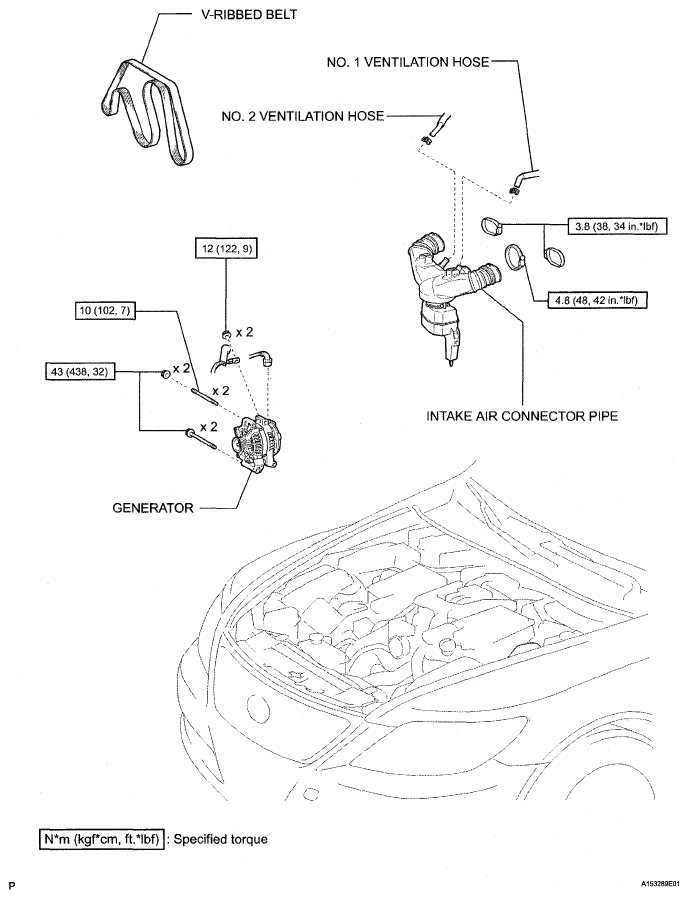

Fig 2: Generator Removal Replacement Components With Torque Specifications (2 Of 3)
G04943097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

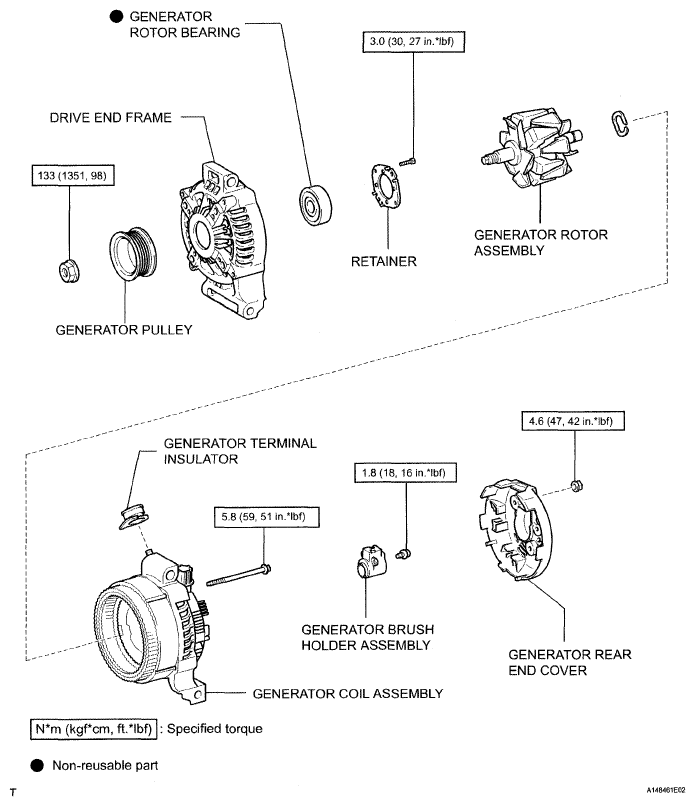

Fig 3: Generator Removal Replacement Components With Torque Specifications (3 Of 3)
G04943950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
