Inspection Procedure

HINT:

If the vehicle is in key cancel mode, change to normal mode (see CUSTOMIZE PARAMETERS ).

1. CHECK WHETHER DTC OUTPUT RECURS
   1. Clear the DTCs (see DTC CHECK / CLEAR  ).

      HINT:

      After all DTCs are cleared, check if the trouble occurs again 5 seconds after the engine switch is turned on (IG).

   2. Check for DTCs again.

      OK: No DTC is output.

   NG: GO TO DTC CHART (See  DIAGNOSTIC TROUBLE CODE CHART   )

   OK: GO TO NEXT STEP

2. CHECK ENGINE SWITCH (SWITCH CONDITION)
   1. Ensure the key is inside the cabin.
   2. Check that the engine switch indicator illuminates in green when the shift lever is in P or N and the brake pedal is depressed.

      OK: Engine switch indicator illuminates in green.

   NG: GO TO ROOM OSCILLATOR DOES NOT RECOGNIZE KEY  (See ROOM OSCILLATOR DOES NOT RECOGNIZE KEY )

   OK: GO TO NEXT STEP

3. READ VALUE OF INTELLIGENT TESTER OR TECHSTREAM (RELAY MONITOR)
   1. Use the Data List to check if the relay monitor is functioning properly.
      1. Intelligent tester

         MAIN BODY

         INTELLIGENT TESTER MAIN BODY REFERENCE



         Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
         IG1 RELAY MON1	D-IG1 relay outer relay monitor/ON or OFF	ON: Engine switch on (IG) OFF: Engine switch off	-
         IG1 RELAY MON2	D-IG1 relay inner relay monitor/ON or OFF	ON: Engine switch on (IG) OFF: Engine switch off	-
         IG2 RELAY MON1	IG2 outer relay monitor/ON or OFF	ON: Engine switch on (IG) OFF: Engine switch off	-
         IG2 RELAY MON2	IG2 inner relay monitor/ON or OFF	ON: Engine switch on (IG) OFF: Engine switch off	-
         ACC RELAY MON	D-ACC relay monitor/ON or OFF	ON: Engine switch on (IG) OFF: Engine switch off	-

      2. Techstream

         Main Body

         TECHSTREAM MAIN BODY REFERENCE



         Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
         IG1 Relay Monitor (Outside)	D-IG1 relay outer relay monitor/ON or OFF	ON: Engine switch on (IG) OFF: Engine switch off	-
         IG1 Relay Monitor (Inside)	D-IG1 relay inner relay monitor/ON or OFF	ON: Engine switch on (IG) OFF: Engine switch off	-
         IG2 Relay Monitor (Outside)	IG2 outer relay monitor/ON or OFF	ON: Engine switch on (IG) OFF: Engine switch off	-
         IG2 Relay Monitor (Inside)	IG2 inner relay monitor/ON or OFF	ON: Engine switch on (IG) OFF: Engine switch off	-
         ACC Relay Monitor	D-ACC relay monitor/ON or OFF	ON: Engine switch on (IG) OFF: Engine switch off	-

         OK: ON is displayed on the tester screen.

   NG: Go to step   7

   OK: GO TO NEXT STEP

4. CHECK HARNESS AND CONNECTOR (MAIN BODY ECU)

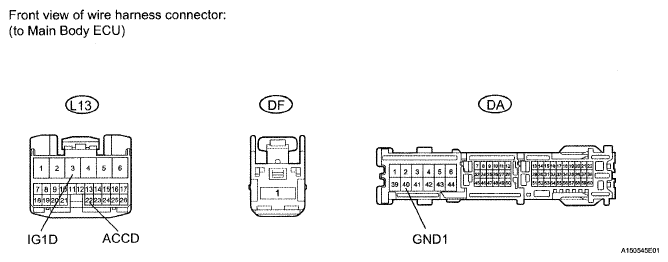

   Fig 1: Identifying Connector Terminals Of L13, DF And DA Main Body ECU

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Disconnect the L13, DF and DA main body ECU connectors.
   2. Measure the resistance and voltage according to the value(s) in the table below.

      Standard resistance

      MAIN BODY ECU



      Tester Connection	Condition	Specified Condition
      L13-3(IG1D)-DA-32	Always	Below 1 Ω
      L13-3 (IG1D) or DA-32 - Body ground	Always	10 kΩ or higher
      L13-22(ACCD)-DA-19	Always	Below 1 Ω
      L13-22(ACCD)or DA-19-Body ground	Always	10 kΩ or higher
      DA-40 - Body ground	Always	Below 1 Ω

      Standard voltage

      TESTER CONNECTION AND SPECIFIED CONDITION



      Tester Connection	Condition	Specified Condition
      DF-1 - Body ground	Always	11 to 14 V

   NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

   OK: GO TO NEXT STEP

5. INSPECT IGNITION RELAY NO.2 (IG2)
   Fig 2: Identifying Terminals Of Ignition Relay No. 2 (IG2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Remove the ignition relay No. 2 from the engine room No. 2 junction block.
   2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      IGNITION RELAY NO.2 (IG2)



      Tester Connection	Condition	Specified Condition
      3-5	When battery voltage is not applied to terminals 1 and 2	10 kΩ or higher
      3-5	When battery voltage is applied to terminals 1 and 2	Below 1 Ω

   NG: REPLACE IGNITION RELAY NO.2 (IG2)

   OK: GO TO NEXT STEP

6. CHECK HARNESS AND CONNECTOR (NO. 2 RELAY BLOCK - MAIN BODY ECU AND STEERING LOCK ECU)

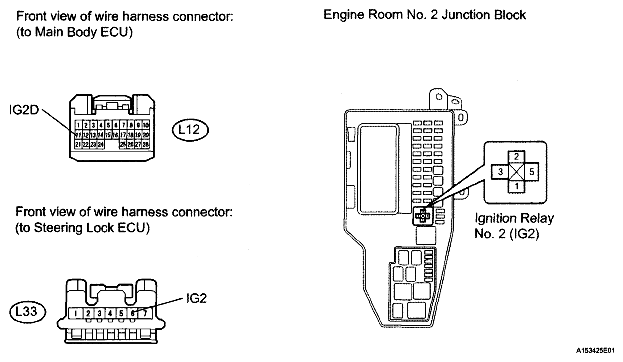

   Fig 3: Checking Harness And Connector (No. 2 Relay Block - Main Body ECU And Steering Lock ECU)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Remove the ignition relay No. 2 from the engine room No. 2 junction block.
   2. Disconnect the L12 main body ECU connector.
   3. Disconnect the L33 steering lock ECU connector.
   4. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      NO. 2 RELAY BLOCK - MAIN BODY ECU AND STEERING LOCK ECU



      Tester Connection	Condition	Specified Condition
      L12-11 (IG2D) - Relay block ignition relay No. 2 terminal 1	Always	Below 1 Ω
      L12-11 (IG2D) or Relay block ignition relay No. 2 terminal 1 - Body ground	Always	10 kΩ or higher
      Relay block ignition relay No. 2 terminal 2 - Body ground	Always	Below 1 Ω
      L33-6 (IG2) - Relay block ignition relay No. 2 terminal 3	Always	Below 1 Ω
      L33-6 (IG2) or Relay block ignition relay No. 2 terminal 3 - Body ground	Always	10 kΩ or higher

   NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

   OK: REPLACE MAIN BODY ECU

7. INSPECT ENGINE SWITCH
   Fig 4: Identifying Connector Terminals Of Engine Switch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Remove the engine switch (see REMOVAL  ).
   2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      ENGINE SWITCH



      Tester Connection	Switch Condition	Specified Condition
      7(SS1)-5(GND)	Pushed	Below 1 Ω
      2 (SS2) - 5 (GND)	Pushed	Below 1 Ω
      7(SS1)-5(GND)	Not pushed	10 kΩ or higher
      2 (SS2) - 5 (GND)	Not pushed	10 kΩ or higher

   NG: REPLACE ENGINE SWITCH (See  REMOVAL   )

   OK: GO TO NEXT STEP

8. CHECK HARNESS AND CONNECTOR (MAIN BODY ECU - ENGINE SWITCH)

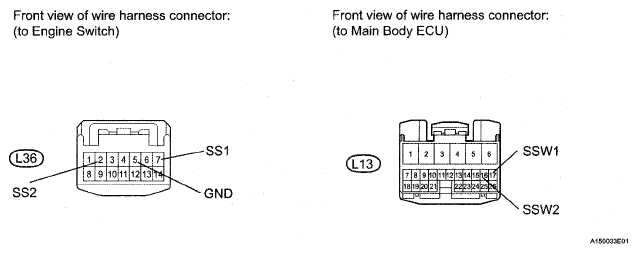

   Fig 5: Identifying Connector Terminals Of L36 Engine Switch And L13 Main Body ECU

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Disconnect the L13 main body ECU connector.
   2. Disconnect the L36 engine switch connector.
   3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      MAIN BODY ECU - ENGINE SWITCH



      Tester Connection	Condition	Specified Condition
      L36-7 (SS1) - L13-17 (SSW1)	Always	Below 1 Ω
      L36-2 (SS2) - L13-16 (SSW2)	Always	Below 1 Ω
      L36-5 (GND) - Body ground	Always	Below 1 Ω
      L36-7(SS1)orL13-17 (SSW1)- Body ground	Always	10 kΩ or higher
      L36-2(SS2)orL13-16 (SSW2) - Body ground	Always	10 kΩ or higher

   NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

   OK: GO TO NEXT STEP

9. INSPECT FUSE (AM2)
   1. Remove the AM2 fuse from the passenger side junction block.
   2. Check the resistance of the fuse.

      Standard resistance

      FUSE (AM2)



      Tester Connection	Condition	Specified Condition
      AM2 fuse	Always	Below 1 Ω

   NG: REPLACE FUSE (AM2)

   OK: GO TO NEXT STEP

10. CHECK HARNESS AND CONNECTOR (MAIN BODY ECU - BATTERY AND BODY GROUND)

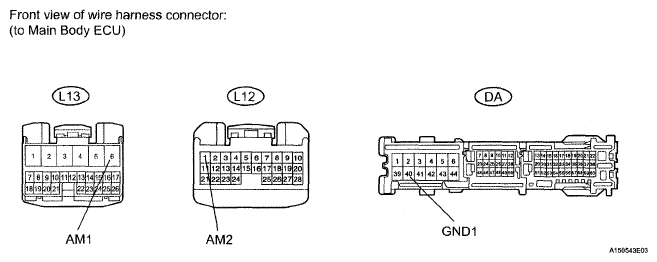

    Fig 6: Identifying Connector Terminals Of L13, L12 And DA Main Body ECU

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the L13, L12 and DA main body ECU connectors.
    2. Measure the voltage and resistance according to the value(s) in the table below.

       Standard voltage

       (MAIN BODY ECU - BATTERY AND BODY GROUND VOLTAGE



       Tester Connection	Condition	Specified Condition
       L13-6 (AM1) - Body ground	Always	11 to 14 V
       L12-1 (AM2) - Body ground	Always	11 to 14 V

       Standard resistance

       (MAIN BODY ECU - BATTERY AND BODY GROUND RESISTANCE



       Tester Connection	Condition	Specified Condition
       DA-1 (GND1) - Body ground	Always	Below 1 Ω

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: REPLACE MAIN BODY ECU
