System Diagram

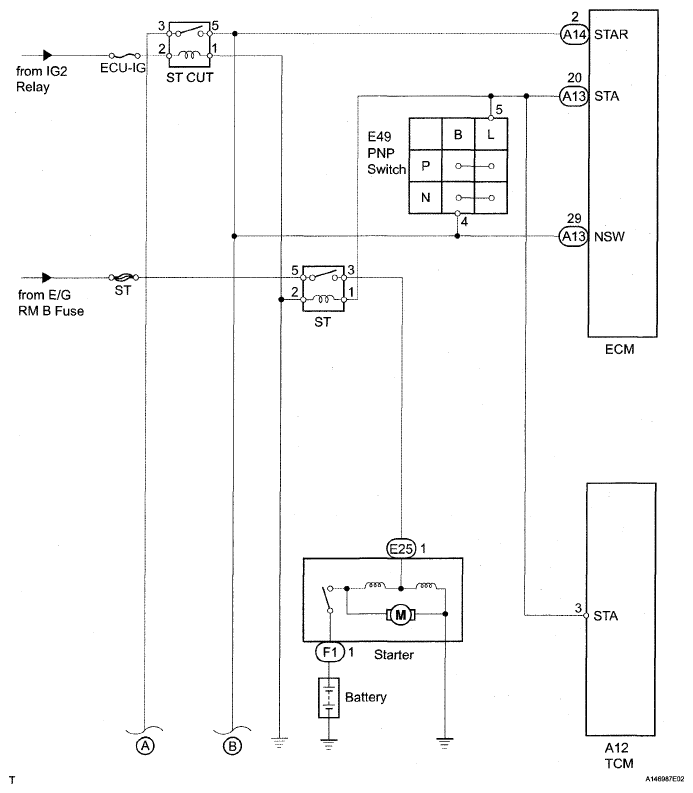

Fig 1: Starting System Circuit Diagram (1 Of 2)
G04943813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

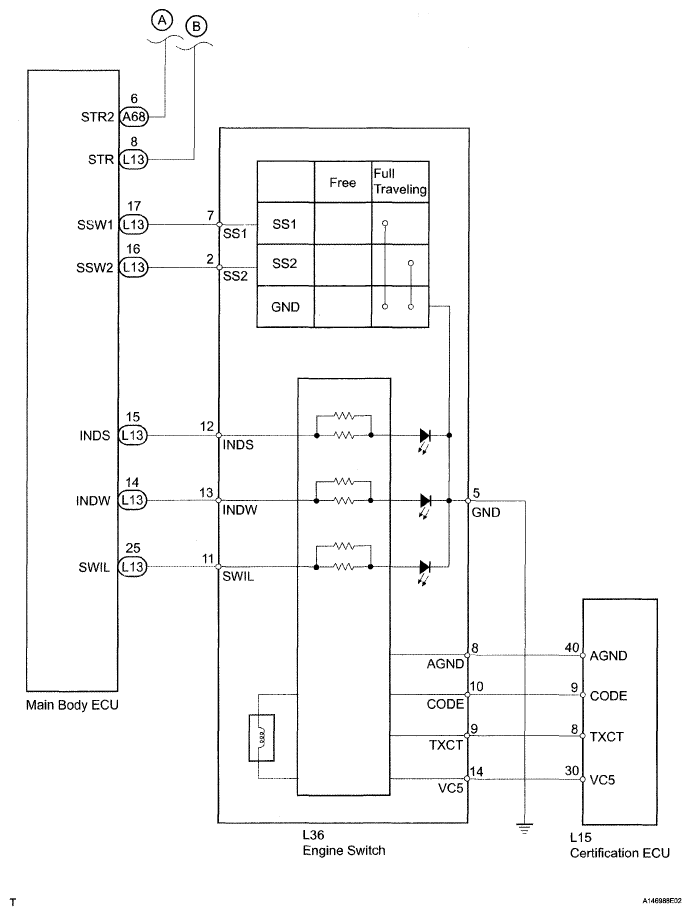

Fig 2: Starting System Circuit Diagram (2 Of 2)
G04943814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
