Fuel Pressure Sensor: Components

Fig 1: Fuel Pressure Sensor Replacement Components With Torque Specifications (1 Of 4)
G04943874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Fuel Injector Replacement Components With Torque Specifications - For Port Injection (2 Of 4)
G04943736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

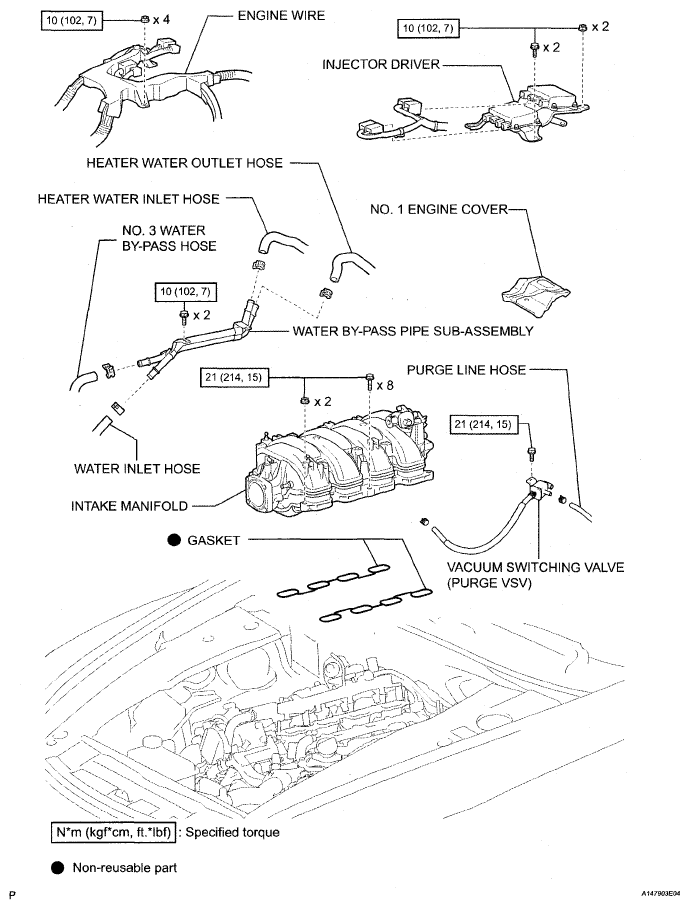

Fig 3: Fuel Pressure Pulsation Damper Replacement Components With Torque Specifications (3 Of 4)
G04943737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Fuel Pressure Sensor Replacement Components With Torque Specifications (4 Of 4)
G04947993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
