Intake Manifold: Components

Fig 1: Intake Manifold Replacement Components With Torque Specifications (1 Of 3)
G04948130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Intake Manifold Replacement Components With Torque Specifications (2 Of 3)
G04943086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

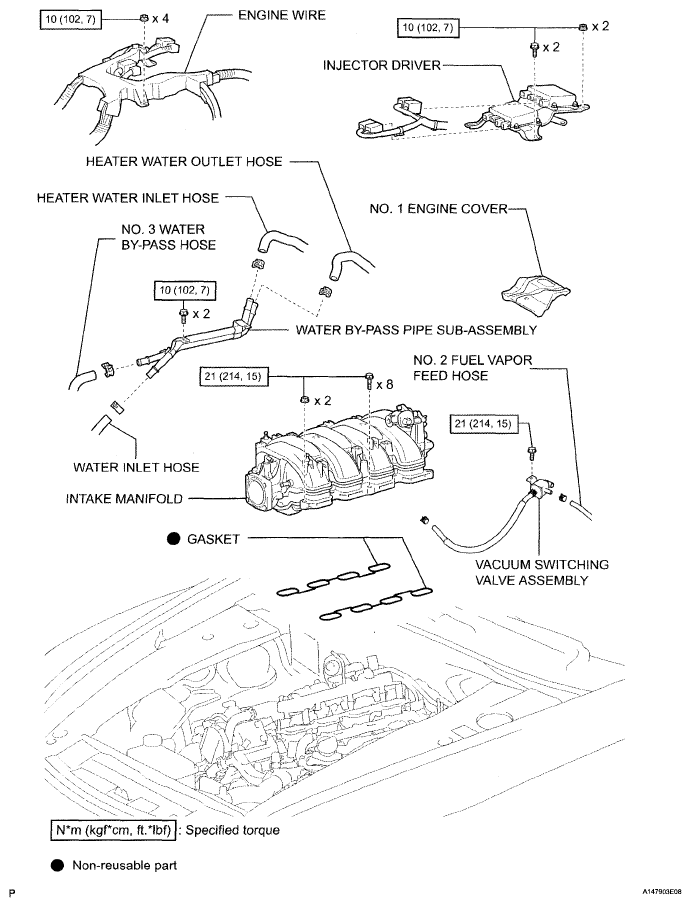

Fig 3: Intake Manifold Replacement Components With Torque Specifications (3 Of 3)
G04948132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
