Knock Sensor: Installation

INSTALL KNOCK SENSOR

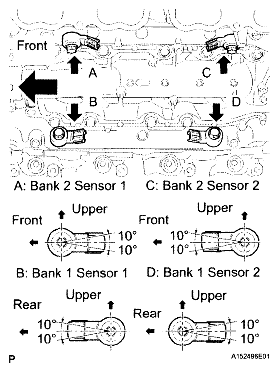

1. Install the 4 knock sensors with the 4 bolts so that the sensors are angled as shown in the illustration.
  Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

  NOTE: The acceptable installation angle of the knock control sensors is between 10° upwards and downwards from the horizontal position.
2. Connect the 4 knock sensor connectors.

  Fig 1: Identifying Knock Sensor Connectors Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SEPARATOR CASE
1. Install the separator case with the 4 bolts.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  Fig 2: Identifying Separator Case Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the fuel pressure sensor connector.

  Fig 3: Locating Fuel Pressure Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 4 FUEL PIPE SUB-ASSEMBLY (See INSTALLATION )
INSTALL ENGINE COVER SUB-ASSEMBLY (See INSTALLATION )
INSTALL INTAKE MANIFOLD
1. Install the intake manifold (see INSTALLATION )
