ABS Warning Light Circuit: Wiring Diagram

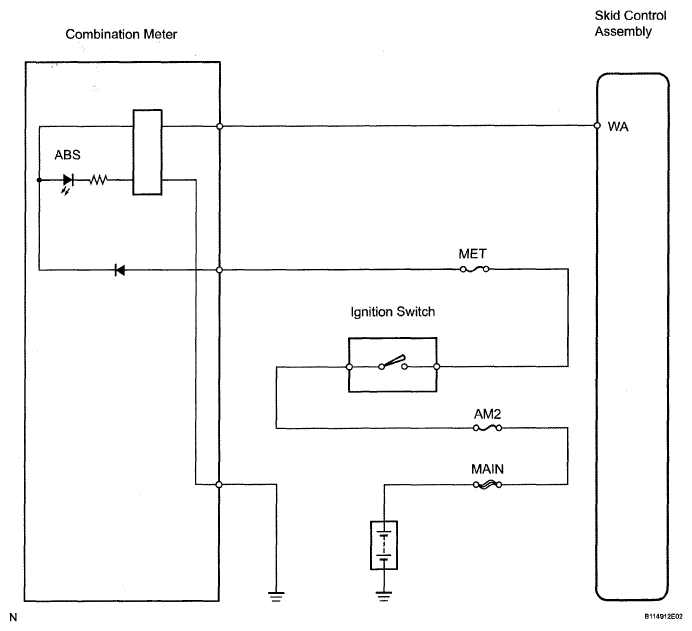

Fig 1: ABS Warning Light - Wiring Diagram

G05197665

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
