Automatic Transmission Assembly: Installation

1. Inspect the torque converter clutch assembly (see TORQUE CONVERTER CLUTCH AND DRIVE PLATE  ).

1. Install the torque converter clutch to the automatic transmission.

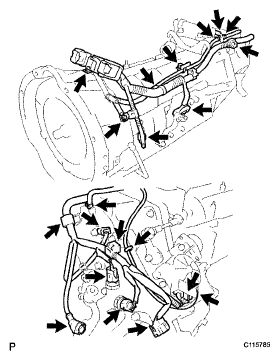

   Fig 1: Locating Connectors, Wire Harness, Connector Clamps And Hose

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a vernier caliper and straightedge, measure the dimension A between the transmission and the end surface of the drive plate.

   Standard dimension: A = 22.28 mm (0.8772 in.)

   Fig 2: Measuring Dimension Between Transmission And End Surface Of Drive Plate

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a vernier caliper and a straightedge, measure the distance from the installed surface of the transmission housing to the installed surface of the torque converter clutch.

   Correct distance: More than 17.1 mm (0.673 in.)

1. Install the transfer assembly (see INSTALLATION ).
   Fig 3: Measuring Distance Between Installed Surface Of Transmission Housing And Torque Converter Clutch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the 5 hoses and install the wire harness and hose.
2. Install the 6 connector clamps.
3. Connect the 5 connectors.
4. Attach the lock and connect the connector.
5. Install the 4 bolts.

   Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

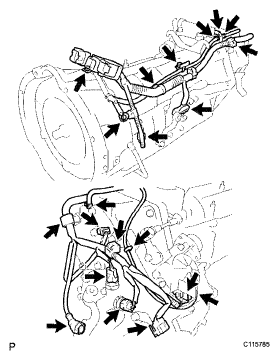

   Fig 4: Locating Connectors, Wire Harness, Connector Clamps And Hose

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the transmission unit with the 10 bolts.

   Torque: 71 N*m (724 kgf*cm, 52 ft.*lbf) for bolt A

   37 N*m (377 kgf*cm, 27 ft.*lbf) for bolt B

2. Install the transmission wire clamp bolt.
   Fig 5: Identifying Transmission Unit Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the mounting insulator with the 4 bolts.

   Torque: 59 N*m (600 kgf*cm, 43 ft.*lbf)

   HINT:

   Install the insulator rear with the inscribing mark facing backward.

   Fig 6: Locating Mounting Insulator Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the crossmember with the 8 bolts and 2 nuts.

   Torque: 50 N*m (510 kgf*cm, 37 ft.*lbf) for bolt

   74 N*m (750 kgf*cm, 54 ft.*lbf) for nut

2. Install the transfer case protector with the 3 bolts.

   Torque: 29 N*m (296 kgf*cm, 21 ft.*lbf)

   Fig 7: Locating Crossmember, Bolts And Nuts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the ground cable with the bolt.
   Fig 8: Locating Plate Washer And Nut

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Loosely install the tip of the oil cooler tubes to the automatic transmission by hand.
2. Install the clamp with the bolt.

   Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

3. Using SST, tighten the tubes.

   SST 09023-12701

   Torque: 34 N*m (346 kgf*cm, 25 ft.*lbf) for use without SST

   31 N*m (316 kgf*cm, 23 ft.*lbf) for use with SST

   Fig 9: Tightening Tubes

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Hold the crankshaft pulley bolt with a wrench and install the 6 torque converter clutch setting bolts.

   Torque: 48 N*m (490 kgf*cm, 35 ft.*lbf)

   HINT:

   First install the green colored bolt.

   Fig 10: Locating Torque Converter Clutch Setting Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the hole plug with the bolt.

   Torque: 18 N*m (185 kgf*cm, 13 ft.*lbf)

   Fig 11: Locating Hole Plug Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the transmission wire and install the 3 clamps to the transmission unit.
2. Connect the 3 connectors.
   Fig 12: Locating Connectors

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the shift control rod and install the pin and dip.
   Fig 13: Locating Floor Shift Transmission Control Rod Clip

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the transfer shift lever rod assembly with the nut.

   Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

1. Install the front exhaust pipe RH (see INSTALLATION ).
   Fig 14: Locating Transfer Shift Lever Rod Assembly With Nut

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the transfer shift lever boot with the 4 bolts.

   Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

2. Install the upper console panel (see INSTALLATION ).
3. Install the transfer shift lever knob.

1. Install the drive belt, fan and fluid coupling assembly, fan shroud and radiator reservoir (see INSTALLATION ).
   Fig 15: Locating Transfer Shift Lever Boot Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Perform initialization (see INITIALIZATION ).
   NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

1. Inspect automatic transmission fluid (see AUTOMATIC TRANSMISSION FLUID  ).

Torque: 28 N*m (286 kgf*cm, 21 ft.*lbf)

1. Install the No. 1 and No. 2 under covers.
