Automatic Transmission Unit: Components

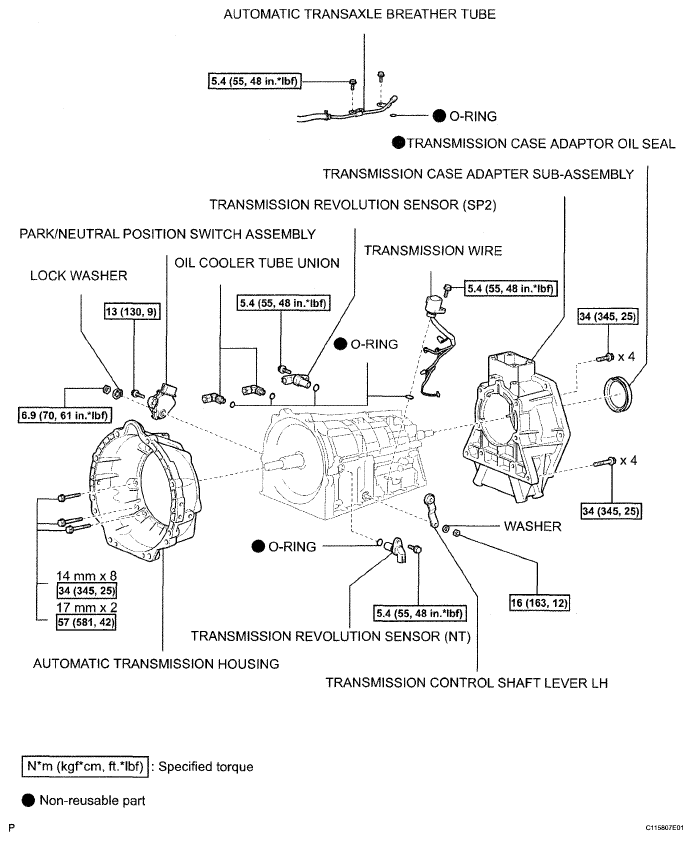

Fig 1: Automatic Transmission Unit Components With Torque Specifications (1 Of 11)
G05282850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

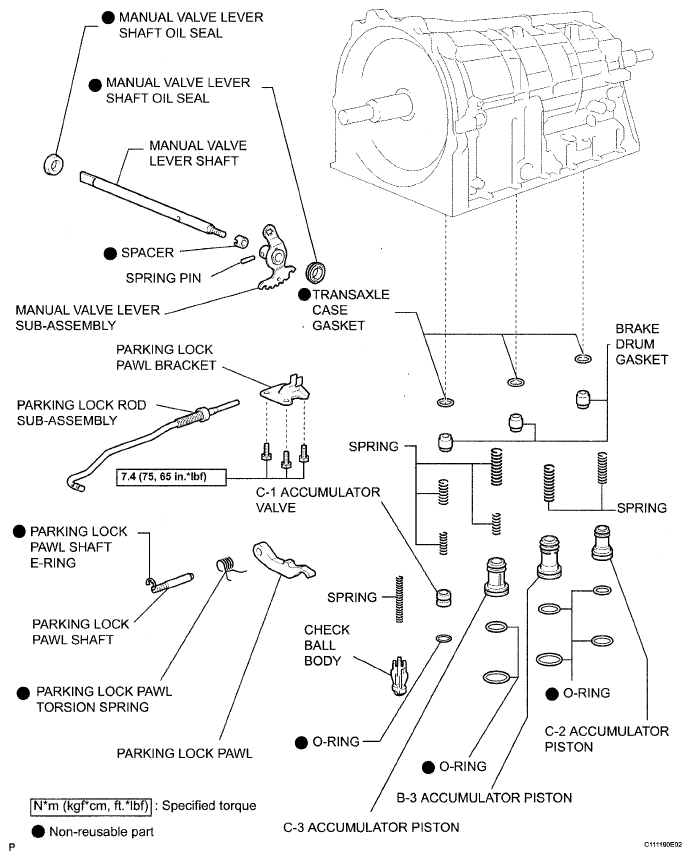

Fig 2: Automatic Transmission Unit Components With Torque Specification (2 Of 11)
G05282851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

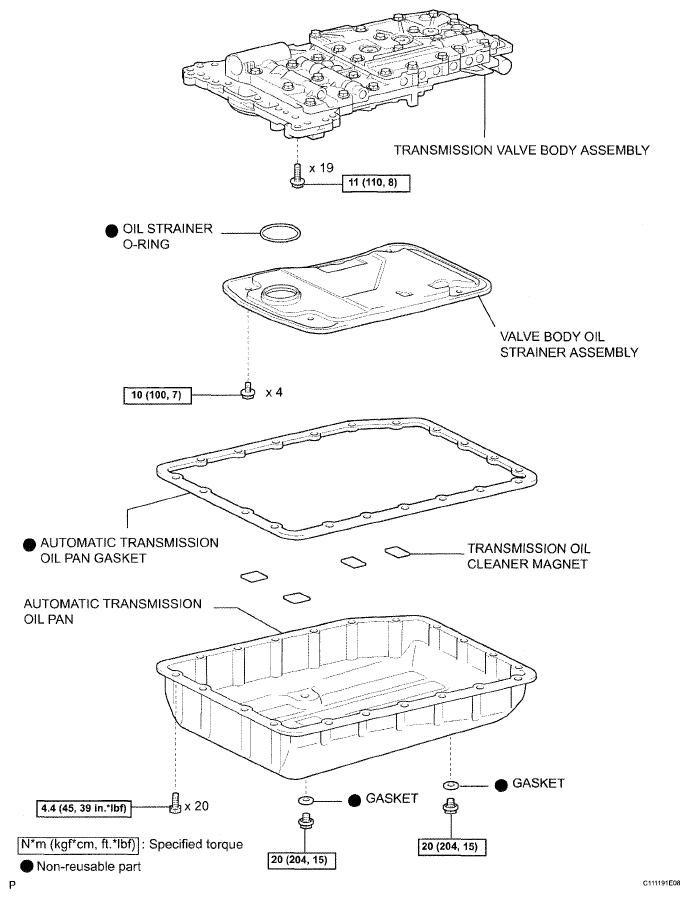

Fig 3: Automatic Transmission Unit Components With Torque Specifications (3 Of 11)
G05282852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

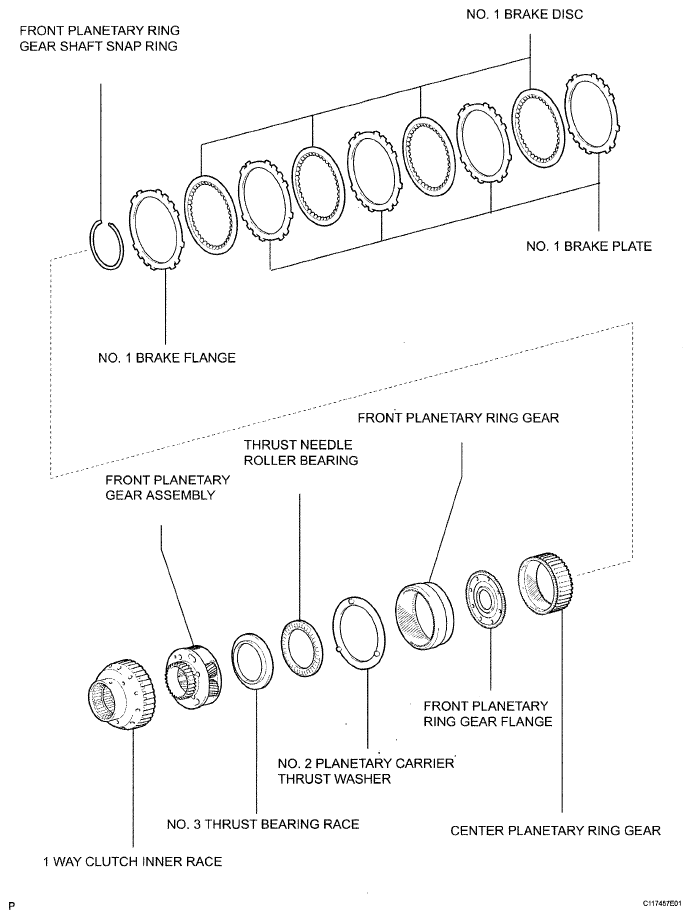

Fig 4: Identifying Automatic Transmission Unit Components (4 Of 11)
G05282853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

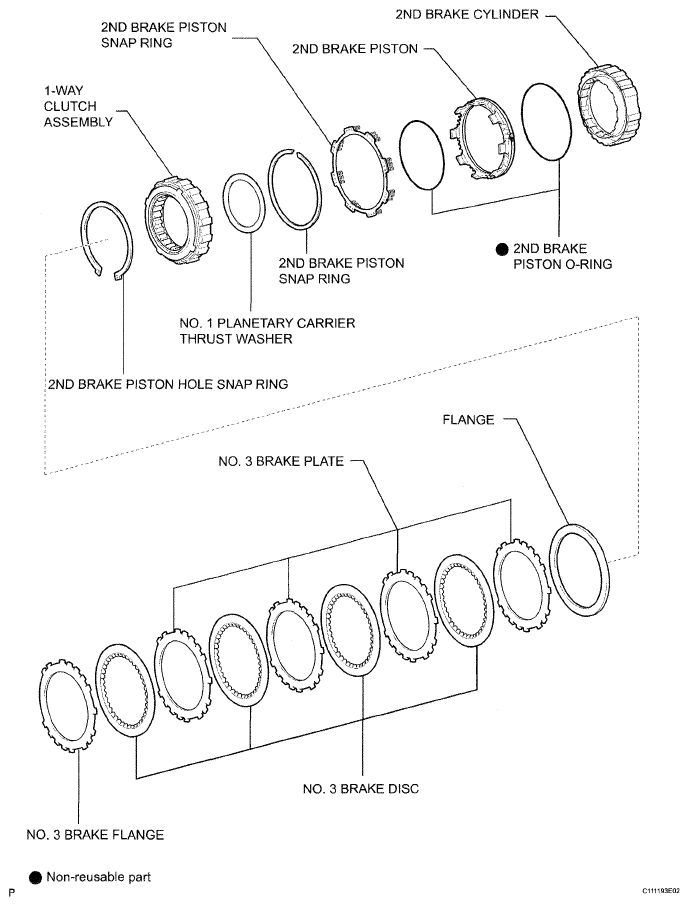

Fig 5: Identifying Automatic Transmission Unit Components (5 Of 11)
G05282854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

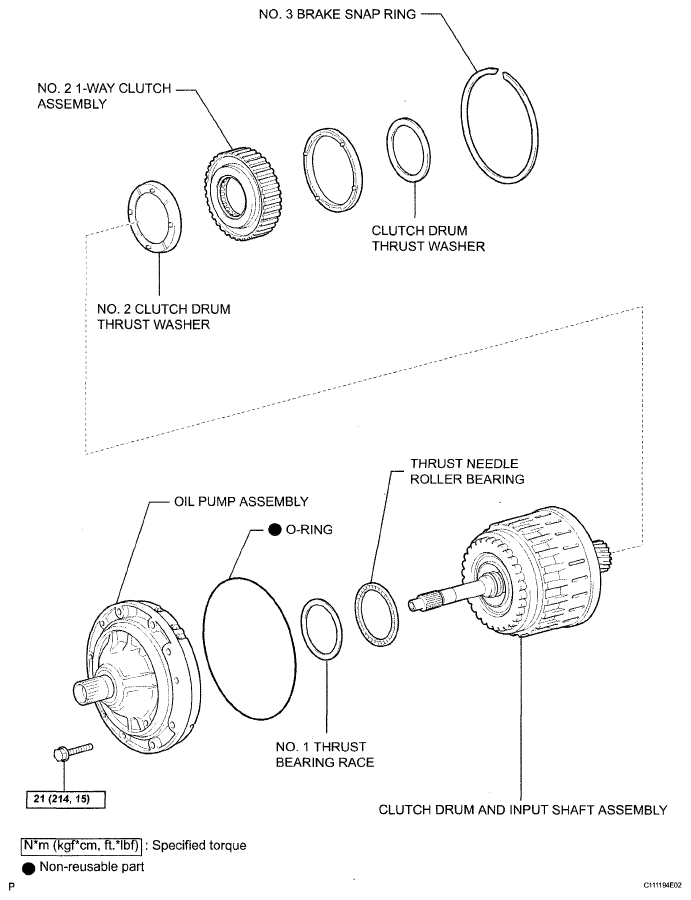

Fig 6: Automatic Transmission Unit Components With Torque Specification (6 Of 11)
G05282855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

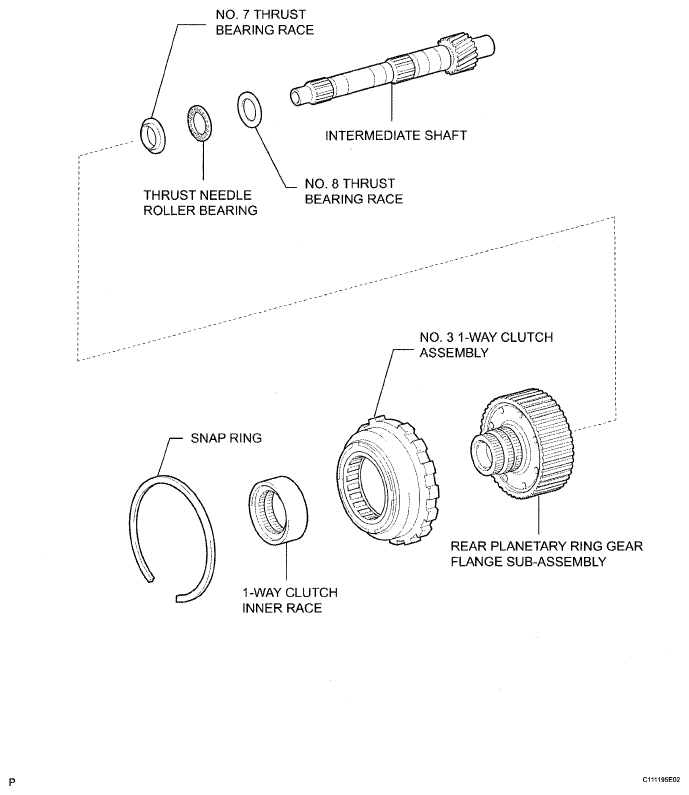

Fig 7: Identifying Automatic Transmission Unit Components (7 Of 11)
G05282856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

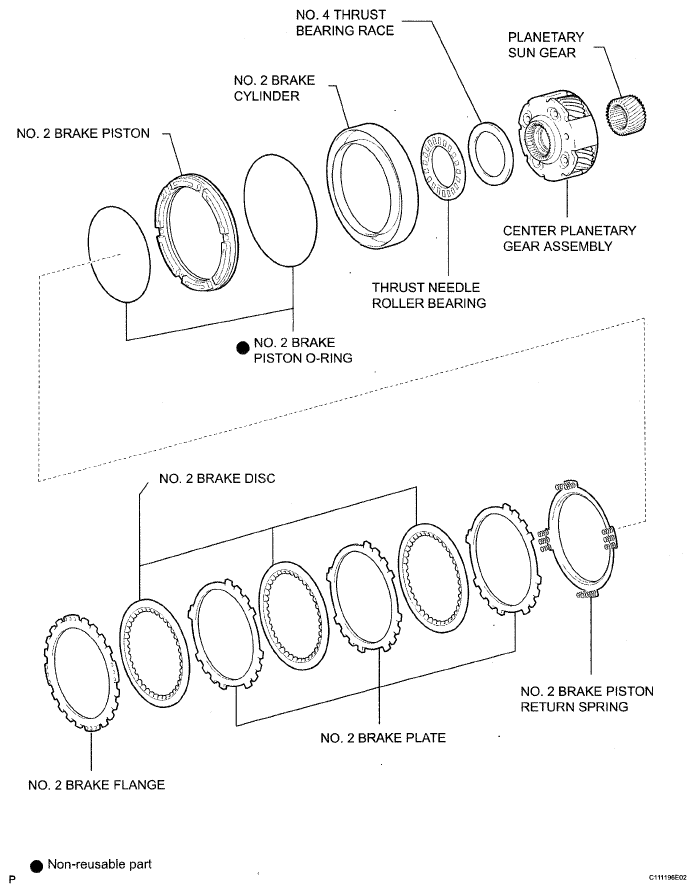

Fig 8: Identifying Automatic Transmission Unit Components (8 Of 11)
G05282857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

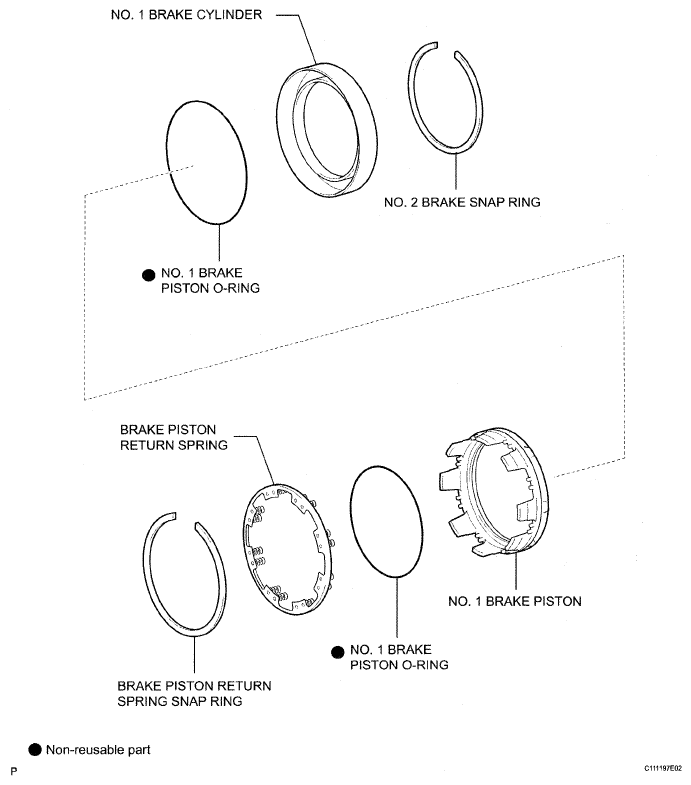

Fig 9: Identifying Automatic Transmission Unit Components (9 Of 11)
G05282858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

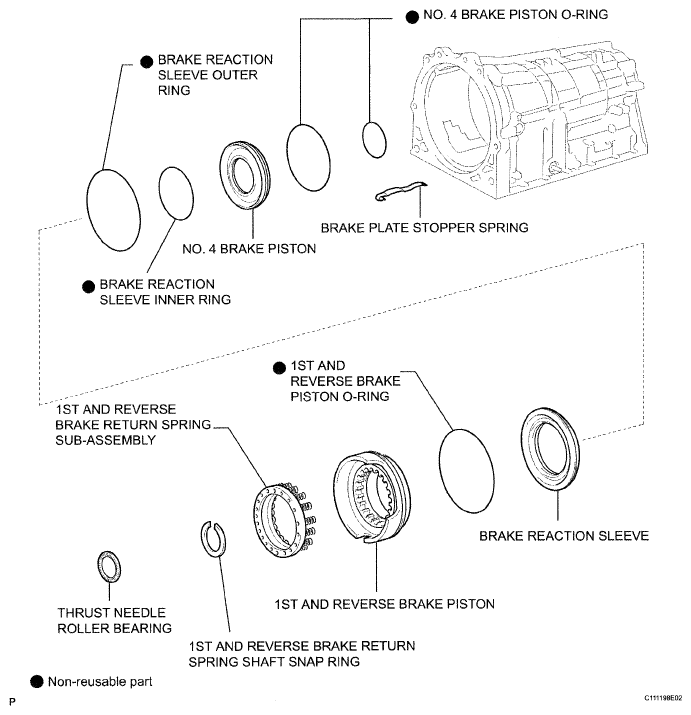

Fig 10: Identifying Automatic Transmission Unit Components (10 Of 11)
G05282859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

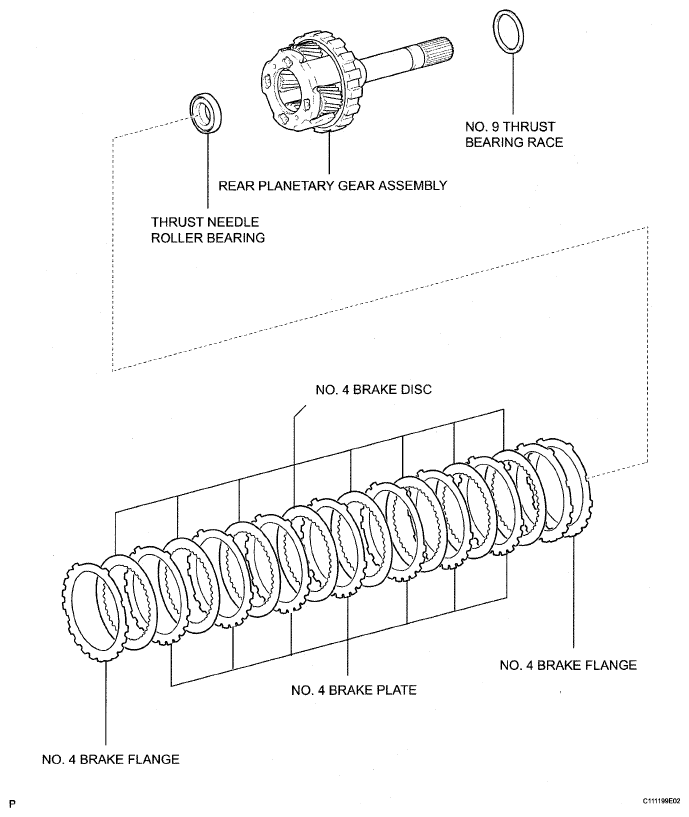

Fig 11: Identifying Automatic Transmission Unit Components (11 Of 11)
G05282860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
