Speed Sensor: Installation

INSTALL SPEEDOMETER SENSOR
1. Insert the speedometer driven gear in the speedometer sensor with the clip.
2. Coat a new O-ring with ATF.
3. Install the O-ring to the speedometer driven gear assembly.
4. Install the sensor with the bolt.
  Torque: 16 N*m (160 kgf*cm, 12 ft.*lbf)

  Fig 1: Identifying Speedometer Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Connect the sensor connector.

  Fig 2: Identifying Speedometer Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TRANSMISSION REVOLUTION SENSOR (NT) AND VEHICLE SPEED SENSOR (SP2)
1. Coat 2 new O-rings with ATF and install them to the revolution sensor (SP2) and (NT).

  Fig 3: Identifying O-rings With ATF
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the revolution sensor (SP2) and (NT) with the 2 bolts.
  Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
3. Connect the sensor connectors.

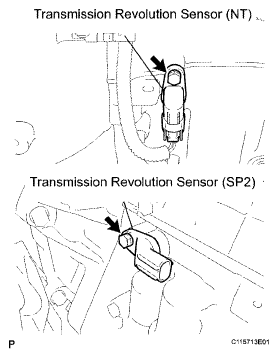

  Fig 4: Locating Transmission Revolution Sensors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
