Valve Body: Components

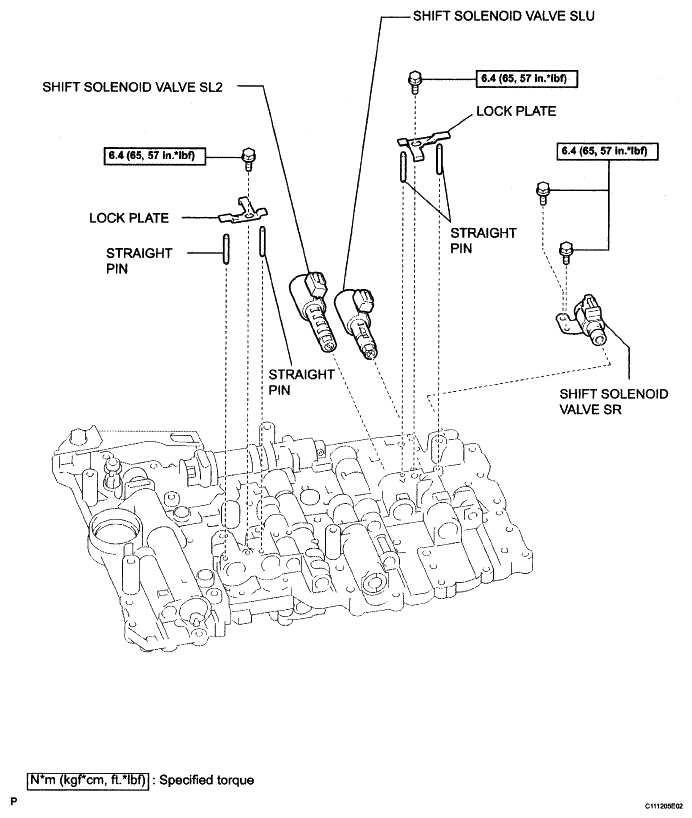

Fig 1: Valve Body Replacement Components With Torque Specifications (1 Of 2)
G04963773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

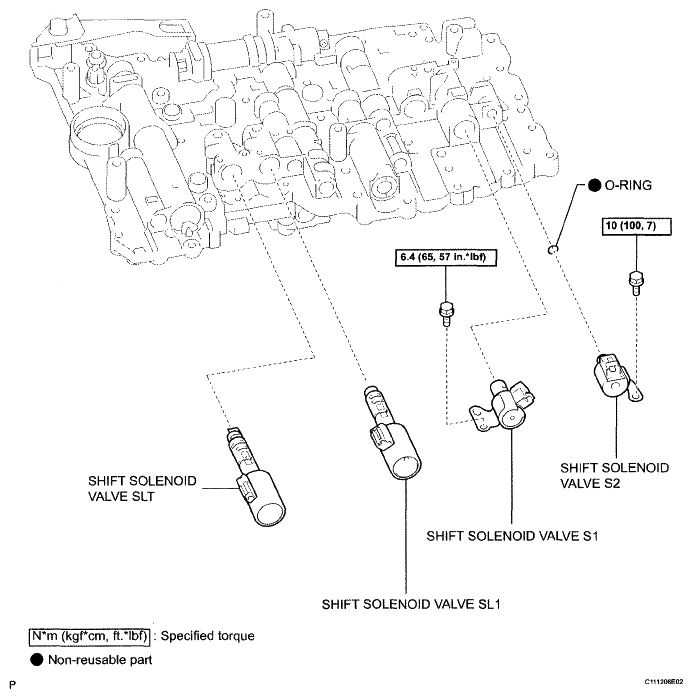

Fig 2: Valve Body Replacement Components With Torque Specifications (2 Of 2)
G04963774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
