Air Intake Control Circuit: Wiring Diagram

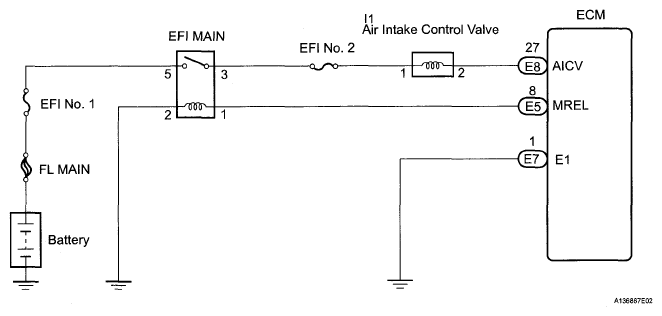

Fig 1: Air Intake Control Circuit - Wiring Diagram
G05268259Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
