SFI System: Registration

HINT:

The VIN is a 17-digit alphanumeric vehicle identification number. The intelligent tester is required to register the VIN.

1. INPUT INSTRUCTIONS
   1. The general VIN input instructions using the intelligent tester are shown below:
   2. The arrow buttons (UP, DOWN, RIGHT and LEFT) and numerical buttons (0 to 9) are used to input the VIN.
   3. Cursor Operation

      To move the cursor around the tester screen, press the RIGHT and LEFT buttons.

   4. Alphabetical Character Input
      1. Press the UP and DOWN buttons to select the desired alphabetical character.
   5. Numeric Character Input
      1. Press the numerical button corresponding to the number that you want to input.

         HINT:

         Numerical characters can be selected by using the UP and DOWN buttons.

   6. Correction
      1. When correcting the input character(s), put the cursor onto the character using the RIGHT and LEFT buttons.
      2. Select or input the correct character using the UP and DOWN buttons, or the numerical buttons.
   7. Finishing Input Operation
      1. Make sure that the input VIN matches the vehicle VIN after input.
      2. Press the ENTER button on the tester.
2. READ VIN (Vehicle Identification Number)
   1. The VIN reading process is shown in the flowchart below. Reading the VIN stored in the ECM is necessary when comparing it to the VIN provided with the vehicle.
   2. Read the VIN using the intelligent tester.
   3. Check the vehicle's VIN.
   4. Connect the intelligent tester to the DLC3.
   5. Turn the ignition switch to the ON position.
   6. Turn the tester ON.
   7. Enter the following menus: DIAGNOSIS / ENHANCED OBD II/VIN.
      Fig 1: VIN Reading Process Flowchart

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. WRITE VIN
   1. The VIN writing process is shown in the flowchart below. This process allows the VIN to be input into the ECM. If the ECM is changed, or the ECM VIN and Vehicle VIN do not match, the VIN can be registered, or overwritten in the ECM by following this procedure.
   2. Write VIN using the intelligent tester.
   3. Connect the intelligent tester to the DLC3.
   4. Turn the ignition switch to the ON position.
   5. Turn the tester ON.
   6. Enter the following menus: DIAGNOSIS / ENHANCED OBD II/VIN.
      Fig 2: VIN Writing Process Flowchart (1 Of 3)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fig 3: VIN Writing Process Flowchart (2 Of 3)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

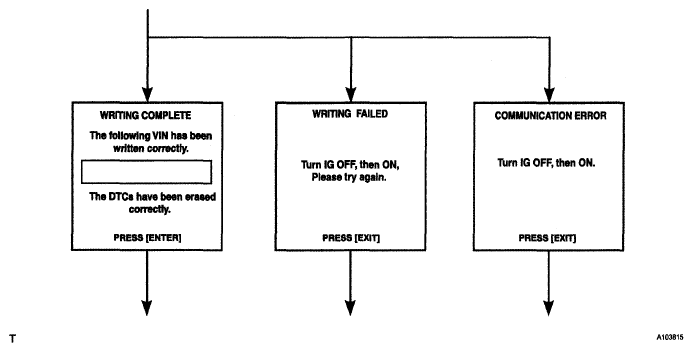

      Fig 4: VIN Writing Process Flowchart (3 Of 3)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
