Ignition Coil: Components

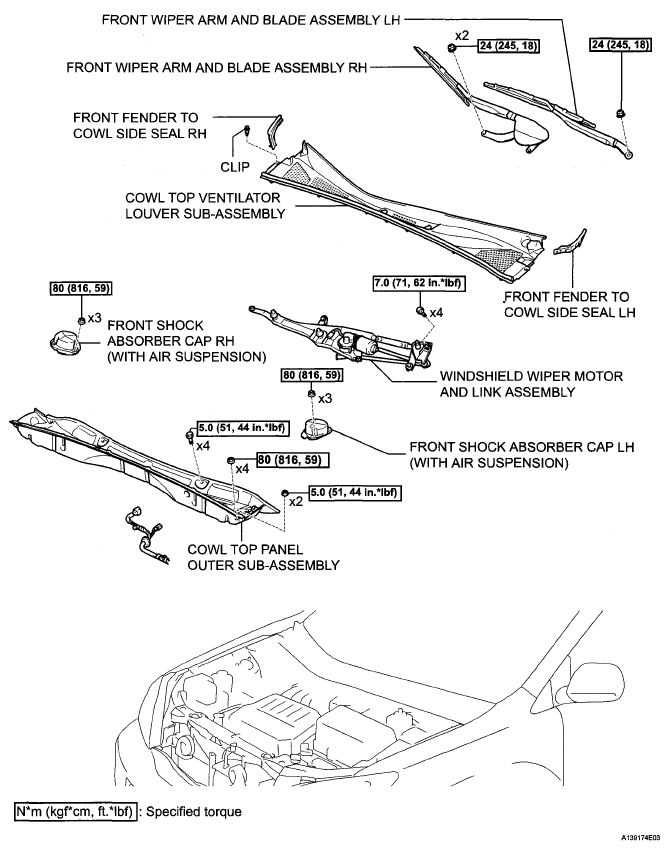

Fig 1: Identifying Ignition Coil Replacement Components With Torque Specifications (1 Of 4)
G05268482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

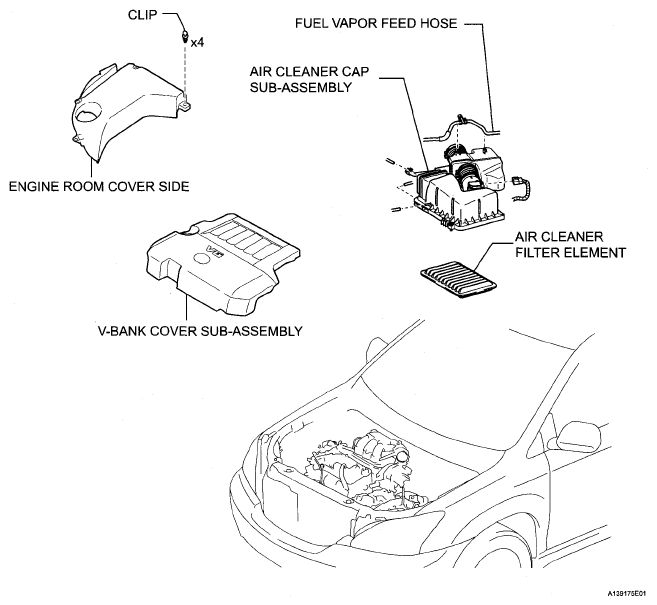

Fig 2: Identifying Ignition Coil Replacement Components (2 Of 4)
G05271519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Ignition Coil Replacement Components With Torque Specifications (3 Of 4)
G04975495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

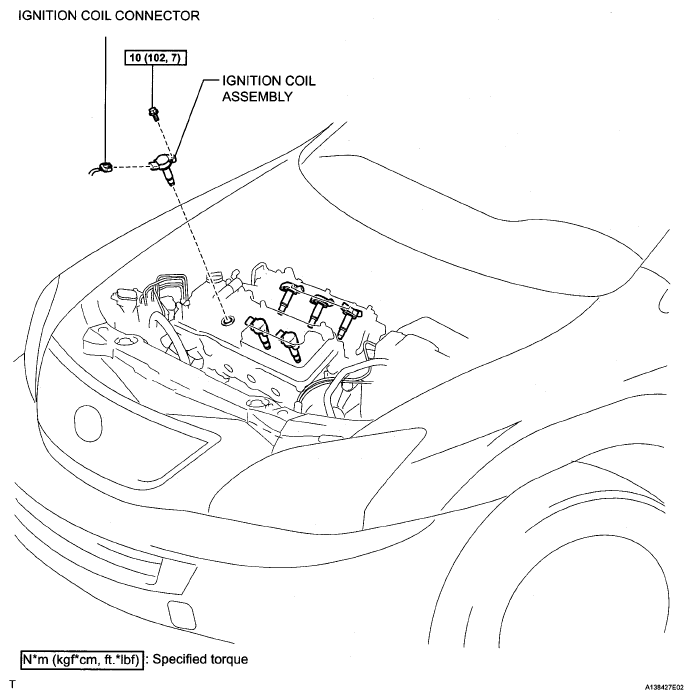

Fig 4: Identifying Ignition Coil Replacement Components With Torque Specification (4 Of 4)
G05268485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
