Parts Location

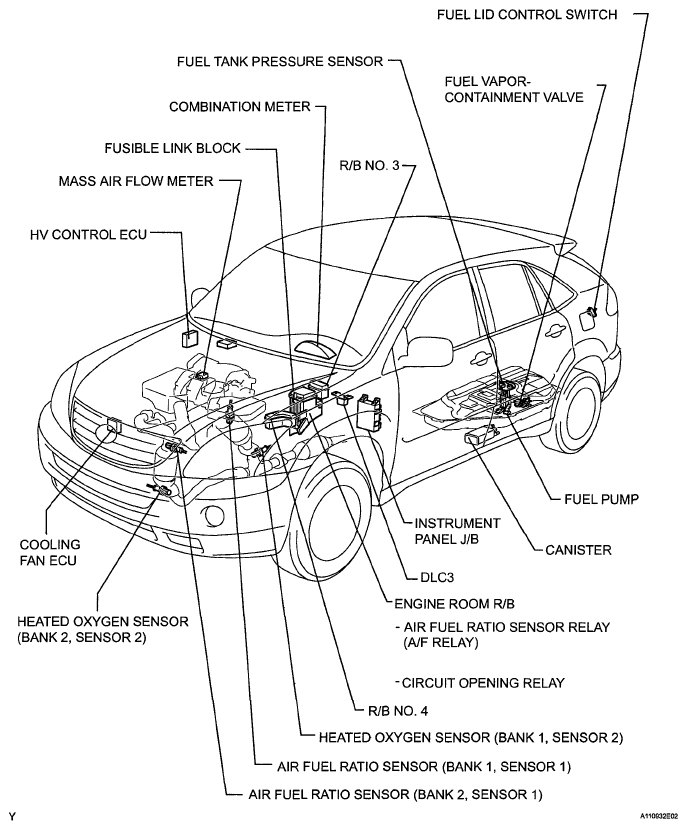

Fig 1: SFI System Parts Location (1 Of 2)
G05275510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

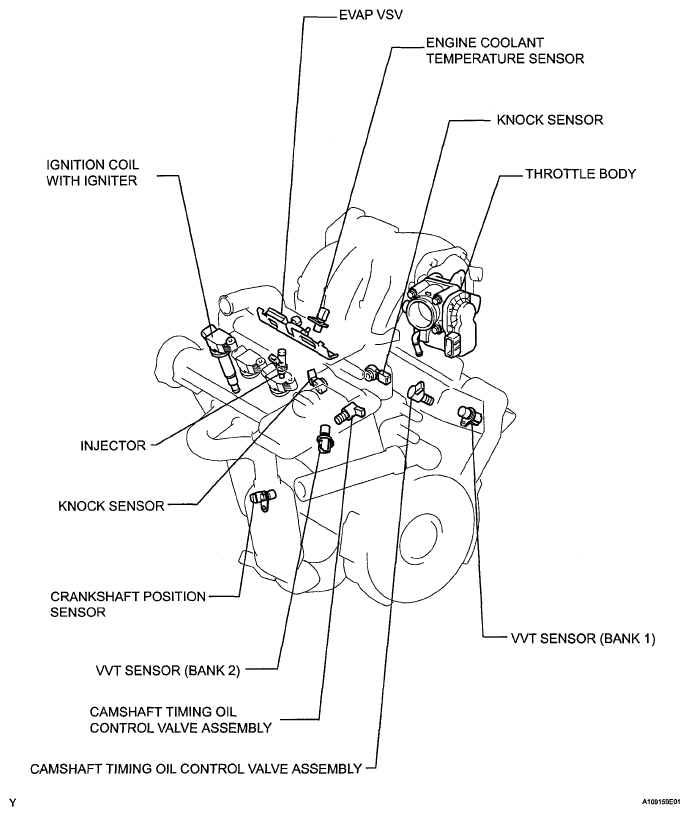

Fig 2: SFI System Parts Location (2 Of 2)
G05275511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
