Terminals Of ECM

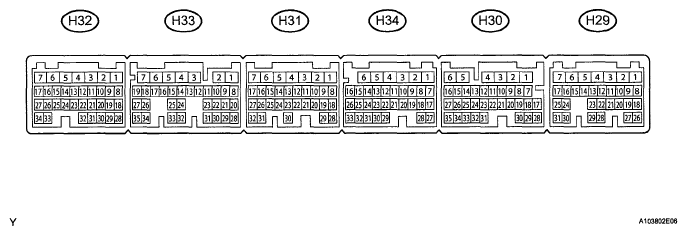

Fig 1: Identifying Terminals Of ECM

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The standard normal voltage between each pair of the ECM (Included in HV control ECU) terminals is shown in the table below. The appropriate conditions for checking each pair of the terminals are also indicated. The result of checks should be compared with the standard normal voltage for that pair of terminals, displayed in the "Specified Condition" column. The illustration above can be used as a reference to identify the ECM terminal locations.

1. WAVEFORM 1

   Camshaft timing oil control valve (OCV)

   WAVEFORM REFERENCE



   ECM Terminal Name	Between OC1+ and OC1- or OC2+ and OC2-
   Tester Range	5 V/DIV, 1 ms./DIV.
   Condition	Idling

   HINT:

   The wavelength becomes shorter as the engine rpm increases.

   Fig 2: Waveform 1 Graph

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. WAVEFORM 2

   Heated oxygen sensor

   WAVEFORM REFERENCE



   ECM Terminal Name	Between OX1B and E2 or OX2B and E2
   Tester Range	0.2 V/DIV., 200 ms./DIV.
   Condition	Engine speed maintained at 2,500 rpm for 2 minutes after warning up engine

   HINT:

   In DATA LIST, item O2S B1 S2 shows the ECM input values from the heated oxygen sensor.

   Fig 3: Waveform 2 Graph

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. WAVEFORM 3

   Injector No. 1 (to No. 6) injection signal

   WAVEFORM REFERENCE



   ECM Terminal Name	Between #10 (to #60) and E1
   Tester Range	2 V/DIV., 20 ms./DIV.
   Condition	Idling

   HINT:

   The wavelength becomes shorter as the engine rpm increases.

   Fig 4: Waveform 3 Graph

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. WAVEFORM 4

   Knock sensor

   WAVEFORM REFERENCE



   ECM Terminal Name	Between KNK1 and EKNK1 Between KNK2 and EKNK2
   Tester Range	0.01 to 10 V/DIV., 0.01 to 10 ms./DIV.
   Condition	Engine speed maintained at 4,000 rpm after warming up engine

   HINT:

   • The wavelength becomes shorter as the engine rpm increases.
   • The waveforms and amplitudes displayed differ slightly depending on the vehicle.
   Fig 5: Waveform 4 Graph

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. WAVEFORM 5

   Crankshaft position sensor and VVT

   WAVEFORM REFERENCE



   ECM Terminal Name	Between NE+ and NE- Between VV1+ and NE- or VV2+ and NE-
   Tester Range	5 V/DIV., 20 ms./DIV.
   Condition	Idling

   HINT:

   The wavelength becomes shorter as the engine rpm increases.

   Fig 6: Waveform 5 Graph

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. WAVEFORM 6

   Igniter IGT signal (from ECM to igniter) and Igniter

   IGF signal (from igniter to ECM)

   WAVEFORM REFERENCE



   ECM Terminal Name	Between IGT (1 to 6) and E1 Between IGF1 and E1
   Tester Range	2 V/DIV., 20 ms./DIV.
   Condition	Idling

   HINT:

   The wavelength becomes shorter as the engine rpm increases.

   Fig 7: Waveform 6 Graph

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. WAVEFORM 7

   EVAP VSV

   WAVEFORM REFERENCE



   ECM Terminal Name	Between PRG and E1
   Tester Range	5 V/DIV, 50 ms./DIV.
   Condition	Idling

   HINT:

   If the waveform is not similar to the illustration, check the waveform again after idling for 10 minutes or more.

   Fig 8: Waveform 7 Graph

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. WAVEFORM 8

   Vehicle speed signal

   WAVEFORM REFERENCE



   ECM Terminal Name	Between SPDI and E1
   Tester Range	2V/DIV., 20ms./DIV.
   Condition	Driving at 12 mph (20 km/h)

   HINT:

   The wavelength becomes shorter as the vehicle speed increases.

   Fig 9: Waveform 8 Graph

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. WAVEFORM 9

   Throttle actuator positive terminal

   WAVEFORM REFERENCE



   ECM Terminal Name	Between M+ and ME01
   Tester Range	5 V/DIV, 1ms./DIV.
   Condition	Idling with warm engine

   HINT:

   The duty ratio varies depending on the throttle actuator operation.

   Fig 10: Waveform 9 Graph

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. WAVEFORM 10

    Throttle actuator negative terminal

    WAVEFORM REFERENCE



    ECM Terminal Name	Between M- and ME01
    Tester Range	5 V/DIV., 1 ms./DIV.
    Condition	Idling with warm engine

    HINT:

    The duty ratio varies depending on the throttle actuator operation.

    Fig 11: Waveform 10 Graph

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
11. WAVEFORM 11

    CAN communication signal

    WAVEFORM REFERENCE



    ECM Terminal Name	Between CANH and E1
    Tester Range	1 V/DIV, 10 μs/DIV.
    Condition	Stop engine and ignition switch ON

    HINT:

    The waveform varies depending on the CAN communication signal.

    Fig 12: Waveform 11 Graph

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
12. WAVEFORM 12

    CAN communication signal

    WAVEFORM REFERENCE



    ECM Terminal Name	Between CANL and E1
    Tester Range	1 V/DIV, 10 μs/DIV.
    Condition	Stop engine and ignition switch ON

    HINT:

    The waveform varies depending on the CAN communication signal.

    Fig 13: Waveform 12 Graph

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
