Abs Main Relay: Inspection

1. Measure the resistance according to the value(s) in the table below.

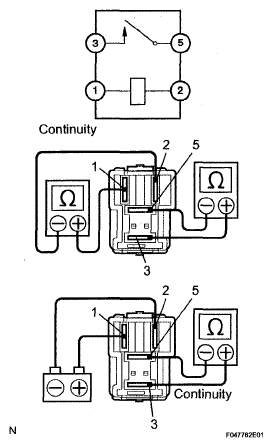

   Fig 1: Inspecting ABS Main Relay (ABS No.1 Relay, ABS No.2 Relay)

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   Resistance

   TESTER CONNECTION SPECIFIED CONDITION CHART



   Tester Connection	Specified Condition
   Terminal 1 - Terminal 2	100 Ω
   Terminal 3 - Terminal 5	10 kΩ or higher (No Continuity)

2. Apply battery voltage between terminals 1 and 2.
3. Measure the resistance according to the value(s) in the table below.

Resistance
