Front Speed Sensor: Components

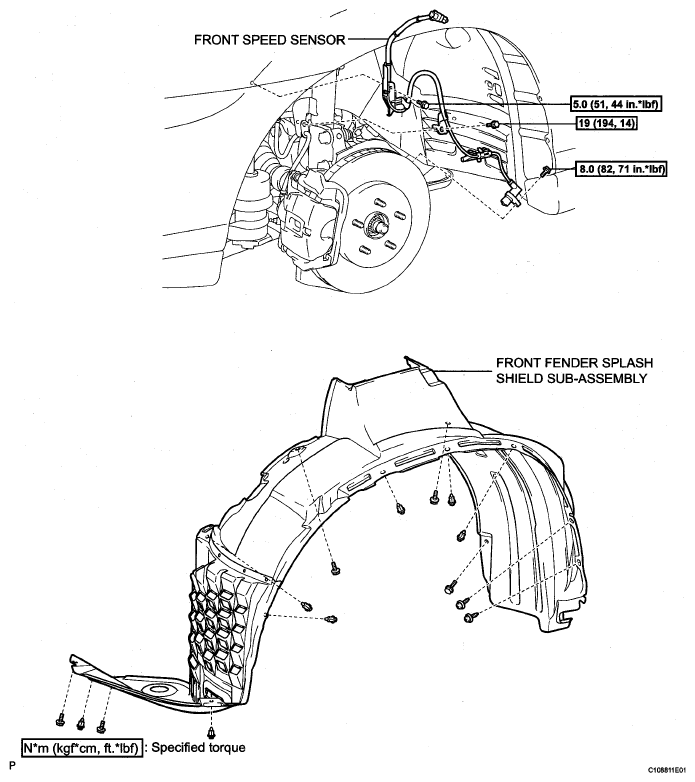

Fig 1: Front Speed Sensor Replacement Components With Torque Specifications
G05276970Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
