Front Speed Sensor: Removal

  1. REMOVE FRONT WHEEL
  2. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY
    1. Remove the bolts, screws, clips and front fender splash shield sub-assembly.
  3. REMOVE FRONT SPEED SENSOR
    1. Disconnect the front speed sensor connector.
    2. Remove the 2 bolts from the body and the shock absorber assembly.

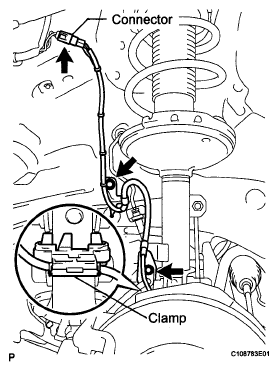

      3. Fig 1: Locating Body And Shock Absorber Assembly Bolts
      G05276971Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
    3. Remove the clamp from the steering knuckle.
    4. Remove the bolt and the front speed sensor.
    NOTE:
    • Prevent foreign matter from attaching to the sensor tip.
    • Clean the installation hole and the surface for the speed sensor every time the speed sensor is removed.
    Fig 2: Locating Front Speed Sensor Bolt
    G05202813Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
