Steering Angle Sensor: Components

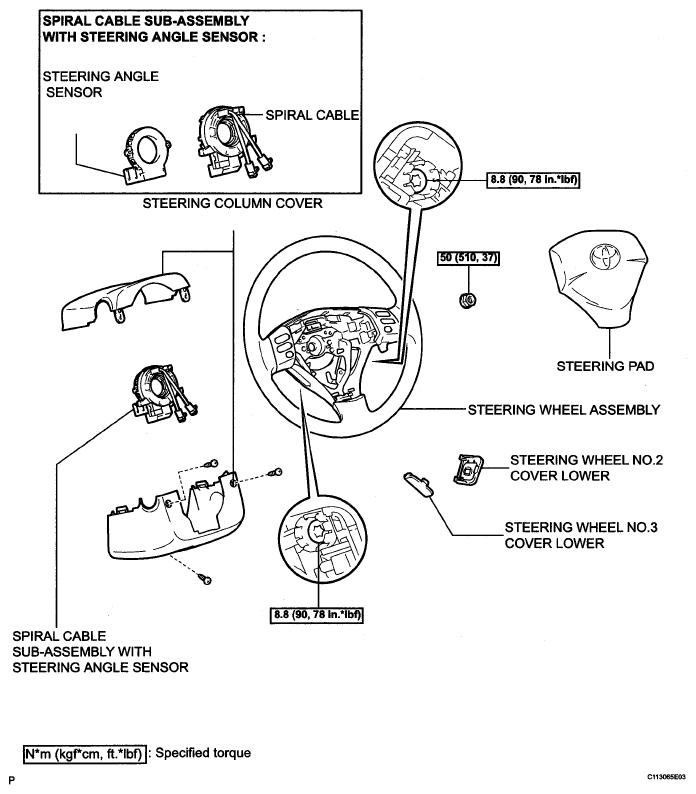

Fig 1: Steering Sensor Assembly Replacement Components With Torque Specifications
G05276995Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
