Customize Parameters

HINT:

The following items can be customized.

NOTE:
  • When the customer requests a change in a function, first make sure that the function can be customized.
  • Be sure to make a note of the current settings before customizing.
  • When troubleshooting a function, first make sure that the function is set to the default setting.
  1. POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM

    Tilt & Telesco

    TILT & TELESCO - CUSTOMIZE PARAMETERS

    DISPLAY DEFAULT CONTENTS SETTING
    AUTO AWAY/RETURN FUNCTION ON ON/OFF of the auto away/return function ON/OFF
  2. AIR CONDITIONING SYSTEM

    AIR CONDITIONER

    AIR CONDITIONER - CUSTOMIZE PARAMETERS

    DISPLAY (ITEM) DEFAULT CONTENTS SETTING
    SET TEMP SHIFT (Set temperature shift) NORMAL To control with the shifted temperature against the display temperature. +2C / +1C / NORMAL / -1C / -2C
    AIR INLET MODE (Air inlet mode) AUTO In case of turning the A/C ON when you desire to make the compartment cool down quickly, this is the function to change the mode automatically to RECIRCULATED mode. MANUAL / AUTO
    COMPRESSOR MODE (Compressor mode) AUTO Function to turn the A/C ON automatically by pressing the AUTO button when the blower is ON and the A/C is OFF. MANUAL / AUTO
    COMPRESSOR/DEF OPER (Compressor/DEF operation mode) LINK Function to turn the A/C ON automatically linking with the FRONT DEF button when the A/C is OFF. NORMAL / LINK
    FOOT/DEF MODE (Foot/DEF auto mode) ON Function to turn the air flow from FOOT/DEF to ON automatically when AUTO MODE is ON. OFF / ON
    AUTO BLOW UP (Foot/DEF automatic blow up function) ON Function to switch the blower level automatically when the defroster is ON. OFF / ON
    AMBIENT TMP SFT (Ambient temperature shift) NORMAL To control with the shifted ambient temperature against the display ambient temperature. +3C / +2C / +1C / NORMAL / -1C / -2C / -3C
  3. THEFT DETERRENT SYSTEM

    THEFT DETERRENT SYSTEM

    THEFT DETERRENT SYSTEM - CUSTOMIZE PARAMETERS

    DISPLAY (ITEM) DEFAULT CONTENTS SETTING
    PASSIVE MODE (Passive Arming Mode) OFF PASSIVE MODE is a function that switches theft deterrent system from arming preparation state to armed state 30 seconds after key is removed from ignition key cylinder and driver side door is closed, even if doors are not locked by wireless or door key lock operation
    In PASSIVE MODE, if you do not perform following operations within 14 seconds after door is opened during armed state, theft deterrent system will judge that condition as a theft and switch to alarm sounding state
    • Unlock any door by wireless operation
    • Reconnect battery
    • Insert key into ignition key cylinder and turn ignition switch from OFF to ON
    • Unlock any door by key operation
    		 ON/OFF
    WARN BY HORN (Warning by horn) ON Function that makes vehicle horn and theft deterrent horn be able to be used as a warning device ON/OFF
    ENTRY DELAY (Entry delay time) 14 s Function that changes entry delay time (time before warning starts) for PASSIVE MODE 0 s/14 s/30 s
  4. LIGHTING SYSTEM

    ILLUMINATED ENTRY

    ILLUMINATED ENTRY - CUSTOMIZE PARAMETERS

    DISPLAY (ITEM) DEFAULT CONTENTS SETTING
    LIGHTING TIME (Lighting Time) 15 s To change the lighting time after closing the door. (It will quickly fade out in case of turning the ignition ON.) 7.5 s/15 s/30 s
    ILLUMI SYSTEM (Operation of illumination) ON Function to light up the step light, center console light and door inside handle light when one of the following occurs; the ignition turned ON, door unlock or door open. ON / OFF
    LIGHT CONTROL (Light control) ON Function to light up the step light and door inside handle light when the ignition switch is ON and the shift position is not P. ON / OFF
    I/L ON / UNLOCK (Interior light ON w/ door key unlock) ON Function to light up the interior light*, ignition light and step light when unlocking with the door key cylinder.
    *: Interior light comes on when the interior light switch is at the DOOR position.    		 ON / OFF
    I/L ON/ACC OFF (Illumination system with ACC OFF) ON Function to light the interior light* and door courtesy light when the ignition switch is operated from "ACC" to "LOCK".
    *: interior light comes on when the interior light switch is at the DOOR position.    		 ON/OFF

    LIGHT CONTROL

    LIGHT CONTROL - CUSTOMIZE PARAMETERS

    DISPLAY (ITEM) DEFAULT CONTENTS SETTING
    LIGHT OFF DELAY (Light Auto OFF Delay) 30 s Function to keep on lighting the headlight for a certain period of time after closing all the doors with the ignition switch turned OFF from ON under the condition that the light control switch is at HEAD or AUTO with the headlight ON. OFF/30 s/60 s/90 s
    LIGHT CTRL TYPE (Control Type) CURRENT To change the control logic when the light control switch is AUTO position. Refer to the *1 illustration (See  4) . CURRENT / OLD
    SENSITIVITY (Turn ON luminous intensity) NORMAL To adjust the sensitivity of the lighting illumination. Refer to the *2 illustration (See Fig 1) . DARK2 / DARK1 / NORMAL / LIGHT1 / LIGHT2
    DISP EX ON SEN (Display Extinction Luminous Intensity) NORMAL To change the brightness of lowering the lights such as the indicator light of the combination meter, A/C indicator light, clock. Refer to *3 illustration (See Fig 1) . DARK2 / DARK1 / NORMAL / LIGHT1 / LIGHT2
    DISP EX OFF SEN (Display Extinction Release Luminous Intensity) NORMAL To change the brightness of canceling the lowering the lights such as the indicator light of the combination meter, A/C indicator light, clock. Refer to *4 illustration (See Fig 1) . DARK2 / DARK1 / NORMAL / LIGHT1 / LIGHT2

    HINT:

    Sensitivity adjustment can hardly be confirmed. Please check by customer's actual driving.

    Illustration *1

    LIGHT BRIGHTNESS CHART

      Brightness of the surrounding when lighting Lighting delay Delay of turning light off (2)
    OLD Old logic 6 sec. 6 sec. 3 sec.
    CURRENT New logic (1)('97/8-) 15 sec. 15 sec. 15 sec.
    (1) The new one has the logic to light up two times brighter than the old logic.
    (2) Delay time until the headlight is turned on when it suddenly gets dark.
    Fig 1: Light Brightness Chart
    G05267406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. WIPER AND WASHER SYSTEM

    WIPER

    WIPER AND WASHER SYSTEM - CUSTOMIZE PARAMETERS

    Display (Item) Default Contents Setting
    SPEED MODE (Speed mode) Avail Function to change to the intermittent operation when the vehicle comes to stop ( 0 vehicle speed) from running condition in case that the wiper switch is at the LO position. NOT AVAIL / AVAIL
    AUTO WIPER (Auto wiper) Avail Function to operate the wiper automatically when it is raining NOT AVAIL / AVAIL
    REWIPE CONTROL (Rewipe control) SPD MOD Function to change time until operating the wiper to prevent dropping after having used the washer. OFF / 3 s / SPD MOD
  6. POWER DOOR LOCK CONTROL SYSTEM

    Body ECU

    POWER DOOR LOCK CONTROL SYSTEM - CUSTOMIZE PARAMETERS

    Display (Item) Default Contents Setting
    AUTO LOCK DELAY 30s Function that selects AUTO LOCK time 30 sec. or 60 sec. 30s/60s
    AUTO LOCK (Auto Lock) OFF Function that locks doors when vehicle reaches a vehicle speed of 20 km/h (13 mph) ON/OFF
    UNLK/KEY TWICE (Unlock w/ 2 times D key operation) ON
    • Function that unlocks only driver side door when driver side door key cylinder is turned to unlock once and unlocks all the doors when it is turned to unlock twice
    • In OFF setting, turning it once unlocks all doors
    		 ON/OFF
    ALL UNLK/OPN-CL (All unlock w/ D door open-close) OFF Function that unlocks all other doors when opening driver side door within 10 seconds after turning the ignition switch off from ON ON/OFF
    UNLOCK/PARK (Unlock w/ IG ON, shift P, speed 0 (0 mph) OFF Function that unlocks doors when lever is shifted to P position from any position other than P while the ignition switch is ON ON/OFF
    AUTO LOCK/SHIFT (Auto Lock/shift not P) ON Function that locks doors when lever is shifted from P position to any position other than P ON/OFF
  7. WIRELESS DOOR LOCK CONTROL SYSTEM
    WIRELESS DOOR LOCK CONTROL SYSTEM - CUSTOMIZE PARAMETERS

    Item (Display) Default Contents Setting
    OPEN DOOR WARN (Open door warning) ON If a door is not completely closed and LOCK is pressed, this function sounds a buzzer for 10 seconds. ON / OFF
    WIRLS BUZZ RESP (Buzzer answer-back of Wireless) ON This function makes the wireless door lock buzzer sound for answer-back when LOCK/UNLOCK is pressed. ON/OFF
    WIRELESS OPER (Wireless door lock control function) ON This function turns the wireless door lock function on or off. ON / OFF
    ALARM FUNCTION (Panic function) ON This function operates the theft deterrent system when PANIC is pressed and held for 0.8 ((1)) or 2.5 ((2)) seconds. ON / OFF
    UNLOCK/2OPER (Wireless unlock operated twice) ON This function unlocks the driver side door when UNLOCK is pressed once, and unlocks all doors when pressed twice. If set to OFF, pressing UNLOCK once unlocks all doors. ON / OFF
    AUTO LOCK DELAY (Auto lock time) 30 s This function controls the amount of time from unlocking doors to automatic re-locking. 30 s / 60 s
    HAZARD ANS BACK (Hazards answer-back for wireless door lock operation) ON When LOCK is pressed, all hazard warning lights flash once. When UNLOCK is pressed, all hazard warning lights flash twice. ON / OFF
    (1) w/ Power Back Door
    (2) w/o Power Back Door
  8. METER / GAUGE SYSTEM
    1. BUZZER ON/OFF SETTING

      The buzzer ON/OFF setting, which is a setting of the buzzer function of the combination meter, can disable the driver side seat belt buzzer and front passenger side seat belt buzzer.

      NOTE: Basically, these buzzers should be set on for safe driving. Perform the procedures only if it is necessary to set the buzzer off.

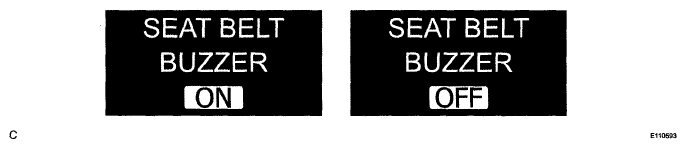

      Fig 2: Identifying Seat Belt Buzzer ON And OFF
      G05199682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      PROCEDURE:

      BUZZER SETTING PROCEDURE

      Steps Driver Side Seat Belt Buzzer Front Passenger Side Seat Belt Buzzer
      1 Turn the ignition switch ON. Turn the ignition switch ON.
      2 Press the ODO/TRIP switch until the odometer displays "ODO". Press the ODO/TRIP switch until the odometer displays "ODO".
      3 Turn the ignition switch OFF. Turn the ignition switch OFF.
      4 Turn the ignition switch ON. Turn the ignition switch ON.
      5 Press the ODO/TRIP switch immedeately (within 6 seconds) and hold it down for 10 seconds or more. Sit in the front passenger seat. Press the ODO/TRIP switch immediately (within 6 seconds) and hold it down for 10 seconds or more.
      6 Continue holding down the ODO/TRIP switch and fasten the driver side seat belt. Continue holding down the ODO/TRIP switch, fasten and release the passenger side seat belt.
      7 Check that the odometer displays either "SEAT BELT BUZZER ON" or "SEAT BELT BUZZER OFF" Check that the odometer displays either "SEAT BELT BUZZER ON" or "SEAT BELT BUZZER OFF"
      8 Press the ODO/TRIP switch to change the display to "SEAT BELT BUZZER OFF". Press the ODO/TRIP switch to change the display to "SEAT BELT BUZZER OFF".
      9 Turn the ignition switch OFF. Turn the ignition switch OFF.
      10 Turn the ignition switch ON. Turn the ignition switch ON.
      11 Check that no buzzer sounds. Check that no buzzer sounds.

      *: "SEAT BELT BUZZER OFF" indicates that the buzzer is OFF. "SEAT BELT BUZZER ON" indicates that the buzzer is ON. The buzzer ON/OFF setting will be finished (the odometer will display "ODO") if the ODO/TRIP switch is not operated for 10 seconds or more. In this case, perform step  11 to check that the buzzer ON/OFF setting is complete. If it is not complete, start from step  1 again.

      NOTE: When either the battery cable or the combination meter connector is disconnected, these buzzers are set on.
    2. OTHER PARAMETERS (Using Intelligent tester)

      METER:

      METER - CUSTOMIZE PARAMETERS

      Display (Item) Default Contents Setting
      KEY REMND SOUND NORMAL Function to change cycle of key remind warning buzzer. 600 / 900 / 1,200 ms
    3. TIME ZONE SETTING (w/ Navigation System)

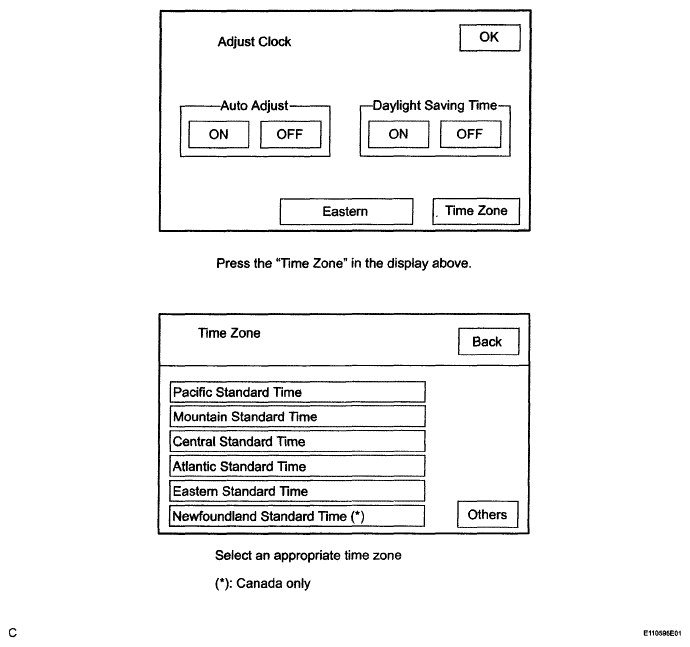

    Fig 3: Intelligent Tester Display - Time Zone Setting (W/ Navigation System)
    G05199683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. POWER WINDOW CONTROL SYSTEM

    POWER WINDOW

    POWER WINDOW CONTROL SYSTEM - CUSTOMIZE PARAMETERS

    DISPLAY (ITEM) DEFAULT CONTENTS CONTENTS SETTING
    UP/DOOR KEY (Door key linked P/W UP) ON Function that enables all power windows to move up manually, via manual operation, when driver side door key cylinder is held in lock position for 1.5 seconds when ignition switch is off. ON/OFF
    DOWN/DOOR KEY (Door key linked P/W DOWN) ON Function that enables all power windows to move down manually, via manual operation, when driver side door key cylinder is held in unlock position for 1.5 seconds when ignition switch is off. ON/OFF
    DOWN/WIRELESS (P/W DOWN w/ transmitter) ON Function that enables all power windows to move down manually, via manual operation, when unlock switch on transmitter is held for 1.5 seconds when ignition switch is off. ON/OFF
    UP/WIRELESS (P/W UP w/ transmitter) ON Function that enables all power windows to move up manually, via manual operation, when lock switch on transmitter is held for 1.5 seconds when ignition switch is off. ON/OFF
  10. POWER BACK DOOR SYSTEM

    Power back door ECU

    POWER BACK DOOR SYSTEM - CUSTOMIZE PARAMETERS

    DISPLAY (ITEM) DEFAULT CONTENTS SETTING
    PBD SW OPER 0.8s Function that turns power back door closer switch ON when switch is pushed once or held down for 0.8 sec. 0.8s/ON
    PBD BUZZ VOL LARGE Function that adjusts the volume of warning buzzer that notifies power back door is operating OFF/SMALL/LARGE
    PBD ONE MOTION OFF Function to operate PBD by transmitter (0.8 sec. press) when back door is locked. ON/OFF
    WIRELS PBD OPER 0.8s Function that operates power back door when transmitter switch is pressed in specified way (1-press, 2-presses, 0.8 sec-press or OFF*1) ON/TWICE ON/0.8s/OFF
    PBD ASSIST OPN*2 OFF Function that helps power back door opening operation ON/OFF
    HINT:
    • *1: Wireless (transmitter switch) operation of the power back door is disabled.
    • *2: When this item is set to ON:

    When the back door is fully closed, pulling the back door opener switch (outside handle switch) activates the power back door system to automatically open the back door after that it is unlatched.

  11. SLIDING ROOF SYSTEM

    CUSTOMIZING FUNCTION WITH INTELLIGENT TESTER (REFERENCE)

    Sliding roof ECU

    SLIDING ROOF ECU - CUSTOMIZE PARAMETERS

    Display (Item) Default Contents Setting
    OPEN/DOOR KEY (Door key related OPEN) ON Function to manually open sliding roof linked with power window if holding driver side door key for 1.5 seconds or more to unlock position when engine switch is off ON/OFF
    CLOSE/DOOR KEY (Door key related CLOSE) ON Function to manually close sliding roof linked with power window if holding driver side door key for 1.5 seconds or more to lock position when engine switch is off ON/OFF
    OPEN/WIRELESS (Wireless key related OPEN) ON Function to manually open sliding roof linked with power window if pressing transmitter UNLOCK switch for 1.5 seconds or more when engine switch is off ON/OFF
    DOOR KEY OPER (Door key related operation) SLIDE Function to select tilt up or slide open of manual sliding roof operation linked with power window
    Activate by holding driver side door key for 1.5 seconds or more to unlock position when engine switch is off    		 TILT/SLIDE
    WIRELESS OPER (Wireless key related operation) SLIDE Function to select tilt up or slide open of manual sliding roof operation linked with power window
    Activate by pressing on transmitter UNLOCK switch for 1.5 seconds or more when engine switch is off    		 TILT/SLIDE
