Remote Up / Down Function does not Operate: Wiring Diagram

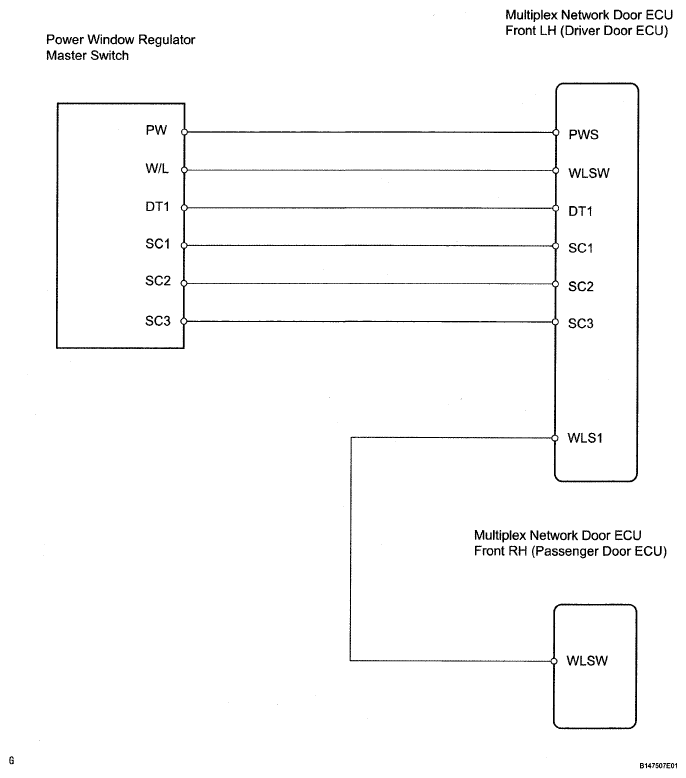

Fig 1: Remote Up/Down Function Does Not Operation - Wiring Diagram
G05293434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
